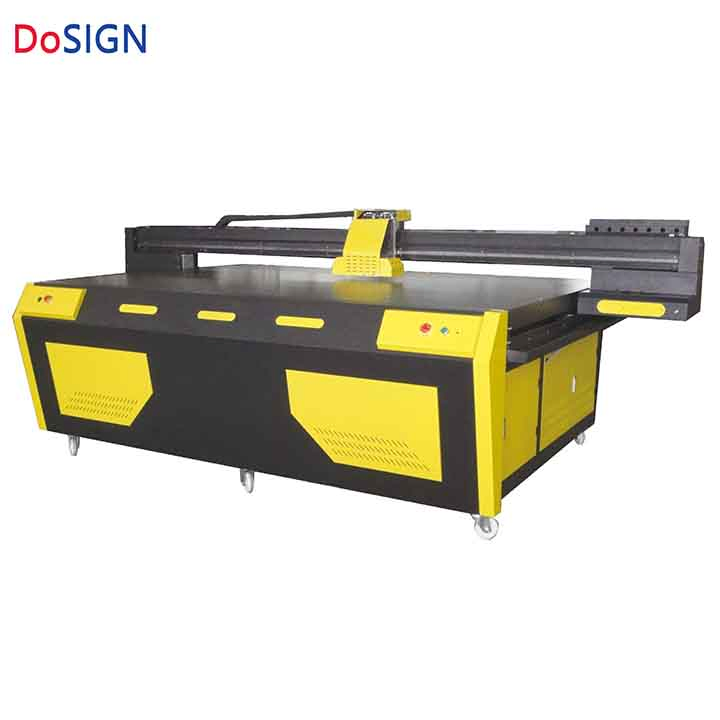

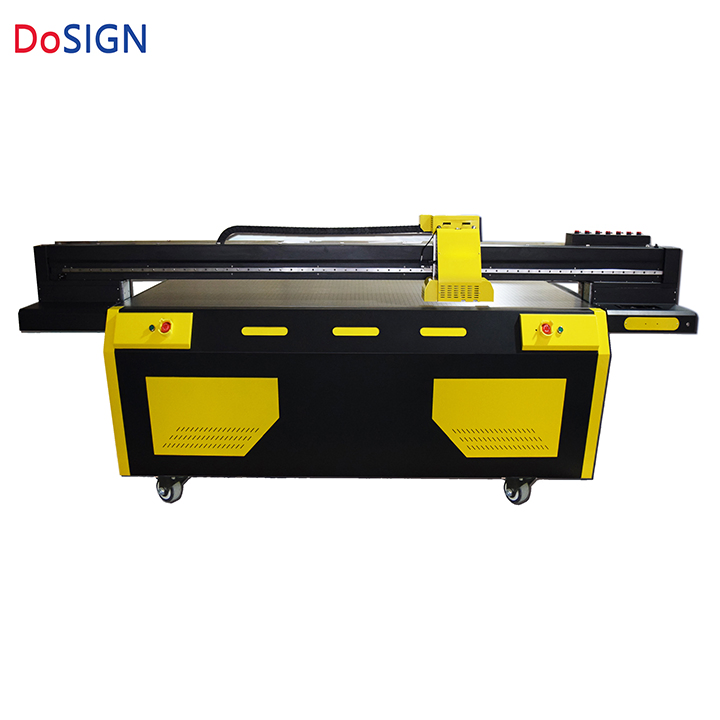

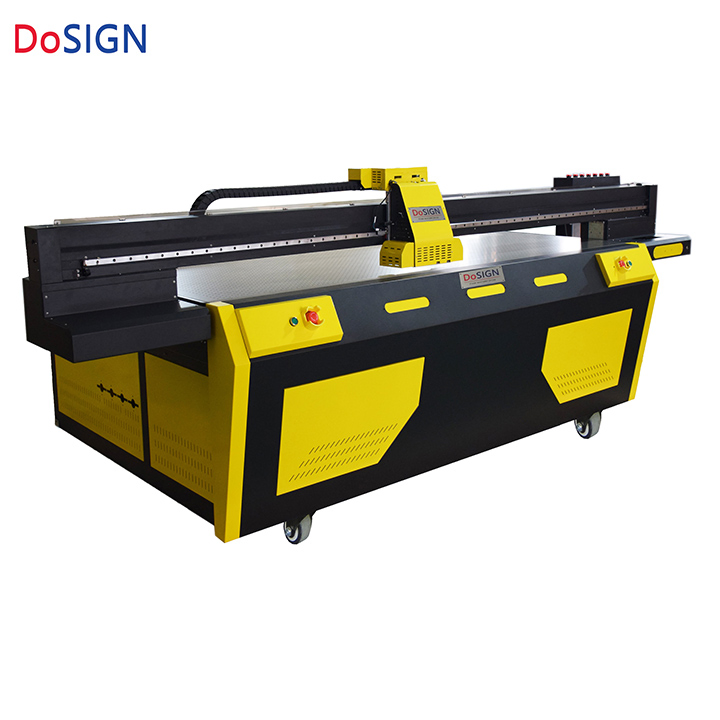

Factory Industrial Fast Digital Glass Ceramic Tile Plastic Aluminum Flatbed UV Printer

1 / 5

Factory Industrial Fast Digital Glass Ceramic Tile Plastic Aluminum Flatbed UV Printer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DS-EP2513U

Printing Type

UV Inkjet Printer

Usage

Label, Card, Cloths, Wood, Metal, Acrylic

Automatic Grade

Automatic

Printing Speed

10sqm/H

Print Head

Epson Tx800 Printheads

Printing Size

1.3X2.5m

Table Type

Fixed Vacuum Platform

Cooling Method

Water Circulation Cooling

Printing Color

CMYK LC LM White Glossy

HS Code

8443322100

Board System

Byhx Boards

Product Overview

The High Capacity UV Flatbed Printer is designed to satisfy international production standards for industrial products. Featuring 2 or 3 Pieces of Epson TX800 print heads, it ensures high-speed printing for CMYK + White + Varnish in a single pass with the highest resolution.

Industrial Performance: Equipped with a new double lead screw stepper drive system and 180mm steel quenching processing, ensuring the head carriage's accurate and fast speed movement while eliminating shade stripes.

Variable Ink Drops
Intelligent variable ink drops technology allows small drops for amazing sharpness and large drops for fast coverage of dense areas.

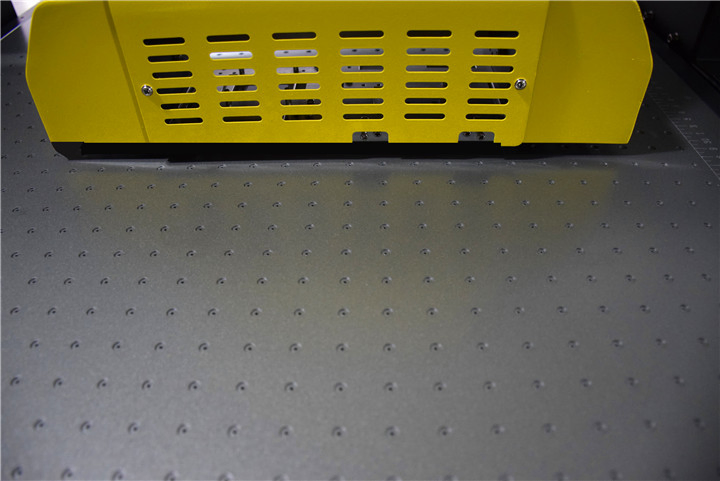

Vacuum Adsorption Platform
Hard oxydic vacuum platform provides higher hardness, protecting the surface from damage by hard materials.

Automation Features
Automatic material thickness detection and positioning system simplify operation and ensure high efficiency.

Technical Specifications

Parameter	Details
Print size	(Width) 2500 * (Length) 1300mm
Printing thickness	90mm
Ink Color Mode	CMYK / CMYK+W / CMYK+W+Glossy
Printing Precision	4320DPI * 720DPI
Print Speed	Production mode: 8.5m²/h; Precision mode: 6.5m²/h
Curable Method	LED UV light curing (up to 20,000 hours life)
Interface	USB 2.0 and 100base-T Ethernet
Equipment Weight	800kg
Dimensions	4050 * 2100 * 1260mm

Detailed Components

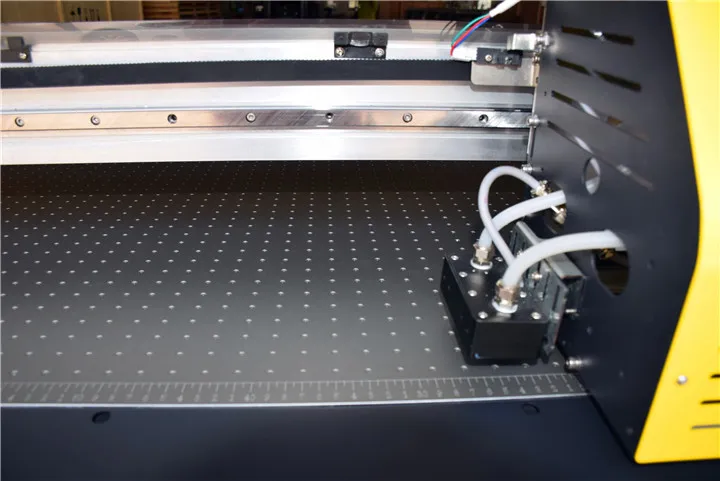

Dual HiWIN Linear Rail Guider

3 Heads Individual Capping System

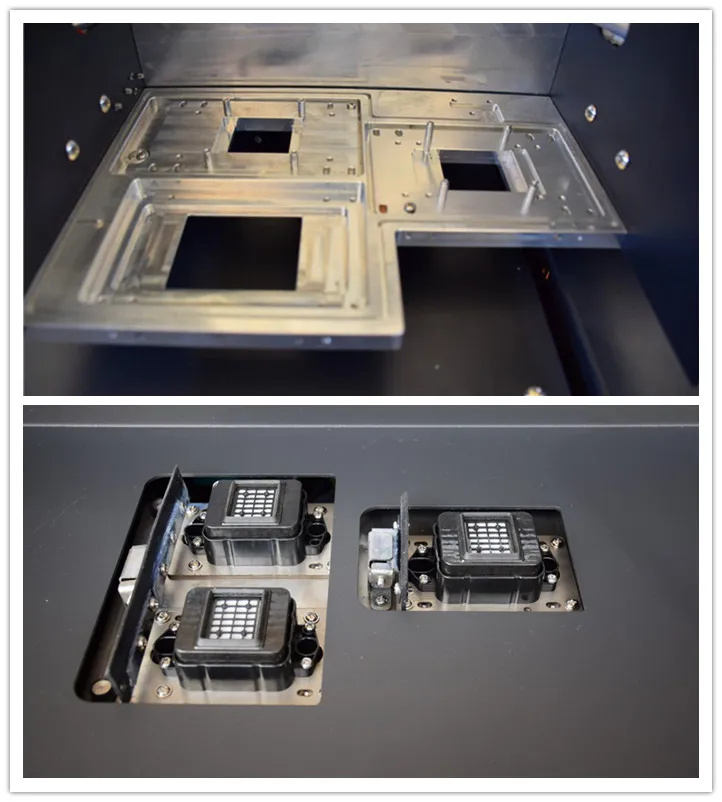

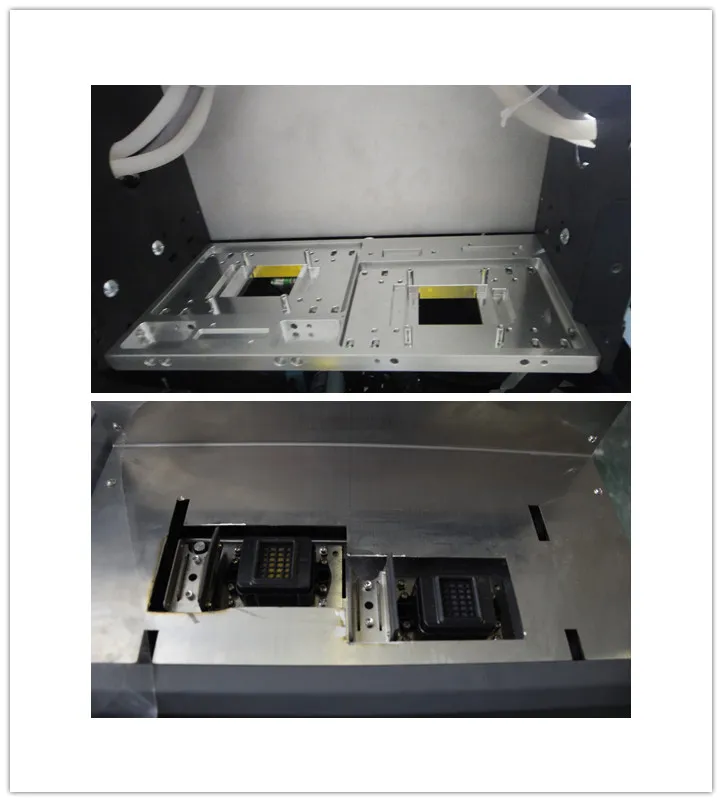

CNC Aluminum Printhead Base

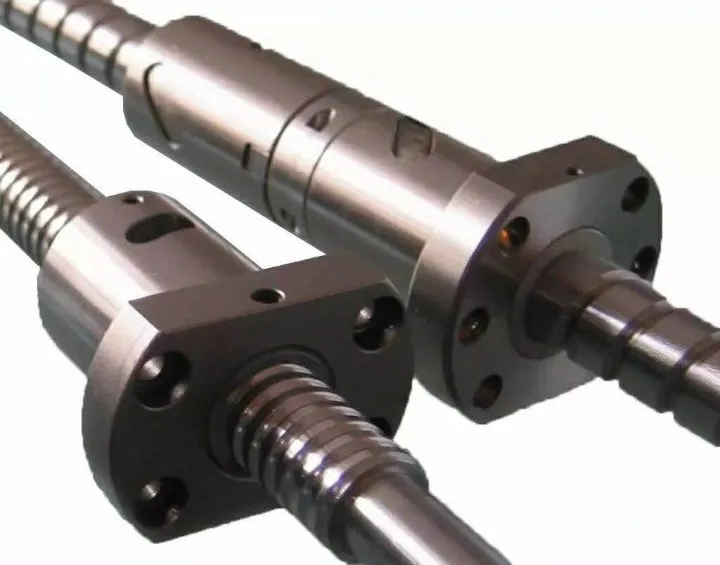

High Precision Ball Screw

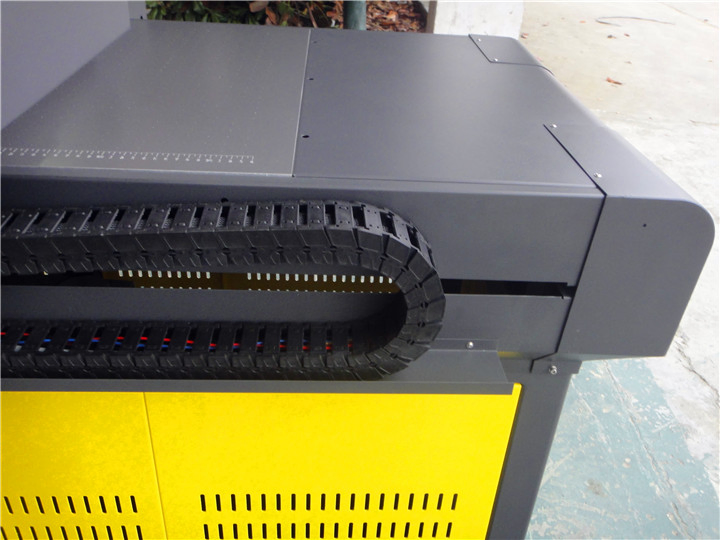

Protective Industry Chain

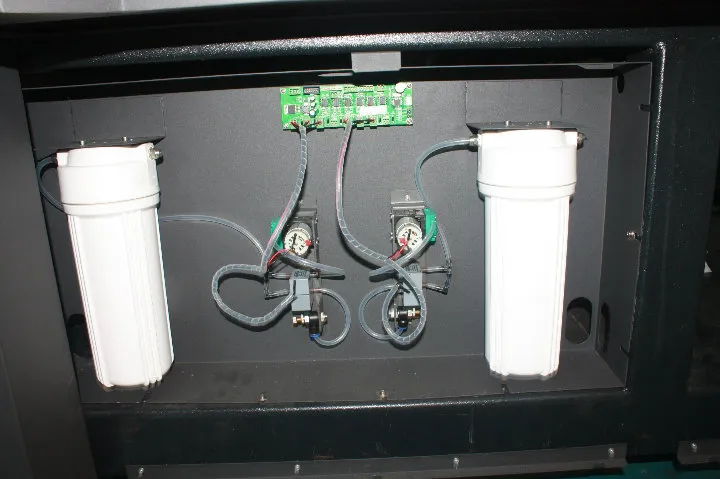

White Ink Circulation System

Frequently Asked Questions

What materials can this UV printer print on?

This printer is highly versatile and can print on PVC, glass, ceramic tiles, leather, decorative panels, metal plates, wood, mobile phone shells, and almost any other flat materials.

What is the maximum printing size and thickness?

The maximum printing area is 2.5m x 1.3m, with a maximum material thickness capacity of 90mm.

How many print heads does the machine use?

The machine is equipped with either 2 or 3 pieces of Epson TX800 print heads, allowing for CMYK, White, and Glossy/Varnish printing in a single pass.

What are the advantages of the LED curing system?

The high-performance LED UV lamps provide instant curing, ensuring excellent ink adhesion and a lifespan of up to 20,000 hours.

Does the printer have a white ink maintenance system?

Yes, it features a double white ink circulation system that works continuously to keep the ink fluid and prevent nozzle clogging during operation.

How does the vacuum platform benefit the printing process?

The hard oxydic vacuum adsorption platform securely holds materials in place, ensuring precise alignment and preventing movement during high-speed printing.
