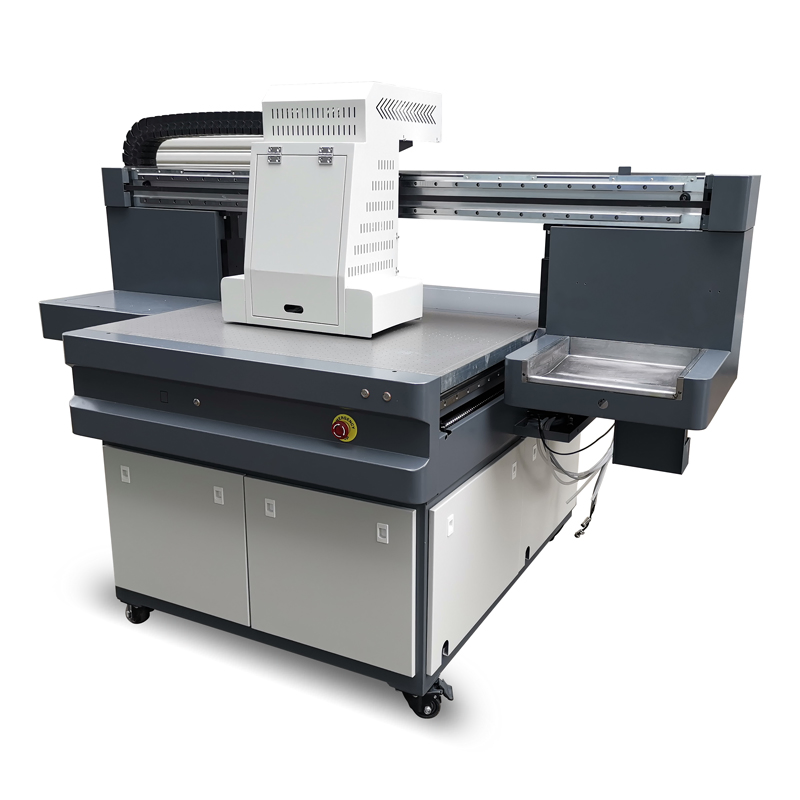

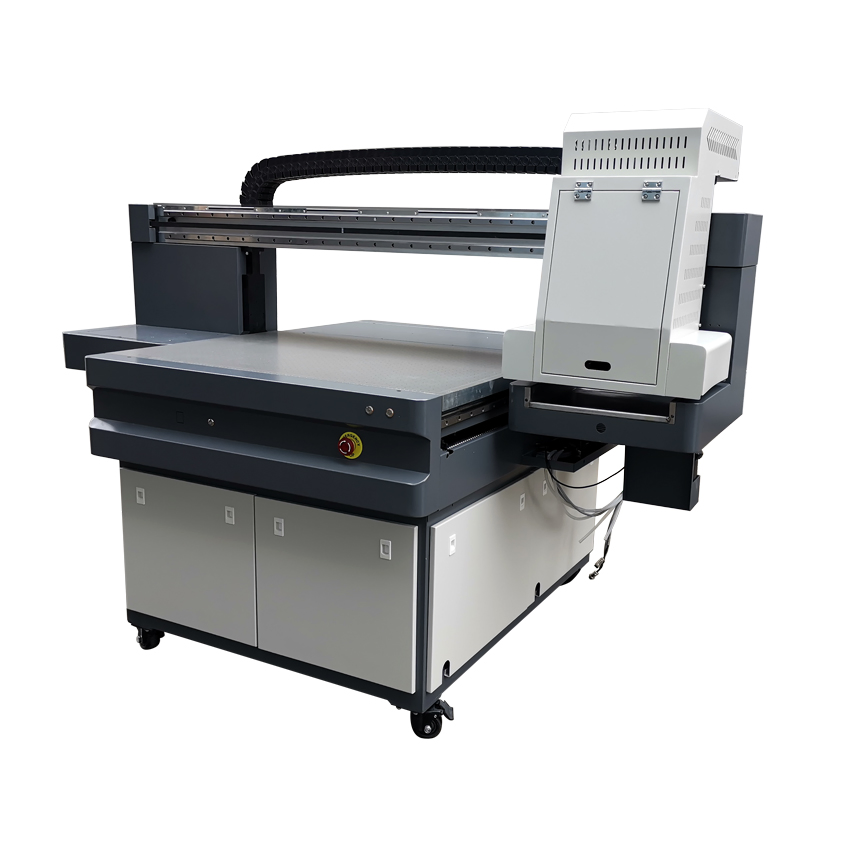

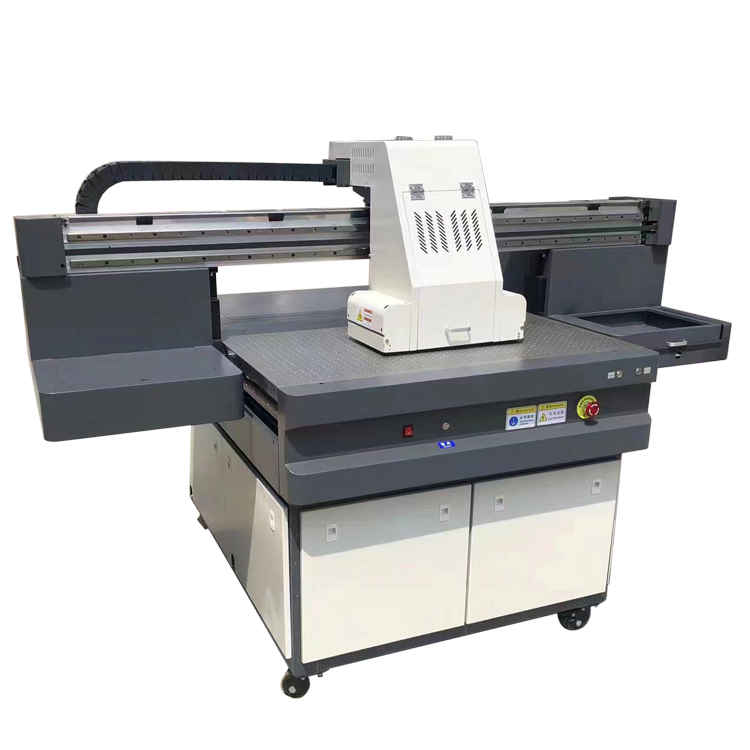

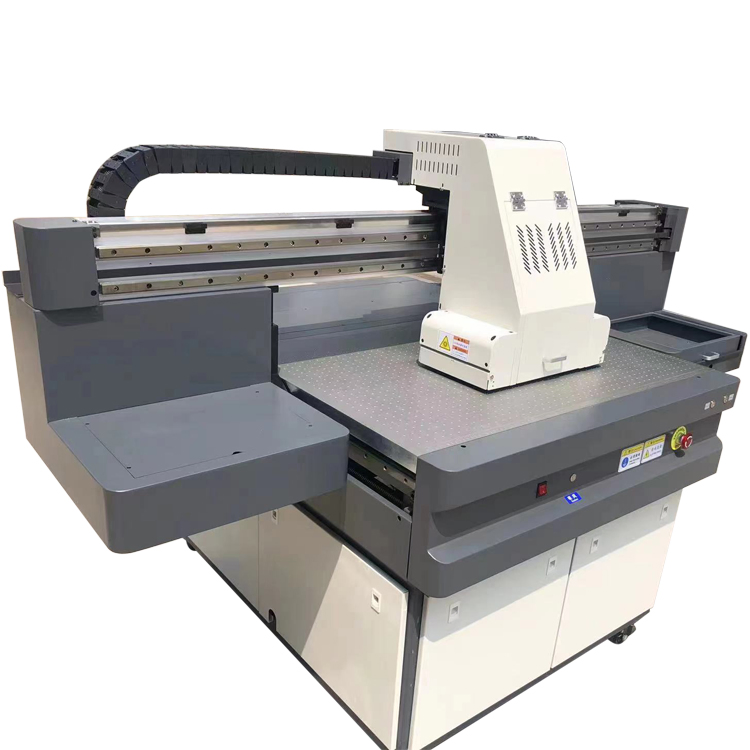

Industrial Large Format UV Flatbed Printer: Designed for industrial bulk production with high printing speed. It can print on almost any material directly. With UV light irradiating during the printing procedure, images on the object surface dry fast and offer excellent scratch resistance.
★Wide Substrate Compatibility: Print directly on wood, PVC, acrylics, leather, glass, crystal, ceramics, rubber, aluminum, and copper. Ideal for custom gifts, promotional items, pens, golf balls, and phone cases.
★3D Embossed Effect: Advanced LED UV curing technology allows for amazing 3D textured and raised printing effects.
★High Resolution: Powered by piezo technology, achieving up to 2880 dpi for sharp detailing and fine text rendering.
★Versatile Ink Configuration: Supports CMYK + LC + LM + White + Varnish simultaneously for vivid colors and spot gloss effects.
| Model Specifications: DS-1070U | |
|---|---|

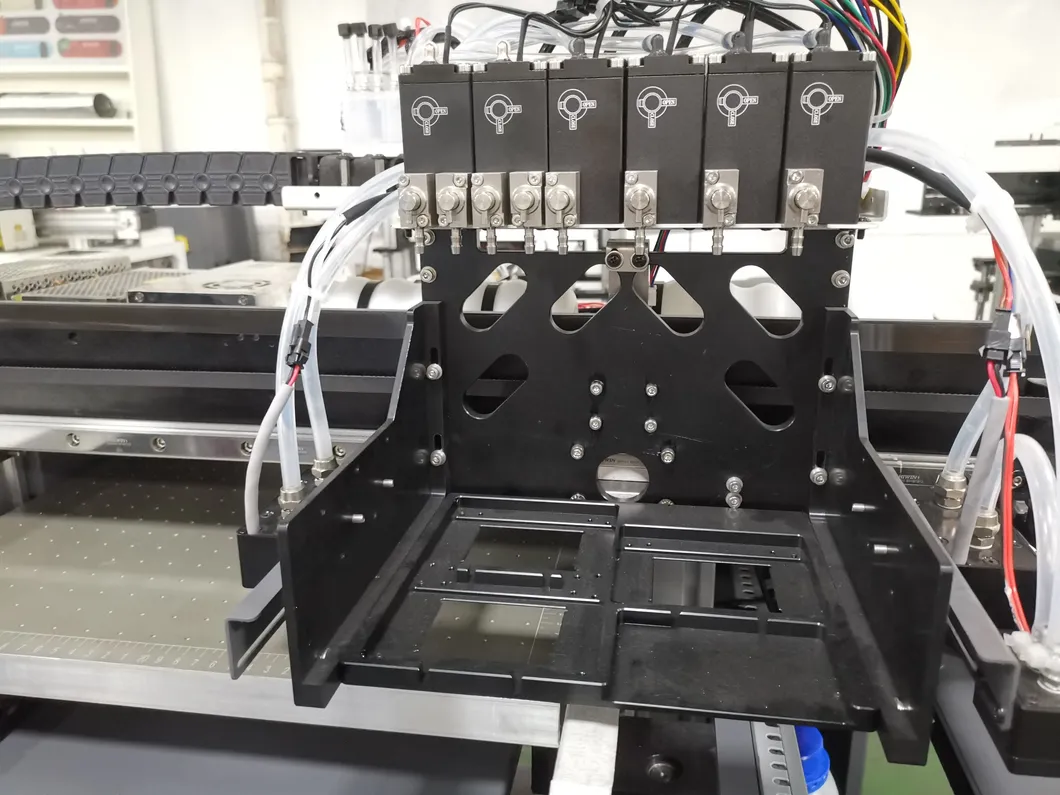

| Printheads | 3 Pieces (G5i / I1600 / I3200 / XP600 / TX800) |

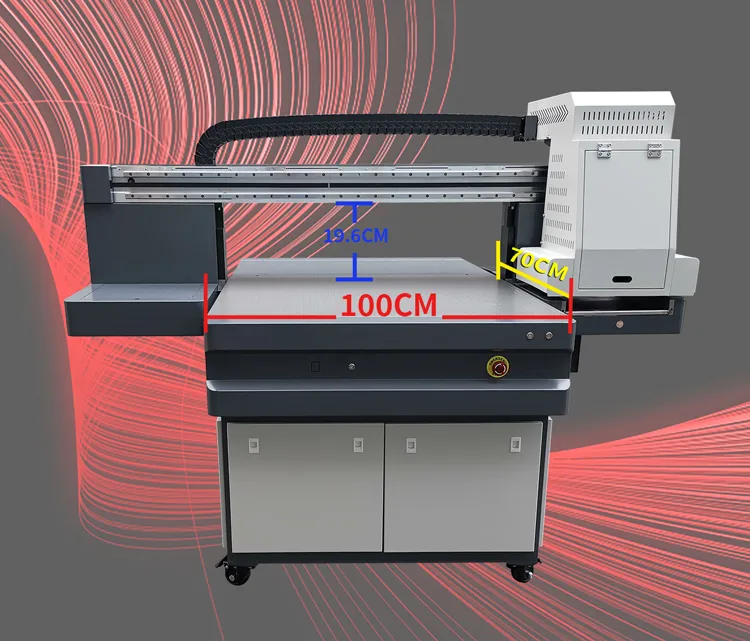

| Max Printing Size | 1000mm x 700mm |

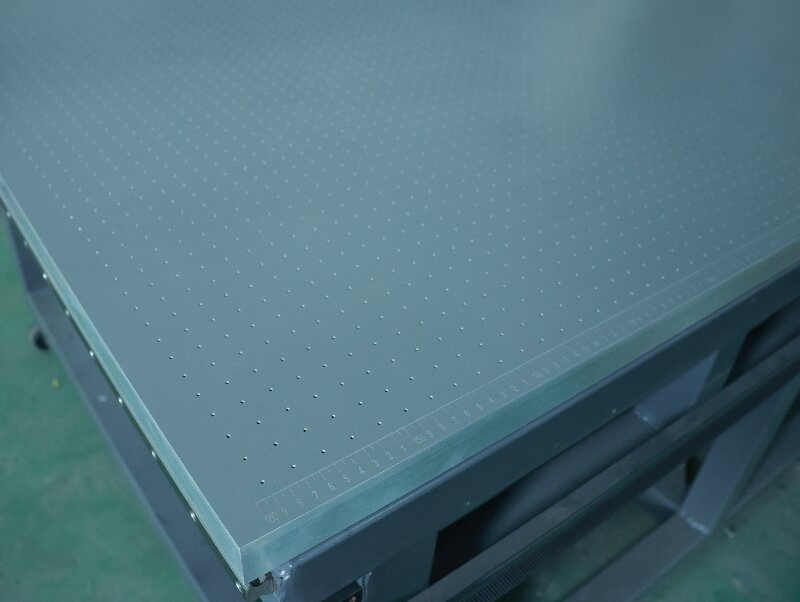

| Platform | Sinkable Vacuum Platform |
| Printing Speed | 4m²/h (4 pass) | 3.5m²/h (6 pass) | 2.5m²/h (8 pass) |
| Media Thickness | 0 - 19cm |

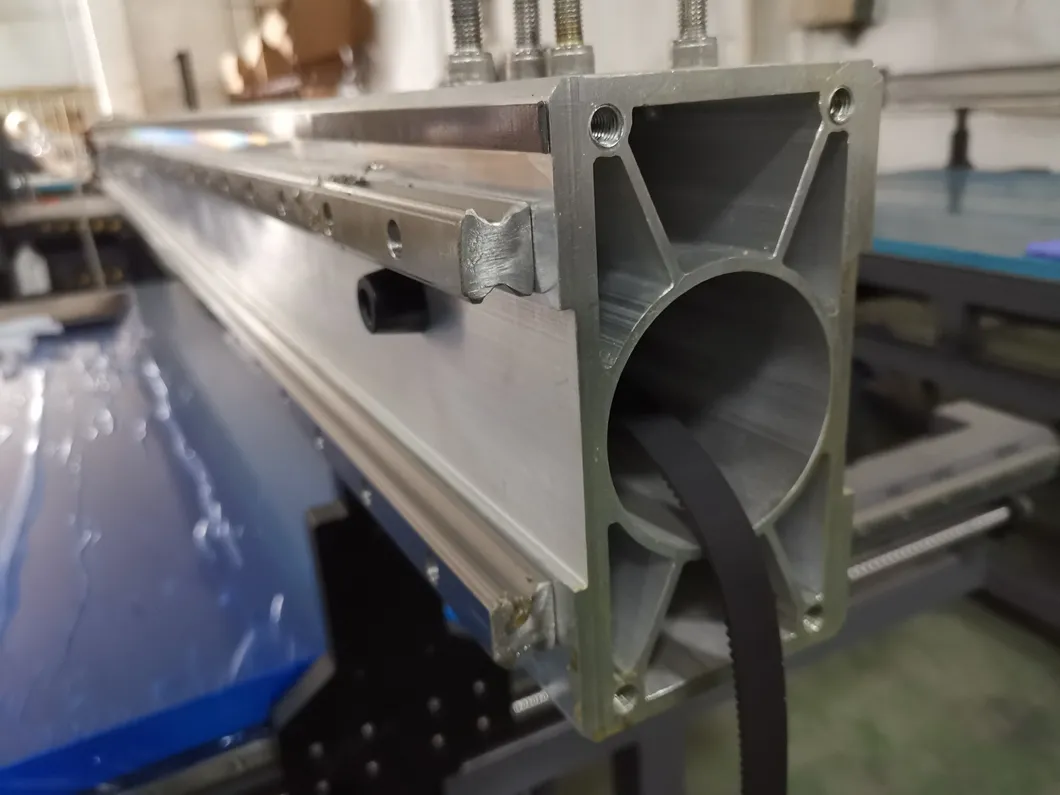

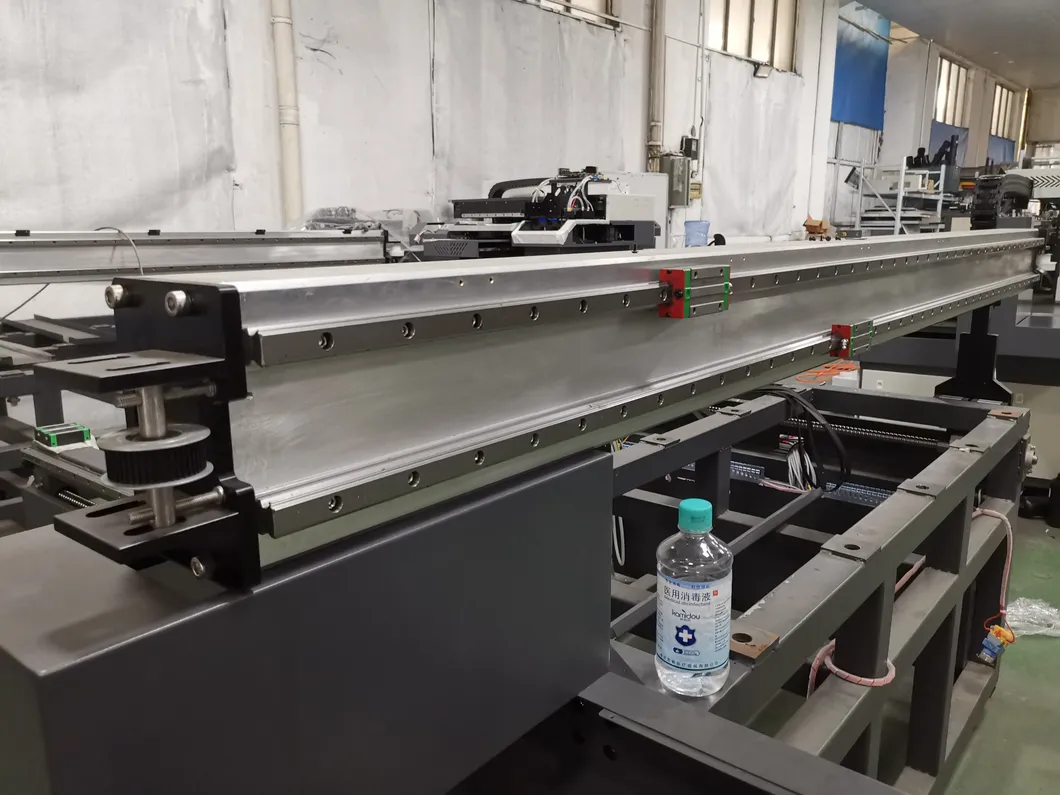

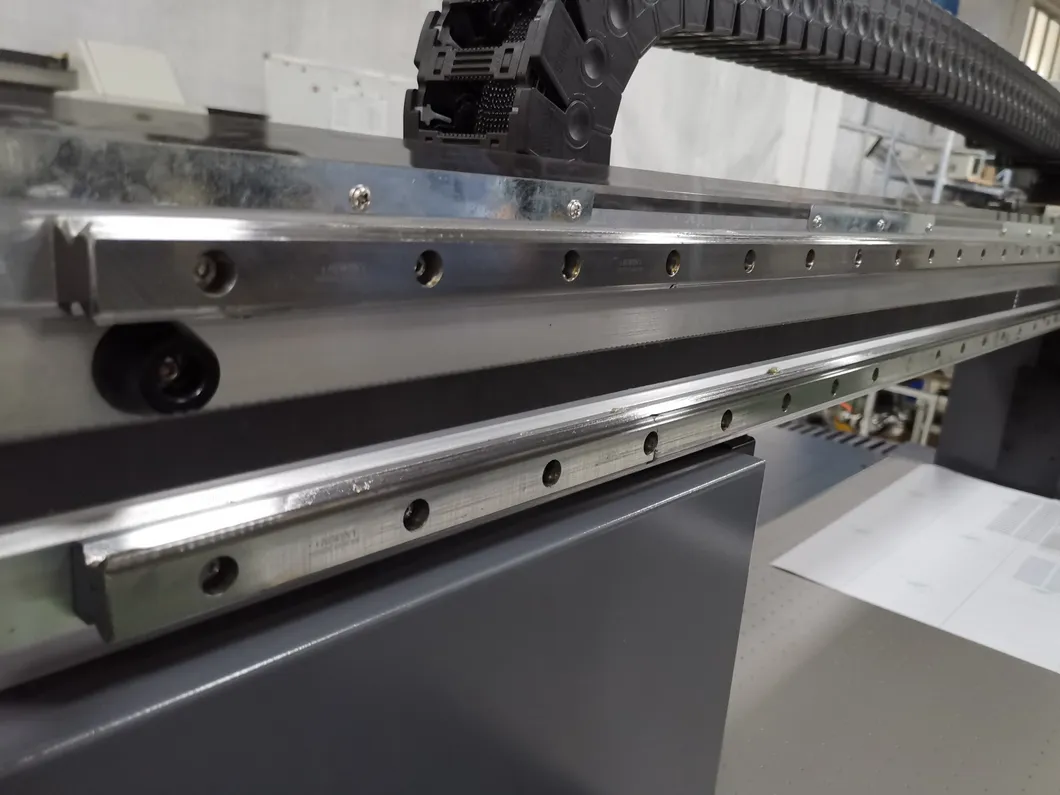

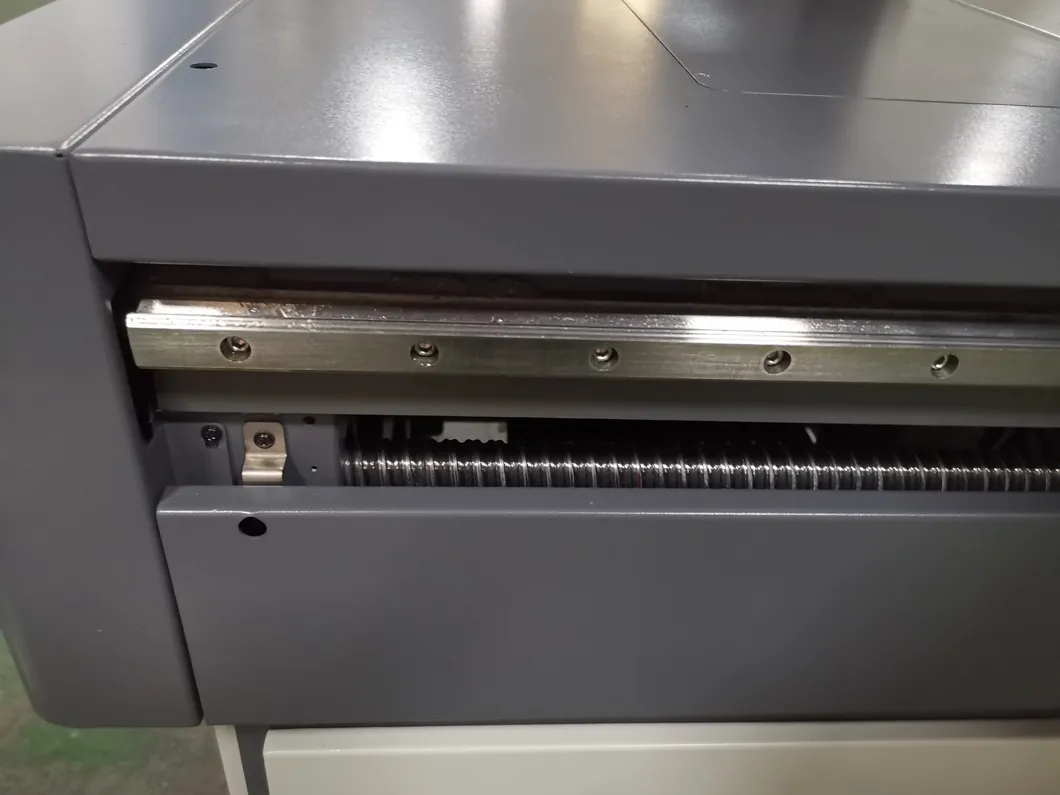

| Linear Guide | THK / HIWIN Mute Linear Guide Rail |
| Ink System | Closed cycle ink system with White ink circulation |
| Resolution | Up to 2880 DPI |
| Dimensions | L1665mm * W1560mm * H720mm |
| Weight | Net: 225KG | Gross: 300KG |
