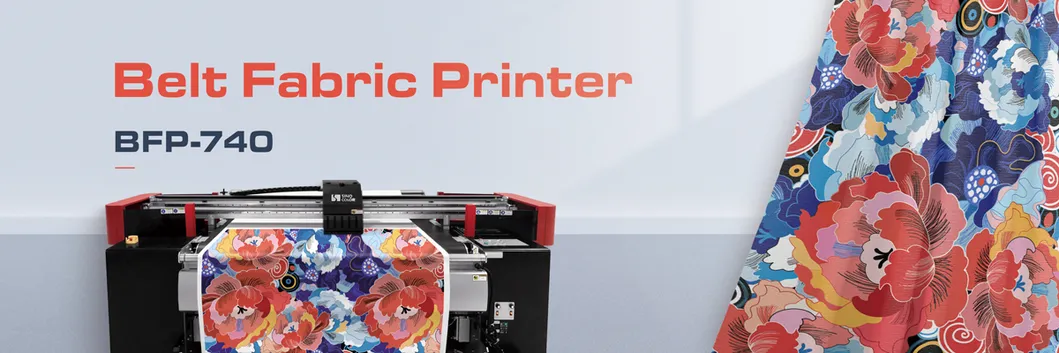

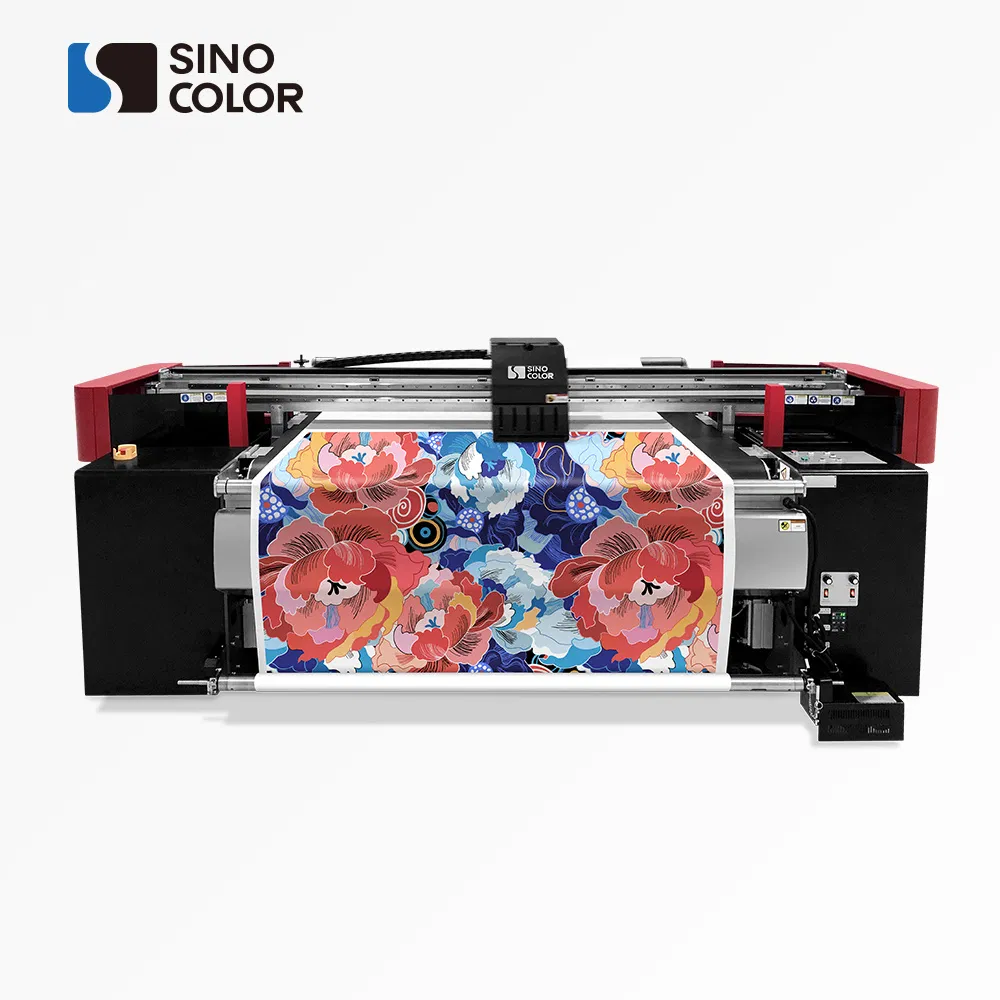

Grand Format 2400dpi 4/5 Color Fast Speed Direct to Fabric Inkjet Printer with Conveyor Belt
The direct textile printer belt fabric printer BFP-740: For the traditional screen printing, complicate pre-treating and after-treating are required. While with the belt fabric printer, which can work with disperse ink, pigment ink, acid ink and reactive ink, then print directly onto fabric easily. Especially for pigment ink, need only three steps: Printing, and heat fixation only. This digital printing make customize or DIY printing to be possible. And the belt type media feeding system, enable the printing of textile with different elasticity. Achieve maximum business potential.
| Model No. | BFP-740P | BFP-740S | |
|---|---|---|---|

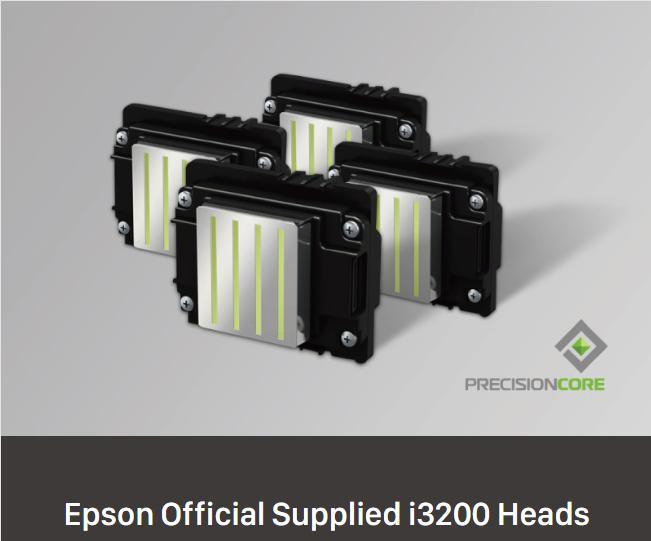

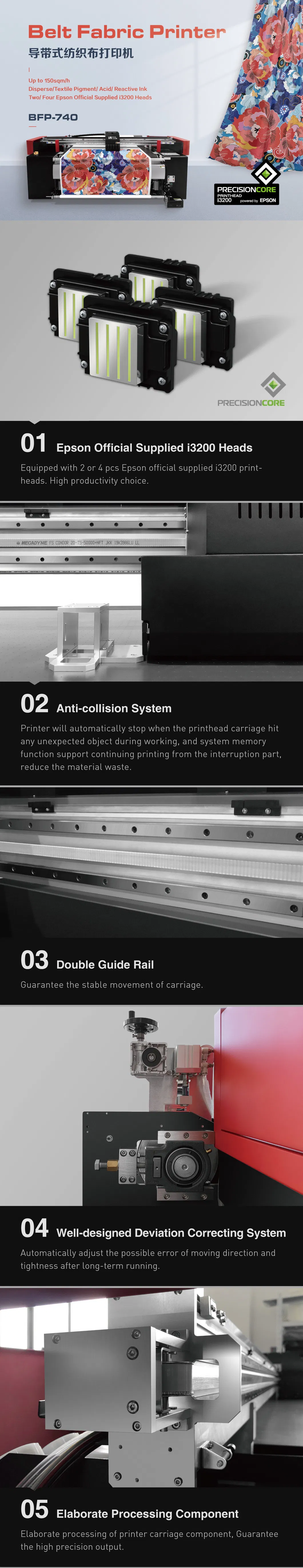

| Printhead | Type | 2 x i3200 (4720) Printheads | 4 x i3200 (4720) Printheads |
| Nozzles | 3200 | ||
| Max Printing Width | 74 Inch (1.8 meter) | ||
| Resolution(dpi) | 2400dpi | ||
| Color | 4 Color / 5 Color | ||
| Media Types | Cotton, Viscose, Polyester, Polyamide, Silk, Wool... | ||
| Ink | Type | Disperse/ Pigment/ Acid/ Reactive Ink | |
| Droplet | 1.5 - 21pl Variable | ||
| Speed | Draft | 80 sqm/h | 150 sqm/h |
| Production | 40 sqm/h | 75 sqm/h | |
| High Quality | 25 sqm/h | 50 sqm/h | |
| Cleaning System | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||
| Heating System | IR Heater & Front Ultra-wide Heating Device | ||
| Control Software | Print Console | ||
| Interface | USB 3.0 | ||
