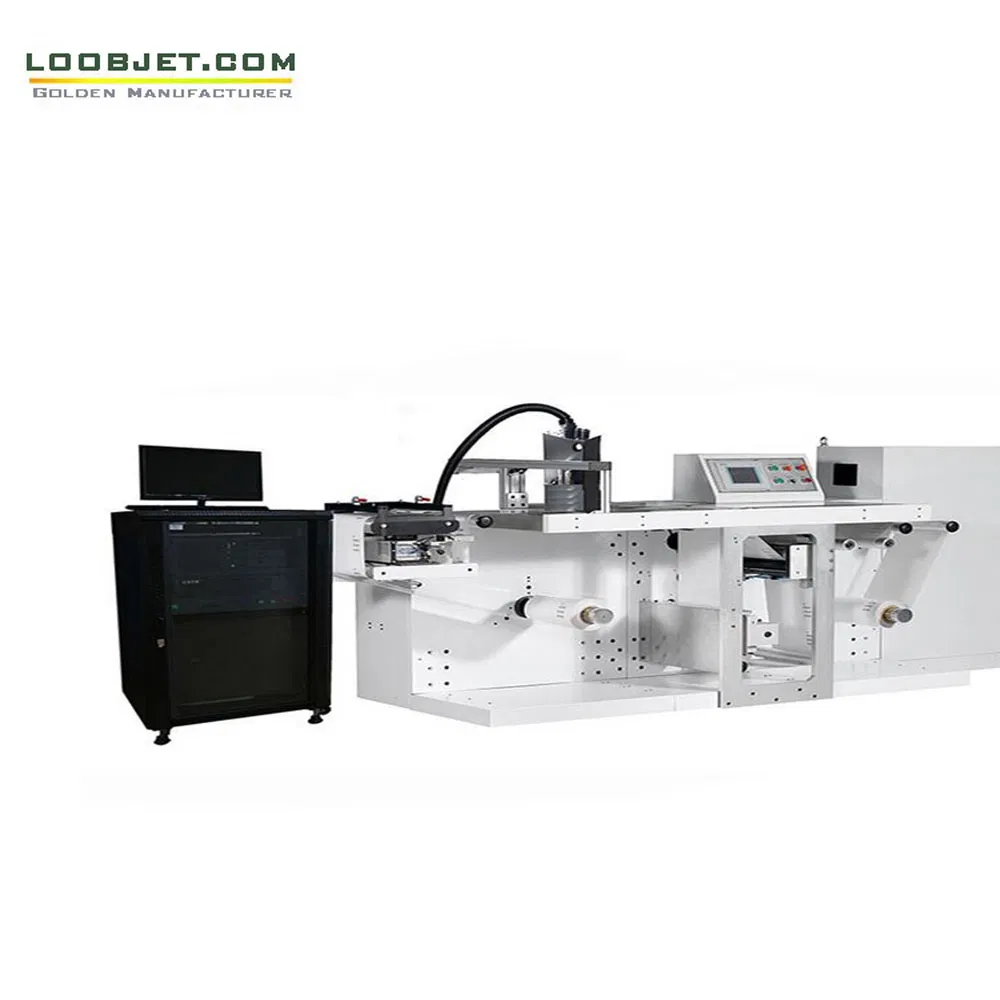

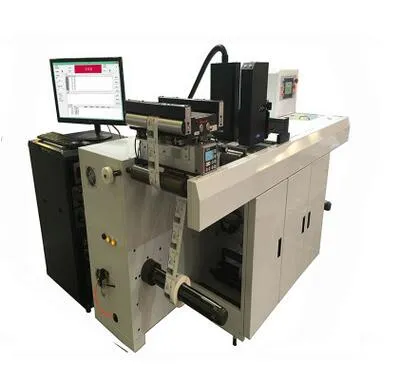

UV inkjet printer label press
Introduction
The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, has greatly improved in production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the increasing and rigorous demands for applications of mailings, barcodes, bills, checks, packages, and marking. It is suitable for web printing, sheet-fed, and both online and offline target printing. Modular design allows for easy integration into existing transport systems.
Details
Control Software
Our Printer Control Software (PCS) installed on a PC is designed for scanning inkjet printing. It offers a user-friendly interface to interactively control the printer, monitor printer status, and set printer options, such as the amplitude and pulse width of jetting waveforms and temperature for each print head.
| Model | VDG540 / VDK720 / KY108 | Print Head | Ricoh GN5 / Konica 1024i / KY |
| Resolution | 600×600, 400, 300, 200dpi | Method | Piezoelectric Ink-jet |
| Single Head Width | 54.0mm / 72.0mm / 108mm | Printing Speed | Up to 180m/min (600×200dpi) |
| Max Width | 54/72/108mm × 24 Seamless Joint | Drop Size | 5-21PL |
| Inks | Original SGS UV Inks | System | Windows 7 / Windows 10 |
| Bar Code Types | UPCA, EAN13, CODE128, QR, DATAMATRIX, etc. | Files Format | MS Excel, TXT, PDF, BMP |
| Power | AC 200~240V / 50~60Hz | Environment | 0ºC~30ºC, Humidity: 50~80% |
