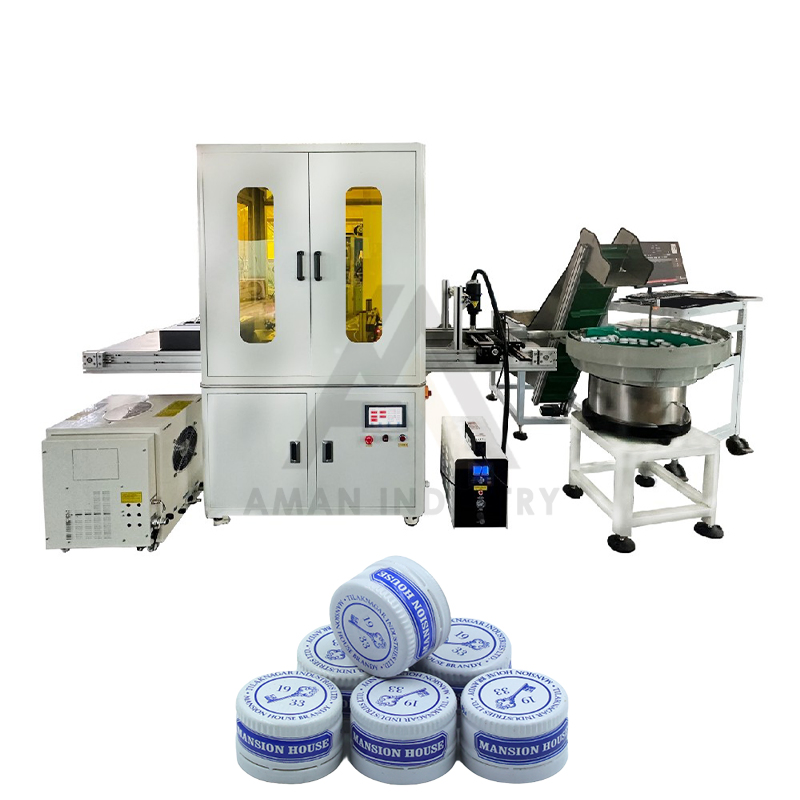

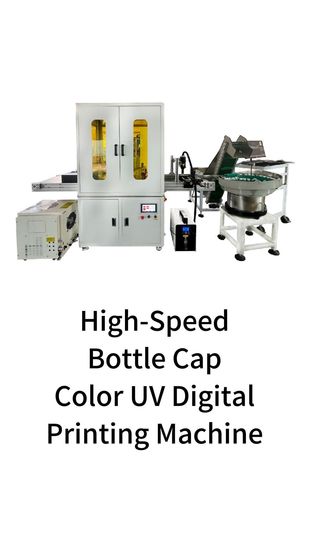

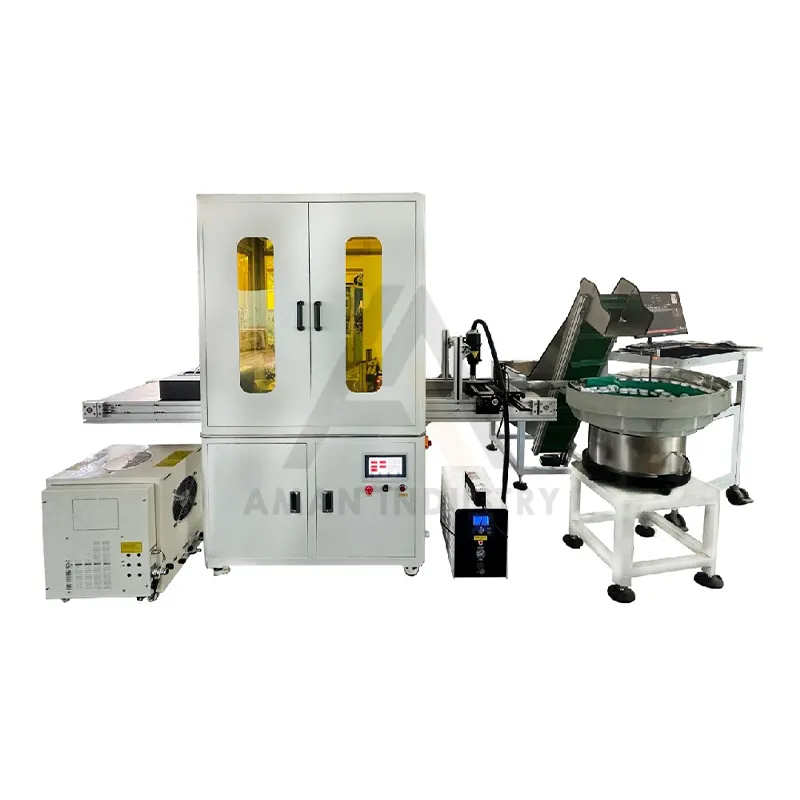

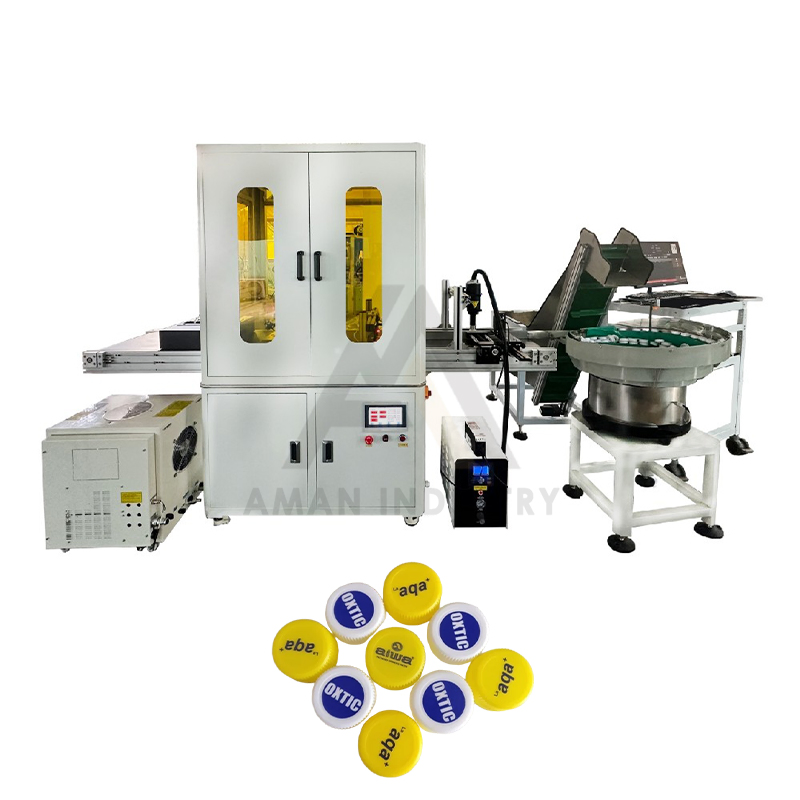

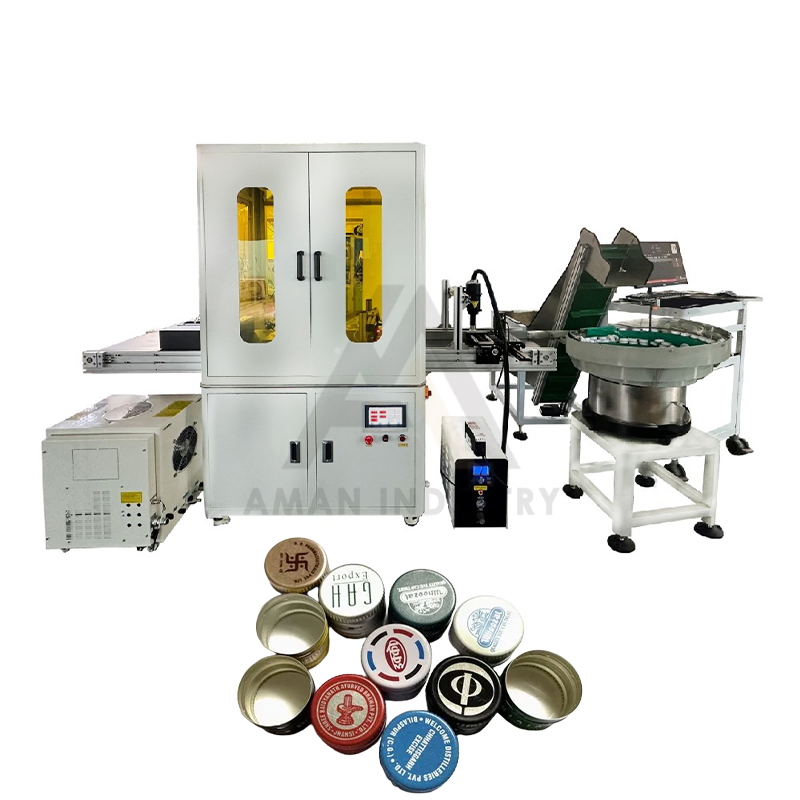

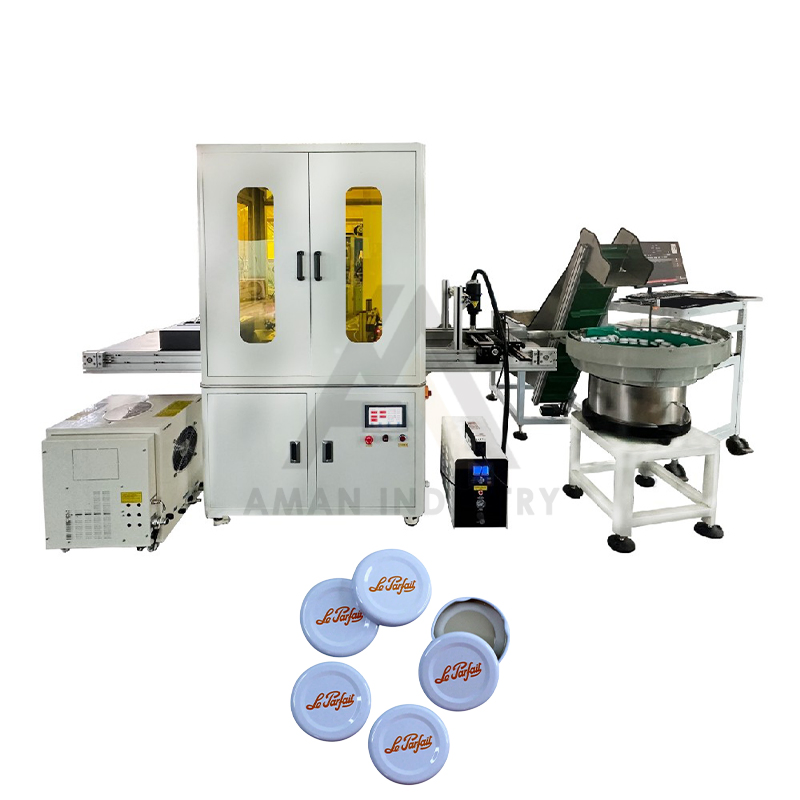

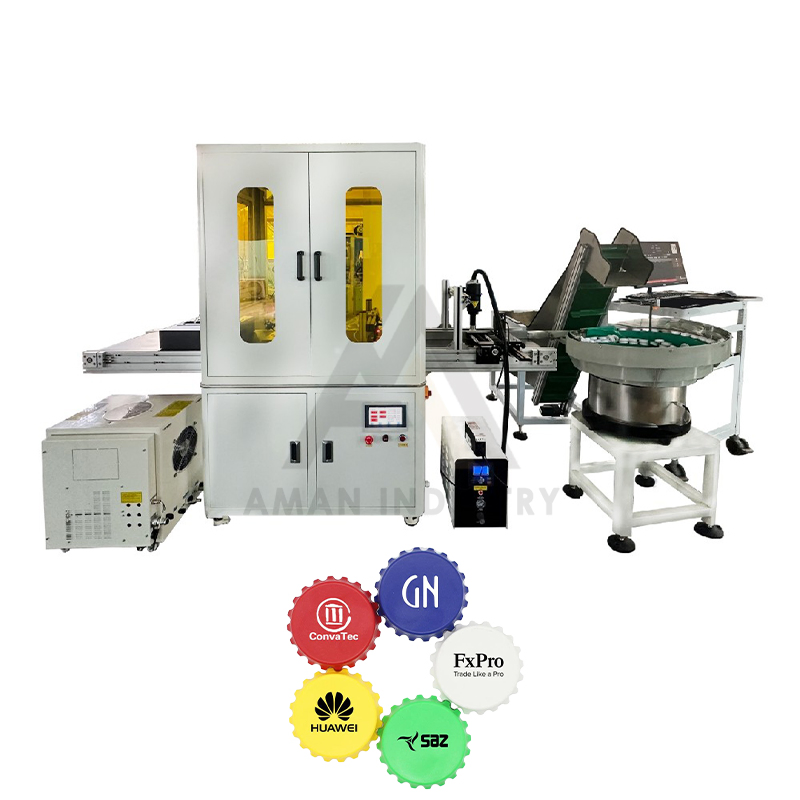

High-Speed Bottle Cap Color UV Printer

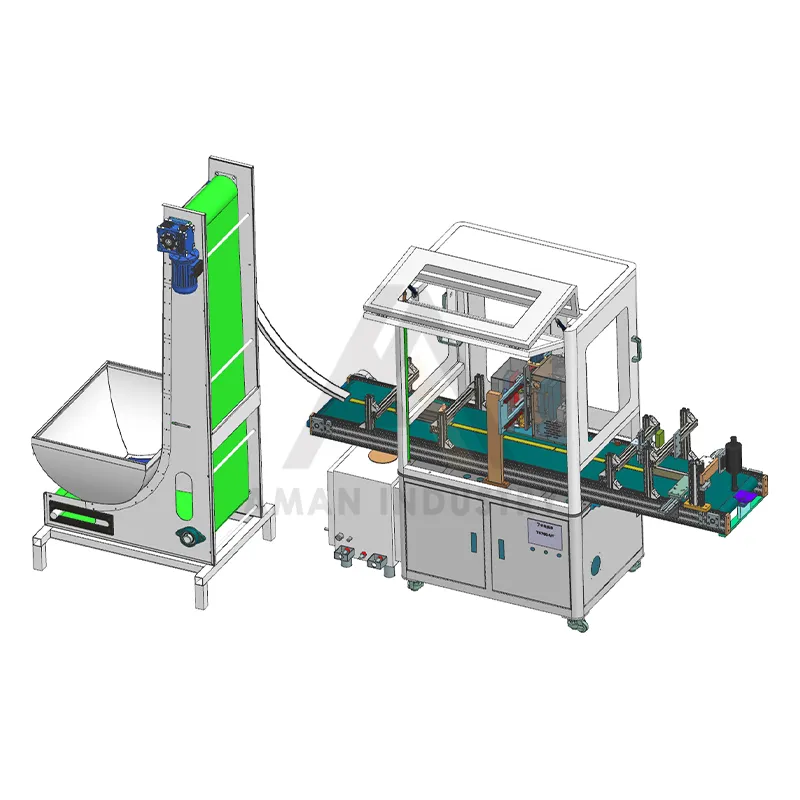

The high-speed bottle cap color UV printer features industrial-grade print heads (3-5 years lifespan, anti-clogging) and eco-friendly UV inks (instant drying, odor-free). With low printing costs, high speed (10-40m/min), and minimal ink consumption, it enables direct digital printing from computer images, eliminating plate-making. Equipped with a fully automated production line, including material handling and unloading systems, it operates without manual intervention.
| Model NO. | AM-DY1-5 |
| Machine Dimensions | L3500mm × W1000mm × H1850mm |
| Power Supply | 220V 50Hz 1.5kW |
| Print Heads | 3 Ricoh Gen5 Stainless Steel Print Heads |
| Printing Width | 54mm |
| Printing Speed | 10–40 m/min |
| Conveyor Belt Width | 400mm |
| Conveyor Belt Length | 2300mm |
| Lifting Height | 100mm (Servo motor lifting, precision error ±0.05mm) |
| Safety Feature | Ruike Proximity Sensor (Anti-Collision Detection) |
| Package Info | Wooden Package (370cm * 120cm * 200cm), 2000kg |
* Remarks: Print heads are not covered under warranty.
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical help and parts supply.
Training: On-site or remote operation training.
Since 2007, we have maintained strong global ties, focusing on strict management, technological innovation, and careful manufacturing to deliver market-leading industrial equipment.
