Single Pass Digital Fabric Printing Machine Digital Glass Printing Machine

Customization:	Available
After-sales Service:	Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.RYP56E-22F-4

PlateRelief Printing

StructurePlaten Press

Color & PageMulti-Colour Printing Press

UsagePaper, Label, Card, Cloths Printer

Automatic GradeAutomatic

Max Image Size1800mm×3000mm

Max Board Size2200mm×3000mm

Print Head Qty56/120 Pieces

Print Head ModelEpson 4720

Transport PackagePallet

Product Description

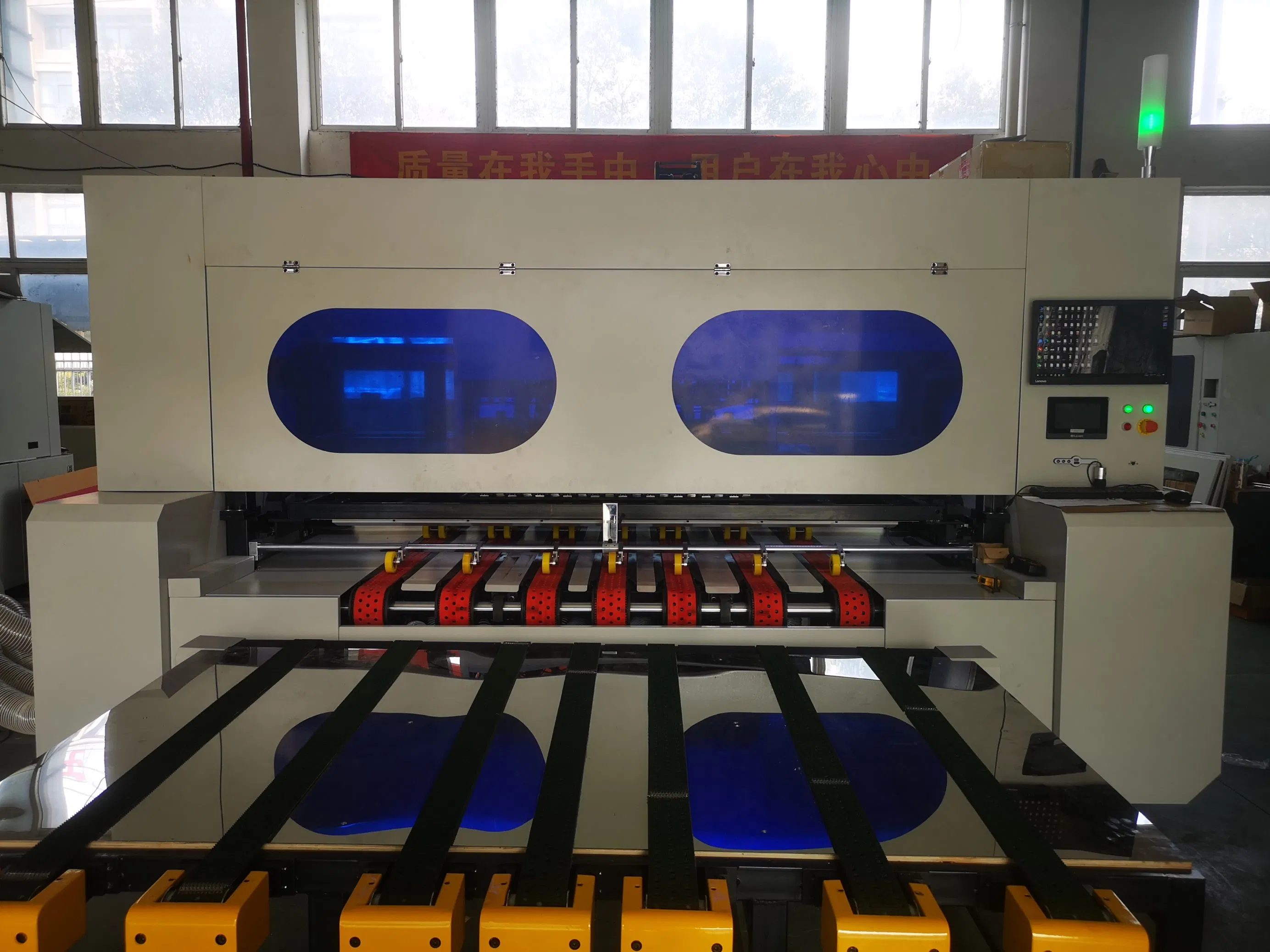

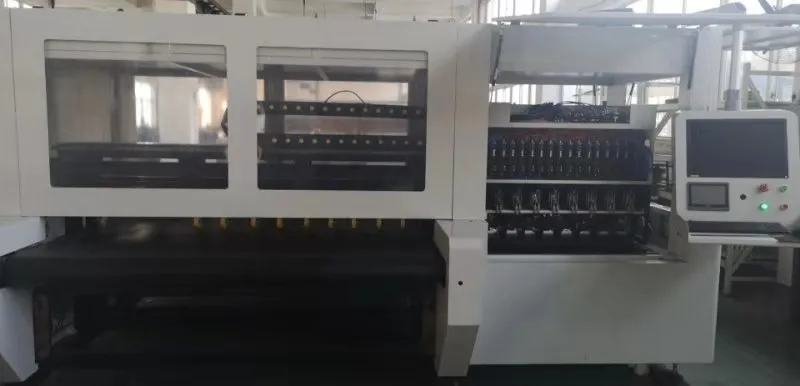

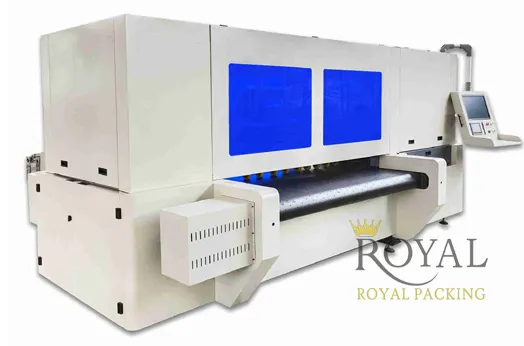

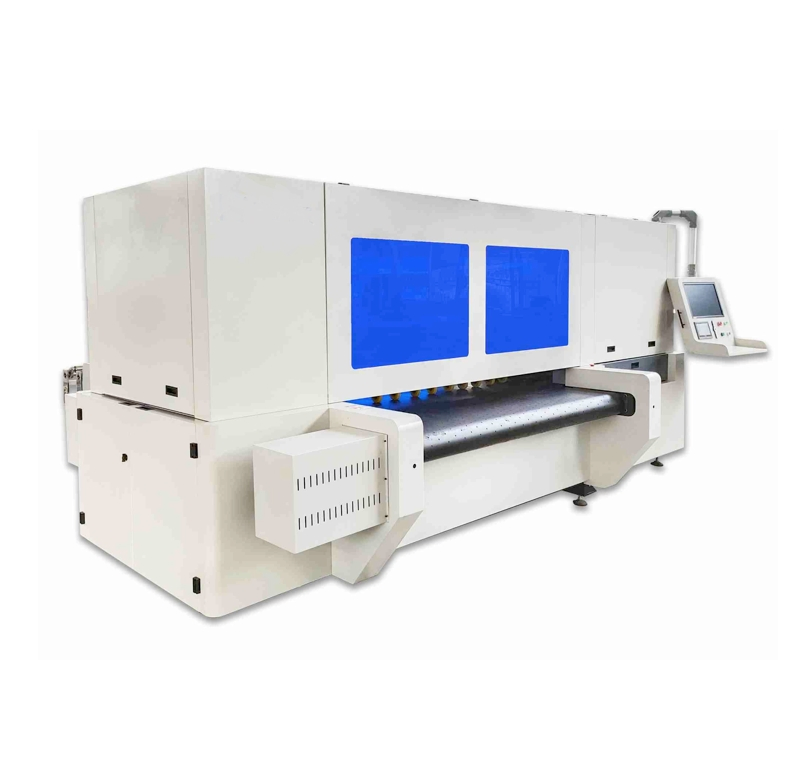

SINGLE PASS DIGITAL PRINTER (INDUSTRIAL GRADE)

Key Features & Advantages

Printing on demand: No need to clean the machine, zero noise, and eco-friendly operation.
Seamless Exchange: Orders with different patterns but same size can be swapped instantly via the data system.
Auto Maintenance: Software features automatic flash spray nozzle maintenance to prevent clogging.
Industrial Grade Communication: Utilizes high-speed PCI interface and stable all-optical data communication.
Smart Sorting: Continuous automatic production of different orders without manual interruption.
Compliance: Equipment complies with CE standards and industrial ergonomic requirements.

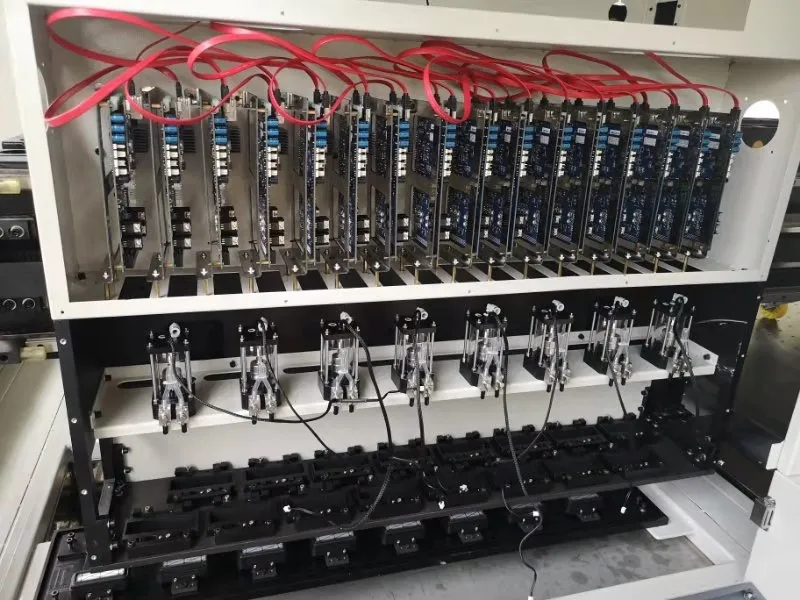

Printing Head Component

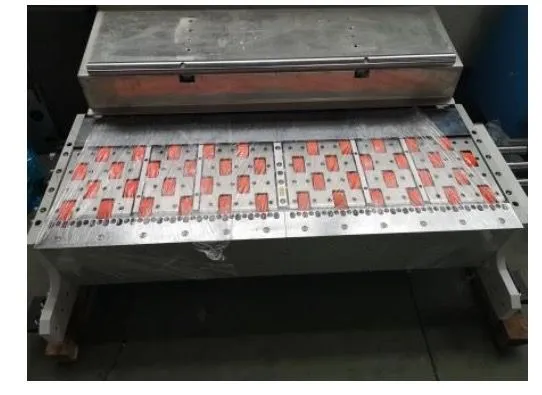

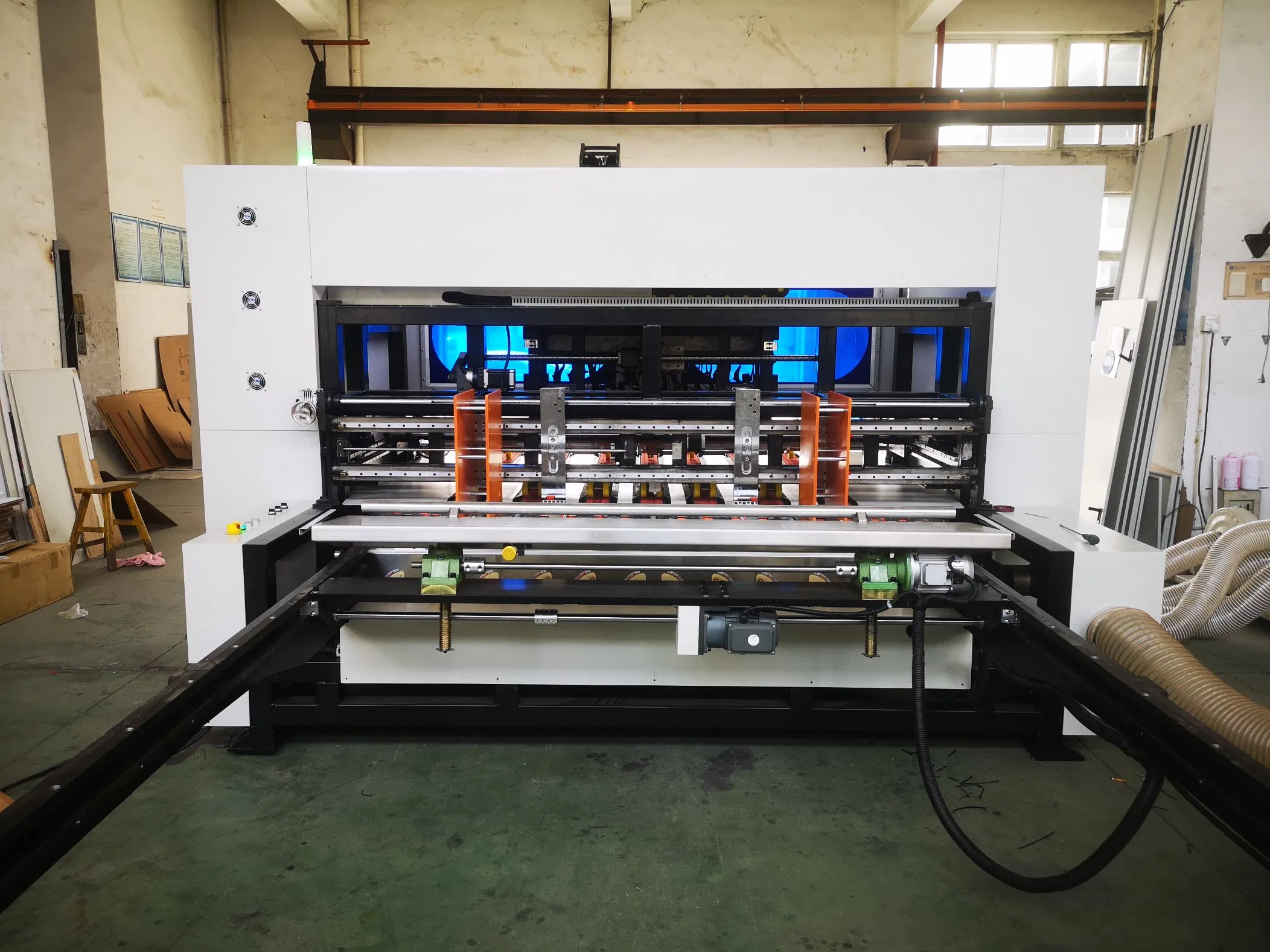

Advanced Feeder System

Introduction: This digital press is mainly used for the packaging and printing industry. It is suitable for Flute A, B, C, E corrugated paperboard, honeycomb paperboard, thin wood, and more. It eliminates the need for printing plates, making it ideal for small batch production.

Technical Parameters (56 Heads & 120 Heads)

Specifications	RYP56E-22F-4 (56 Heads)	RYP120E-22F-4 (120 Heads)
Max Image Size	1800mm × 3000mm	1800mm × 3000mm
Max Board Size	2200mm × 3000mm	2200mm × 3000mm
Board Thickness	1.5mm - 30mm	1.5mm - 30mm
Feeding Mode	Lead-edge, vacuum suction	Lead-edge, vacuum suction
*Max Speed (360180DPI)**	0.9 m/s	1.5 m/s
Ink Type	Water-based dye ink (CMYK)	Water-based dye ink (CMYK)
Print Head Model	Epson 4720	Epson 4720
Power Supply	≈18.0 KW, AC380V	≈18.0 KW, AC380V
*Machine Size (LWH)*	6000 × 4500 × 2000mm	6000 × 4500 × 2000mm
Machine Weight	≈ 6500 KG	≈ 6500 KG

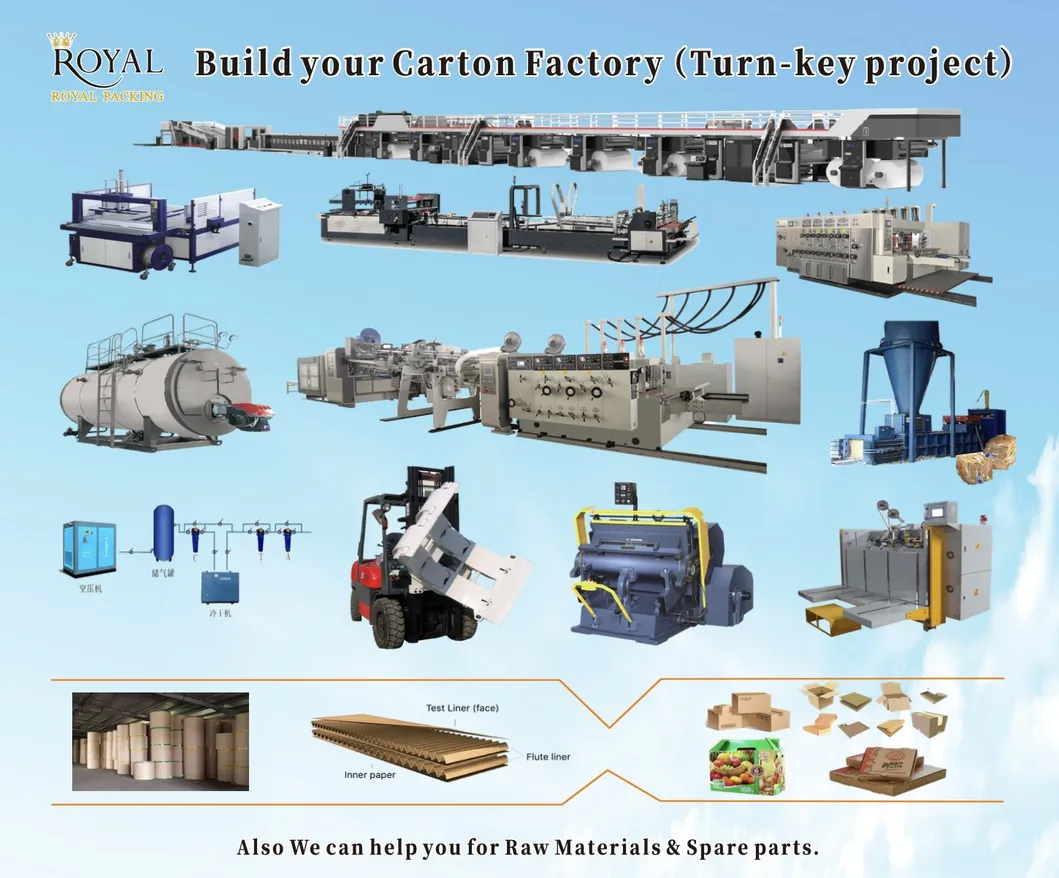

Production & Application

Frequently Asked Questions

1. What types of materials can this digital printer handle? The machine is highly versatile and suitable for corrugated paperboard (Flute A, B, C, E), honeycomb paperboard, thin wood, and various packaging materials with thicknesses ranging from 1.5mm to 30mm.

2. Does the machine require traditional printing plates? No, this is a "Single Pass" digital printer. It requires no printing plates, allowing for "printing on demand" and significantly reducing setup time for small to medium batch productions.

3. How is the print head maintained to prevent clogging? The system includes a professional software-controlled automatic flash spray maintenance function. This ensures the nozzle holes remain clear and smooth during and between production cycles.

4. What kind of ink does the printer use? It uses eco-friendly water-based dye ink in CMYK colors (Cyan, Magenta, Yellow, Black), which dries quickly upon contact with the liner-board.

5. What is the production speed difference between the 56-head and 120-head models? The 120-head model offers significantly higher throughput, reaching speeds up to 1.5 m/s at 360*180DPI, compared to 0.9 m/s for the 56-head model.

6. What is the warranty policy for this equipment? We provide a standard 6-month warranty for the print heads and a full 1-year warranty for the rest of the machine components.
