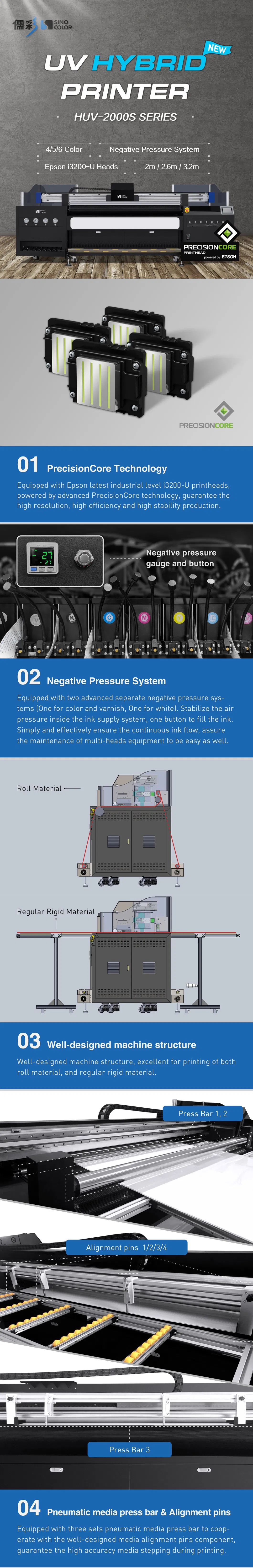

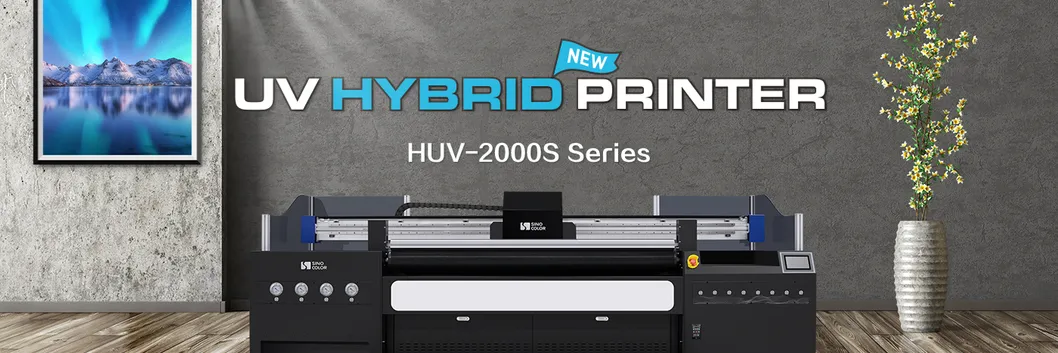

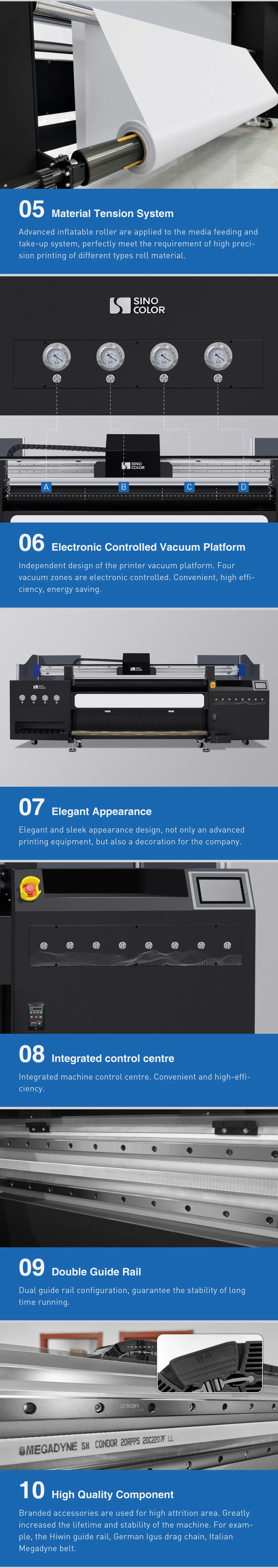

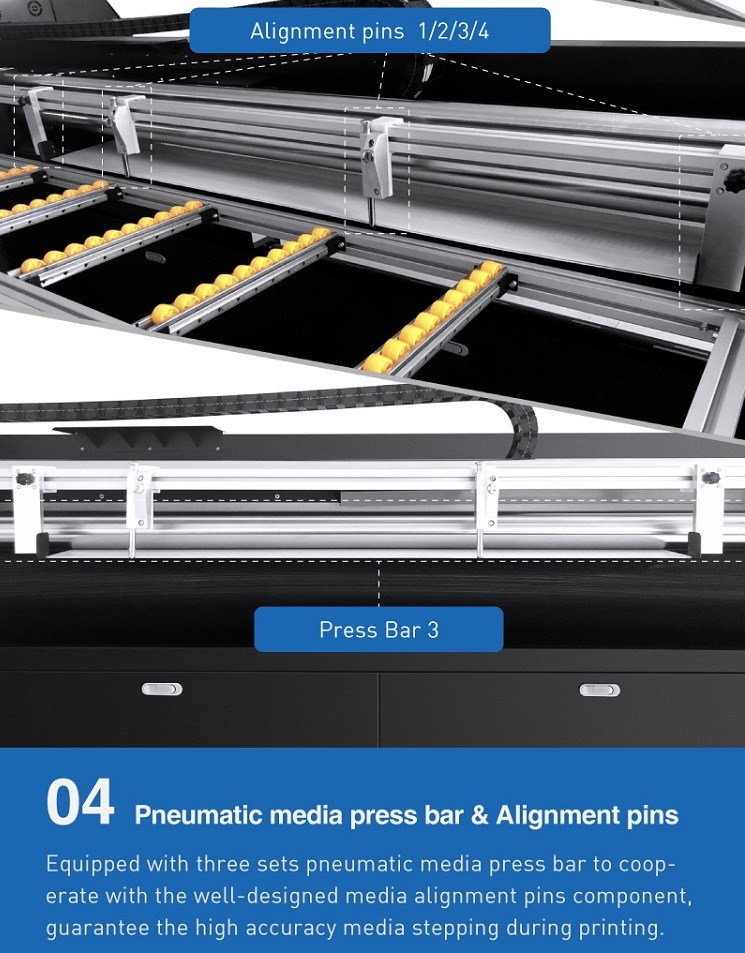

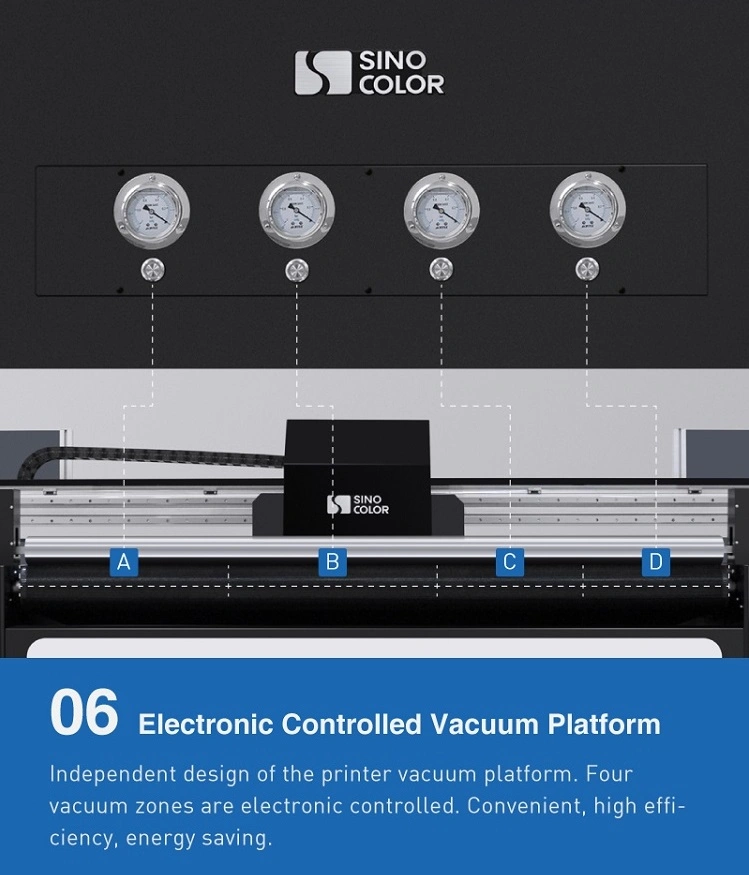

For traditional hybrid UV printers, the machine platform may come without any vacuum, making it difficult to handle both roll materials and rigid materials effectively. The new HUV-2000S series addresses this with 4 zones of high-power electronically controlled vacuum platforms, tension-type media feeding systems, advanced media alignment pins, and 3 press bars. These features guarantee high-precision stepping and superior printing results.

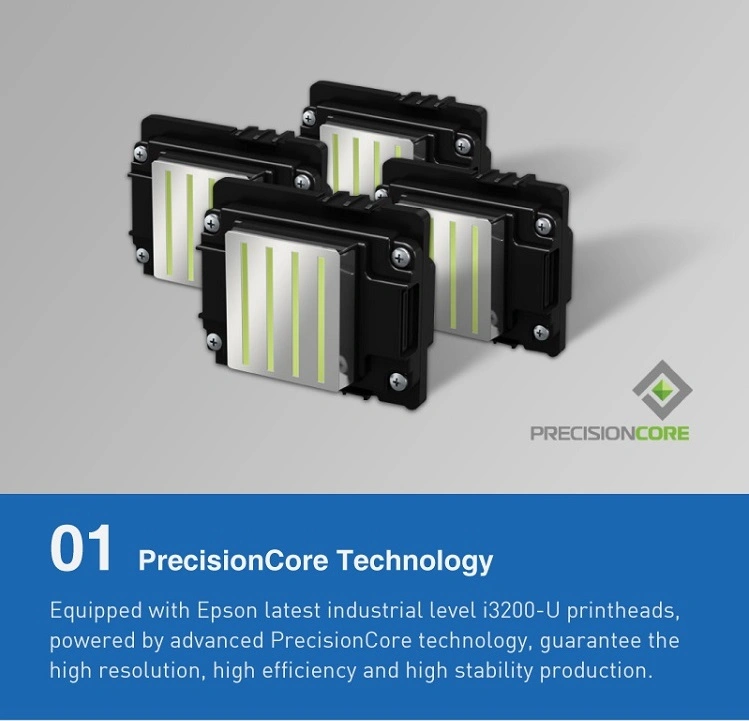

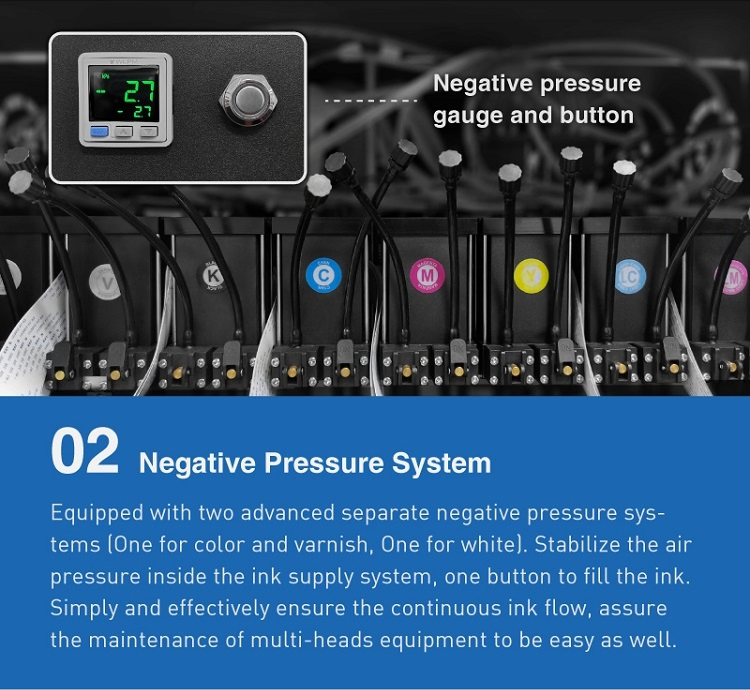

Powered by the latest industrial-level Epson i3200-U heads, this machine achieves exceptional speeds. The integrated negative pressure system simplifies maintenance, ensuring a smooth and efficient workflow.
| Model No. | HUV-3200S | HUV-2600S | HUV-2000S |
|---|---|---|---|
| Printing Head | 4 × Epson i3200-U | 4 × Epson i3200-U | 2 × Epson i3200-U (Upgradable) |
| Max Resolution | 2400 dpi | ||
| Max Media Width | 3200 mm | 2600 mm | 2000 mm |
| Media Thickness | 0 - 5 cm | ||
| Ink Type | UV Ink (CMYK+W+V Optional) | ||
| Draft Speed | 96 sqm/h | 84 sqm/h | 36 sqm/h |
| Production Speed | 72 sqm/h | 62 sqm/h | 26 sqm/h |
| Machine Size | L5017 x W2817 x H1455mm | L4417 x W2817 x H1455mm | L3817 x W2817 x H1455mm |
