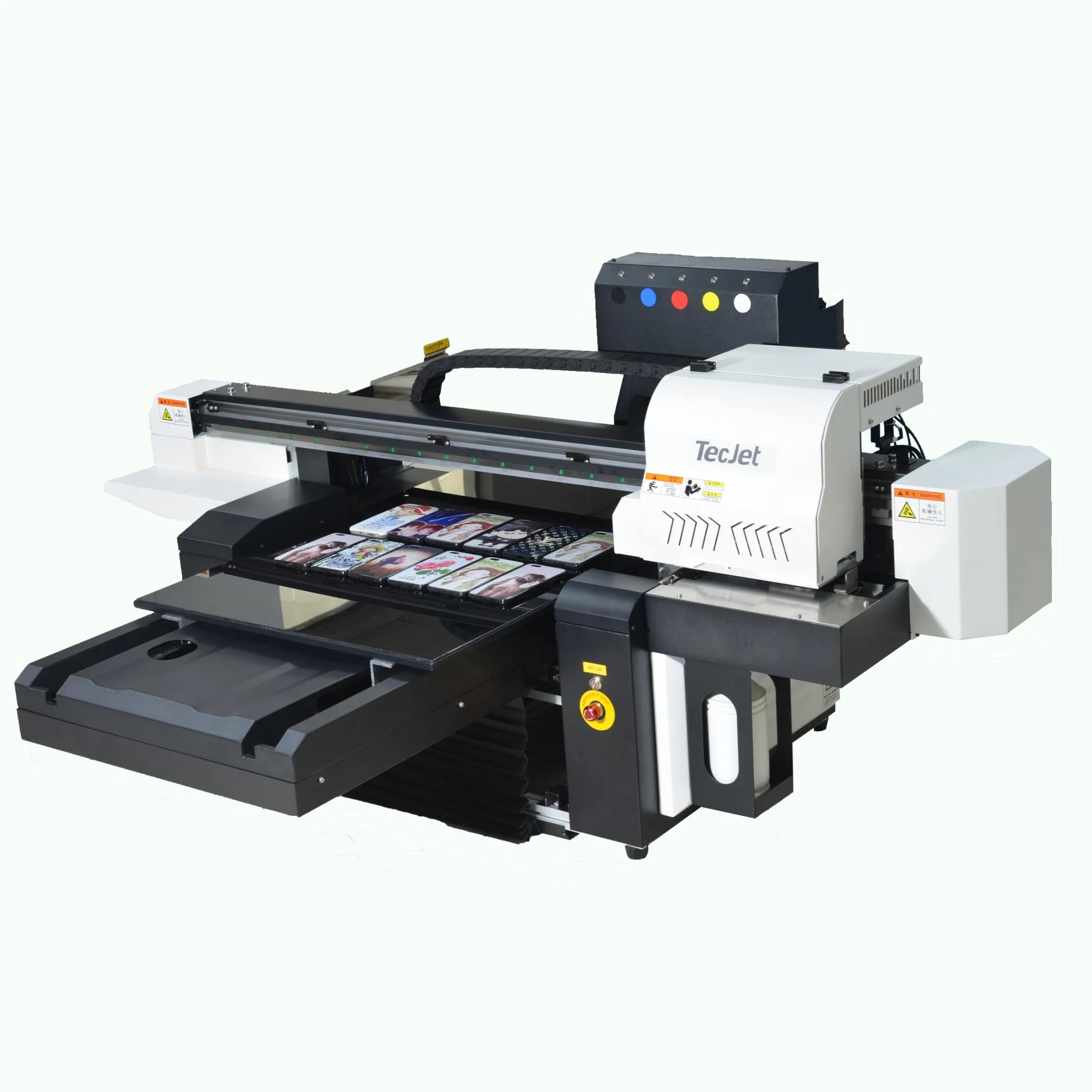

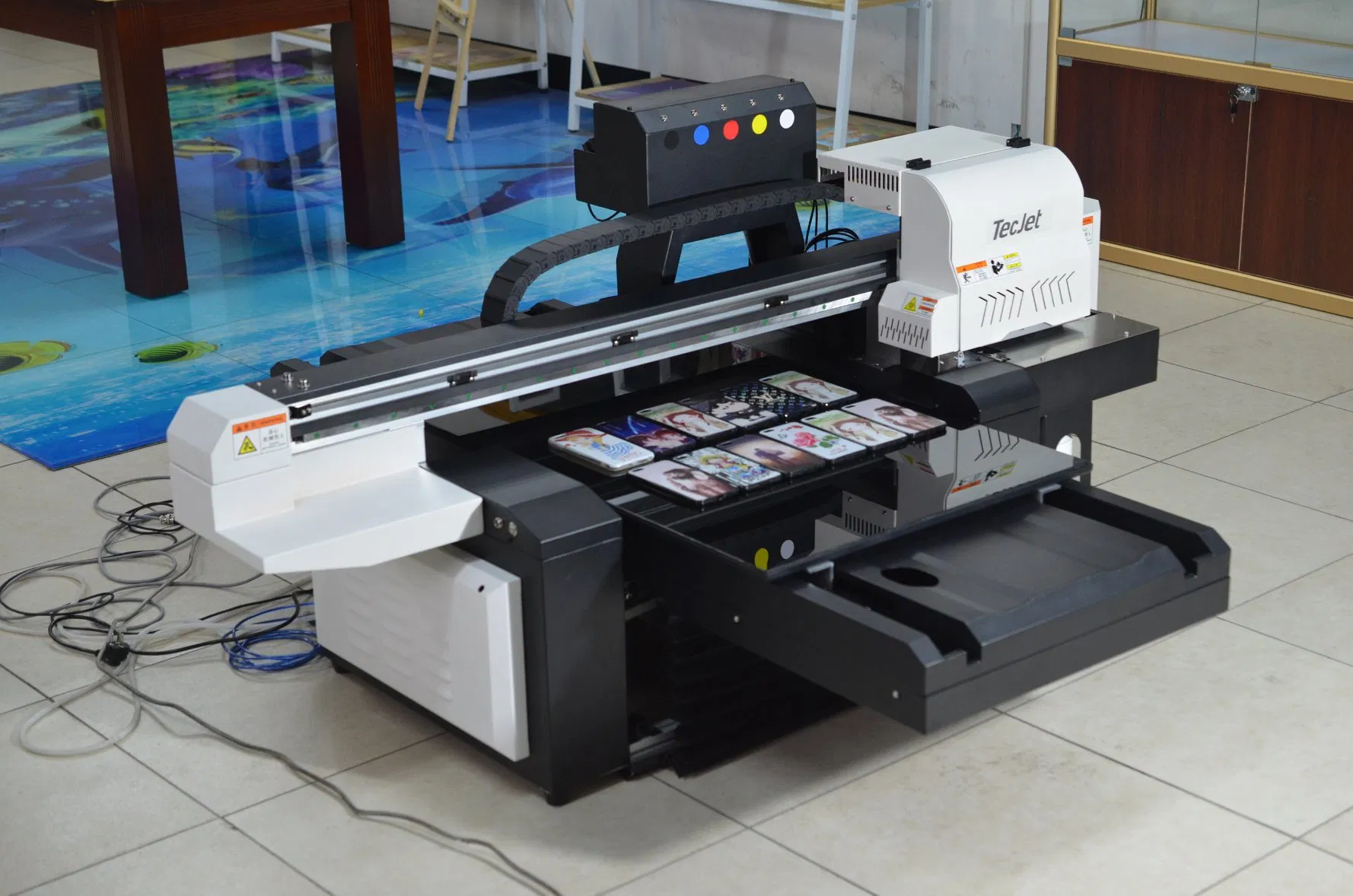

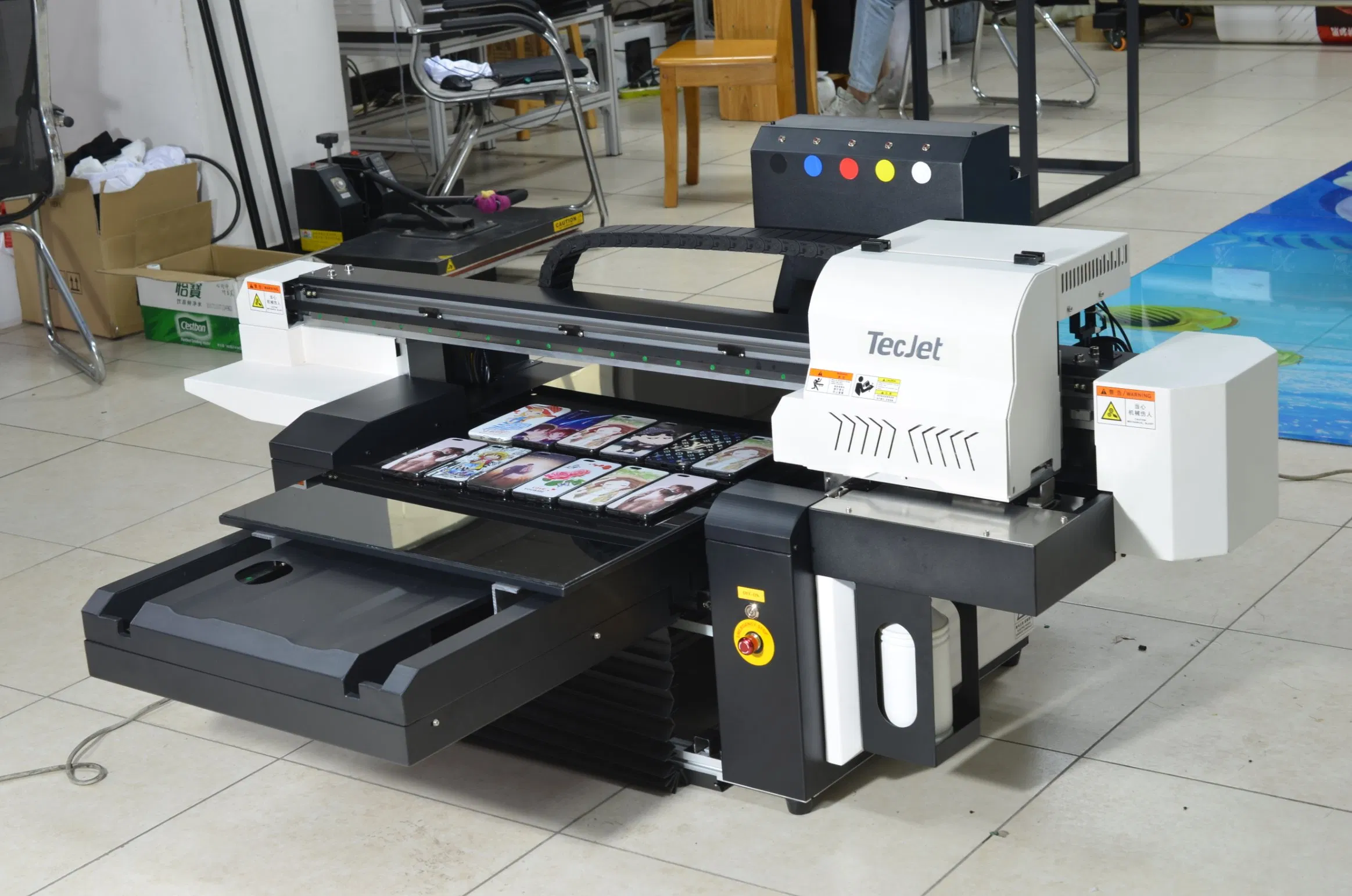

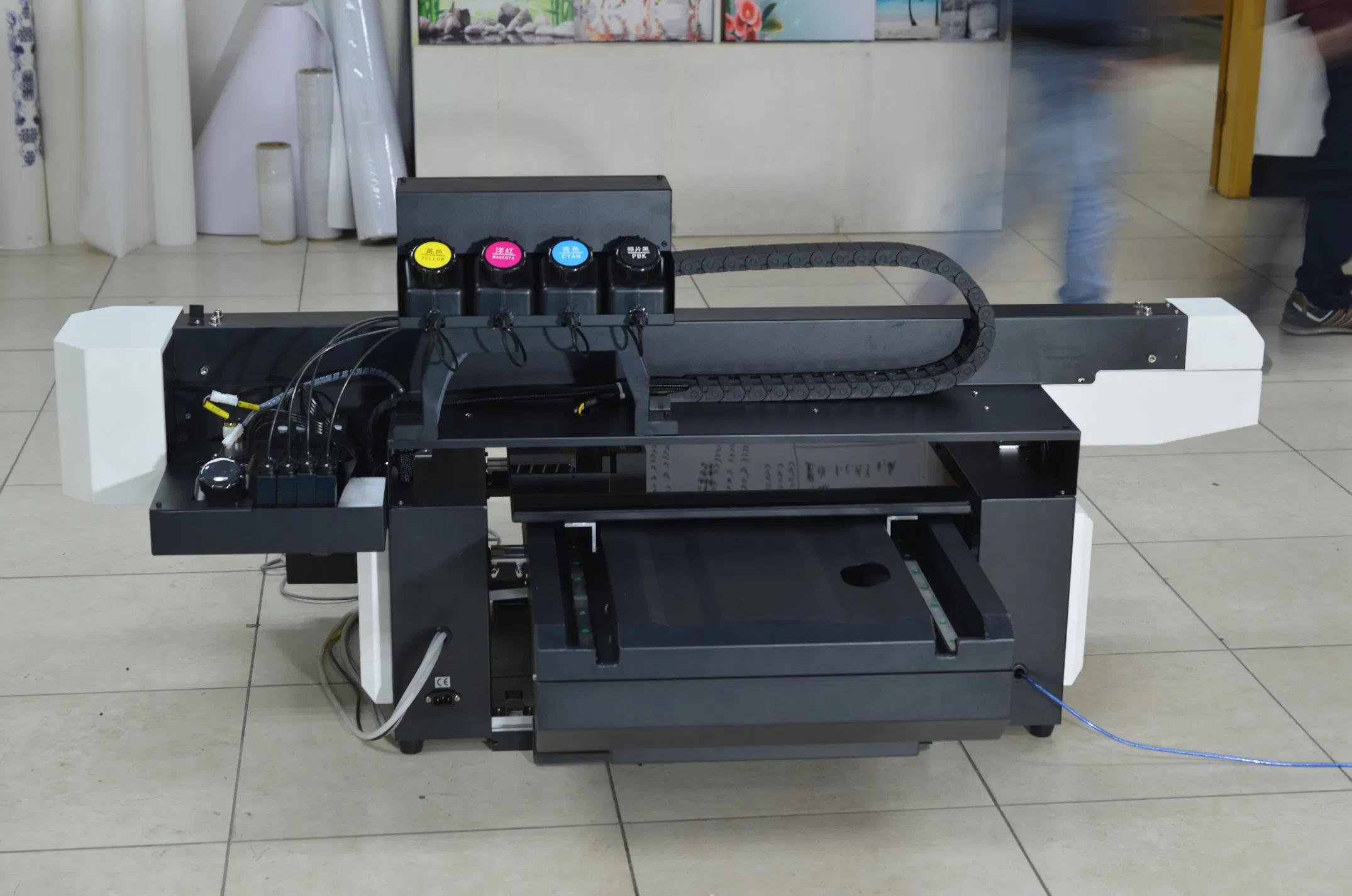

Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
1 / 5
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine
Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine

Tecjet 600*900mm Digital Flatbed UV Printer Glass Printing Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

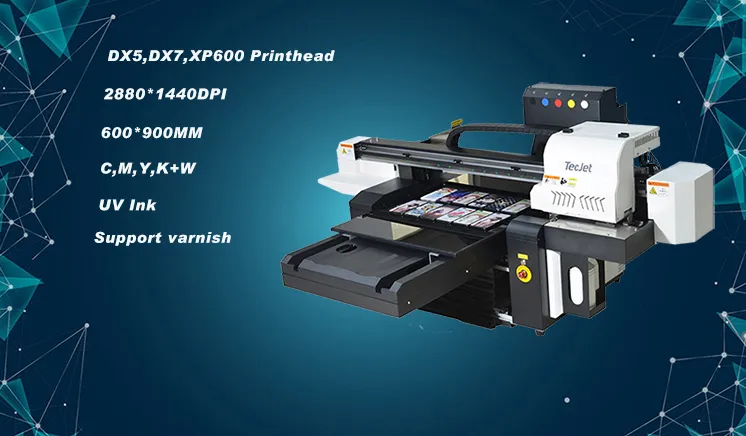

TECJET 600*900mm Digital Flatbed UV Printer
TECJET 6090 UV Printer
Basic Information
Model NO.
TECJET6090
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card Printer
Automatic Grade
Automatic
Printing Interface
USB 3.0
Printing Speed
~180 Seconds (720dpi)
System Supported
Windows 7
Specification
600x900mm
Trademark
TECJET
Production Capacity
300 sets/Month
Technical Specifications
Parameter List
Item Model6090UV
Print Size600 mm wide / 900 mm long
PlatformElectric regulating tempered glass platform
Nozzle Type2pc EPSON DX72pc EPSON XP600
UV LampWater cooled adjustable LED UV lamp
Ink TypeLED UV light curing ink
Ink ColorC M Y K W

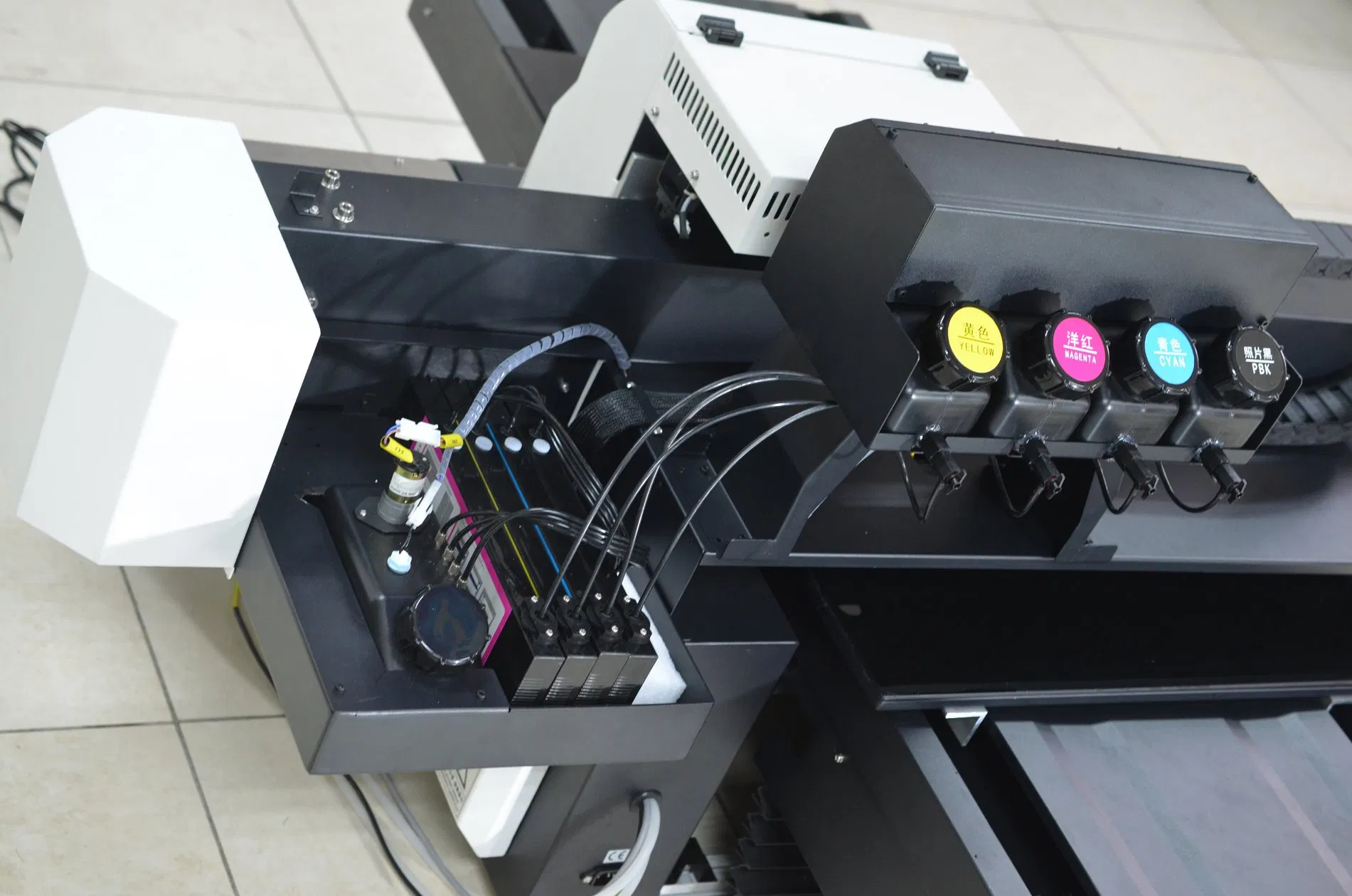

Ink SystemContinuous feed ink / white ink stirring + circulatory system
Print Height150mm
Print MaterialAcrylic, hand case, card, sign, wine bottles, handicrafts
RIP SoftwareUltraprint / Photoprint
File FormatBMP / TIFF / JPG / EPS / PDF
Power Supply50hz/60hz 110V/220V 10A
Machine Size1680 * 1820 * 800 mm
Product Features & Performance
TJ 6090UV is our most versatile printer release yet! This new technology utilizes UV curable inks and a built-in UV-LED lamp to produce vibrant full color and textured imprints that cure rock-solid on a huge variety of substrates, including dark and clear materials!

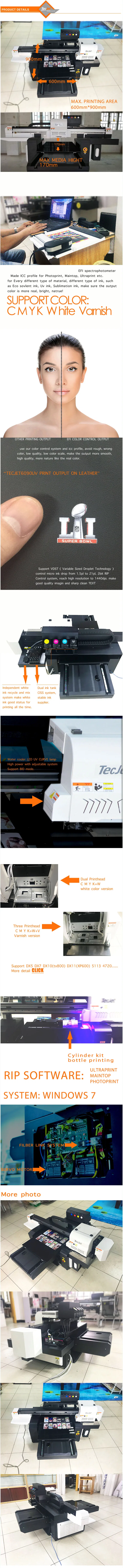

UV Printing Process 1
UV Printing Process 2
UV Printing Application
Sample Display 1
Sample Display 2
Sample Display 3
Machine Detail 1
Machine Detail 2
Frequently Asked Questions
1. What materials can the TECJET 6090 UV printer handle?
The printer is highly versatile and compatible with a wide range of substrates including acrylic, phone cases, PVC cards, signs, wine bottles, glass, wood, and various handicraft packaging articles.
2. What is the maximum print area and thickness supported?
This model supports a maximum printing size of 600mm x 900mm and can accommodate objects with a print height (thickness) of up to 150mm.
3. Does it support printing on dark or transparent materials?
Yes, the system uses a CMYKW ink configuration. The inclusion of white ink, supported by a stirring and circulatory system, allows for high-quality, vibrant prints on dark and clear materials.
4. What type of UV curing system is used?
The printer is equipped with water-cooled adjustable LED UV lamps. This technology ensures that the LED UV light-curing ink dries instantly during the printing process.
5. What software and file formats are compatible with this printer?
The TECJET 6090 UV printer supports professional RIP software such as Ultraprint and Photoprint. It is compatible with common file formats including BMP, TIFF, JPG, EPS, and PDF.
6. What is the approximate printing speed?
At a resolution of 720dpi, the printer can complete a full 600*900mm print in approximately 180 to 260 seconds, depending on the specific print head configuration (DX7 or XP600) used.
