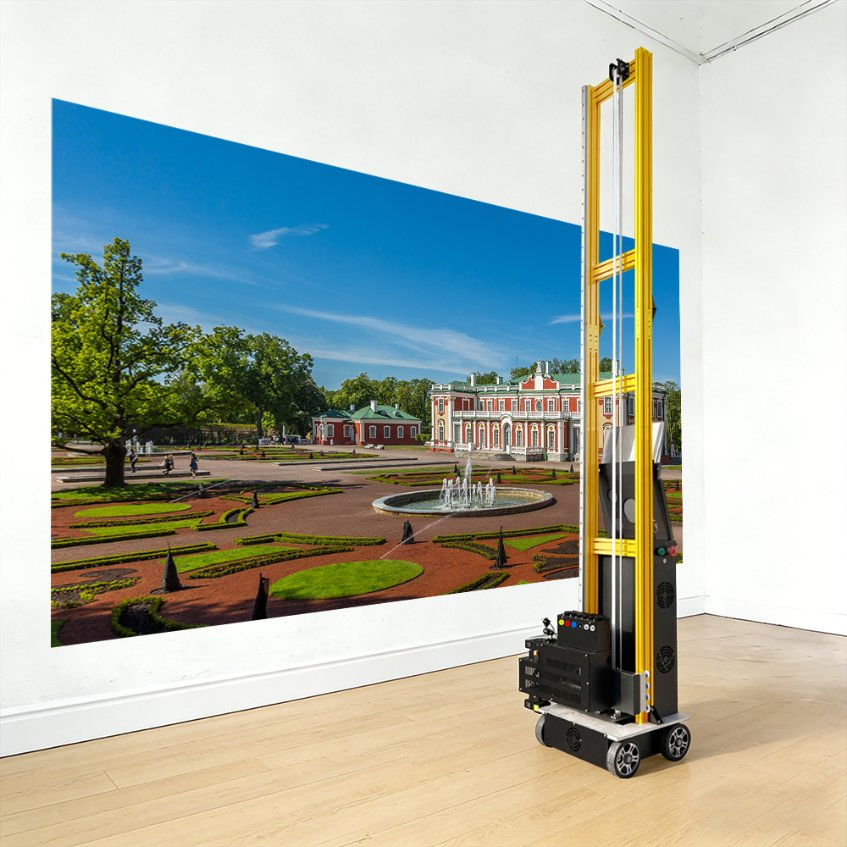

3D UV Industrial Metal Panel Digital Wall Printer

📊Basic Information

Model NO.

LC-A2C

Interface Type

USB

Supply Paper Mode

Automatic and Manual Integration

Technics

Continuous Inkjet

Ink Type

UV Ink

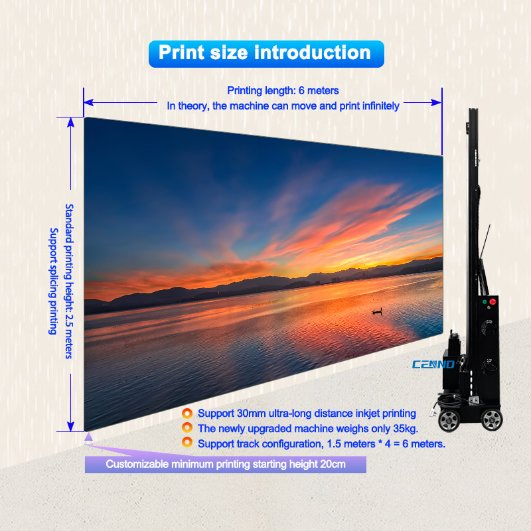

Printing Size

2500mm * 6000mm

Printing Speed

5-15 M²/Hour

Ink Color

CMYKWW

🚀Product Description & Core Advantages

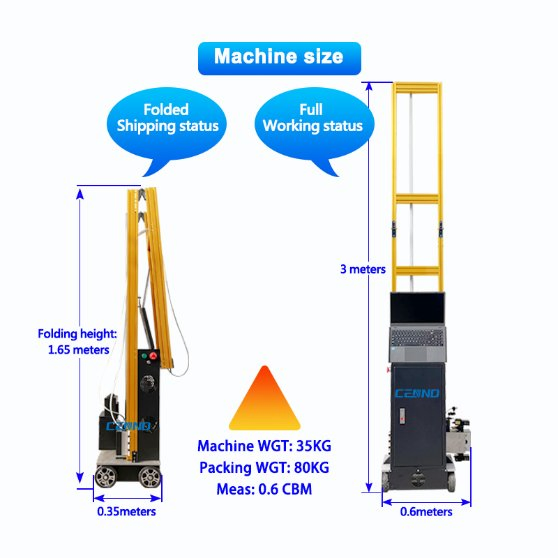

1. Lightweight & Foldable Design

With a total weight of only 35KG, the foldable structure greatly simplifies the installation process. Deploy and start printing in just 5 minutes.

2. Dual Wheel & Rail Mode

Direct wheeled mobile printing on flat floors or use matching rails for outdoor/uneven ground scenarios.

3. Detachable Laptop Configuration

Superior user experience with a detachable laptop for faster image processing and multi-functional use.

4. X-Axis Guide Rail Drive

Precision control of print head movement, reducing jitter and supporting high-speed printing modes.

5. Factory Direct Sales

Competitive pricing by eliminating middlemen with direct and efficient after-sales support.

📝Technical Specifications

Parameters	LC-A2C	LC-A2S	LC-A2Pro
Printhead Model	DX10	DX7	I1600-U1
Number of Printheads	1	1	2
Printing Speed	3-8 m²/h	4-10 m²/h	5-15 m²/h
Laptop	Win10-8G-256GB	Touch Win11-16G-512GB	Touch Win11-16G-1TB
Ink System	UV CMYKW	UV CMYKW	UV CMYKW
Motherboard	Fiber 2.0	Fiber 3.0	Fiber 3.0
Power-off Memory	Supported	Supported	Supported
Printing Materials	Walls, tiles, glass, wood, PVC, metal, etc.

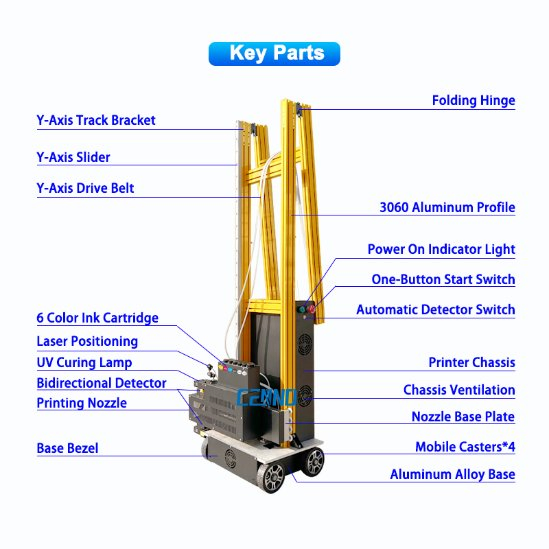

⚙️Key Components

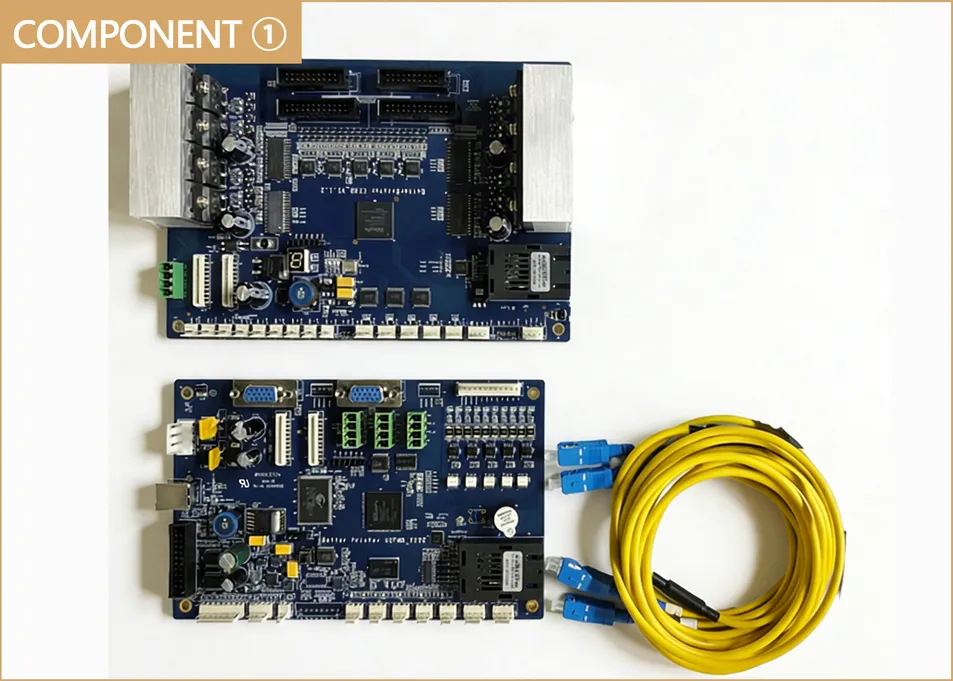

Customized Fiber Optic Motherboard

Stable signal transmission with strong anti-interference. Significantly lower failure rates compared to traditional cable motherboards.

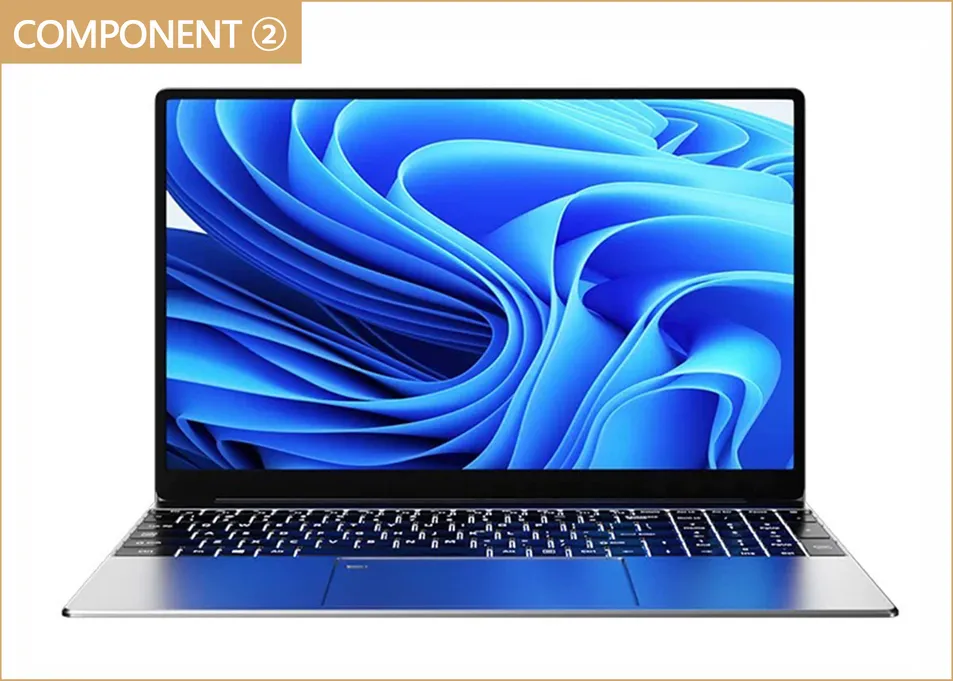

High-performance Ultra-thin Laptop

Pre-installed 3D images and HD materials. Supports professional design software and real-time printing control.

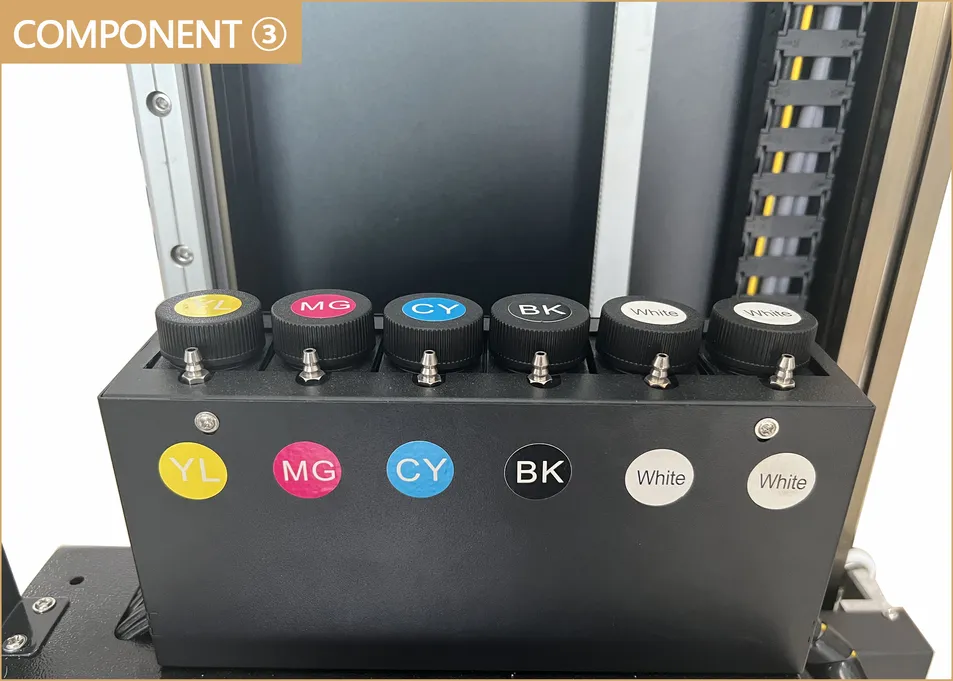

6-color CMYKWW Ink System

Variable droplet technology for vibrant colors and fine details. UV ink ensures rapid curing, waterproofing, and sun protection.

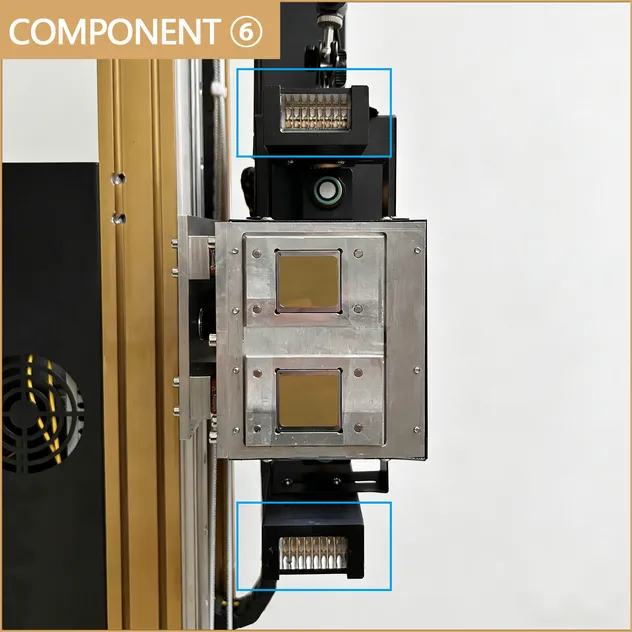

Bi-directional UV Curing

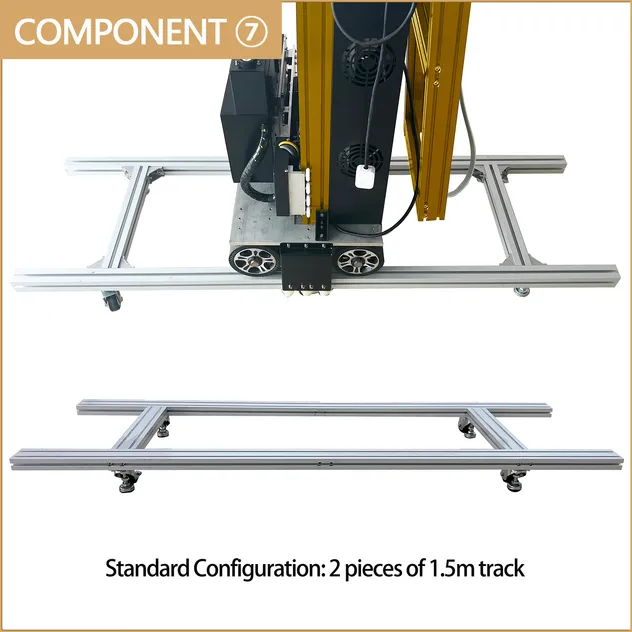

Additional Mobile Rail

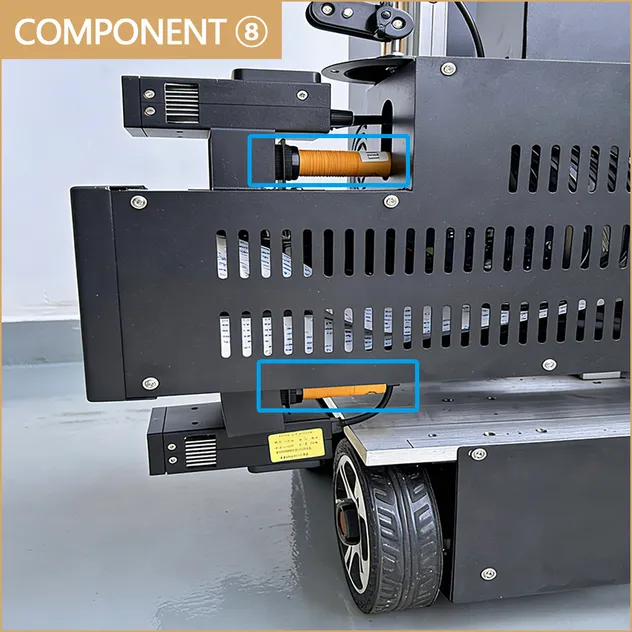

Bi-directional Detector

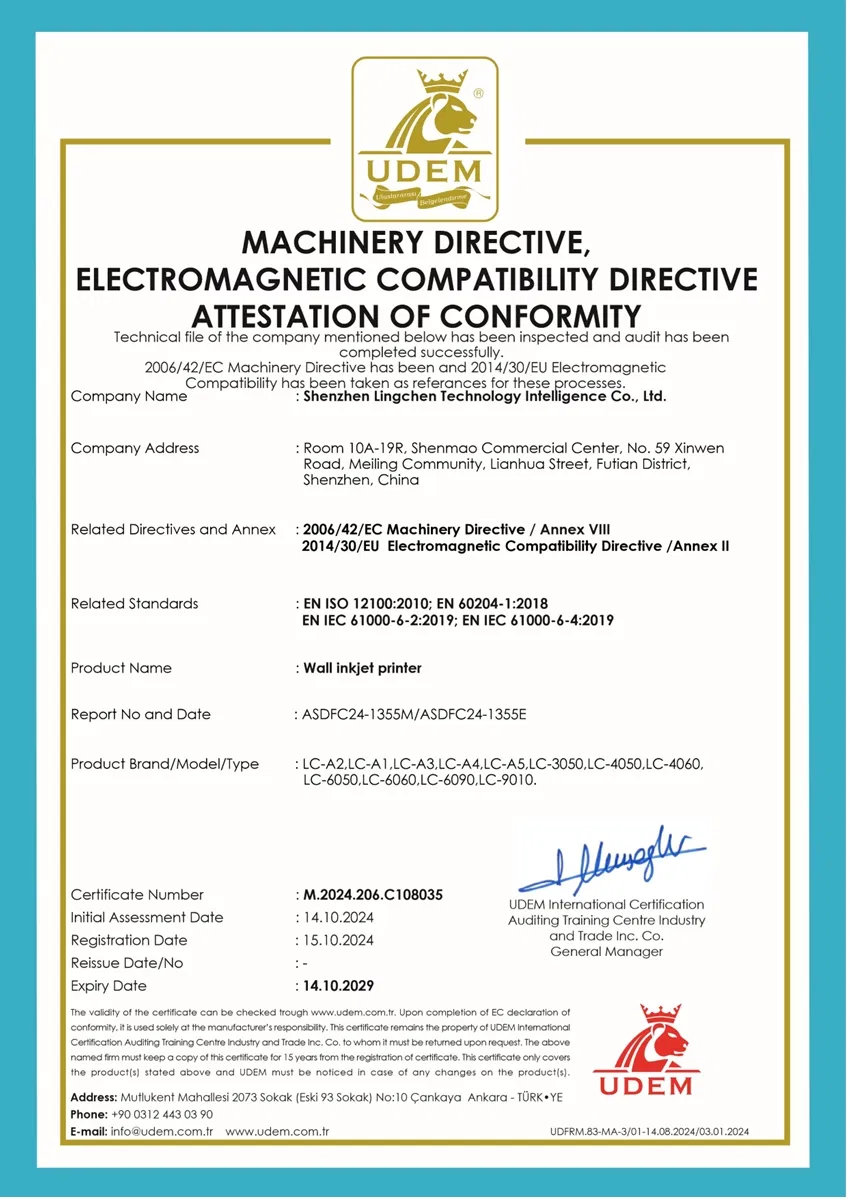

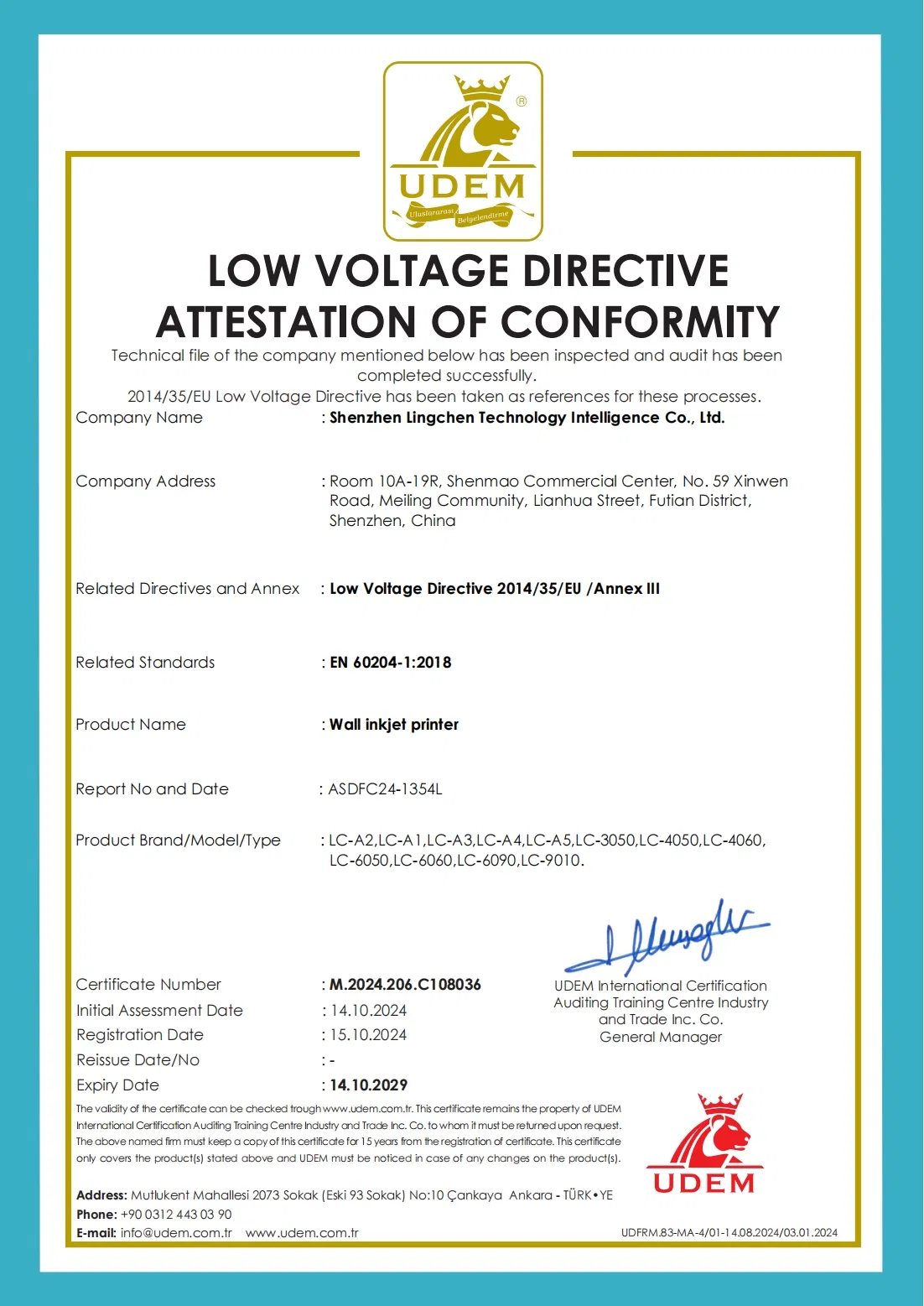

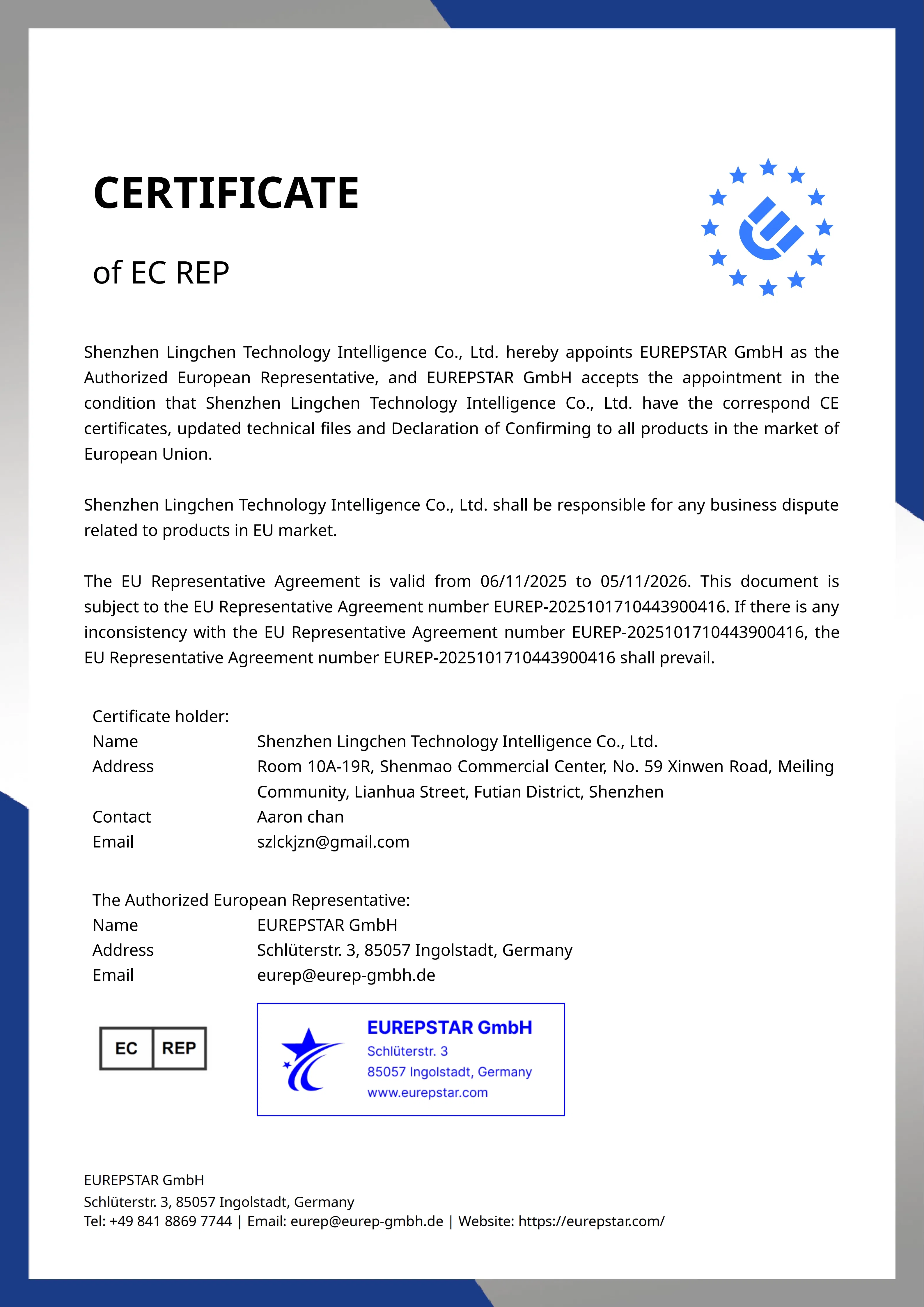

📜International Certifications

📦Packing & Delivery

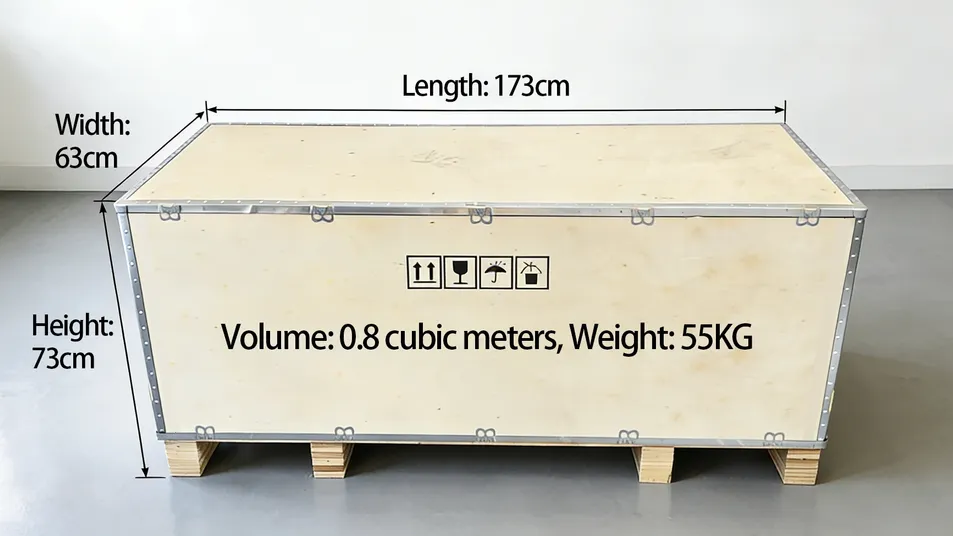

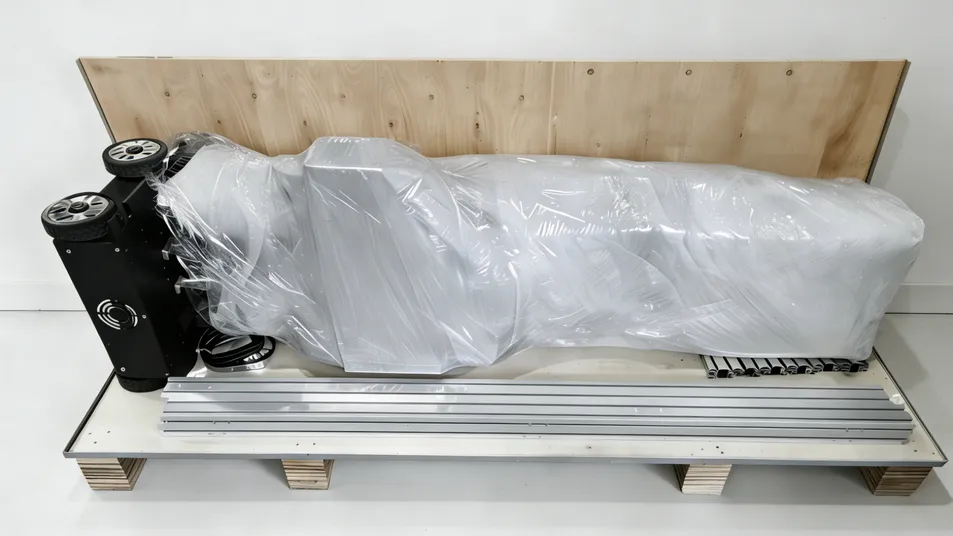

Reinforced Wooden Case: High-strength packaging with multi-layer shock absorption for core components.

Package Size: 173.00cm * 63.00cm * 73.00cm | Gross Weight: 120.00kg

Logistics: Supports Air Freight, Sea Freight, and Express. DDP service available for selected regions.

❓Frequently Asked Questions

1. What is the printing precision and color reproduction capability?

The physical resolution reaches 1200dpi for pixel-level printing. With CMYK + White ink configuration, the color reproduction rate is ≥ 95%, matching design drawings accurately.

2. Which wall materials can I print on?

It is compatible with cement walls, latex paint, wallpaper, tiles, glass, and wood. Smooth surfaces can be printed directly, while rough walls may need leveling.

3. How does the machine handle uneven surfaces?

The built-in radar detection system identifies 1-20cm irregularities and adjusts the printhead distance in real-time (0.1mm precision) to prevent collisions.

4. Is the UV ink environmentally friendly?

Yes, the UV ink has passed CE and ROHS certifications. It is non-toxic, odorless, and offers an indoor shelf life of ≥ 20 years.

5. What is the warranty and after-sales policy?

We offer a 3-year warranty for the machine (excluding consumables) and lifelong maintenance. We provide 24/7 online technical support and fast accessory delivery.

6. How difficult is it to operate for a beginner?

The system is very user-friendly with a visual touch control and a simple 3-step process. Most non-professionals can master it within 1-2 hours of training.
