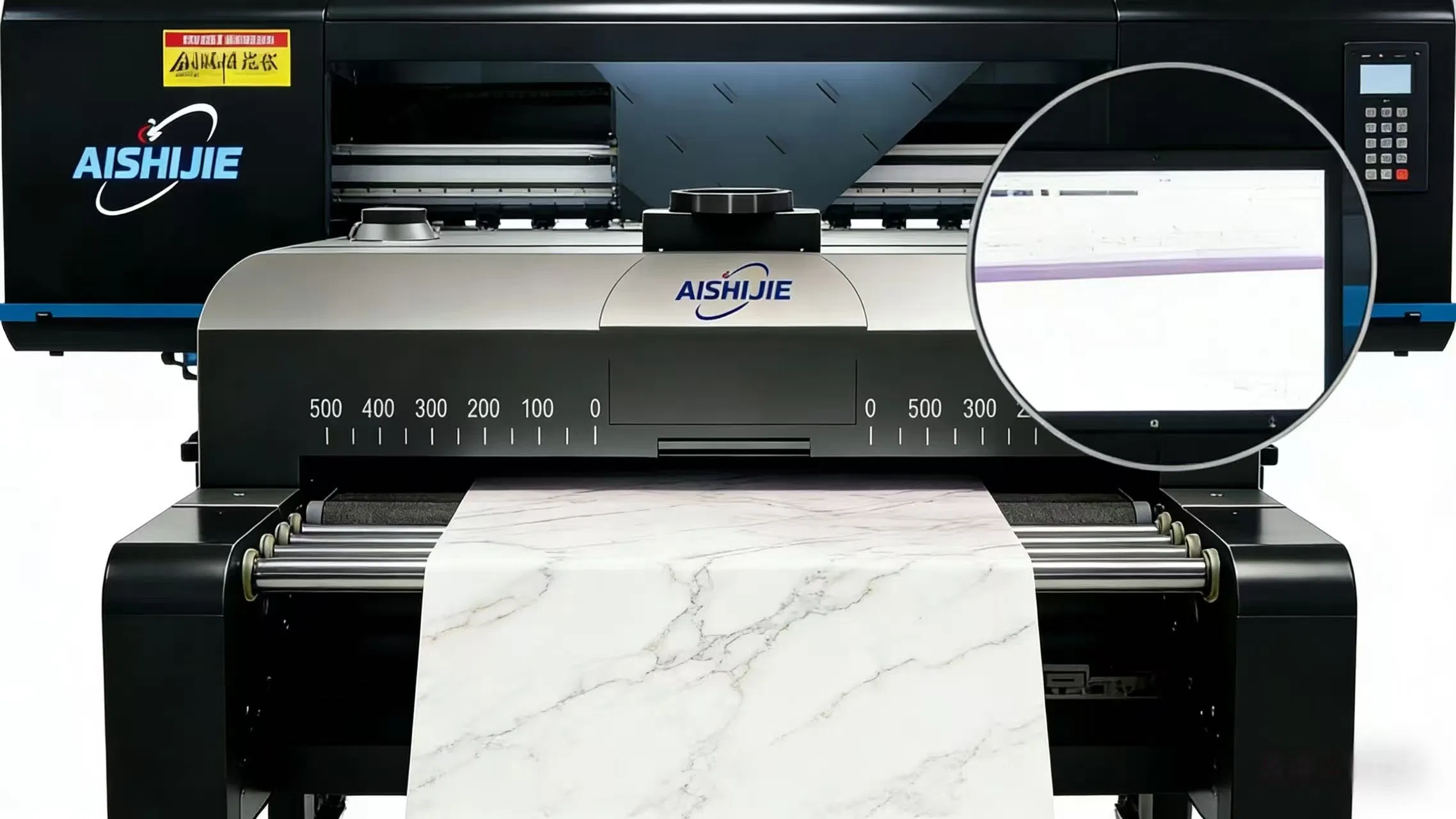

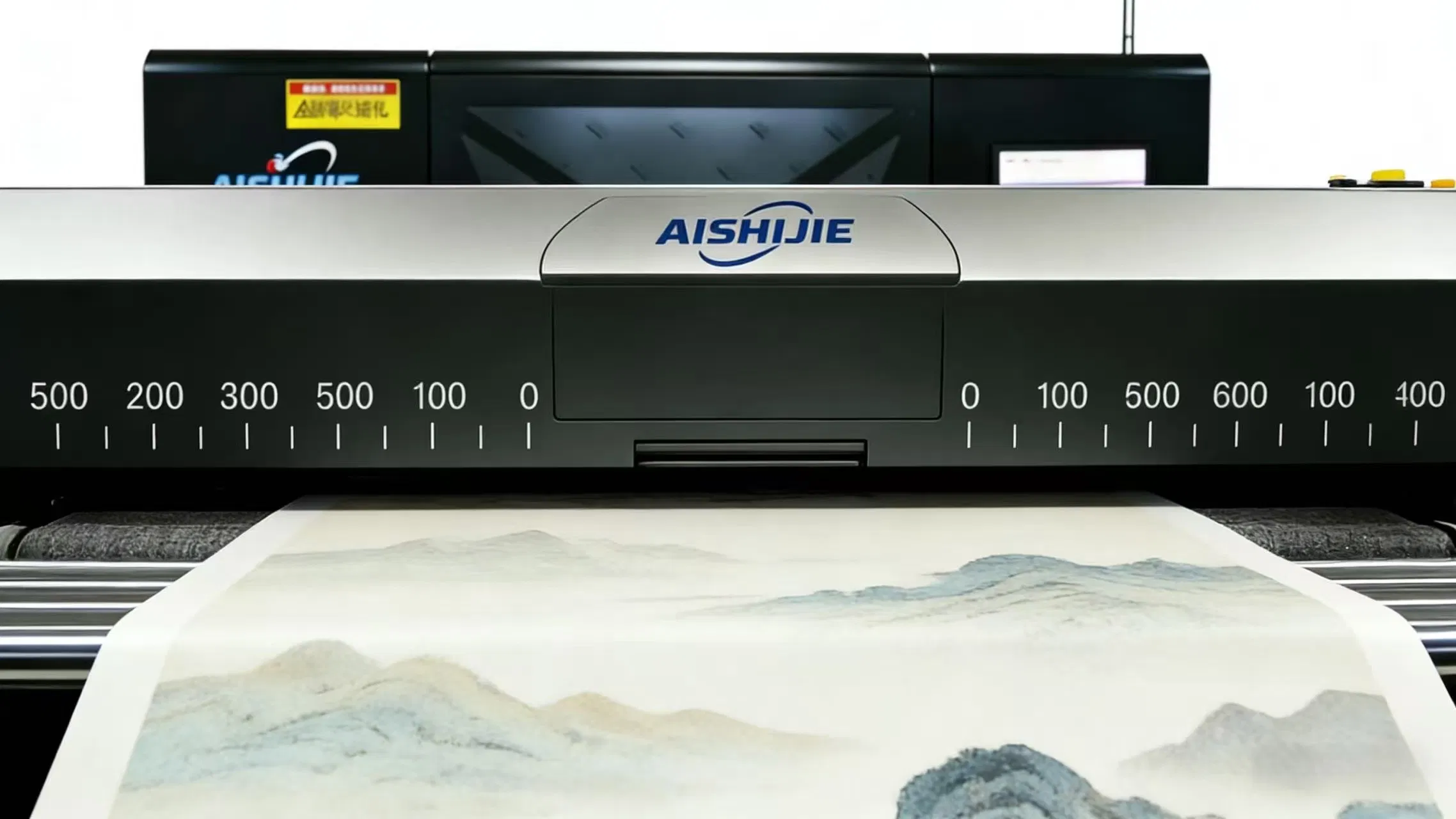

The overall adoption of a one-stop, integrated architecture ensures more stable operation by minimizing connection points and potential failure risks between modules. This robust design significantly reduces unexpected downtime and maintenance frequency.
Utilizes high-rigidity Japanese-made linear guide rails and precision ball screws to ensure exceptional motion stability and positioning accuracy. This premium mechanical structure effectively minimizes vibration, guaranteeing consistent registration during high-speed operation.
The advanced servo control system is highly intelligent, enabling seamless switching between various application functions with exceptional precision. It automatically adjusts parameters for different printing modes and materials.
The software operation interface is exceptionally simple and intuitive. The innovative one-touch operation feature eliminates the need for complicated manual setup, allowing operators to start jobs quickly and effortlessly.
| Printer Model | Jep-V15 |
| Number of Spray Heads | 8/12/16/24 |
| Print Width | 1350MM |

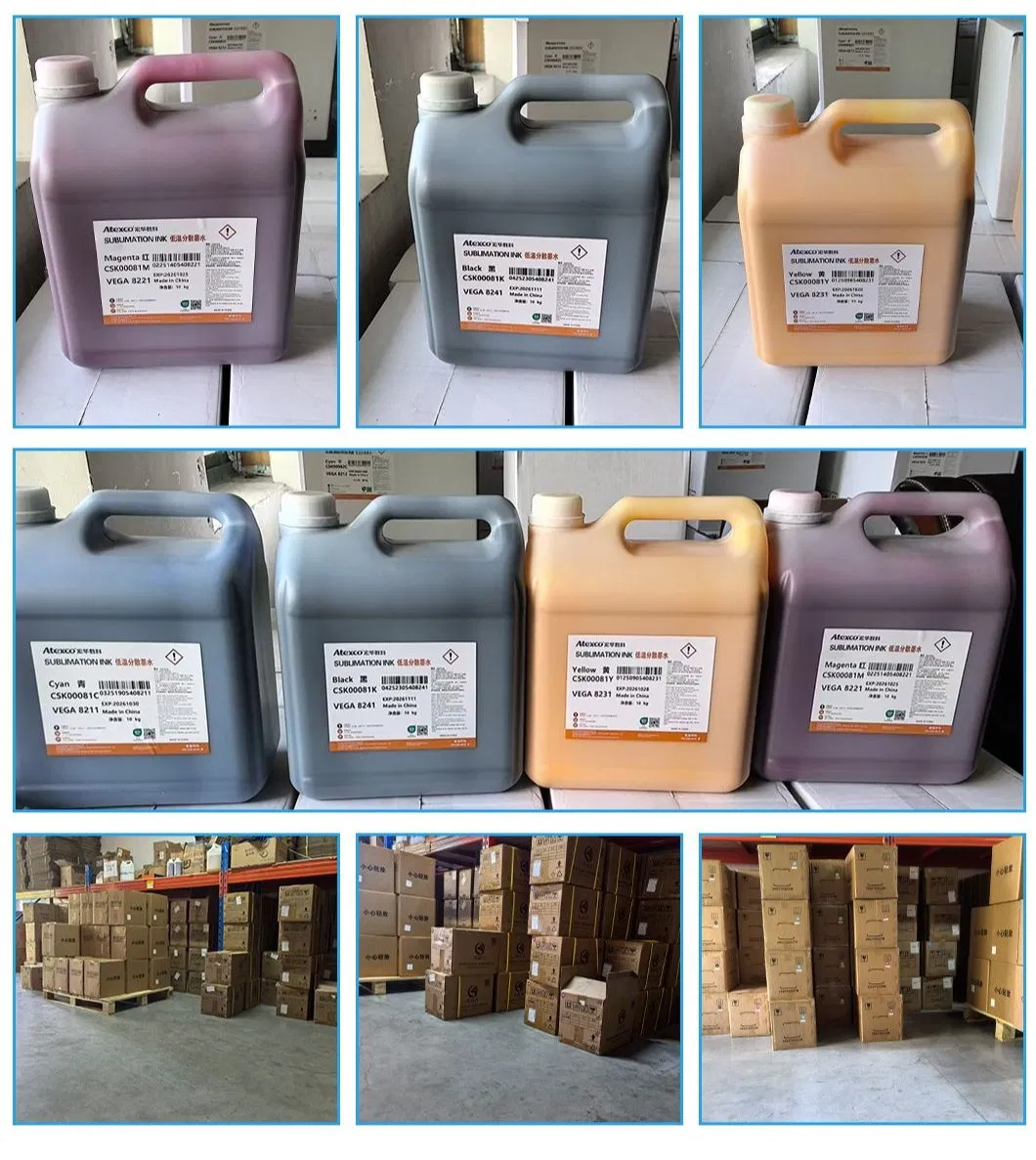

| Ink Type | Water-based pigment / Mild solvent ink |
| Colors | Red, Yellow, Blue, Black, Gray, Light Gray |
| Ink Supply System | Negative pressure system, 15 liters/color |
| Production Mode Speed | 80/120/160/240 m²/h |
| Quality Mode Speed | 40/60/80/120 m²/h |

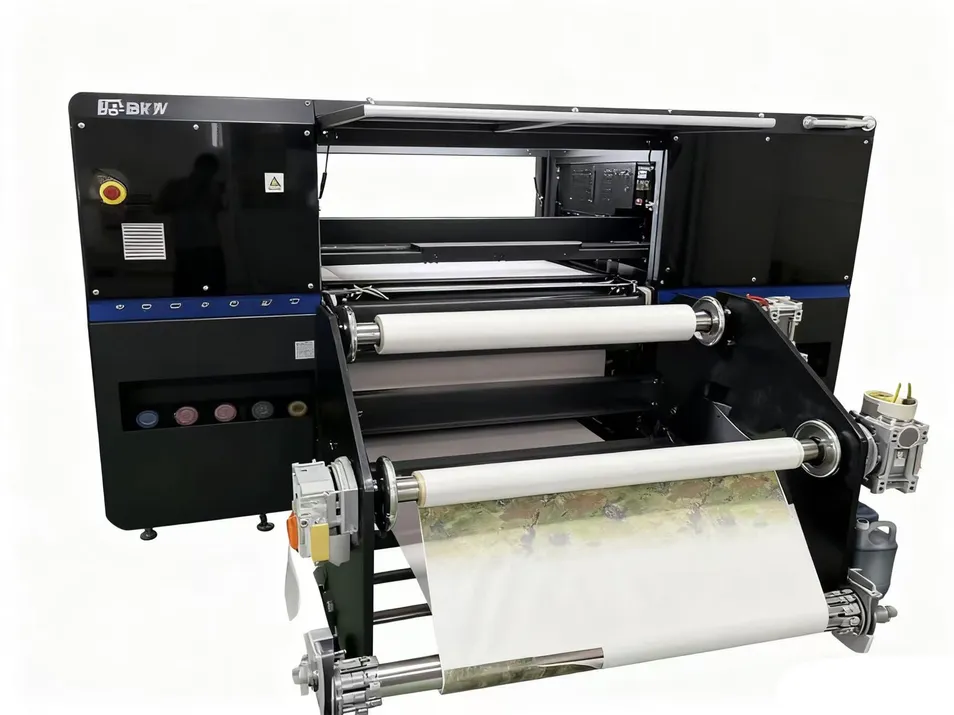

| Roll Diameter / Weight | 800mm / 1000KG |
| Operating Platform | Windows 7 / 10 (64-bit) |
| Interface | Gigabit network-card or USB 3.0 |
| RIP Software | Maintop, Print Factory, Photoprint, Onyx, NeoStampa, etc. |

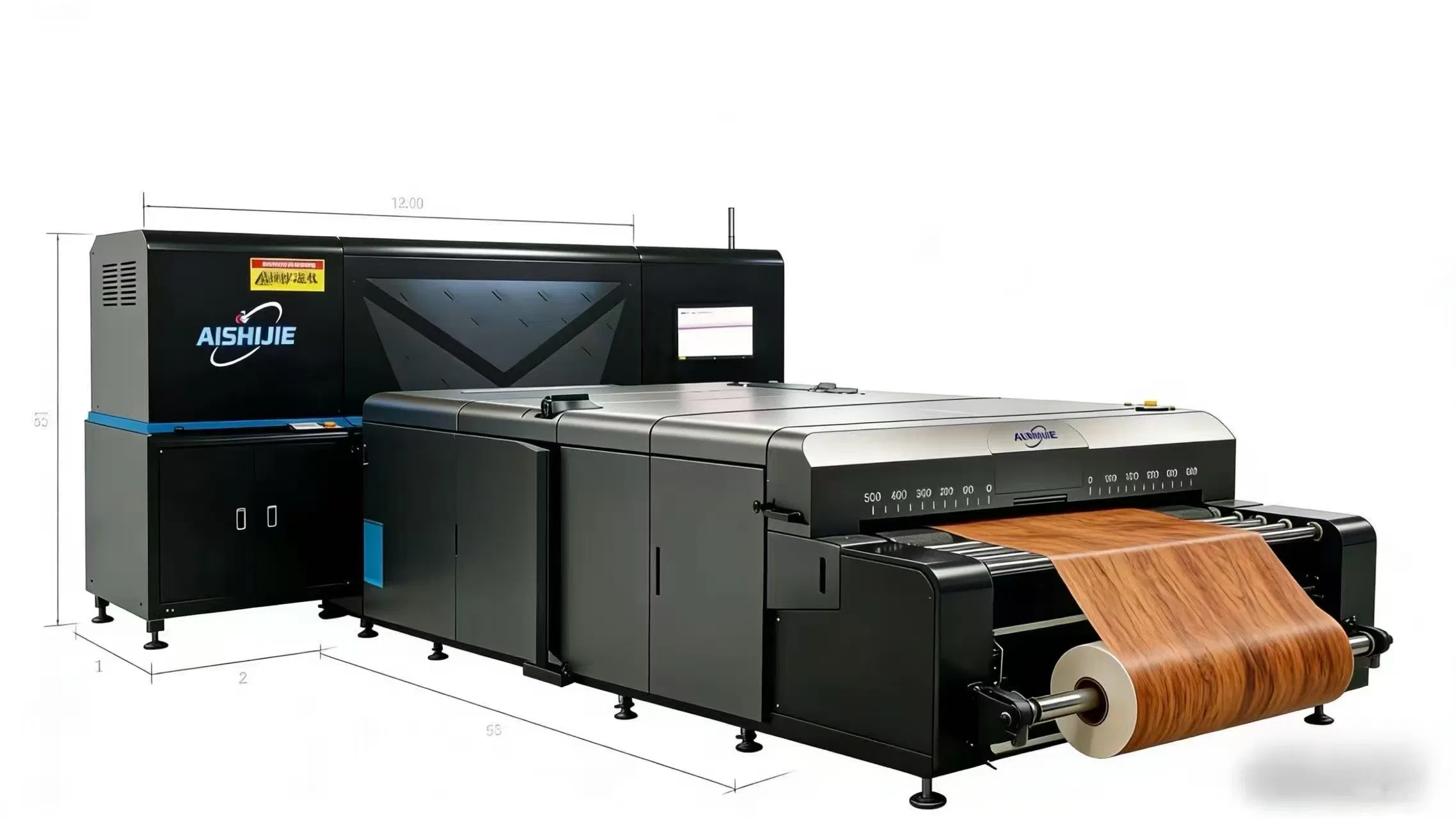

| Equipment Dimensions | 3550 x 1300 x 1900 mm |
