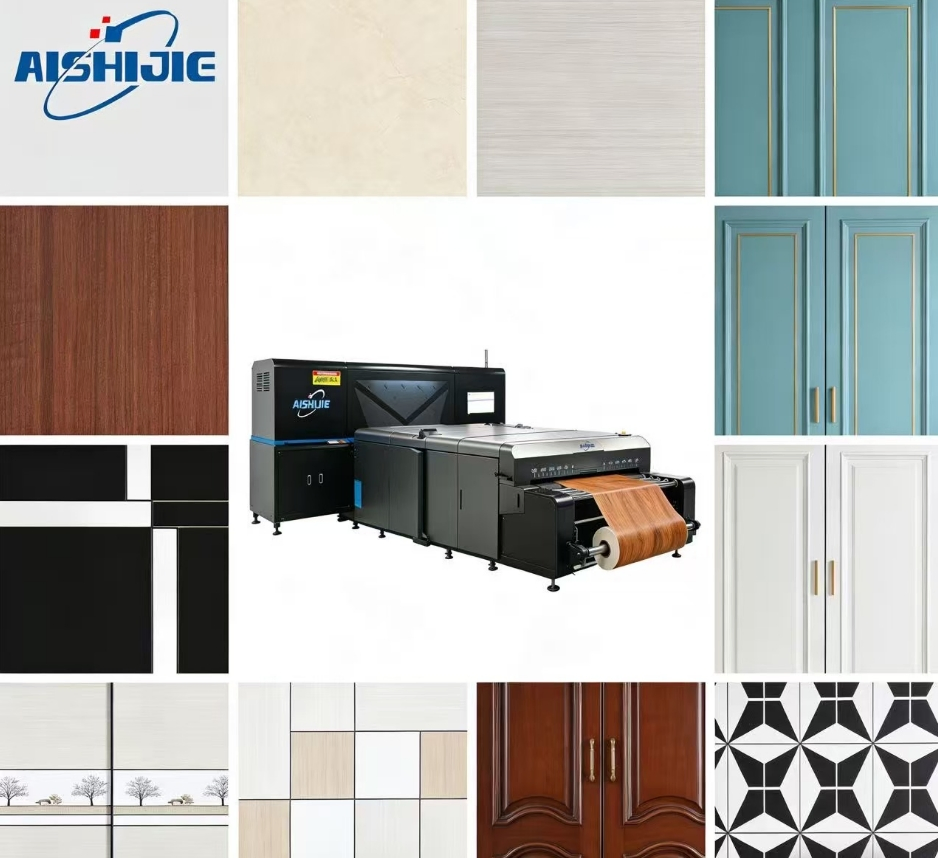

| Model NO. | Jep-V1 |
| Structure | Inject |
| Color & Page | Multi-Colour Printing Press |
| Usage | PVC Floor Film Digital Printing |
| Automatic Grade | Automatic |
| Printing Speed | Production Mode M²: 80/120/160/240 |
| Print Width | 1350mm / 1900mm |
| Device Power | 12kw |
| Applicable Industries | Decoration Materials, Printed Textiles |
| Package Size | 355.00cm * 155.00cm * 200.00cm |
| Gross Weight | 1800.000kg |

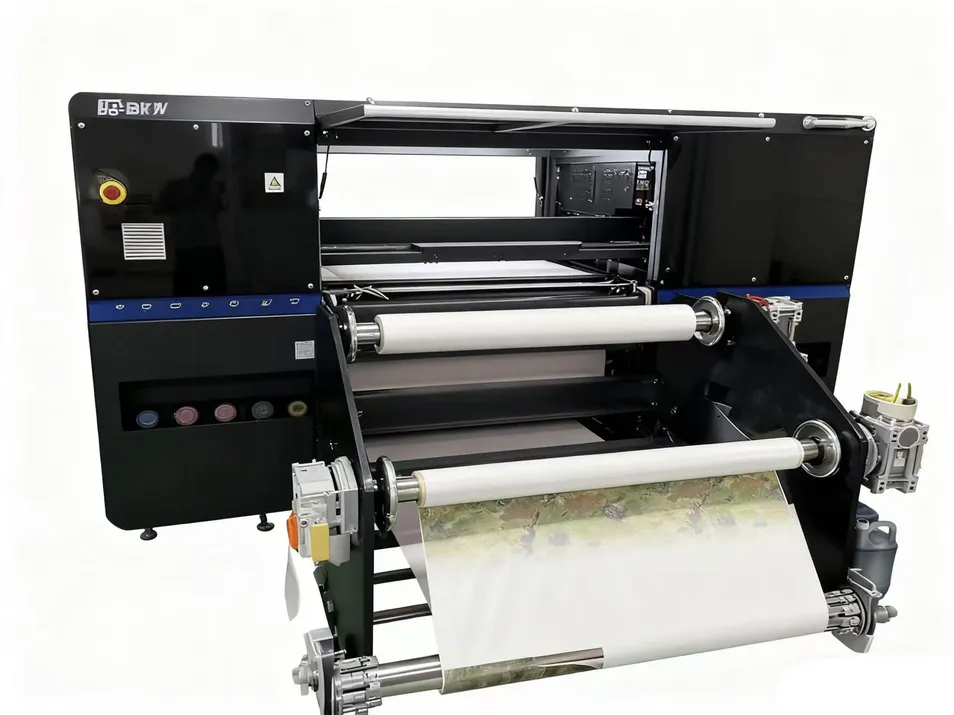

The overall adoption of a one-stop, integrated architecture ensures more stable operation by minimizing connection points and potential failure risks between modules. This robust design significantly reduces unexpected downtime.
Utilizes high-rigidity Japanese-made linear guide rails and precision ball screws to ensure exceptional motion stability and positioning accuracy during printing, minimizing vibration.

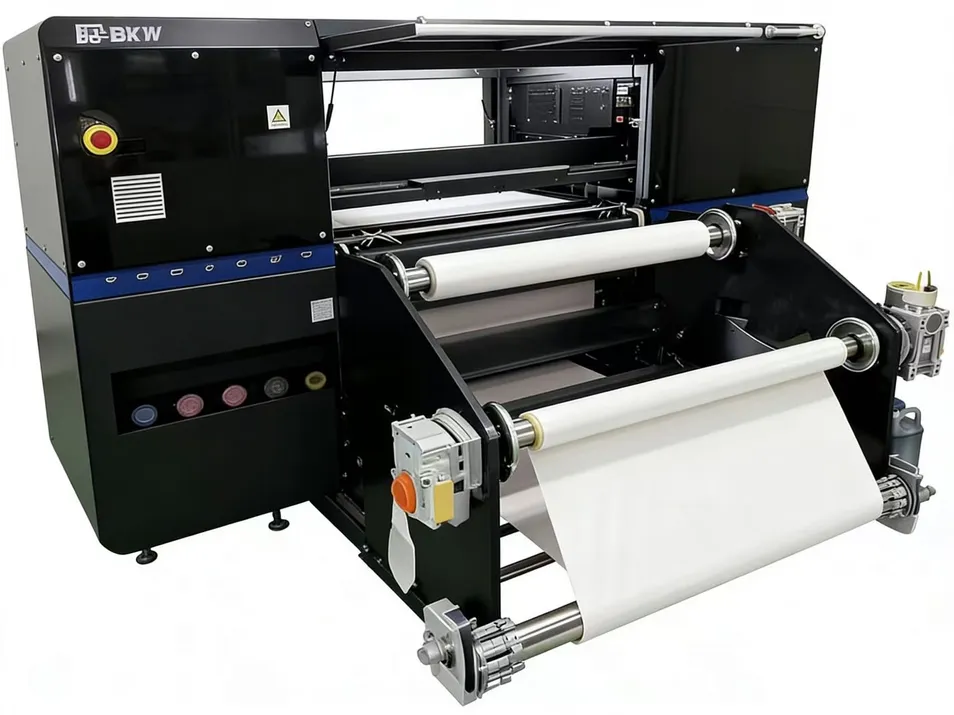

The advanced servo control system enables seamless switching between various application functions with precision and speed, automatically adjusting parameters for different printing modes.
Designed with user-friendliness in mind, the innovative one-touch operation feature eliminates complicated manual setup, allowing operators to start jobs quickly.
| Printer Model | Jep-V15 |
| Number of Spray Heads | 8 / 12 / 16 / 24 |

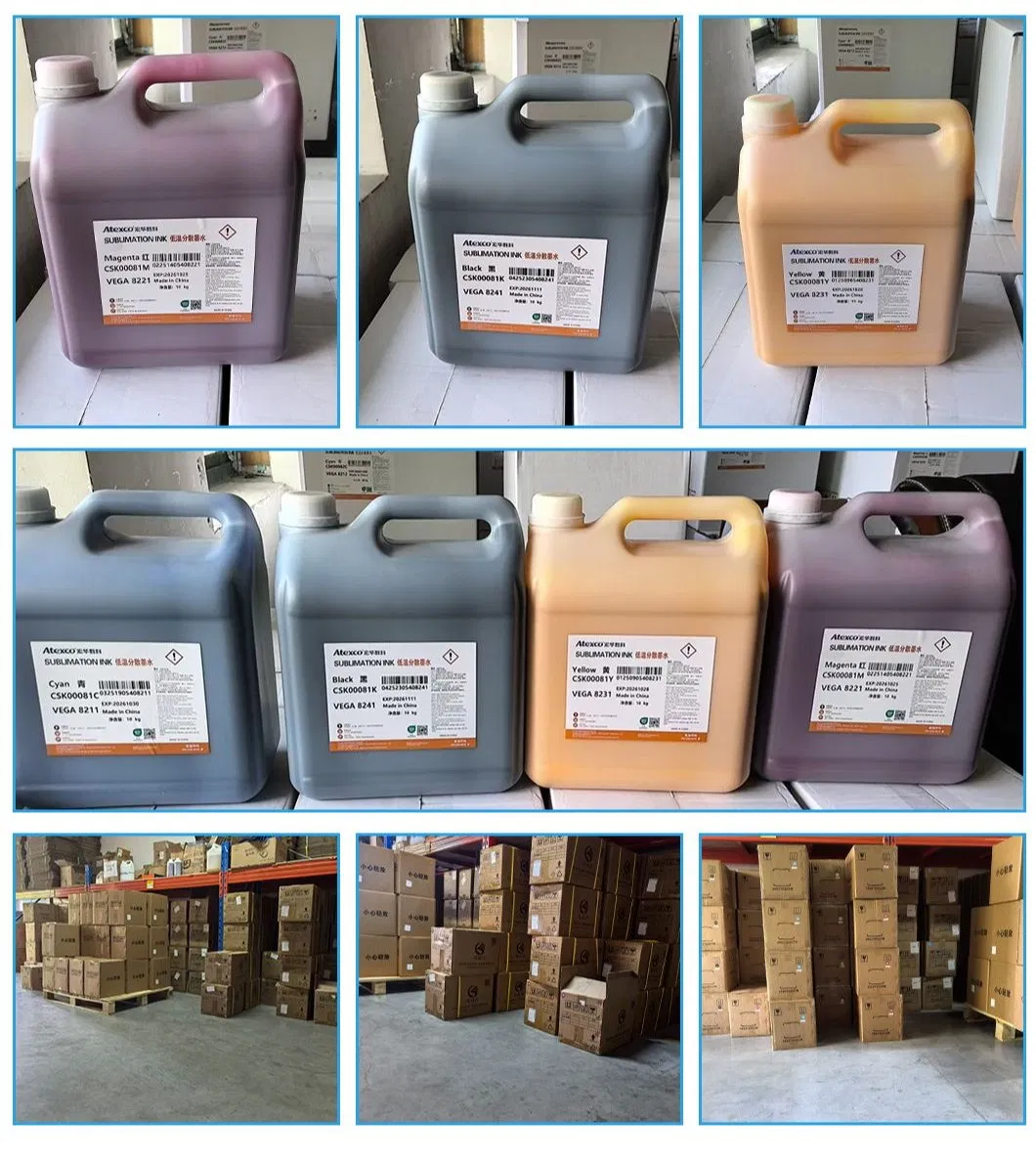

| Ink Type | Water-based pigment - mild solvent ink |
| Pigment Colors | Red, Yellow, Blue, Black, Gray, Light Gray |
| Ink System Capacity | Negative pressure system, 15 liters/color |
| Production Mode Speed | 80/120/160/240 m²/h |
| Max Roll Diameter/Weight | 800mm / 1000KG |
| Runtime Humidity/Temp | 55%-70% / 22℃-28℃ |
| Operating Platform | Windows 7 / 10 (64-bit) |
| RIP Software | Maintop, Print Factory, Photoprint, Onyx, NeoStampa, etc. |

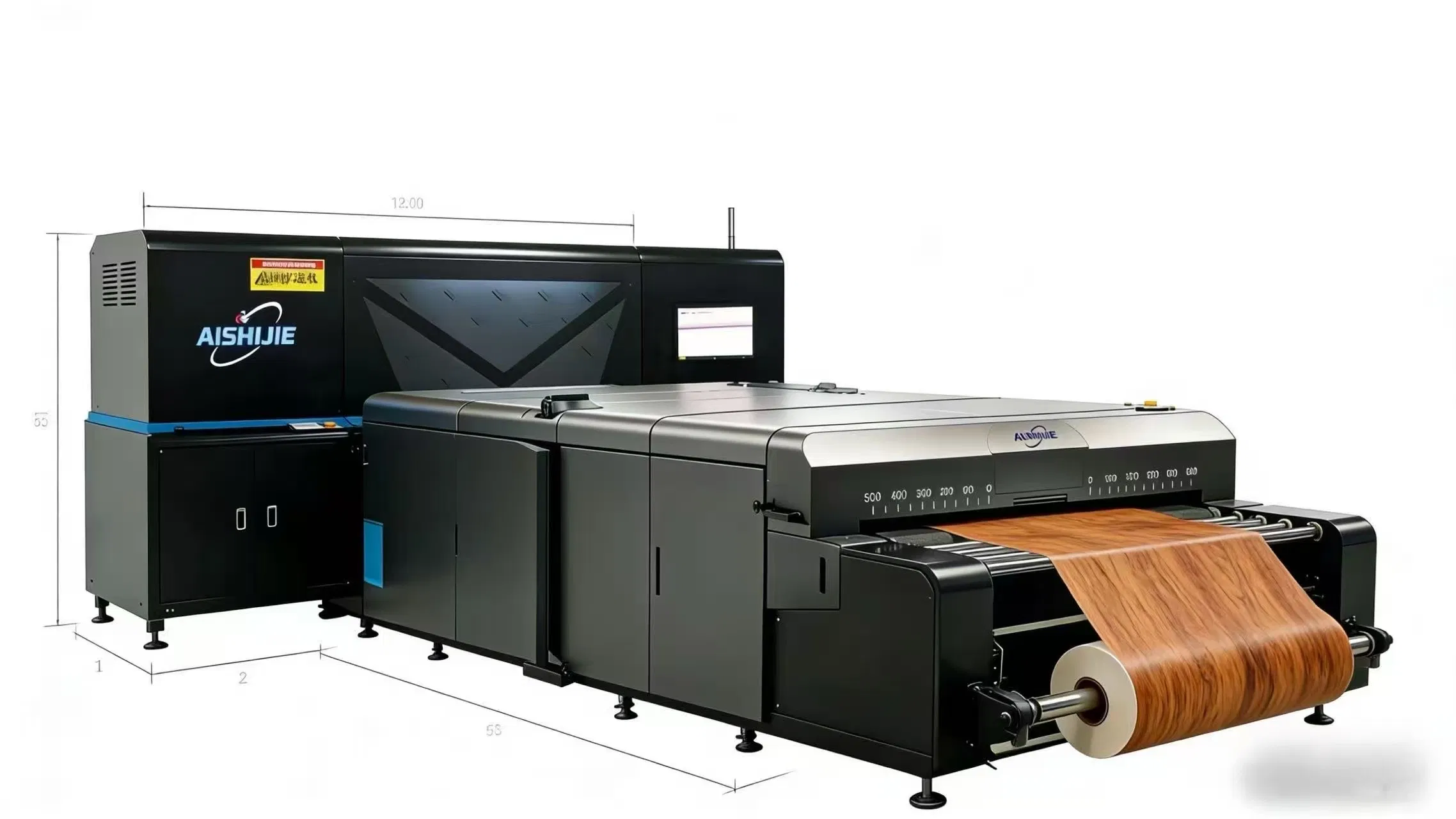

| Dimensions | 3550 x 1300 x 1900 mm |
We are a high-tech enterprise integrating R&D, production, sales, and after-sales services. We are committed to bringing digital technology into the decorative panel industry, providing digital and intelligent upgrading services for traditional gravure printing of decorative paper and film. Through AI and intelligent cloud services, we build production networks and upgrade smart factories.
Main Focus: Digital printing equipment and complete application solutions for decorative paper and film (PVC, PP, PET, etc.), and non-standard customized products to meet specific enterprise needs.
