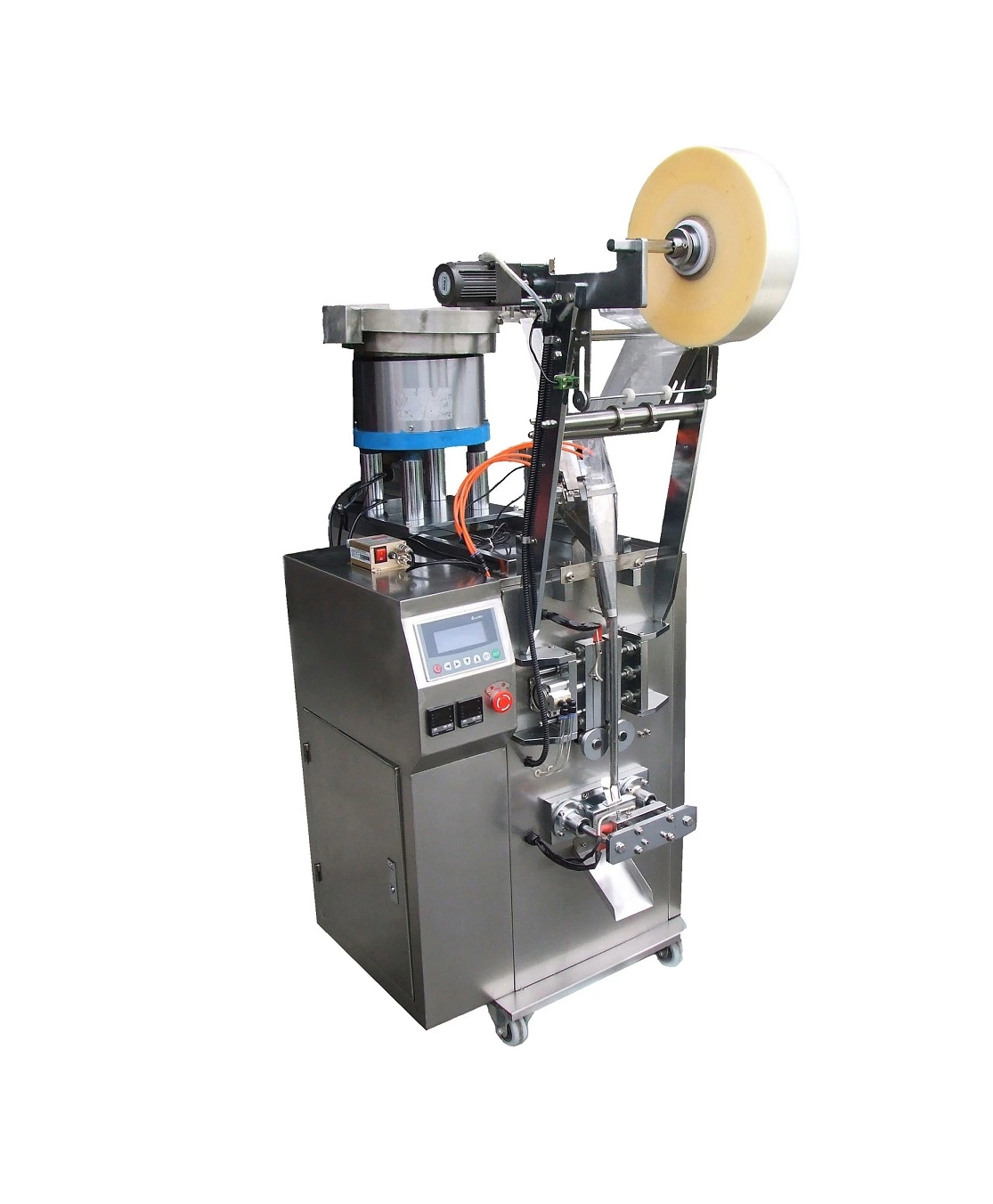

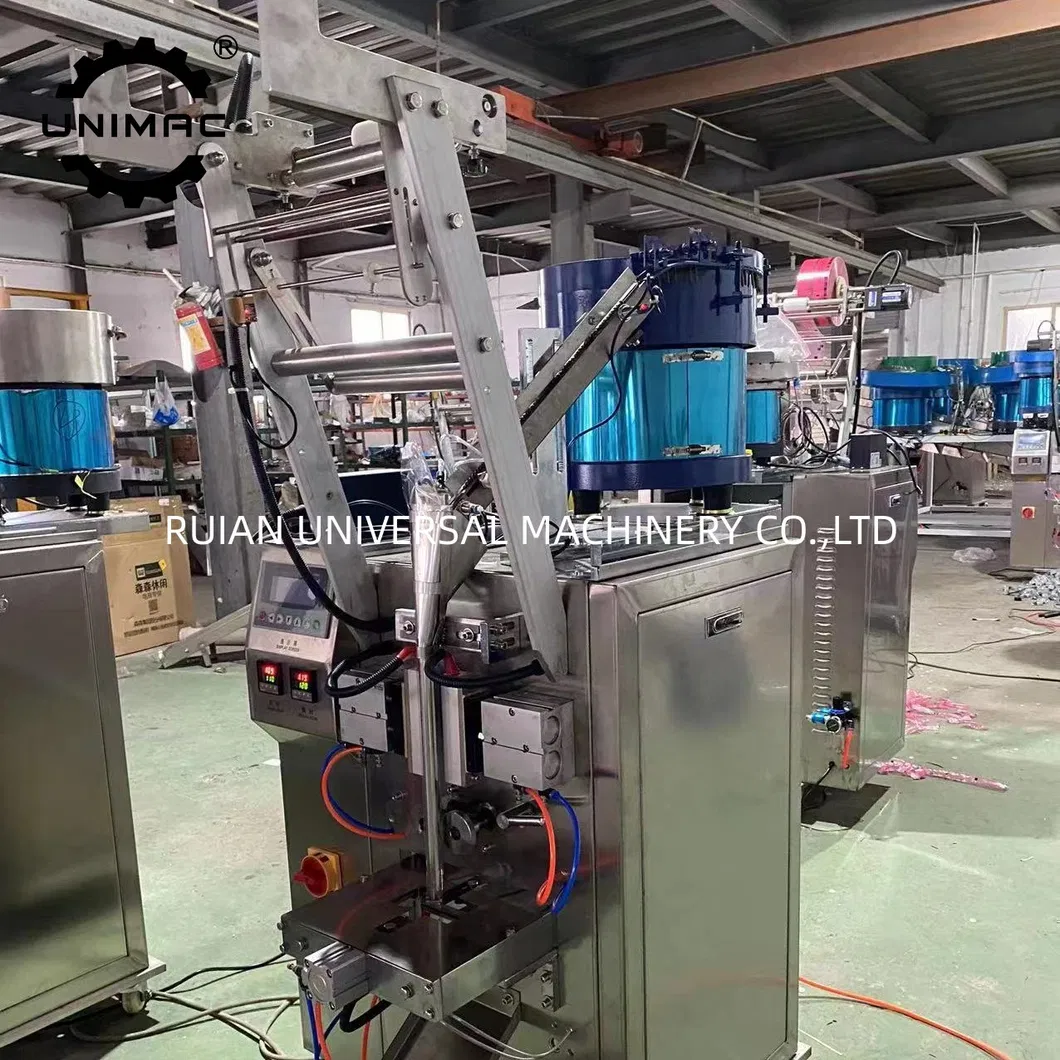

Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)
1 / 5
Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)
Hardware Screw Counting Packing Machine (DXD-80L)

Hardware Screw Counting Packing Machine (DXD-80L)

Automatic Grade: Automatic
Application: Hardware
Type: Filling and Sealing Machine
Send Inquiry

Product Description

Basic Information

Model NO.
DXD-80L
Forming Species
Bag Moulding
Forming Function
Filling
Driven Type
Pneumatic
Material Type
Hardware, Fastener
Packaging
Bag
Packaging Material
Film
Size
One Bowl
Speed
High Speed
Transport Package
Wooden Case
Specification
CE, SGS
HS Code
84224000
Capacity
100sets/Year

Product Description

Automatic Screw Counting Packing Machine (DXD-80L)

Hardware Screw Counting Packing Machine
Hardware Screw Counting Packing Machine
Hardware Screw Counting Packing Machine
Hardware Screw Counting Packing Machine
Hardware Screw Counting Packing Machine
Hardware Screw Counting Packing Machine

The automatic screw packaging machine adopts the newest technology application, substituting prefabricated bag methods to greatly enhance working efficiency. It is widely used in various screw application enterprises. The DXD series represents technological advancement, ease of operation, and successful application in large-scale electric appliance industries.

Key Features

●
Customized oscillation arrangement with precise counting control for unmistakable accuracy in every bag.
●
Equipped with Japanese Mitsubishi PLC programmable control and a bilingual (Chinese/English) man-machine interface for simple operation.
●
Intelligent temperature control for horizontal and vertical sealing ensures leak-proof, smooth, and fine bag quality.
●
Step machine subdivision technology for automatic tracking and color code localization ensures steady, low-noise operation.
●
Stepless adjustment of packing speed within a fixed scope with localized engine-off function.
●
Complete automation: bag making, measurement, filling, sealing, cutting, registering, and batch number printing.

Application & Parameters

Suitable for packing Nails, bolts, nuts, small electronic parts, and other hardware components.

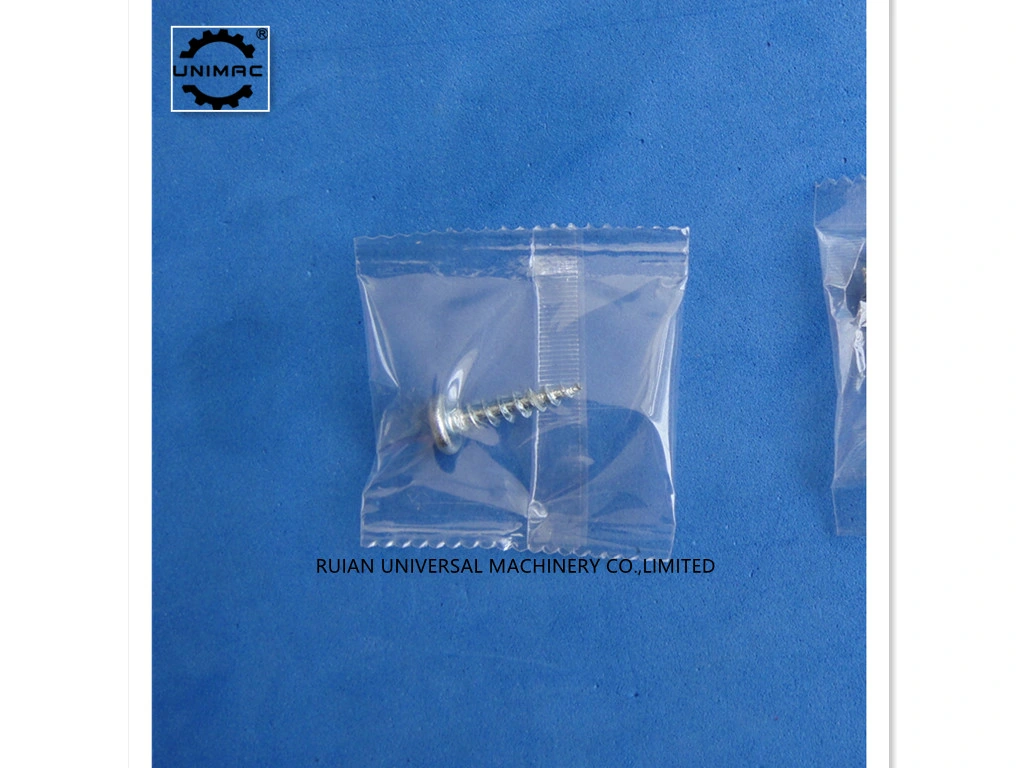

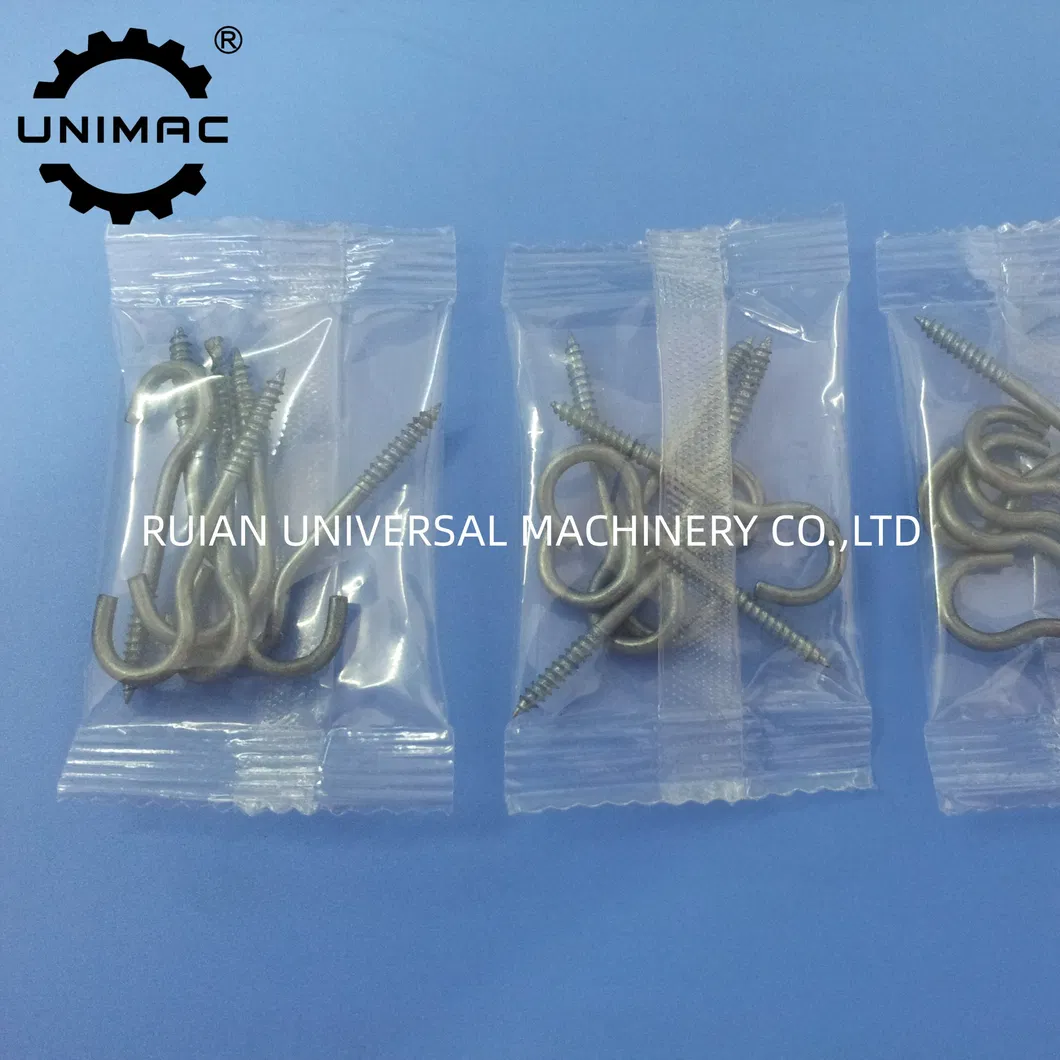

Hardware Parts Samples

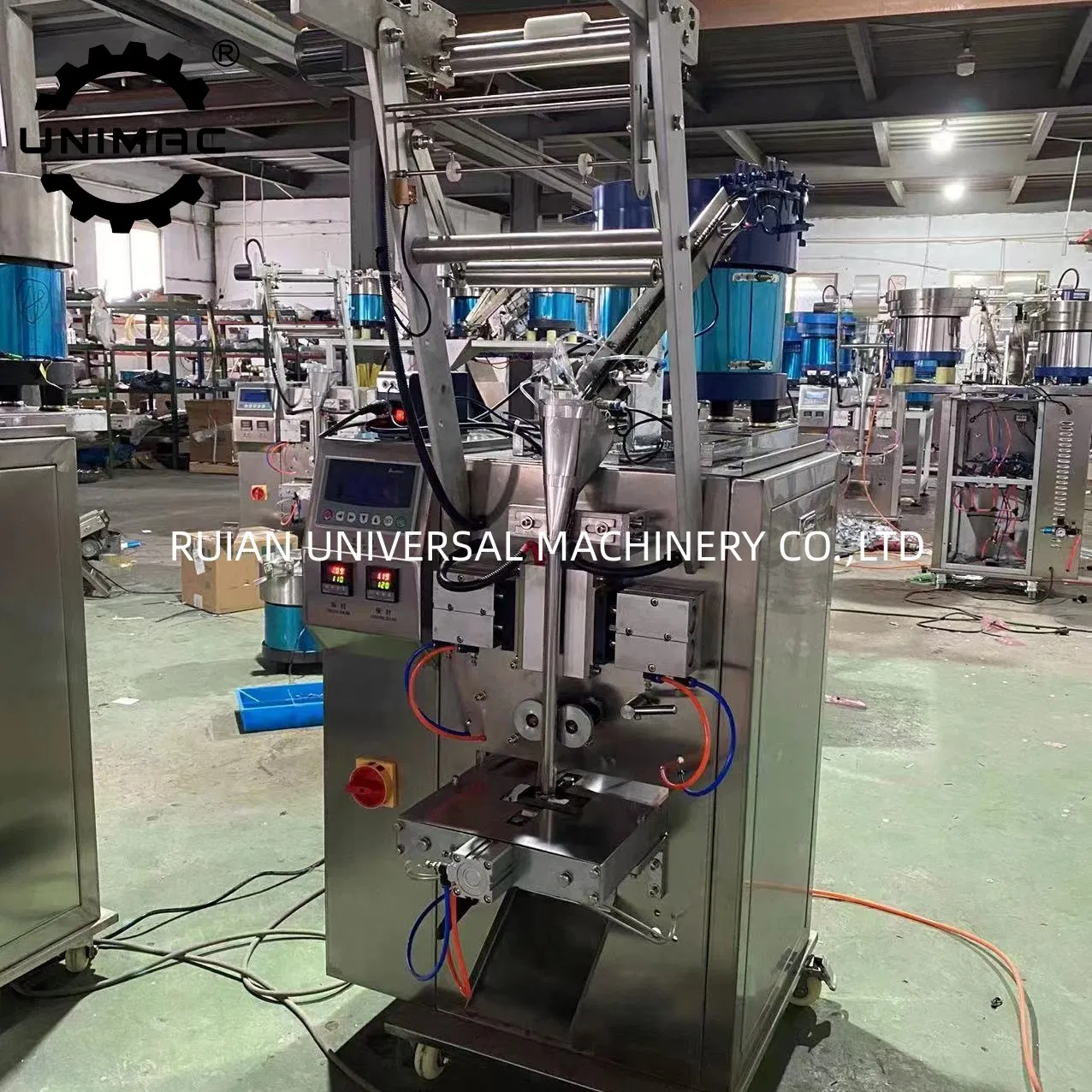

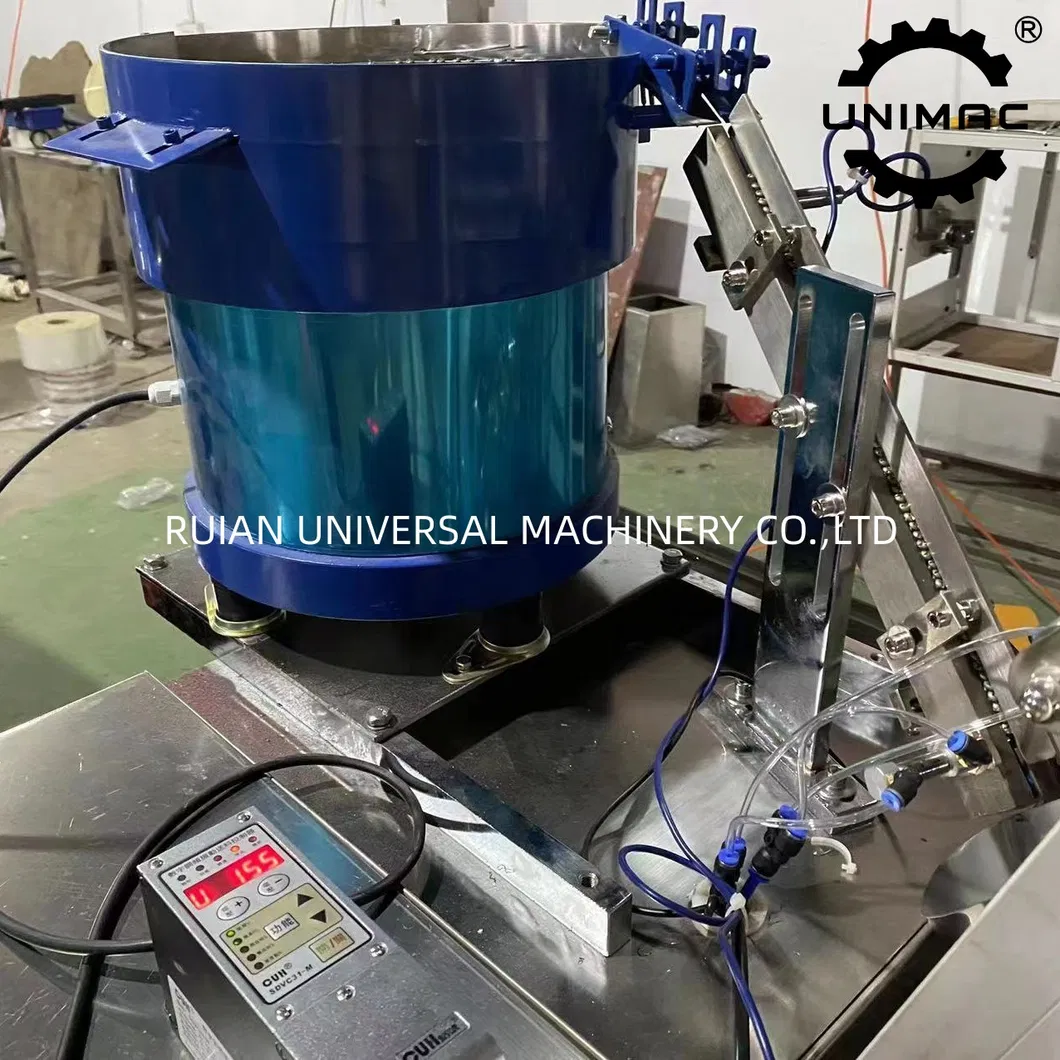

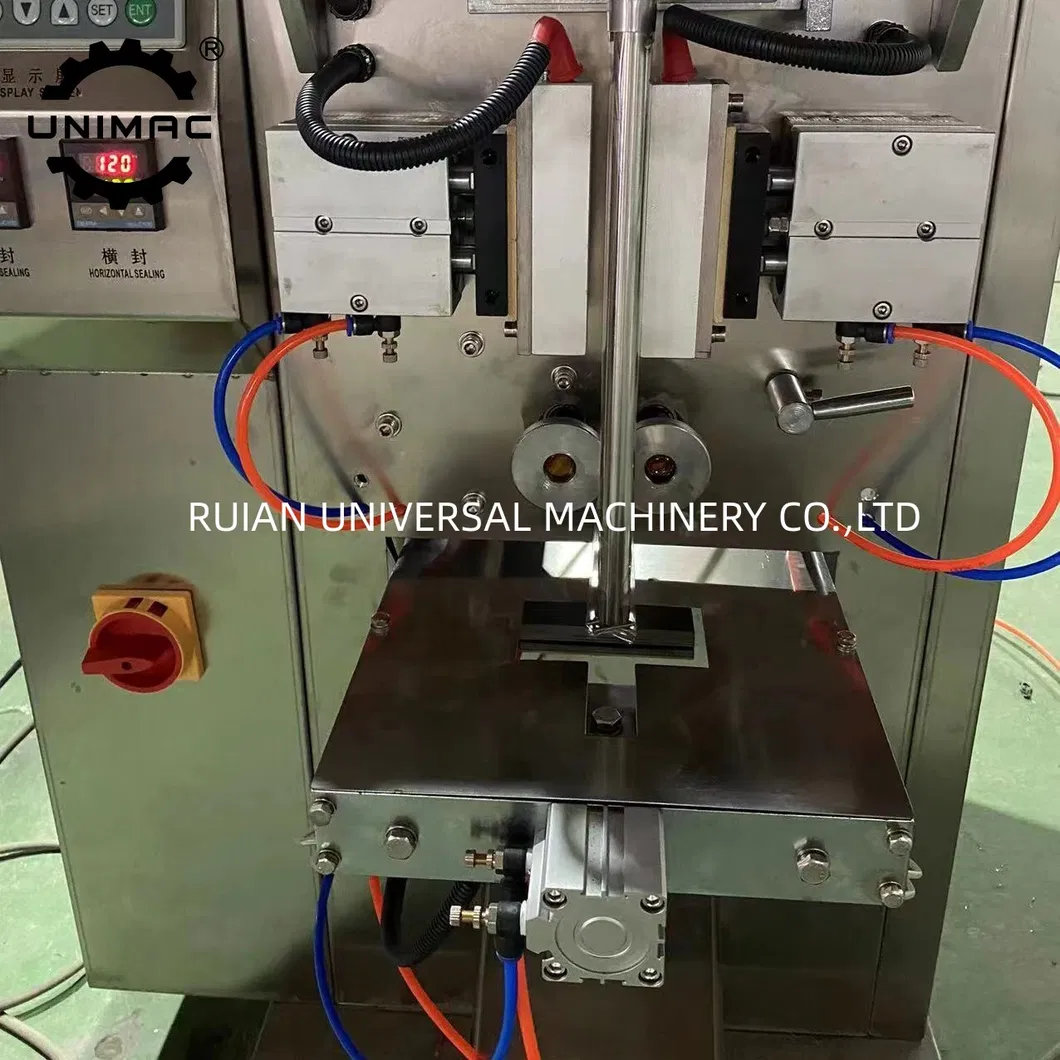

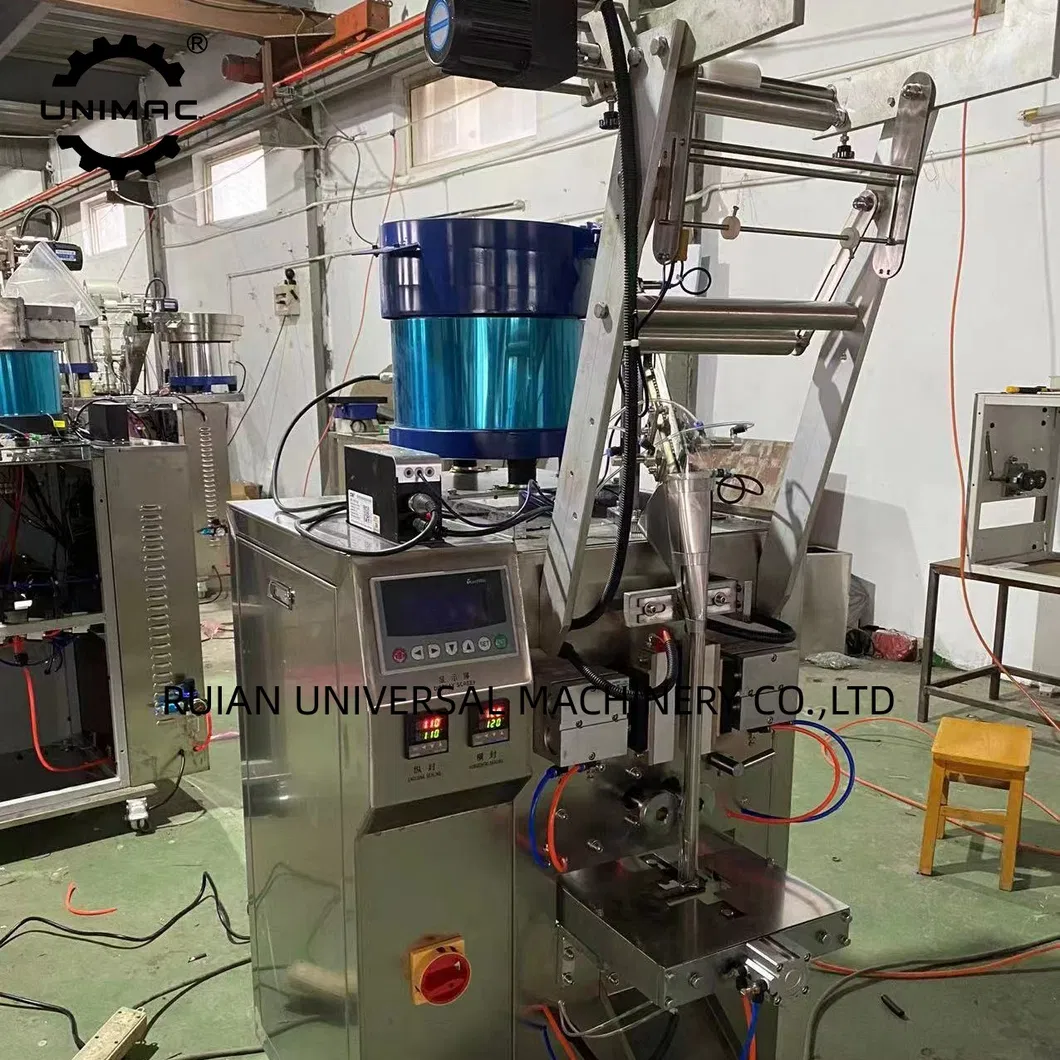

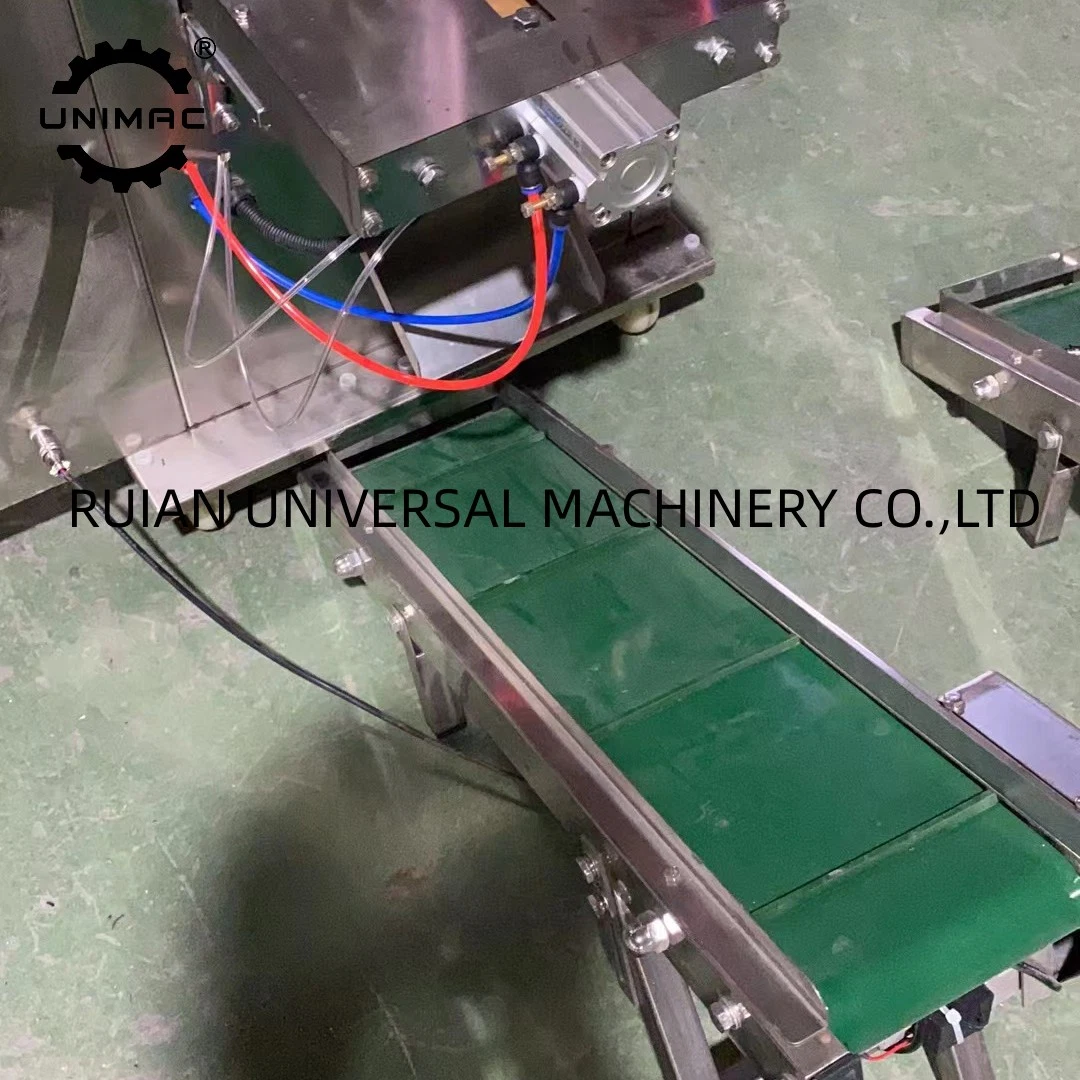

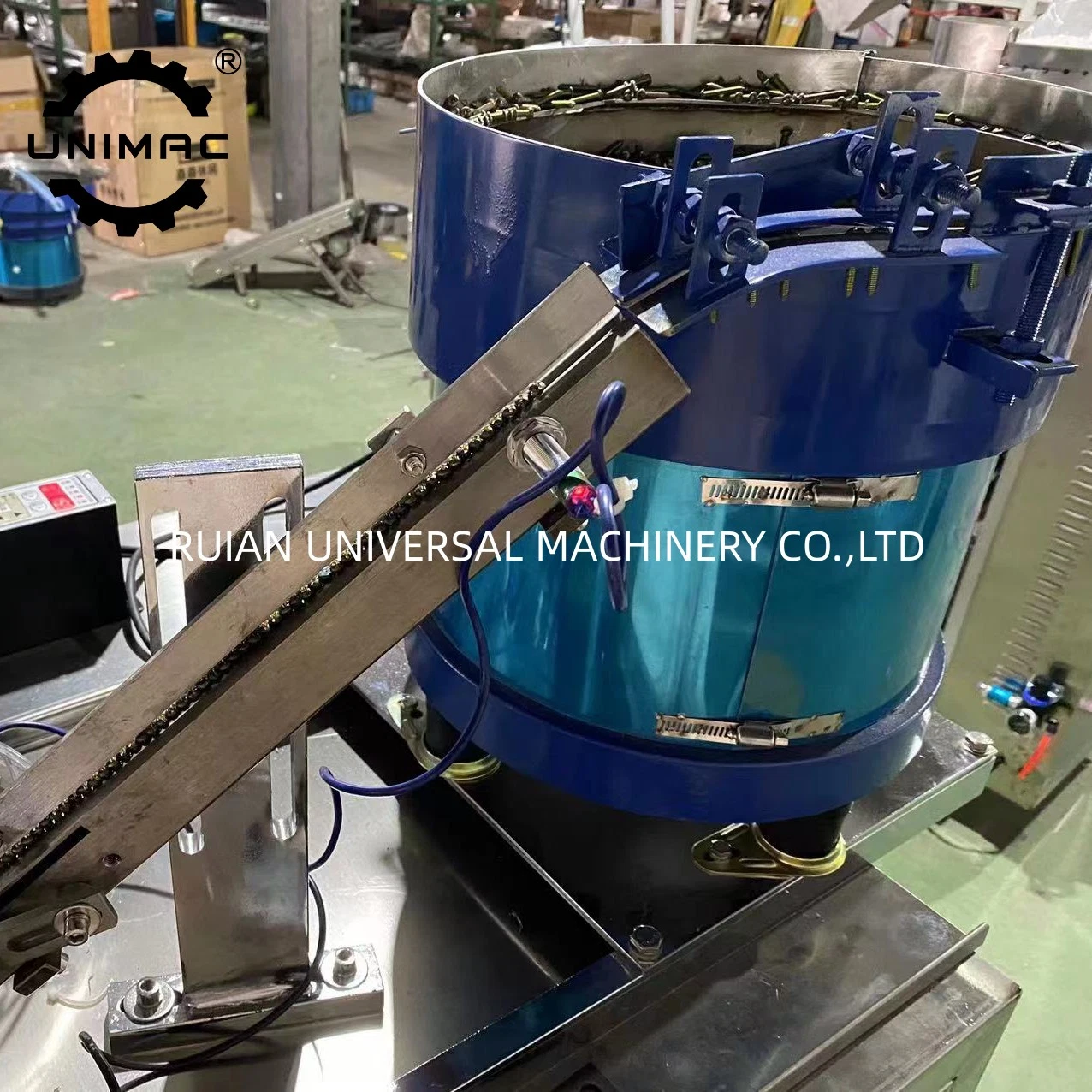

Machine Detail View
Technical Parameter Specification Details
ModelDXD-80L
Range of filling1-50pcs or more
Pouch width40-80mm (change formers)
Pouch length50-120mm (adjustable)
Speed40-70 pouches/min
Film MaterialPET/PE, NY/PE etc. complex film
Type of sealingBack seal
Power supply220V, single phase, 50 HZ
Total Power1.1 KW

Frequently Asked Questions

Q1: What kind of items can the DXD-80L pack?
It is specifically designed for hardware parts such as screws, nails, bolts, nuts, and small electronic components.
Q2: How accurate is the counting process?
The machine uses a precise straight-line oscillation arrangement and a dedicated control device to ensure every bag has the exact quantity.
Q3: Is the machine easy to operate for non-technical staff?
Yes, it features a Mitsubishi PLC with a user-friendly Chinese and English touch interface, making adjustments and operation very simple.
Q4: What is the maximum packing speed?
The DXD-80L can reach a high speed of 40 to 70 pouches per minute, depending on the item size and quantity.
Q5: Can I adjust the bag size?
Yes, the pouch length is adjustable between 50-120mm, and the width can be changed between 40-80mm by changing the formers.
Q6: What type of packaging film is required?
The machine works efficiently with complex films such as PET/PE, NY/PE, and other heat-sealable laminated materials.
