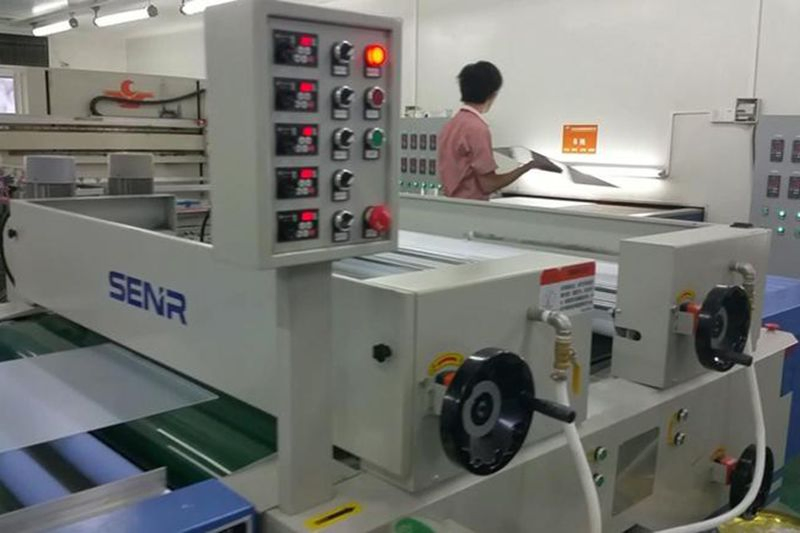

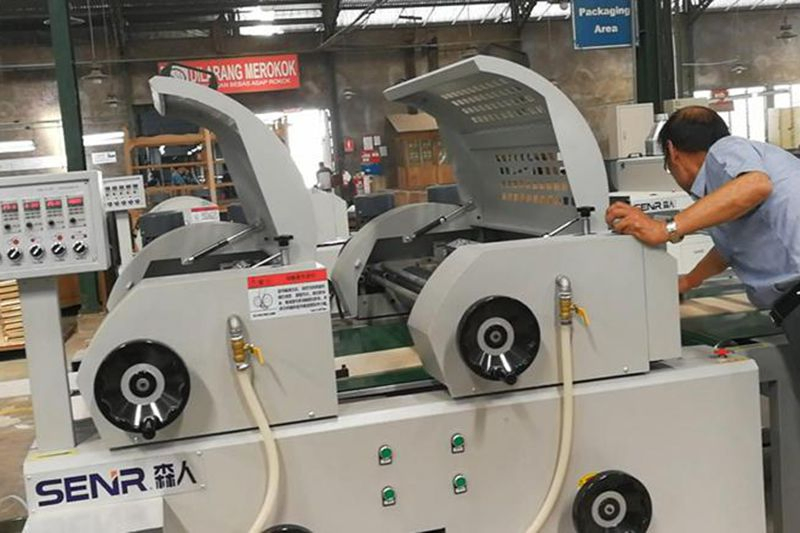

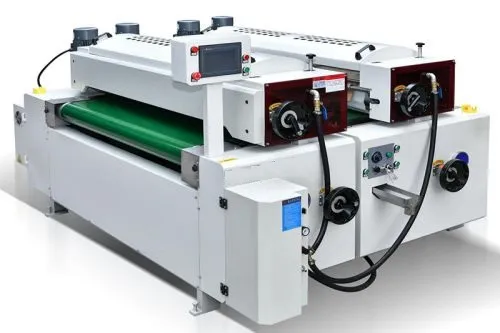

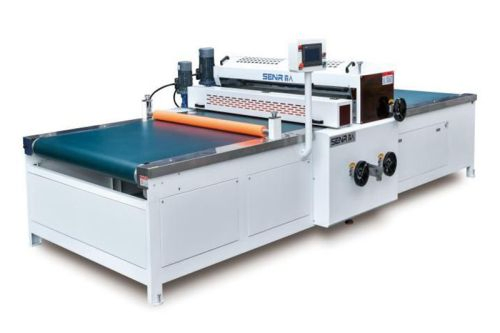

Our glass roller coater is engineered to apply specialized glass coatings with exceptional precision. This coating machine ensures an even and thorough application without light leakage. The surface finish is smooth and uniform, with no oil accumulation at the edges or corners. Its special design not only scrapes away excess ink and coating but also recycles it, significantly surpassing traditional methods like spraying or screen printing.
| Model | Working width (mm) | Working thickness (mm) | Feeding speed (m/min) | Feeding power (kW) | Coating roller power (kW) | Heating roller power (kW) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SR-R2PL-900 | 900 | 3-20 | 2-10 | 0.75 | 0.75×2 | 0.75×2 | 1800×2150×1500 | 1500 |
| SR-R2PL-1300 | 1300 | 3-20 | 2-10 | 0.75 | 0.75×2 | 0.75×2 | 1800×2500×1500 | 1800 |
| SR-R2PL-1650 | 1650 | 3-20 | 2-10 | 1.5 | 1.5×2 | 0.75×2 | 1800×2900×1500 | 2100 |
| SR-R2PL-2000 | 2000 | 3-20 | 2-10 | 1.5 | 1.5×2 | 0.75×2 | 1800×3300×1500 | 2500 |
| SR-R2PL-2200 | 2200 | 3-20 | 2-10 | 1.5 | 1.5×2 | 0.75×2 | 2100×3500×1500 | 2700 |
| SR-R2PL-2400 | 2400 | 3-20 | 2-10 | 2.2 | 2.2×2 | 1.5×2 | 2300×3700×1500 | 3100 |
| SR-R2PL-2600 | 2600 | 3-20 | 2-10 | 2.2 | 2.2×2 | 1.5×2 | 2300×3900×1500 | 3500 |
| SR-R1L-3000 | 3000 | 3-20 | 2-10 | 2.2 | 2.2 | 1.5 | 1300×4300×1500 | 1900 |
| SR-R1L-3400 | 3400 | 3-20 | 2-10 | 2.2 | 2.2 | 1.5 | 1300×4700×1500 | 2200 |

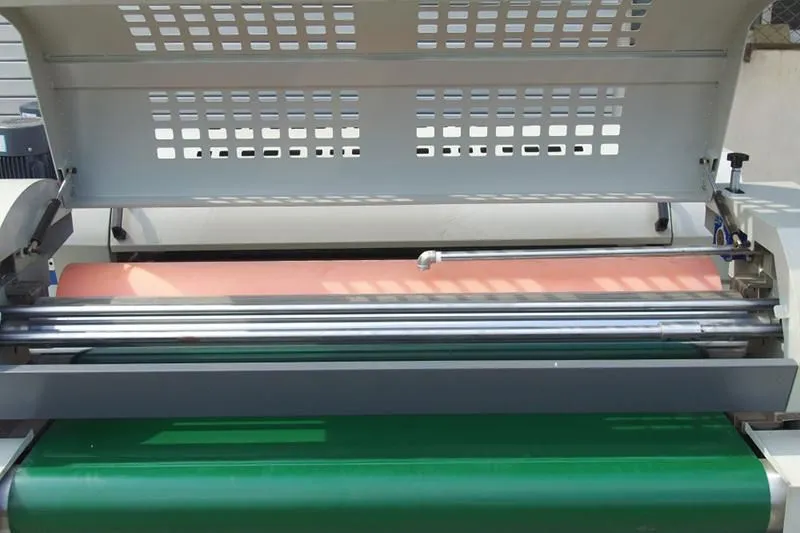

The coating roller and the smoothing wheel are aligned parallel and rotate inwardly at a consistent speed, creating a V-shaped space for uniform material distribution. By adjusting the tightness between the rollers, coating thickness is precisely controlled. As the glass moves on the conveyor, contact with the coating roller transfers the material evenly onto the surface.
Dual rotation directions for thickness control and high efficiency.

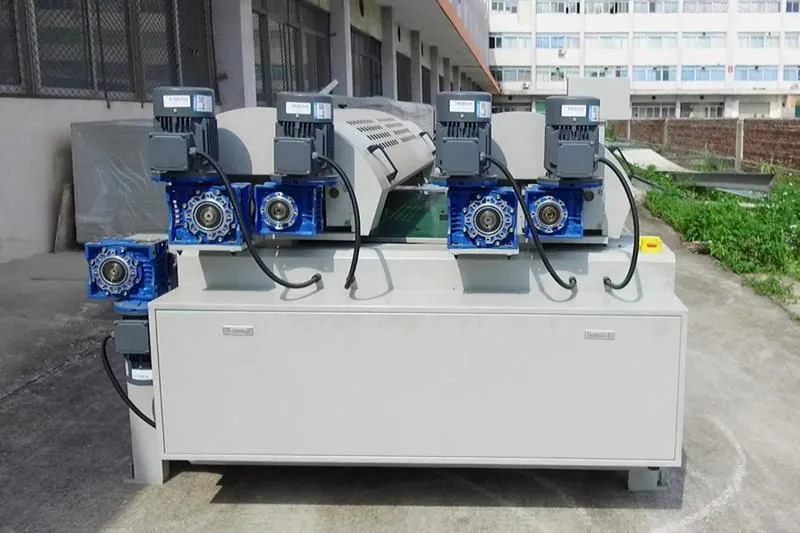

Independent DC converter motors for precise, stepless adjustment.
