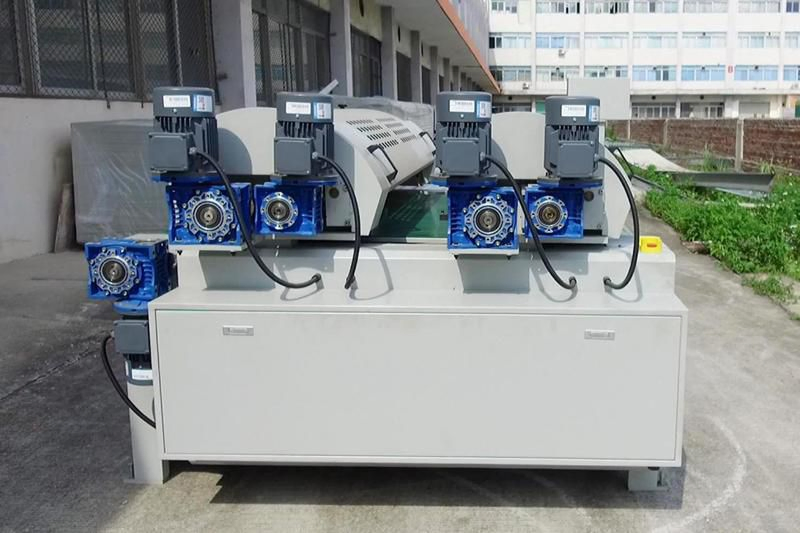

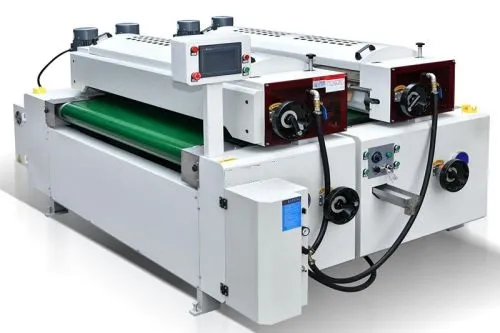

Our glass roller coater is engineered to apply specialized glass coatings with exceptional precision. This coating machine ensures an even and thorough application without light leakage. The surface finish is smooth and uniform, with no oil accumulation at the edges or corners. Its special design not only scrapes away excess ink and coating but also recycles it, significantly surpassing traditional methods like spraying or screen printing. This enhances productivity and reduces the need for rework.
| Model | Working width (mm) | Thickness (mm) | Speed (m/min) | Feed Power (kW) | Coating Power (kW) | Heating Power (kW) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SR-R2PL-900 | 900 | 3-20 | 2-10 | 0.75 | 0.75×2 | 0.75×2 | 1800×2150×1500 | 1500 |
| SR-R2PL-1300 | 1300 | 3-20 | 2-10 | 0.75 | 0.75×2 | 0.75×2 | 1800×2500×1500 | 1800 |
| SR-R2PL-1650 | 1650 | 3-20 | 2-10 | 1.5 | 1.5×2 | 0.75×2 | 1800×2900×1500 | 2100 |
| SR-R2PL-2000 | 2000 | 3-20 | 2-10 | 1.5 | 1.5×2 | 0.75×2 | 1800×3300×1500 | 2500 |
| SR-R2PL-2200 | 2200 | 3-20 | 2-10 | 1.5 | 1.5×2 | 0.75×2 | 2100×3500×1500 | 2700 |
| SR-R2PL-2400 | 2400 | 3-20 | 2-10 | 2.2 | 2.2×2 | 1.5×2 | 2300×3700×1500 | 3100 |
| SR-R2PL-2600 | 2600 | 3-20 | 2-10 | 2.2 | 2.2×2 | 1.5×2 | 2300×3900×1500 | 3500 |
| SR-R1L-3000 | 3000 | 3-20 | 2-10 | 2.2 | 2.2 | 1.5 | 1300×4300×1500 | 1900 |
| SR-R1L-3400 | 3400 | 3-20 | 2-10 | 2.2 | 2.2 | 1.5 | 1300×4700×1500 | 2200 |

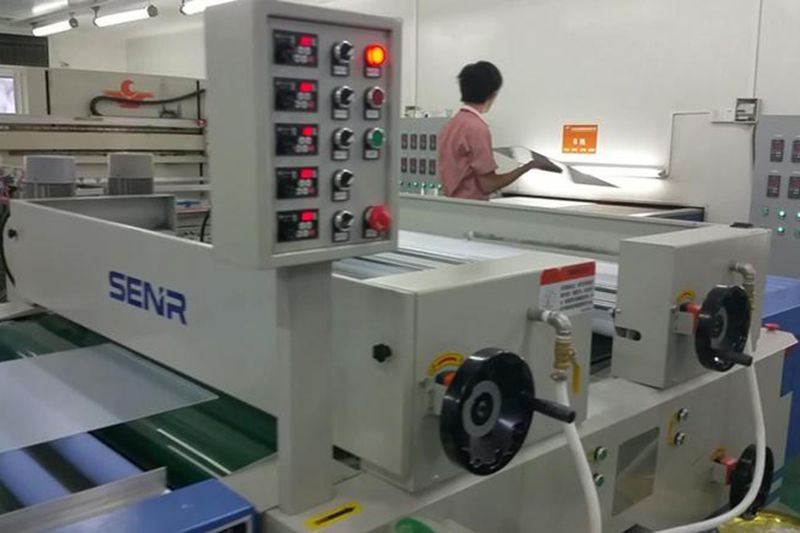

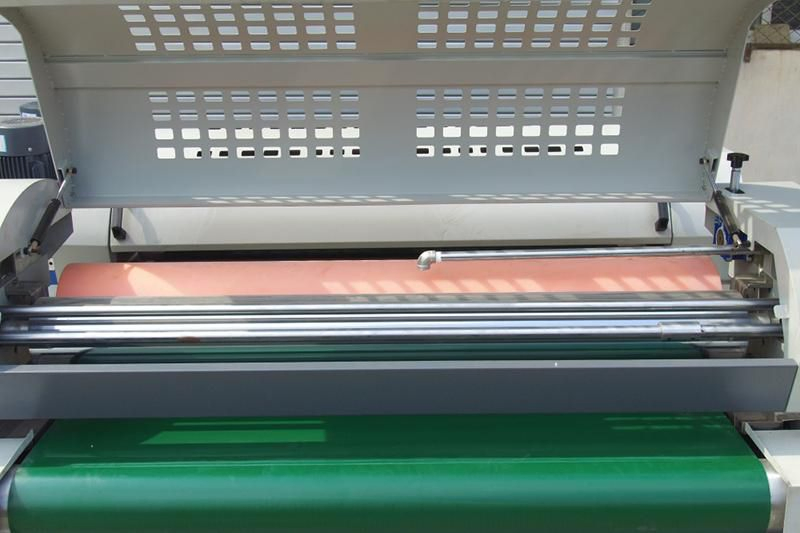

The glass roller coater operates based on a precise and efficient mechanism. The coating roller and the smoothing wheel are aligned parallel to each other and rotate inwardly at a consistent speed, creating a V-shaped space where the coating material is uniformly distributed. By adjusting the tightness between the coating roller and the smoothing wheel, we can control the thickness and uniformity of the coating material on the roller. As the glass moves forward on the conveyor belt at a steady pace, it makes appropriate contact with the coating roller. This contact transfers the coating material from the roller onto the glass surface evenly.
The entire glass coating line consists of glass loading machine, roller coater, transfer conveyor, IR dryer, cooling system and glass unloading machine.
The coating rolls can rotate in both the same or opposite directions to control film thickness and transfer efficiency.
Independent DC converter motors for conveyor belt, coating roll, and pressure roll ensure precise adjustment.
