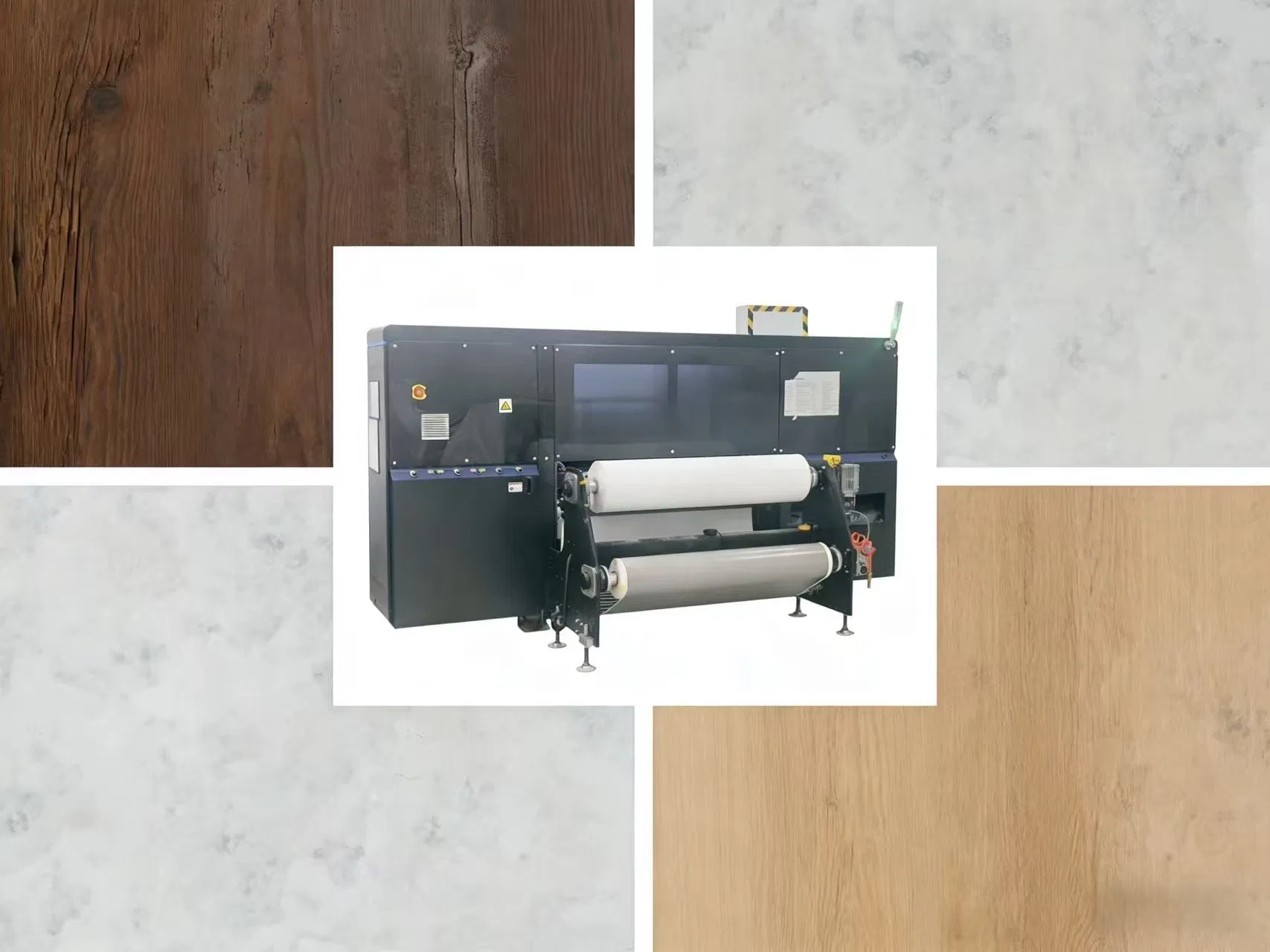

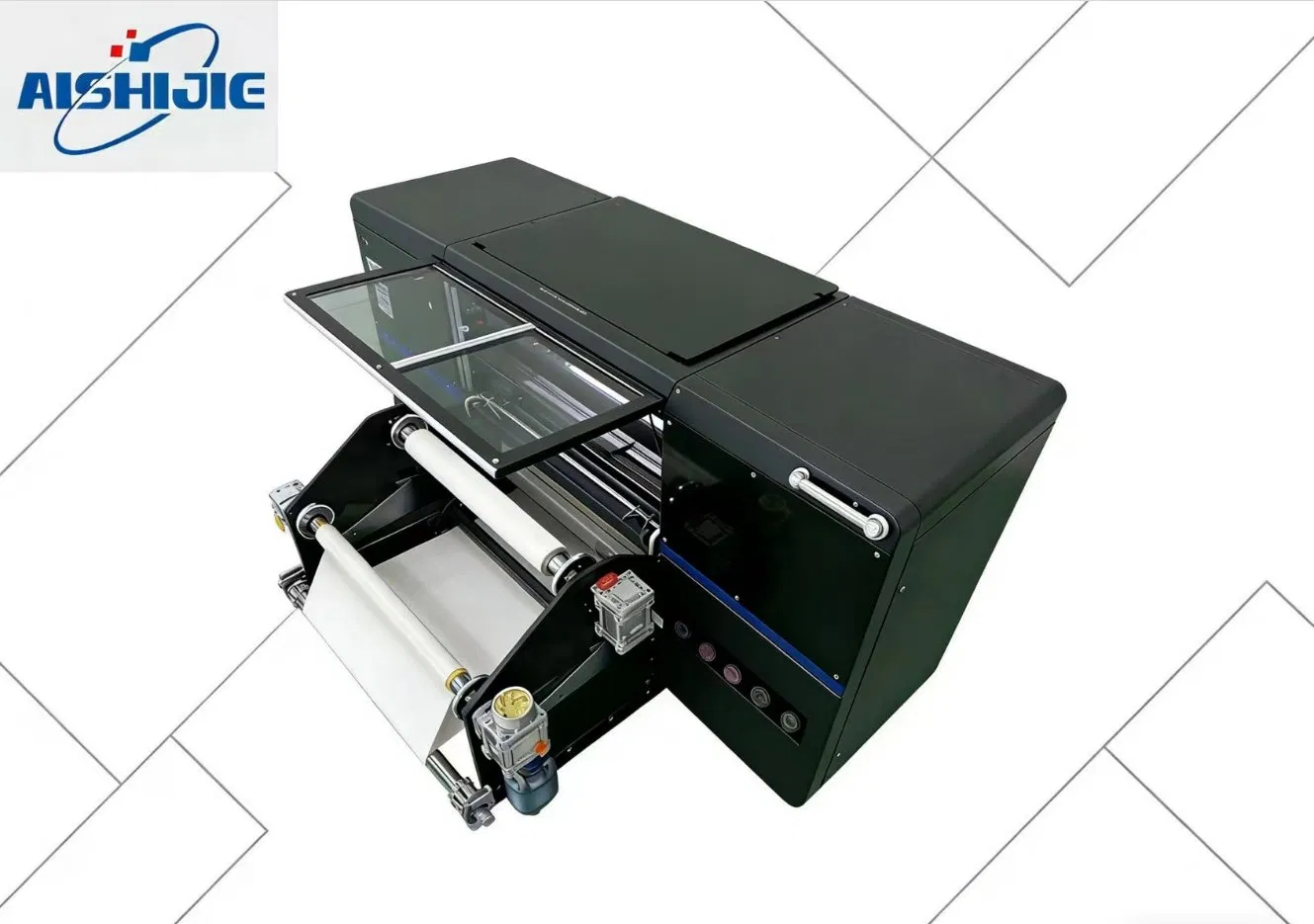

Axis Print
1 / 5
| Model NO. | Jep-V1 |
| Structure | Inject |
| Color & Page | Multi-Colour Printing Press |
| Usage | PVC Floor Film Digital Printing |
| Automatic Grade | Automatic |
| Printing Interface | USB2.0 |
| Printing Speed | Production Mode M²: 80/120/160/240 |
| Number of Heads | 8/12/16/24 |
| Print Width | 1350mm |
| Origin | China |

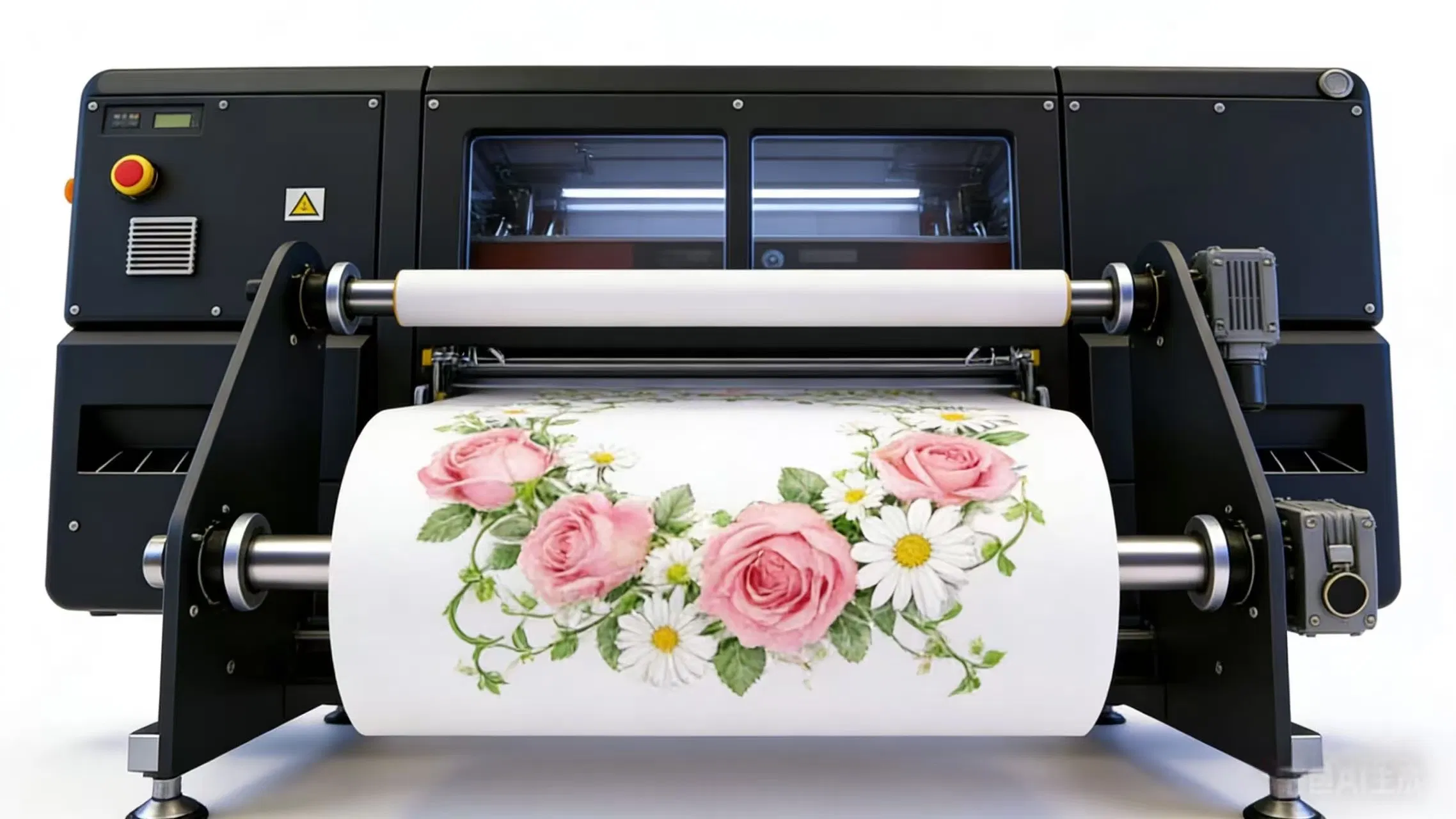

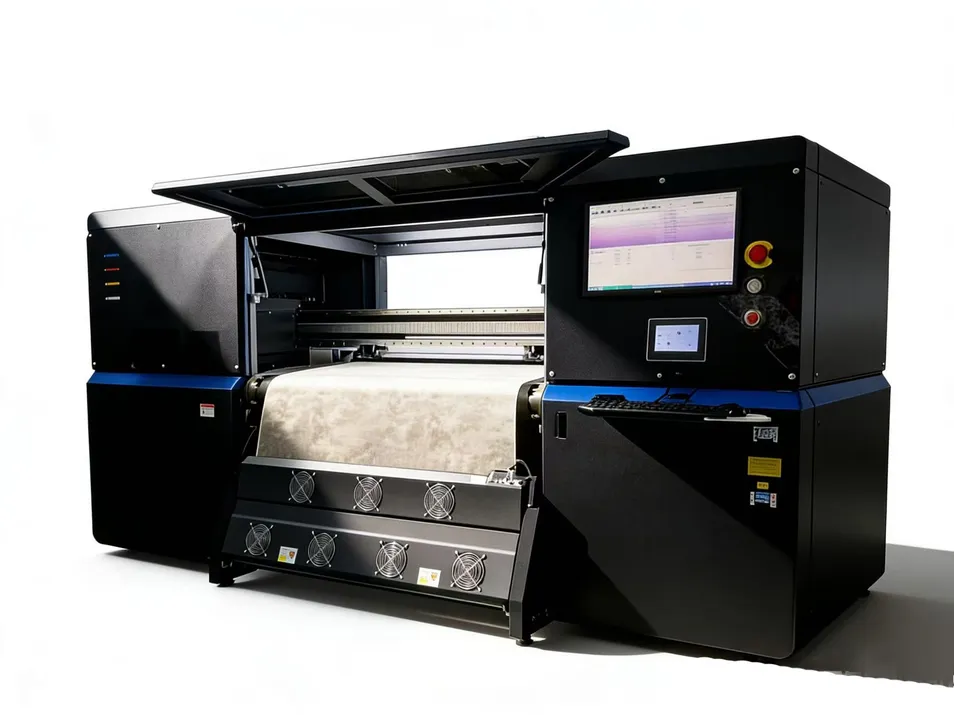

The overall adoption of a one-stop, integrated architecture ensures more stable operation by minimizing connection points and potential failure risks between modules. This robust design significantly reduces unexpected downtime and maintenance frequency, providing a solid foundation for continuous, high-quality production.

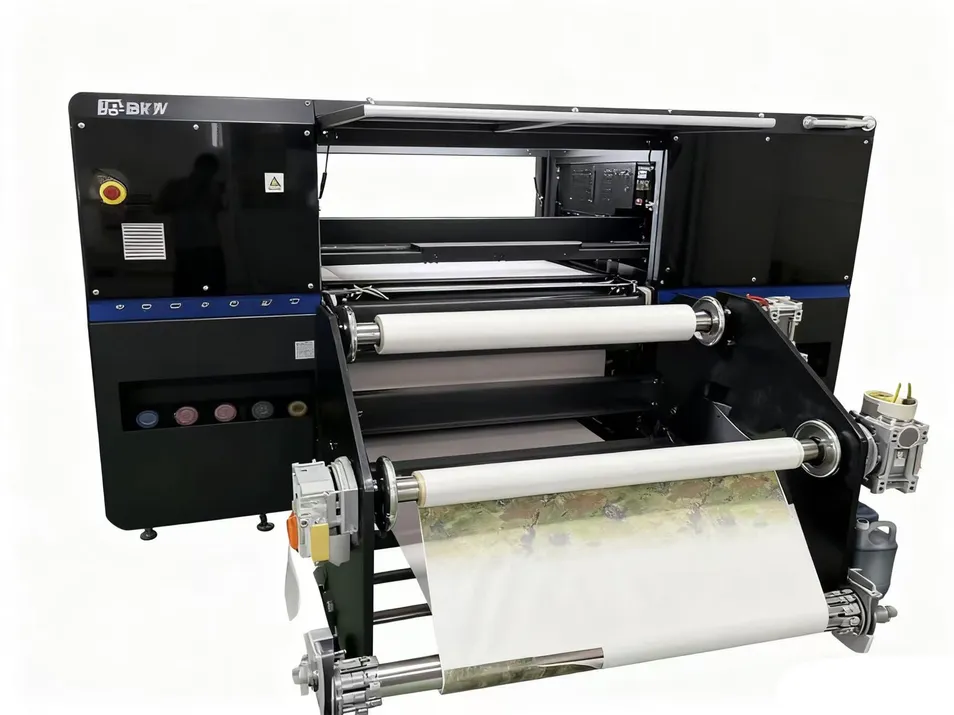

Utilizes high-rigidity Japanese-made linear guide rails and precision ball screws to ensure exceptional motion stability and positioning accuracy during printing. This premium mechanical structure effectively minimizes vibration, guaranteeing consistent registration accuracy.

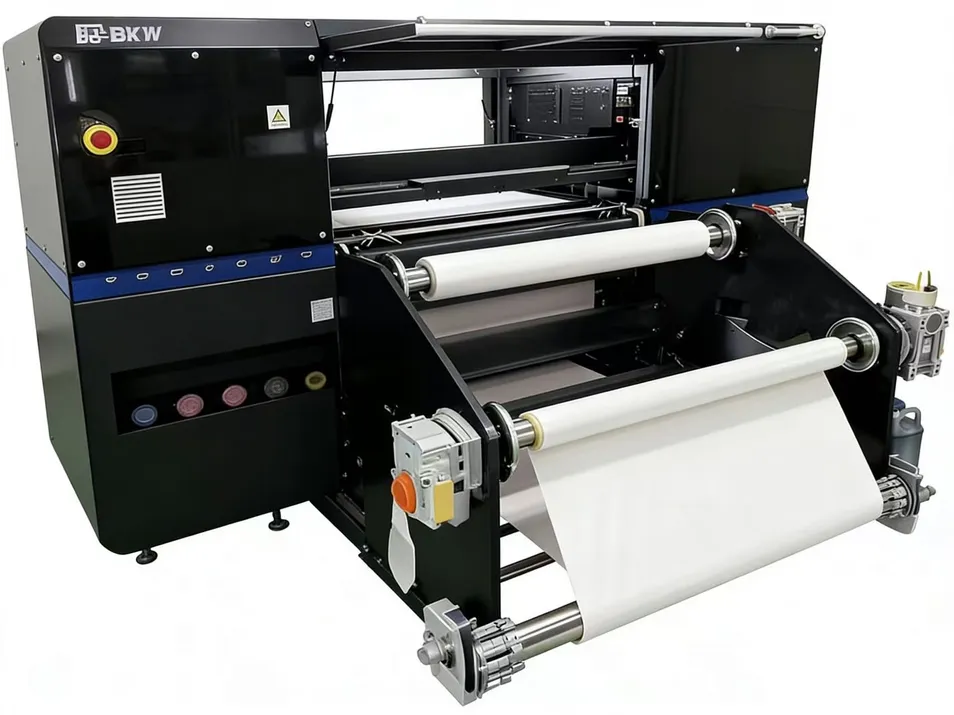

The advanced servo control system is highly intelligent, enabling seamless switching between various application functions with exceptional precision and speed. It can automatically adjust parameters for different printing modes and materials.

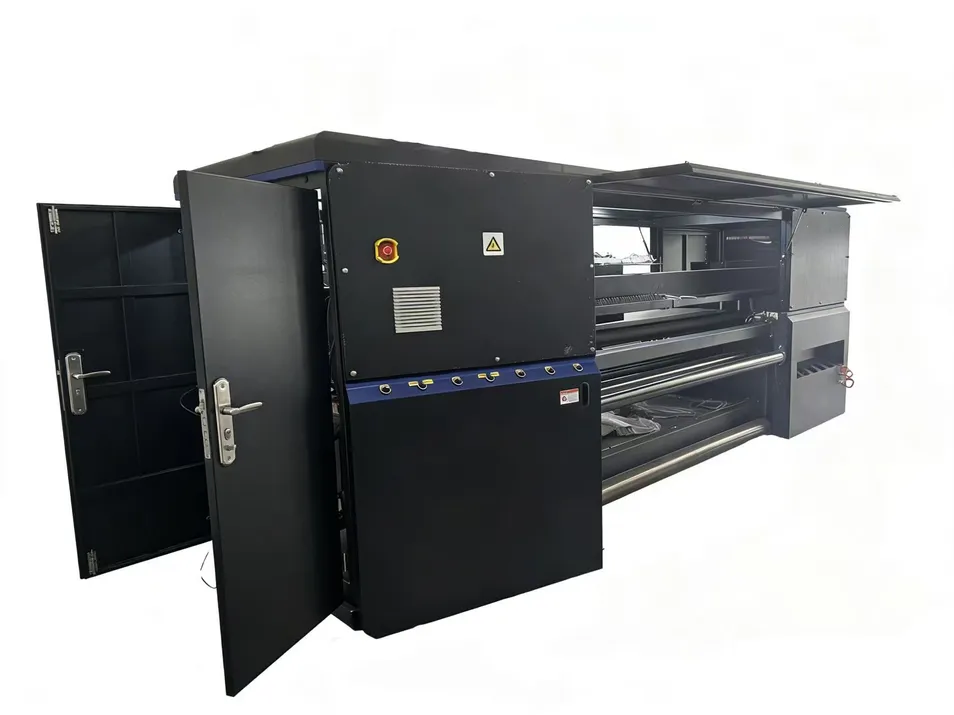

The software operation interface is exceptionally simple and intuitive, designed with user-friendliness in mind. The innovative one-touch operation feature eliminates the need for complicated manual setup, allowing operators to start jobs quickly.
| Parameter | Details |
|---|---|
| Printer Model | Jep-V15 |
| Number of Spray Heads | 8/12/16/24 |
| Print Width | 1350MM |

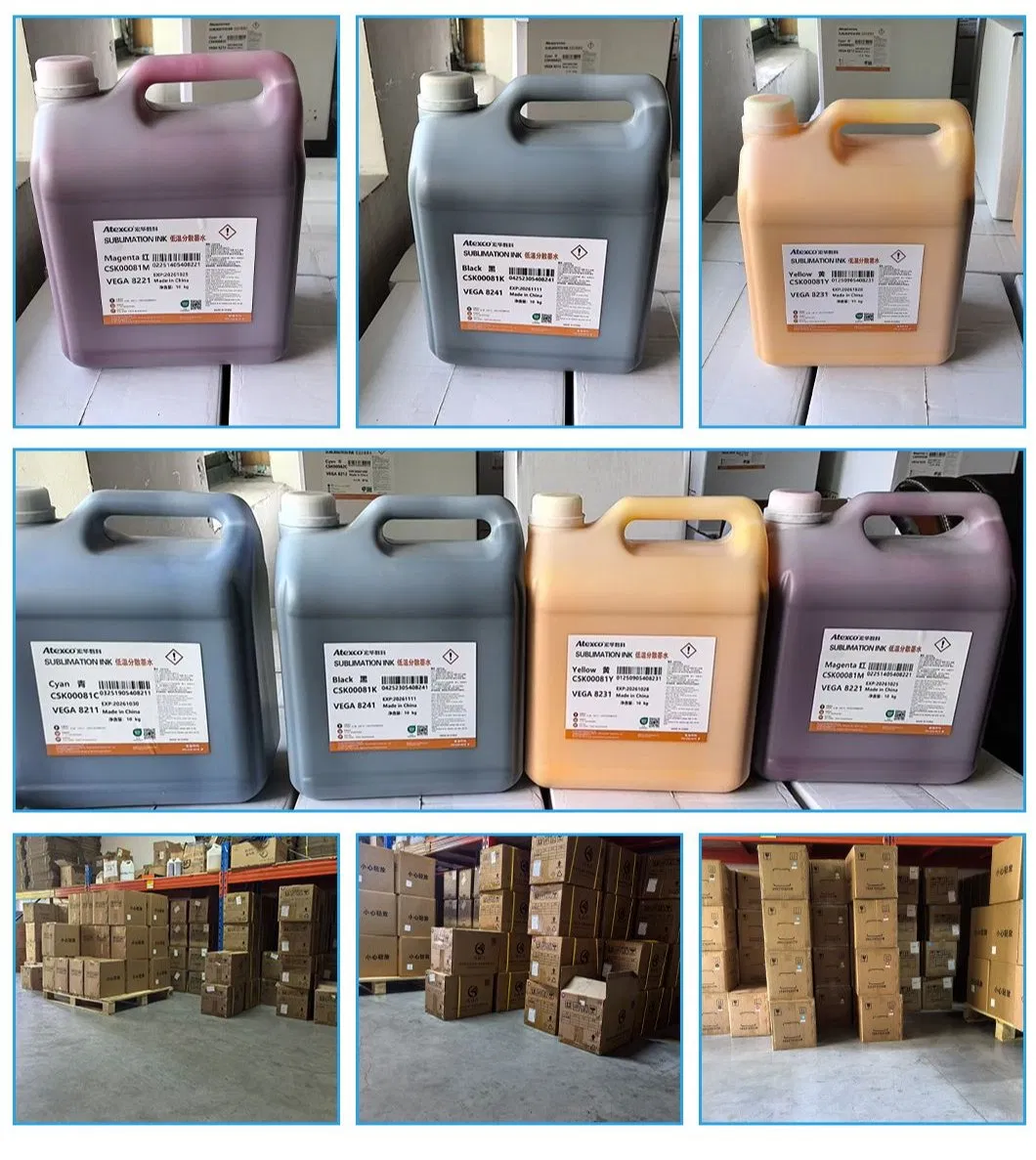

| Ink Type | Water-based pigment - mild solvent ink |
| Pigment Colors | Red, yellow, blue, black, gray, light gray |
| Ink Supply Capacity | Negative pressure system, 15 liters/color |
| Production Mode Speed | 80/120/160/240 m²/h |
| Standard Mode Speed | 60/100/120/180 m²/h |
| Quality Mode Speed | 40/60/80/120 m²/h |
| Roll Weight | 1000KG |
| Equipment Power | 4KW |
| Dimensions | 3550x1300x1900 mm |

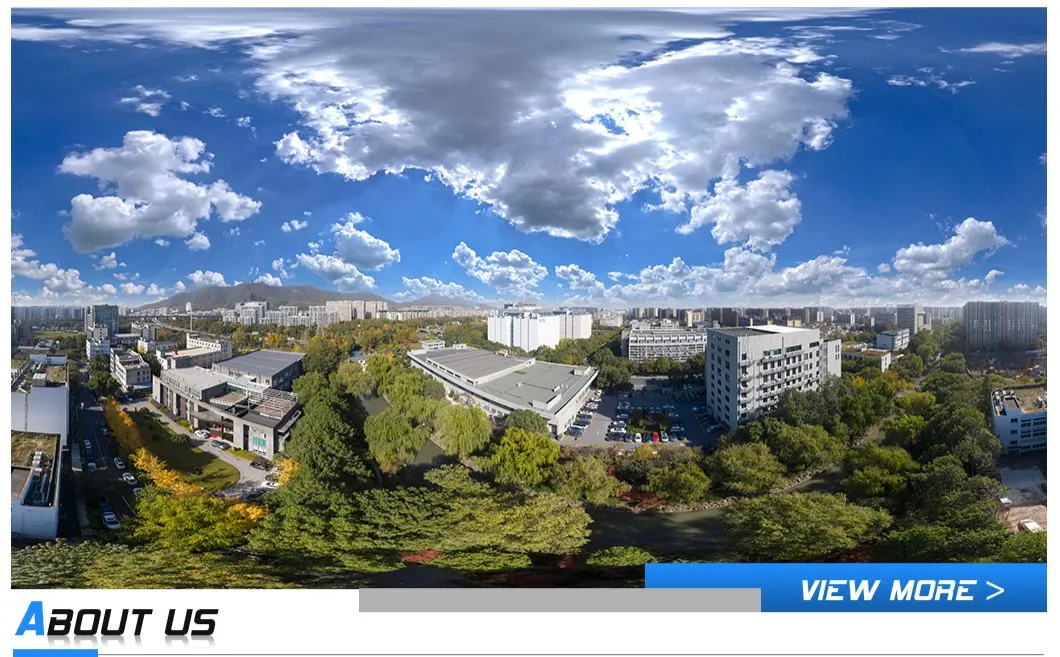

We are a high-tech enterprise integrating R&D, production, sales, and after-sales services. We are committed to bringing digital technology into the decorative panel industry, providing digital and intelligent upgrading services for traditional printing of decorative paper and film. We redefine production processes through AI and analyze big data through intelligent cloud services to transform and upgrade smart factories.

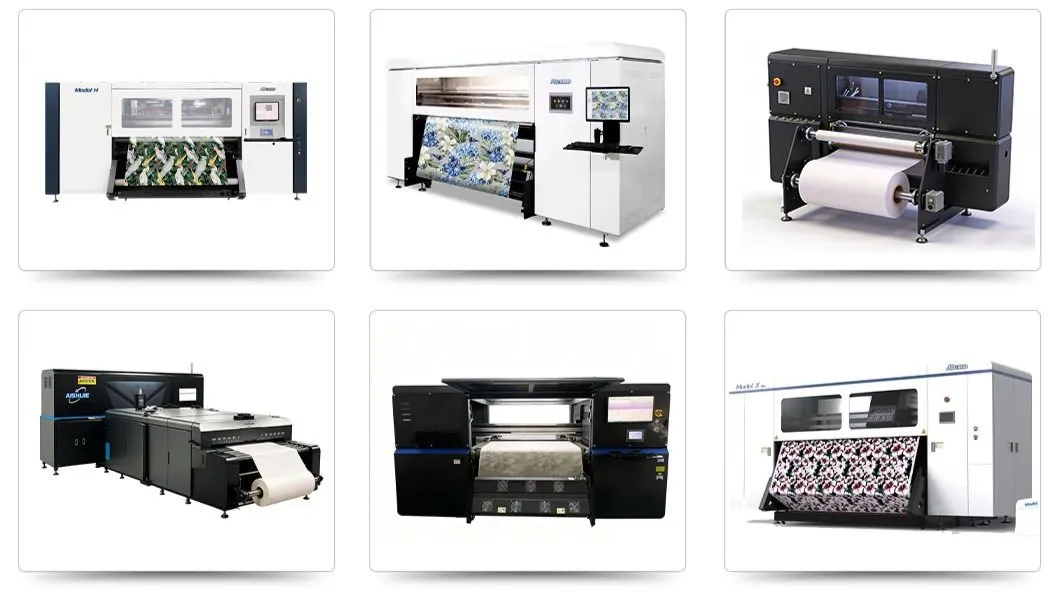

Main Business: Digital printing equipment and complete application solutions for decorative paper and film (PVC, PP, PET, etc.), and customized non-standard products based on enterprise needs.
