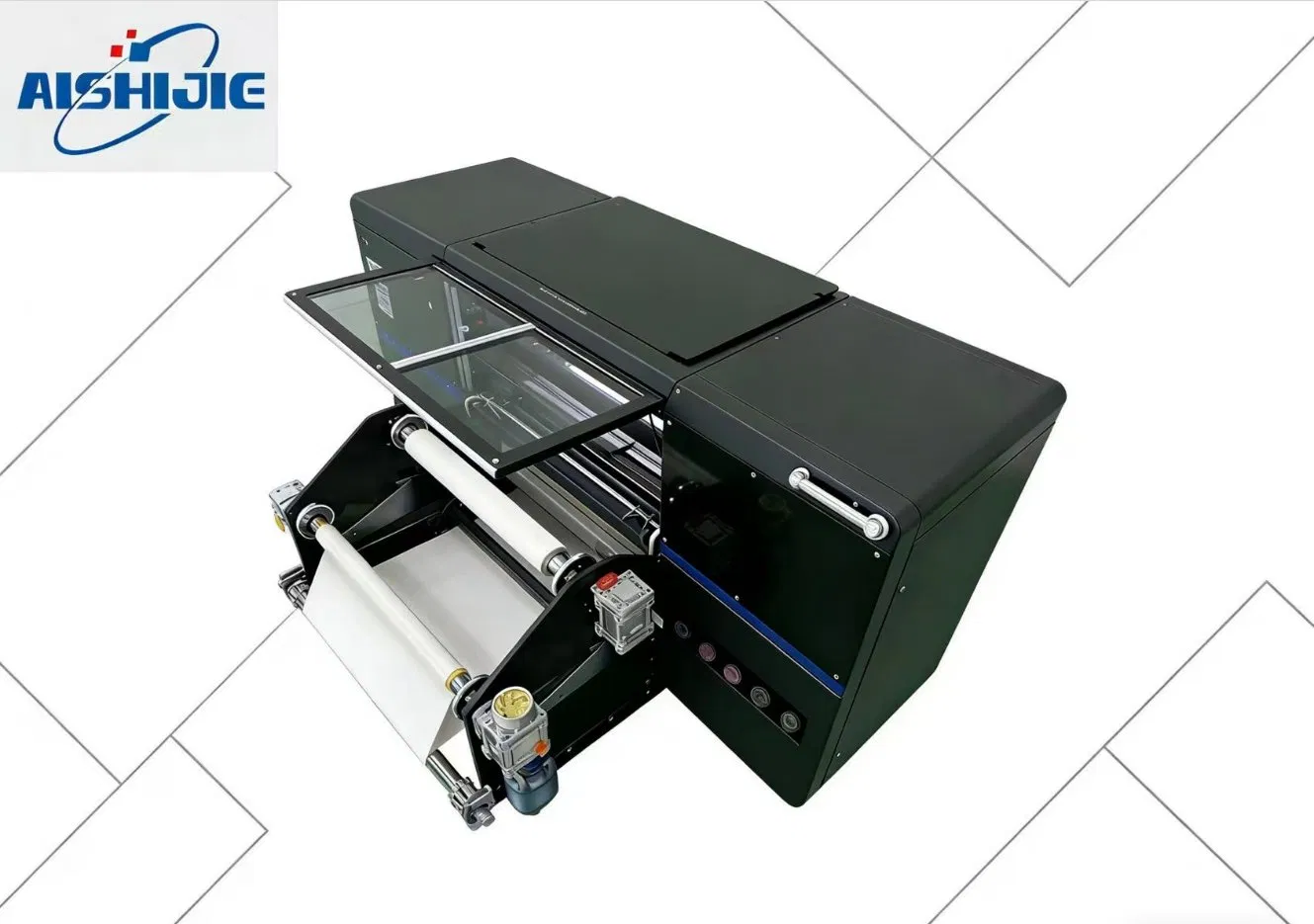

The overall adoption of a one-stop, integrated architecture ensures more stable operation by minimizing connection points and potential failure risks between modules. This robust design significantly reduces unexpected downtime and maintenance frequency.
Utilizes high-rigidity Japanese-made linear guide rails and precision ball screws to ensure exceptional motion stability and positioning accuracy during printing. Minimizes vibration even during high-speed continuous operation.
The advanced servo control system is highly intelligent, enabling seamless switching between functions with precision. It automatically adjusts parameters for different printing modes, materials, or speeds.
The software operation interface is simple and intuitive. One-touch operation feature eliminates the need for complicated manual setup, allowing operators to start jobs quickly.
| Printer Model | Jep-V15 |
| Number of spray heads | 8/12/16/24 |
| Print width | 1350MM |
| Ink Type | Water-based pigment - mild solvent ink |
| Pigment Colors | Red, yellow, blue, black, gray, light gray |
| Supply System Capacity | Negative pressure system, 15 liters/color |
| Production Mode Speed | 80/120/160/240 m²/h |
| Standard Mode Speed | 60/100/120/180 m²/h |
| Quality Mode Speed | 40/60/80/120 m²/h |
| Roll Diameter/Weight | 800mm / 1000KG |
| Operating Environment | Temp: 22℃-28℃ | Humidity: 55%-70% |
| Operating Platform | Windows 7/10 64-bit |
| Equipment Power | 4KW |
| Dimensions | 3550x1300x1900 mm |

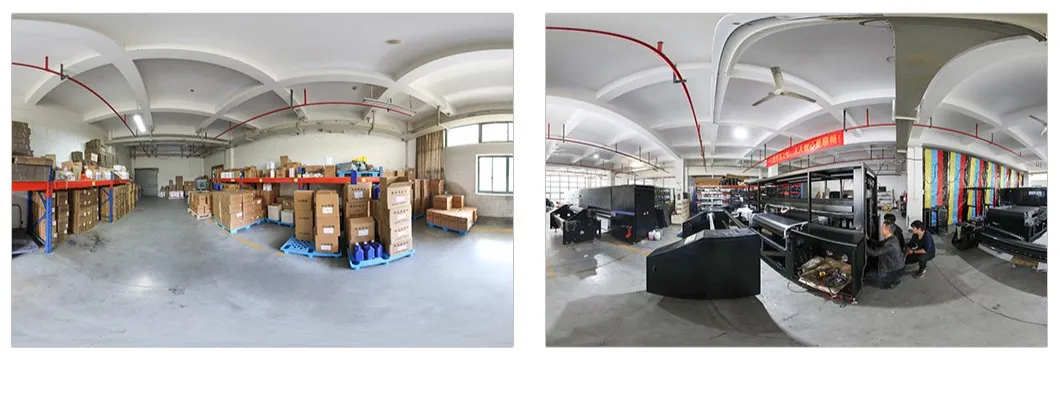

We are a high-tech enterprise integrating R&D, production, sales, and after-sales services. We are committed to bringing digital technology into the decorative panel industry, providing digital and intelligent upgrading services for traditional gravure printing of decorative paper and film.

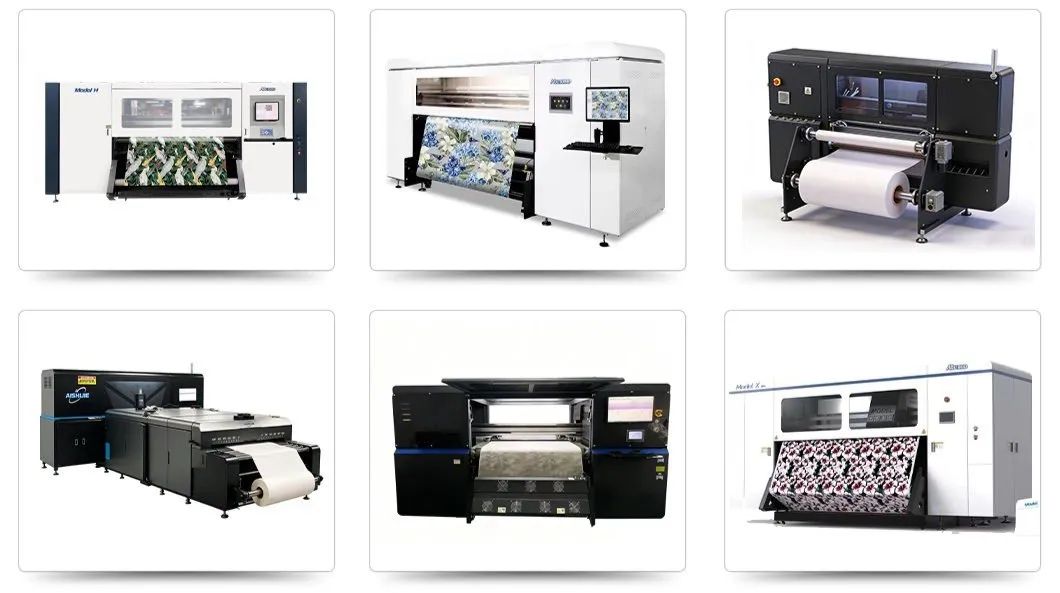

Main Business Products: Digital printing equipment and complete application solutions for decorative paper and film (PVC, PP, PET, etc.). We also customize non-standard products according to enterprise needs, providing comprehensive digital printing solutions.
