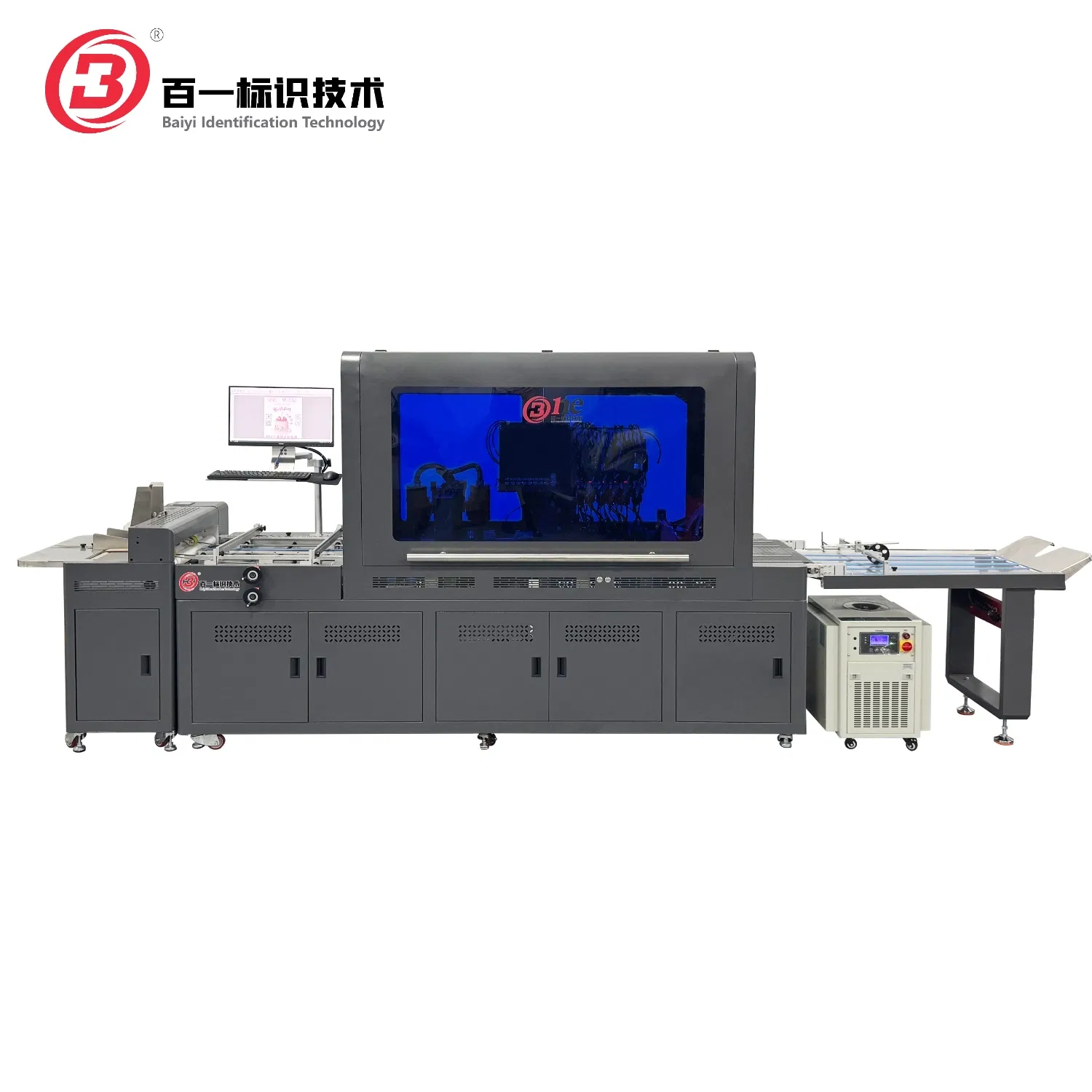

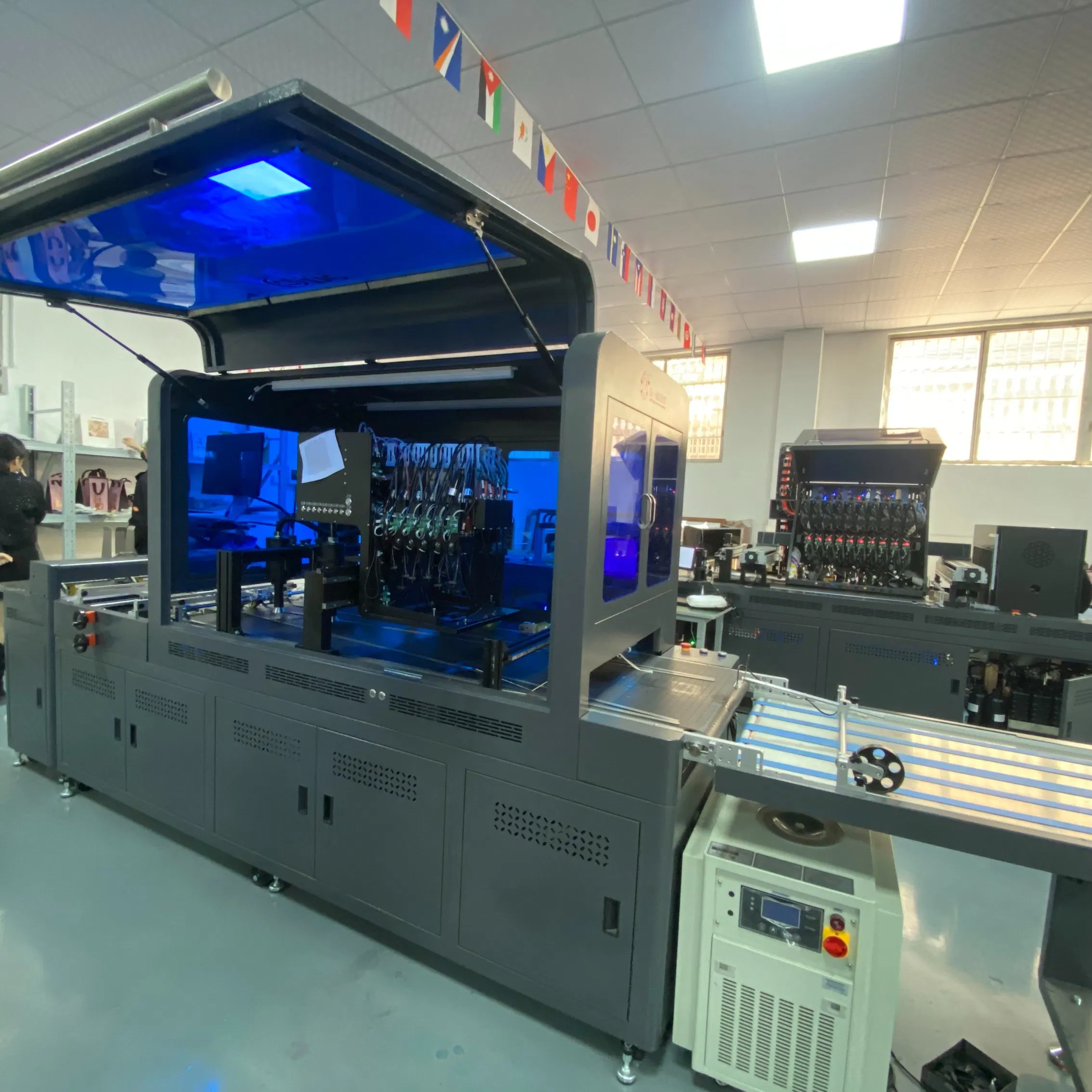

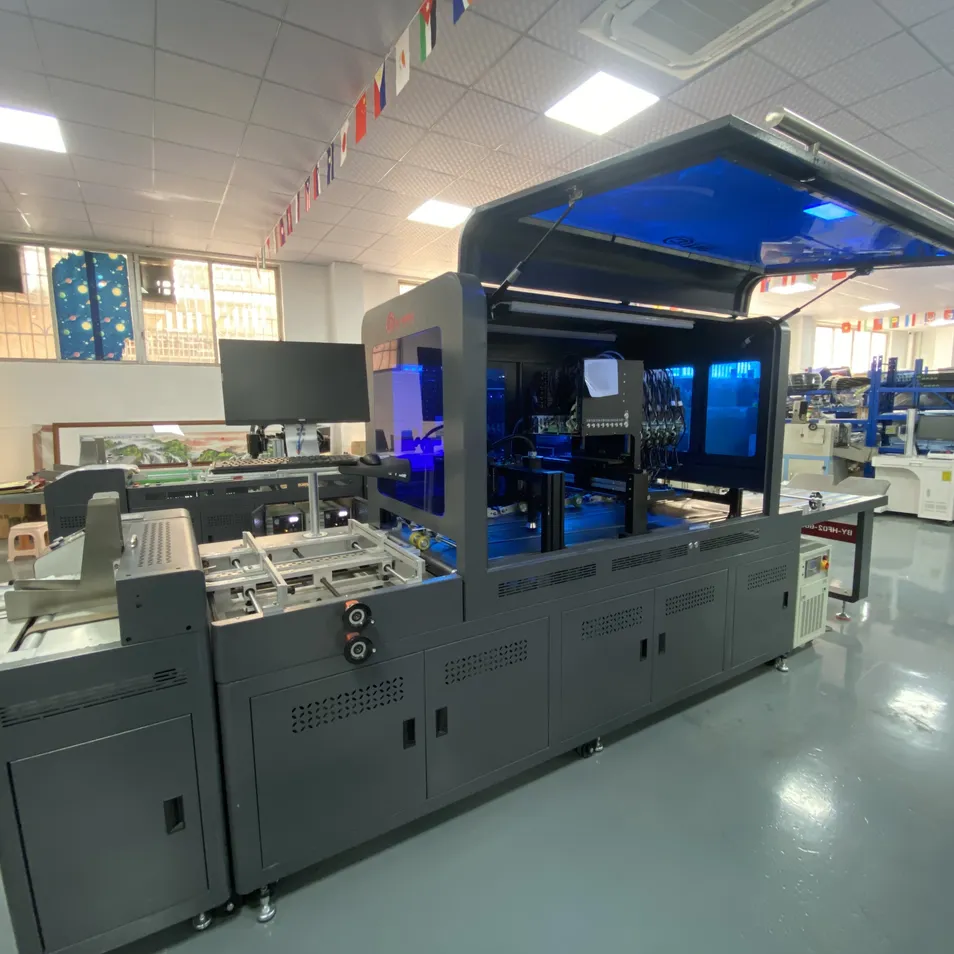

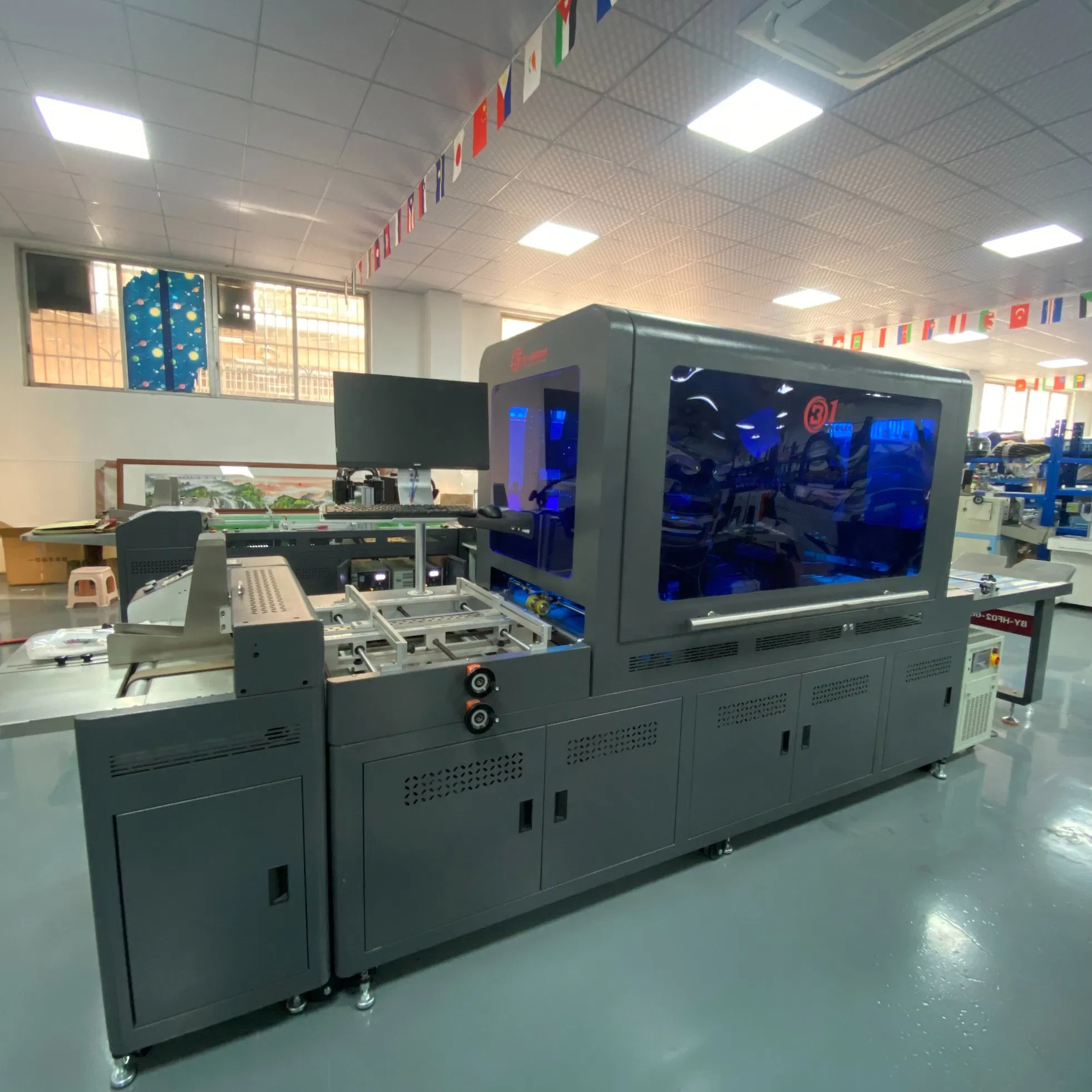

Digital Printing Machine
This advanced UV digital printing machine is specifically engineered for high-precision printing on coated non-woven bags and diverse substrate materials.
Featuring professional-grade Ricoh G5/G6 printing heads with exceptional 20mm working height capacity, this customized digital printing system delivers outstanding full color CMYK printing with 100mm printing width coverage.

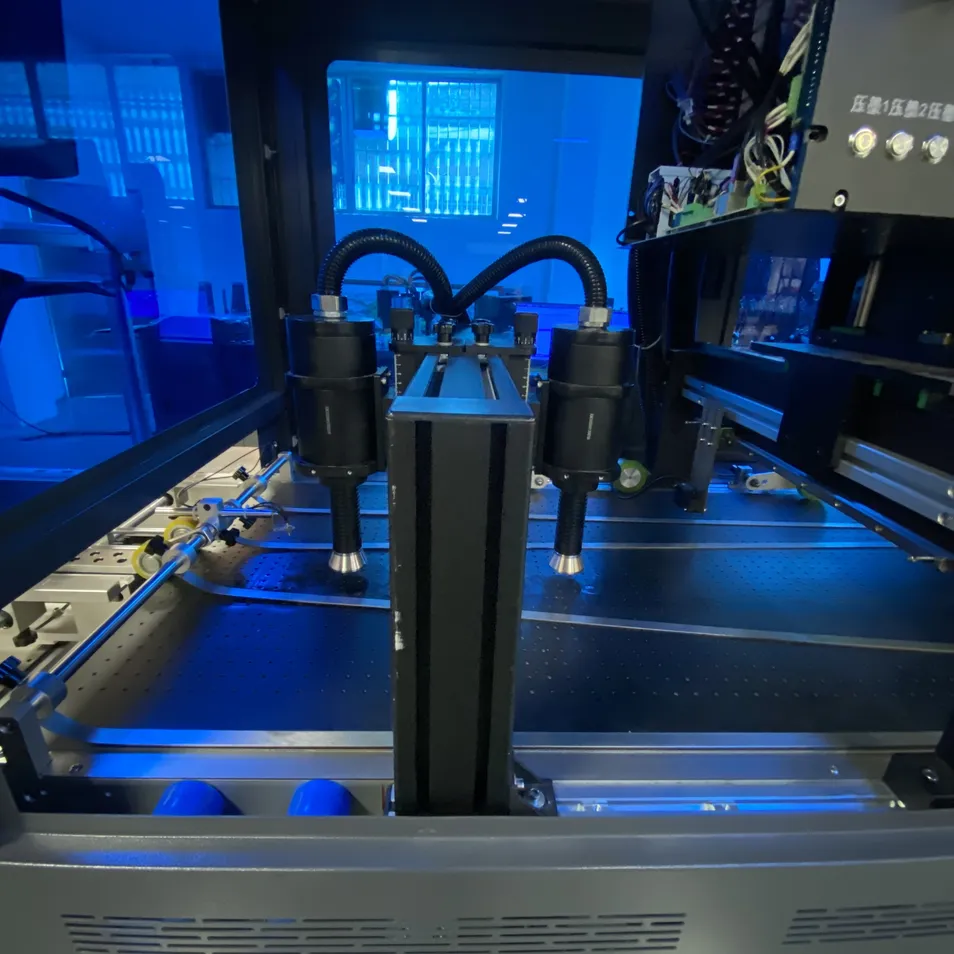

The integrated automated workflow combines auto-feeding technology, intelligent rectification device, plasma surface treatment, dual-stage UV curing system, and auto-collection conveyor to ensure consistent high-quality results.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Printing Head | Ricoh G5/G6 (8 Pcs) |
| Printing Color | CMYK (Full Color) |
| Resolution | 360DPI |
| Printing Speed | 15M/Min |
| Conveyor Speed | 0-50M/Min |
| Voltage | 220VAC, 50HZ |
| Efficiency | 60-120 Pcs/Min (Size dependent) |
| Auto-Rectify Accuracy | ±0.5mm |

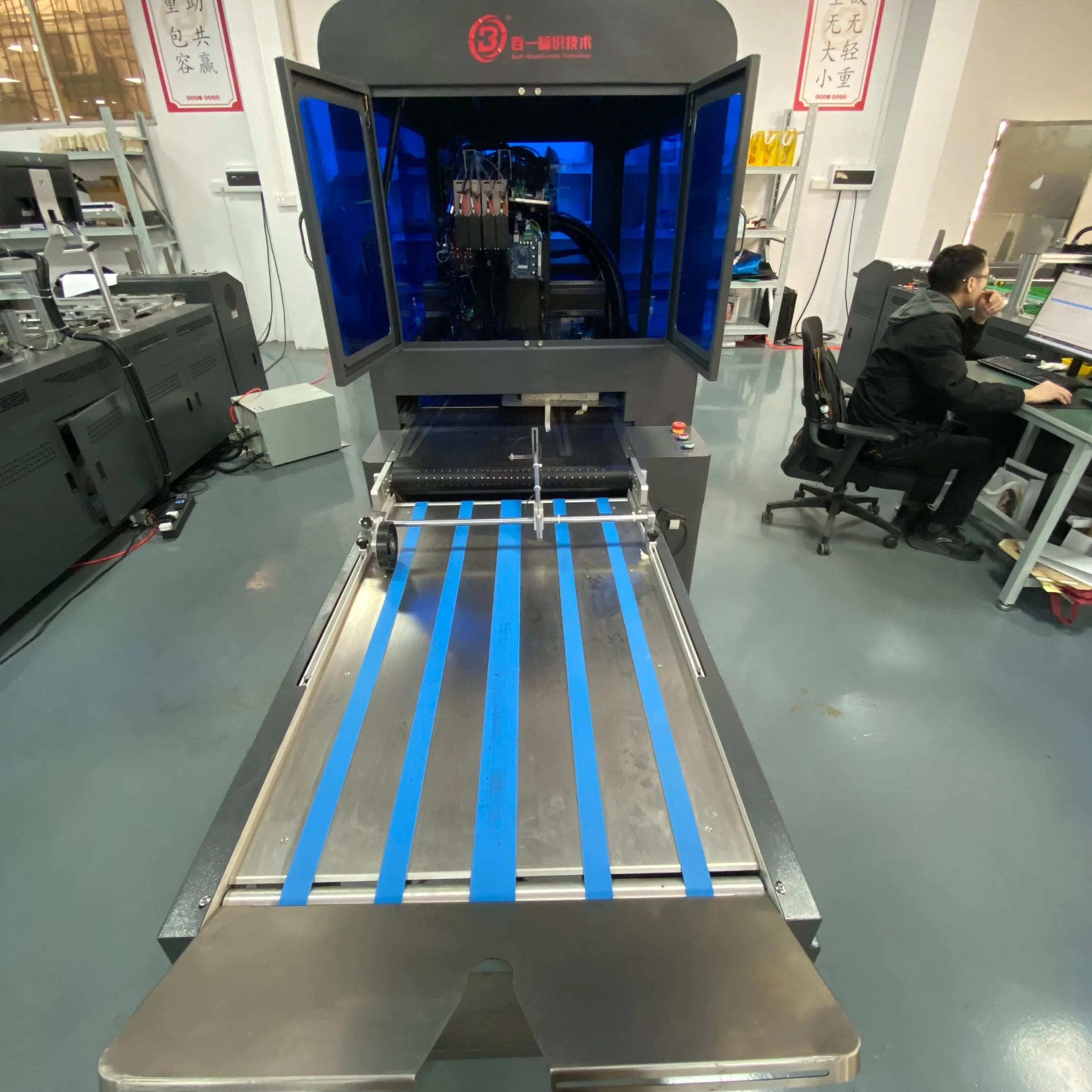

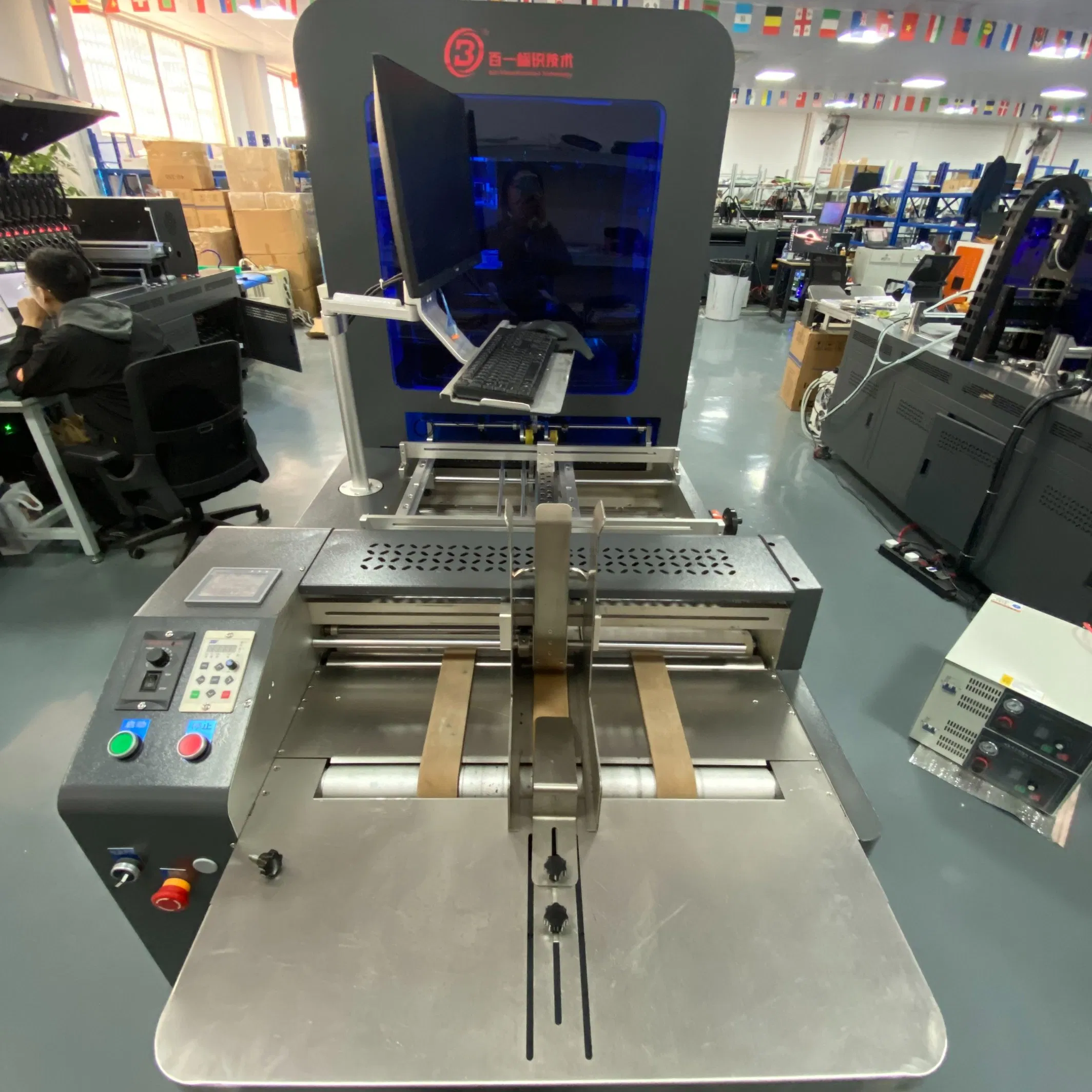

1. Feeding Platform System: Multi-friction belt (down-out), independent electric adjustment, cross-ball auto-rectify, double big flow vacuum pump, collection tray included.

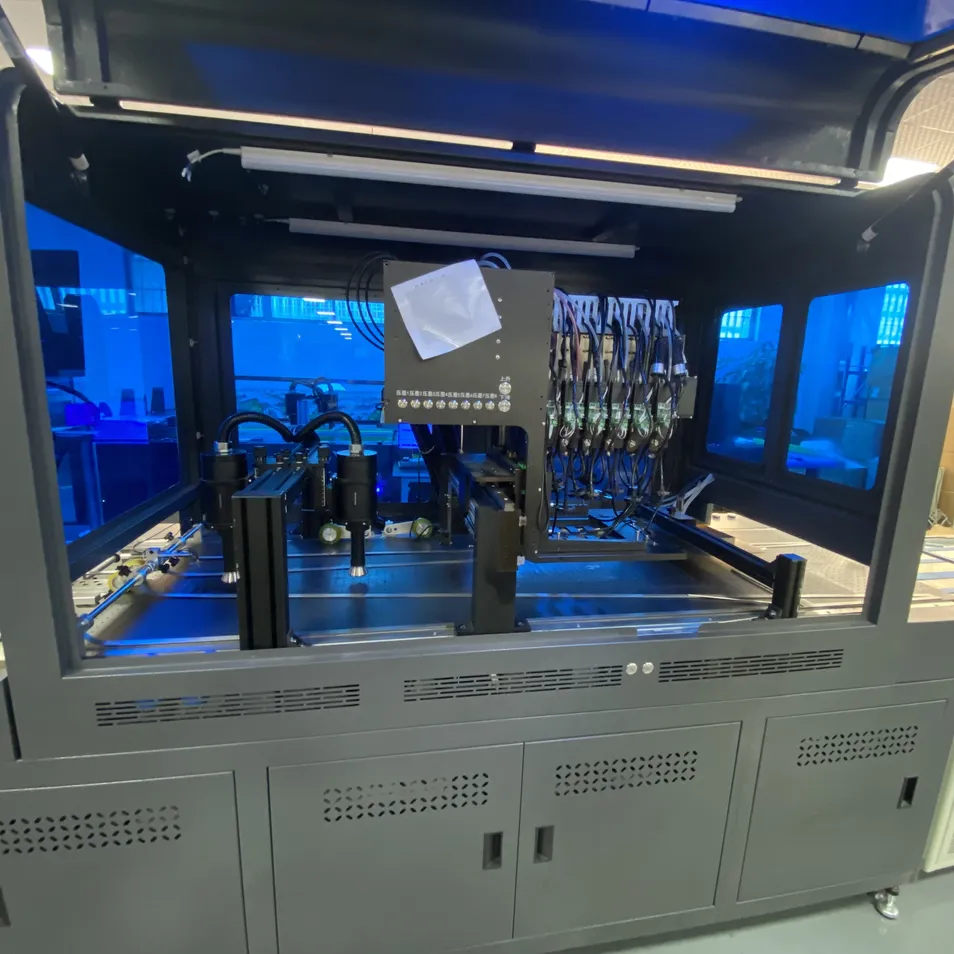

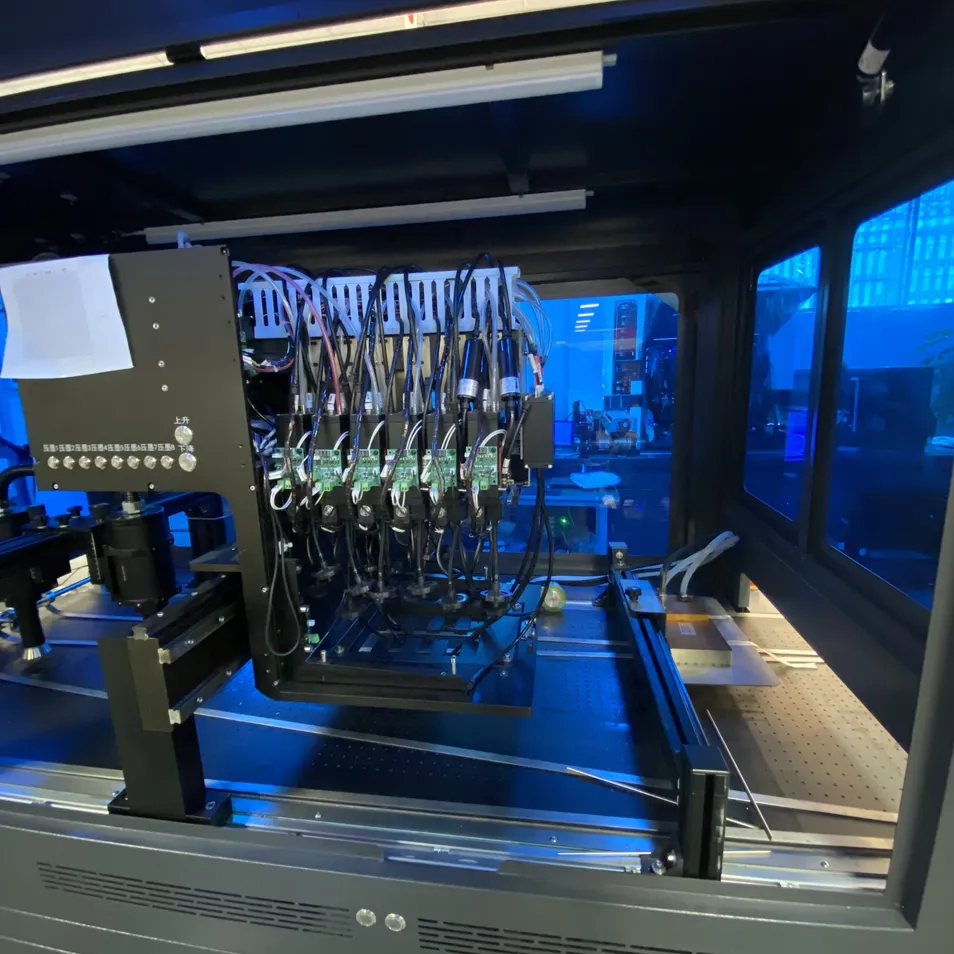

2. UV Printing System: Embedded industrial control, HMI all-in-one, anti-collision nozzle design, circulating ink supply, 8pcs Ricoh G5/G6 heads.
