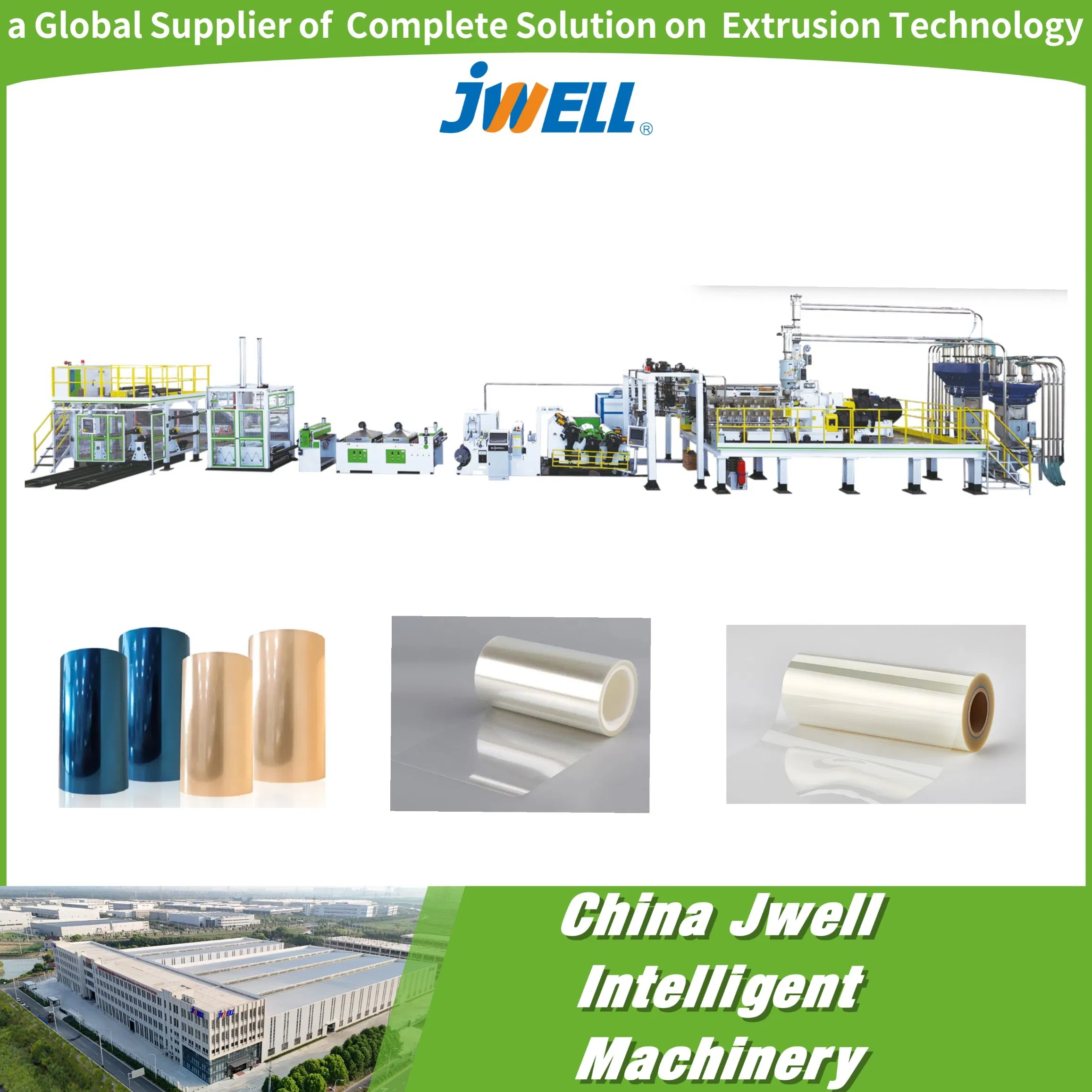

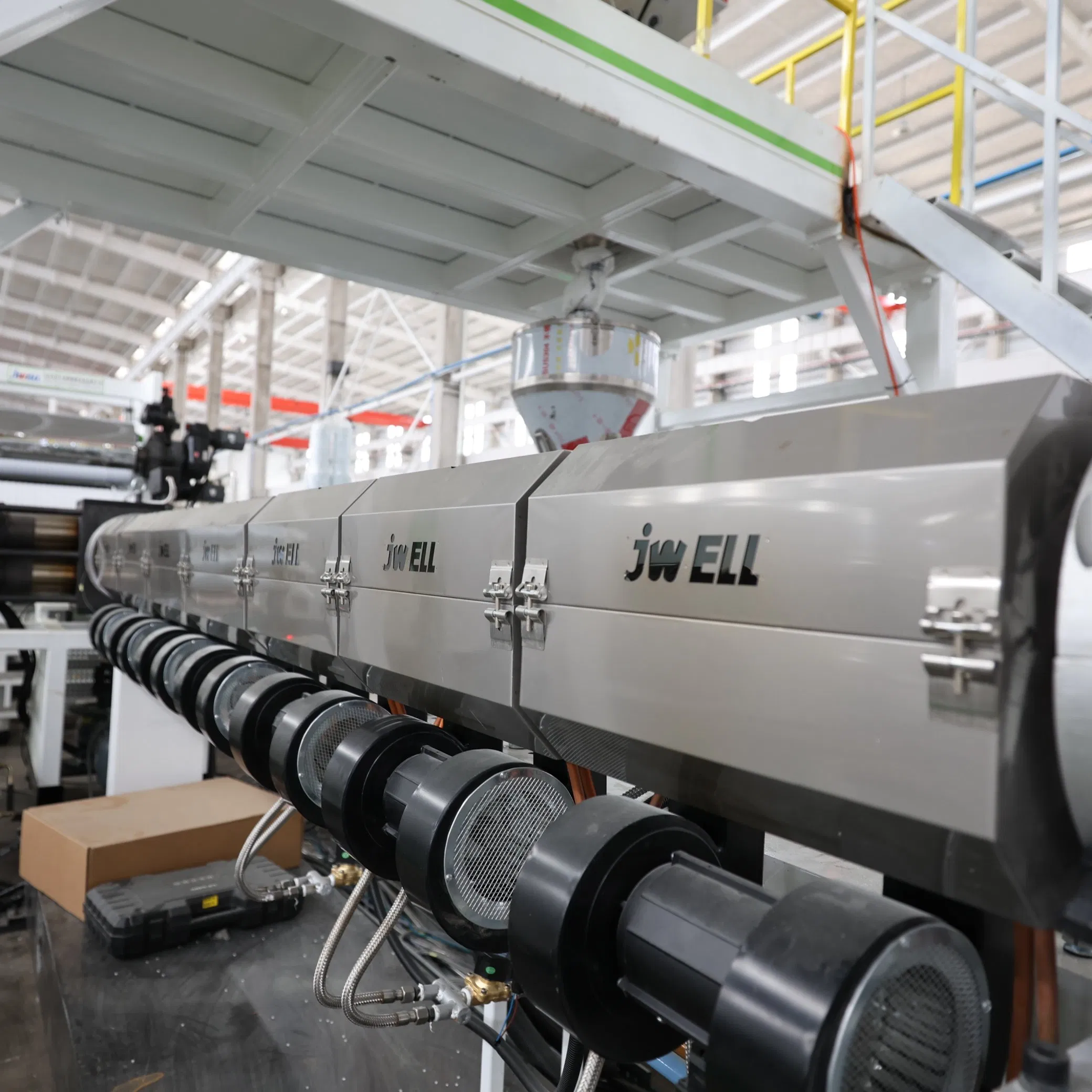

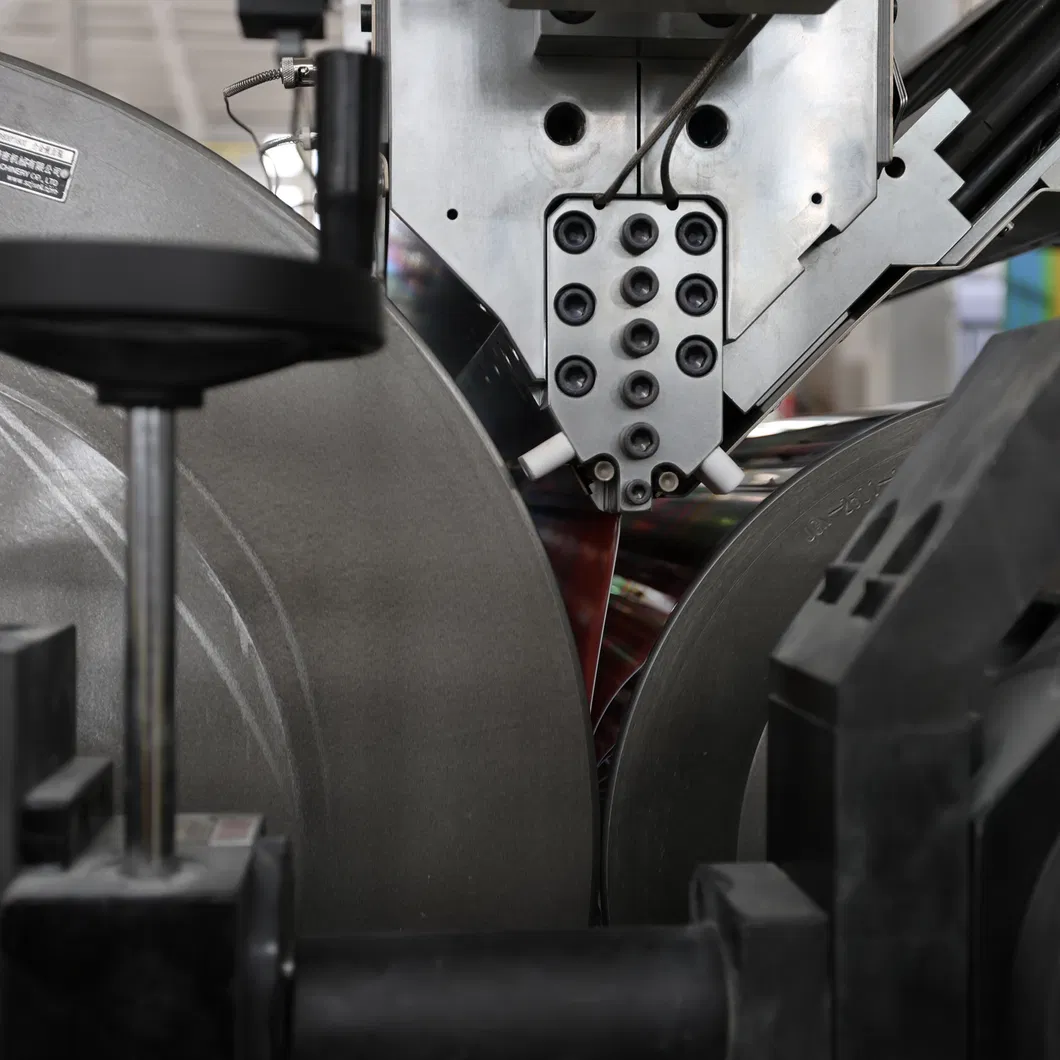

Precise temperature control and optimized screw design ensures uniform PET melt plasticization and precise crystallinity control. delivering sheets with minimal gels and low haze, meeting high transparency standards for food packaging. Optional multi-layer co-extrusion technology enables production of composite sheets with enhanced barrier properties.

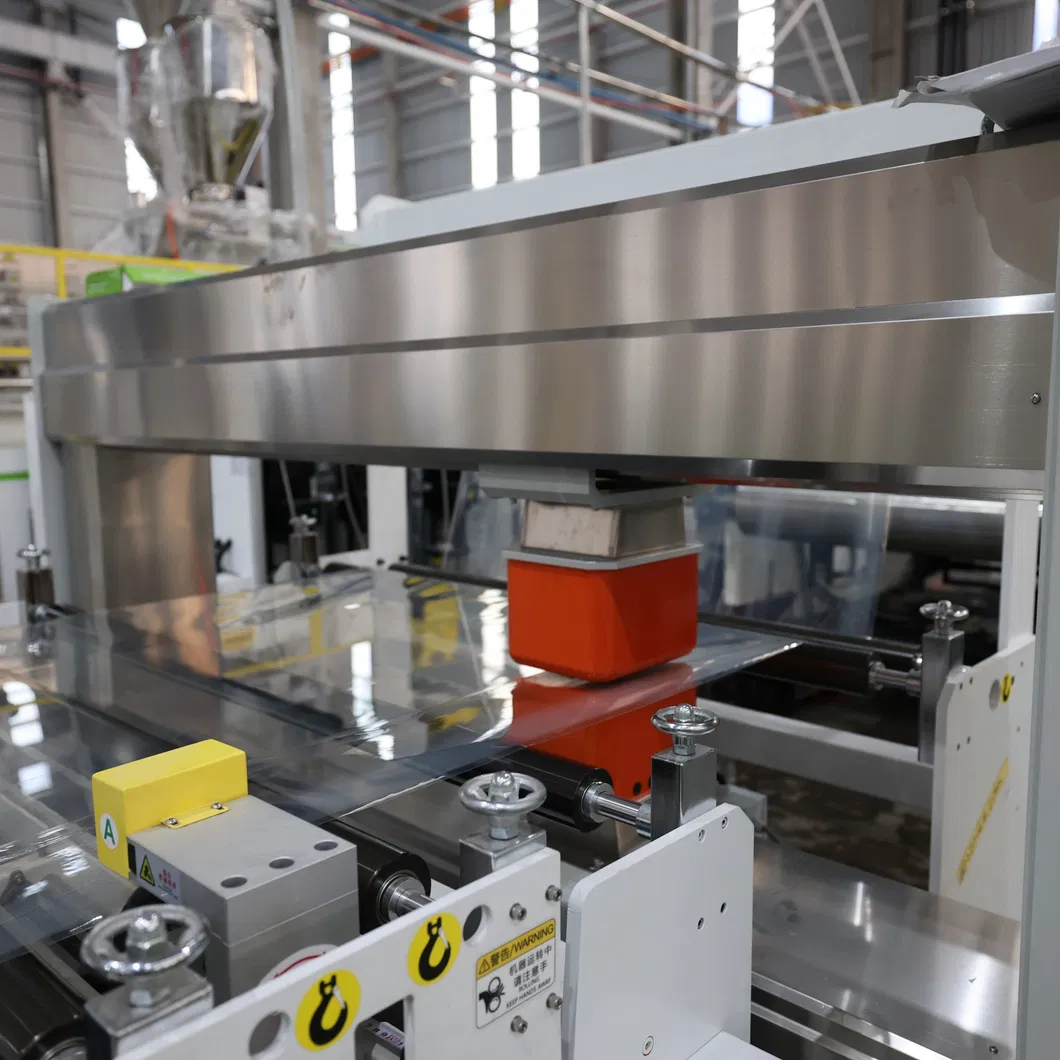

Stable extrusion rate of up to 1.2 tons/hour, supporting large-scale continuous production, reducing mold change/stoppage frequency, and maximizing line efficiency. Automated feeding system and online thickness monitoring ensures raw material utilization over 98%.
High-efficiency motors and intelligent zoned temperature control precisely matches heating demands across sections. Optimized screw speed and pressure control lower motor load, achieving 30% lower energy consumption compared to conventional machines.

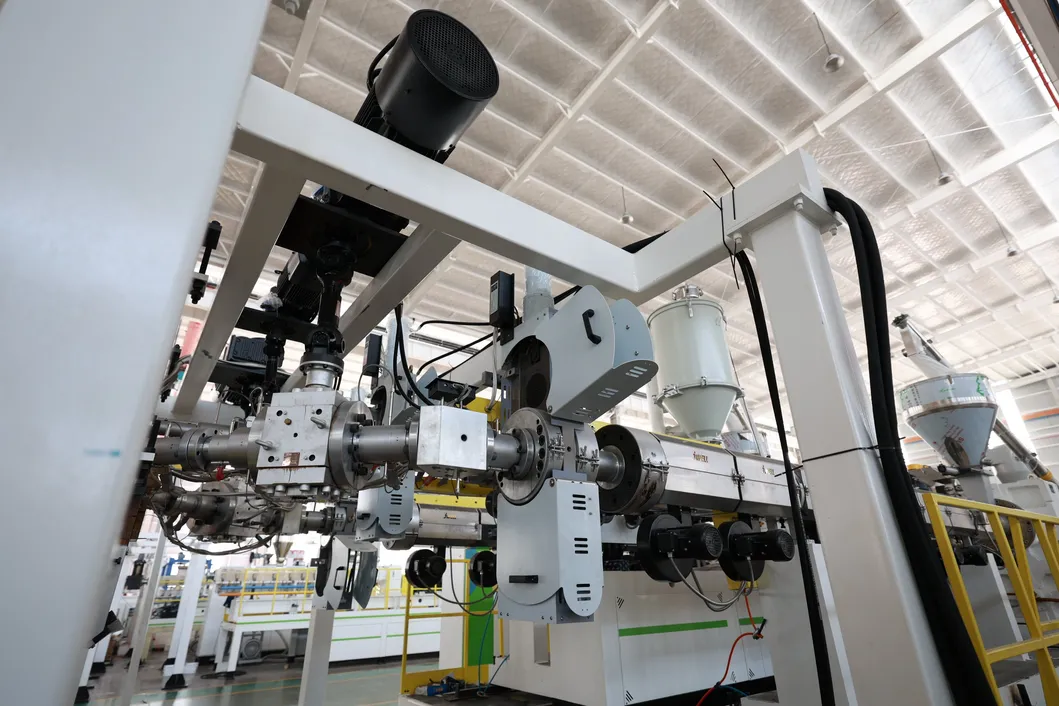

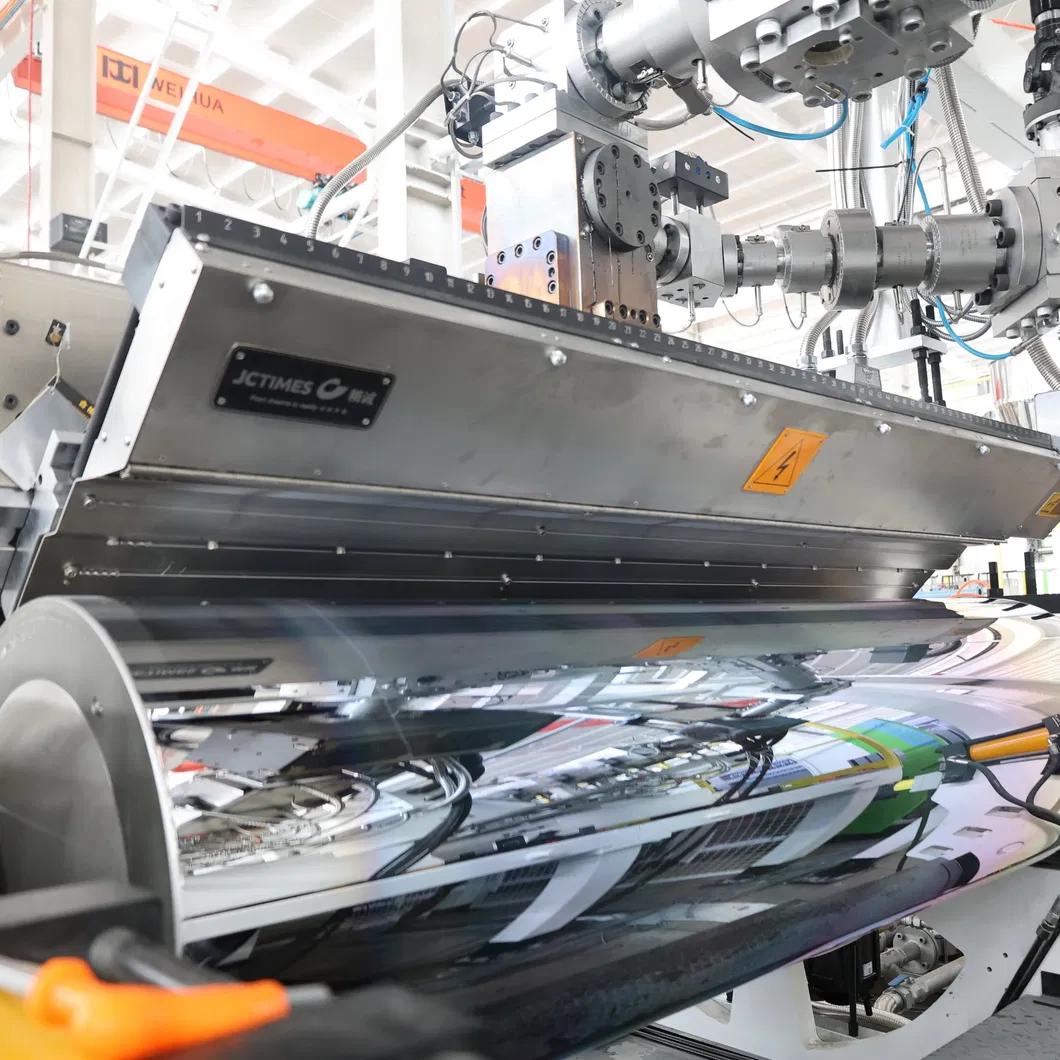

Critical components like the screw and barrel are made of nitrided steel with surface hardness HRC>65, ensuring wear resistance for extended lifespan. Multi-layer die head design supports rapid switchover between sheet specifications.

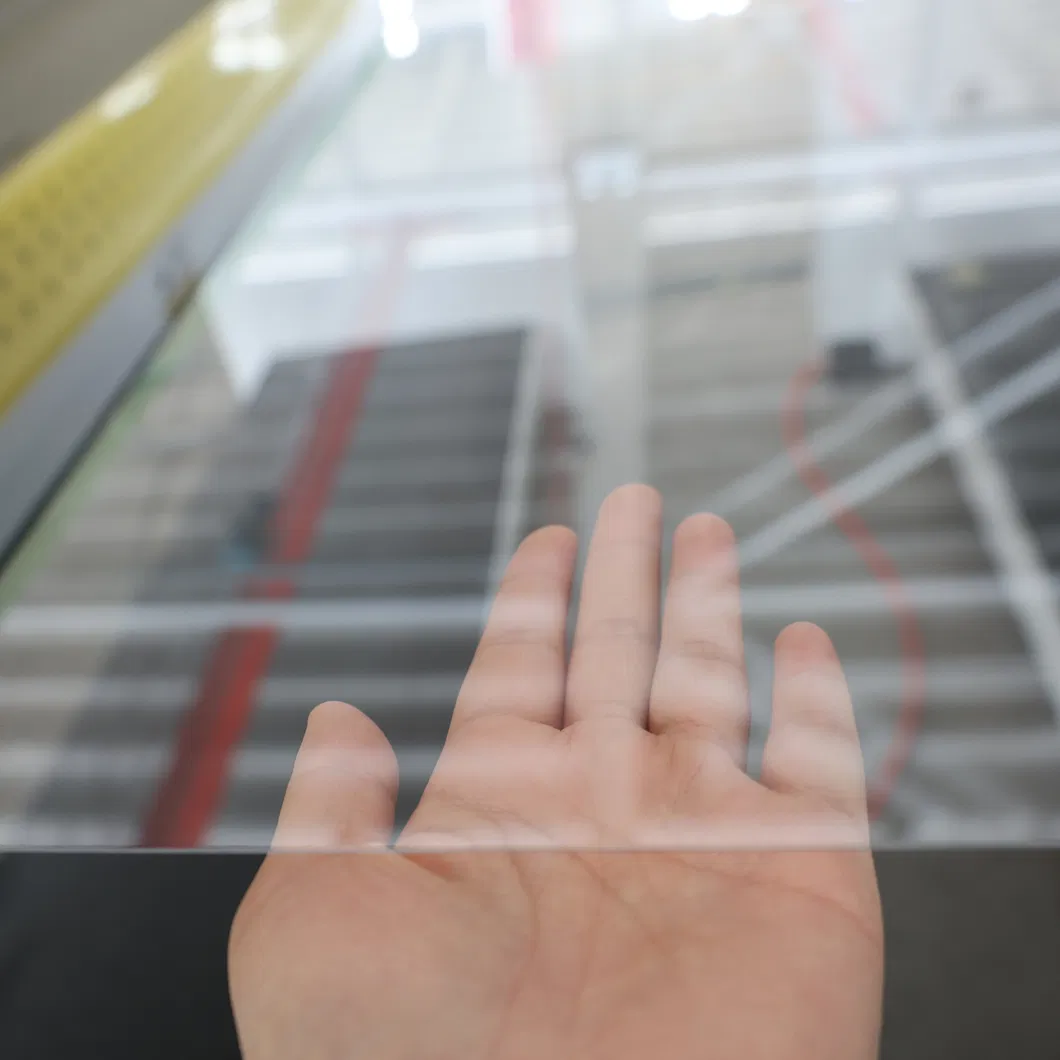

±3% thickness uniformity ensures even stretching during thermoforming, minimizing shrink marks and edge defects. Adjustable surface gloss accommodates post-printing processes like hot stamping or lamination.
| Model Configuration | Product Width (mm) | Product Thickness (mm) | Capacity (kg/h) |
|---|---|---|---|
| Single Configuration | 1250-1450 | 0.15-1.2 | 600-700 |
| Dual Configuration | 1250-1450 | 0.15-1.2 | 600-800 |
| High-Output Config | 1250-1450 | 0.15-1.2 | 800-1000 |
