| Model NO. | DX 988-76-18 |
| Power Source | Electric |
| Certification | CE |
| Condition | New |
| Mode | Dx Metal Roofing Panel Sheet Roll Forming Machine |
| Panel Profile | 988-76-18 or Your Own Drawing Available |
| Feeding Width | 800 mm |
| Feeding Thickness | 0.25-0.75mm |
| Control System | PLC Control and Manual Control |
| Forming Speed | 8-12m/Min |
| Production Capacity | 15 Sets Per Month |

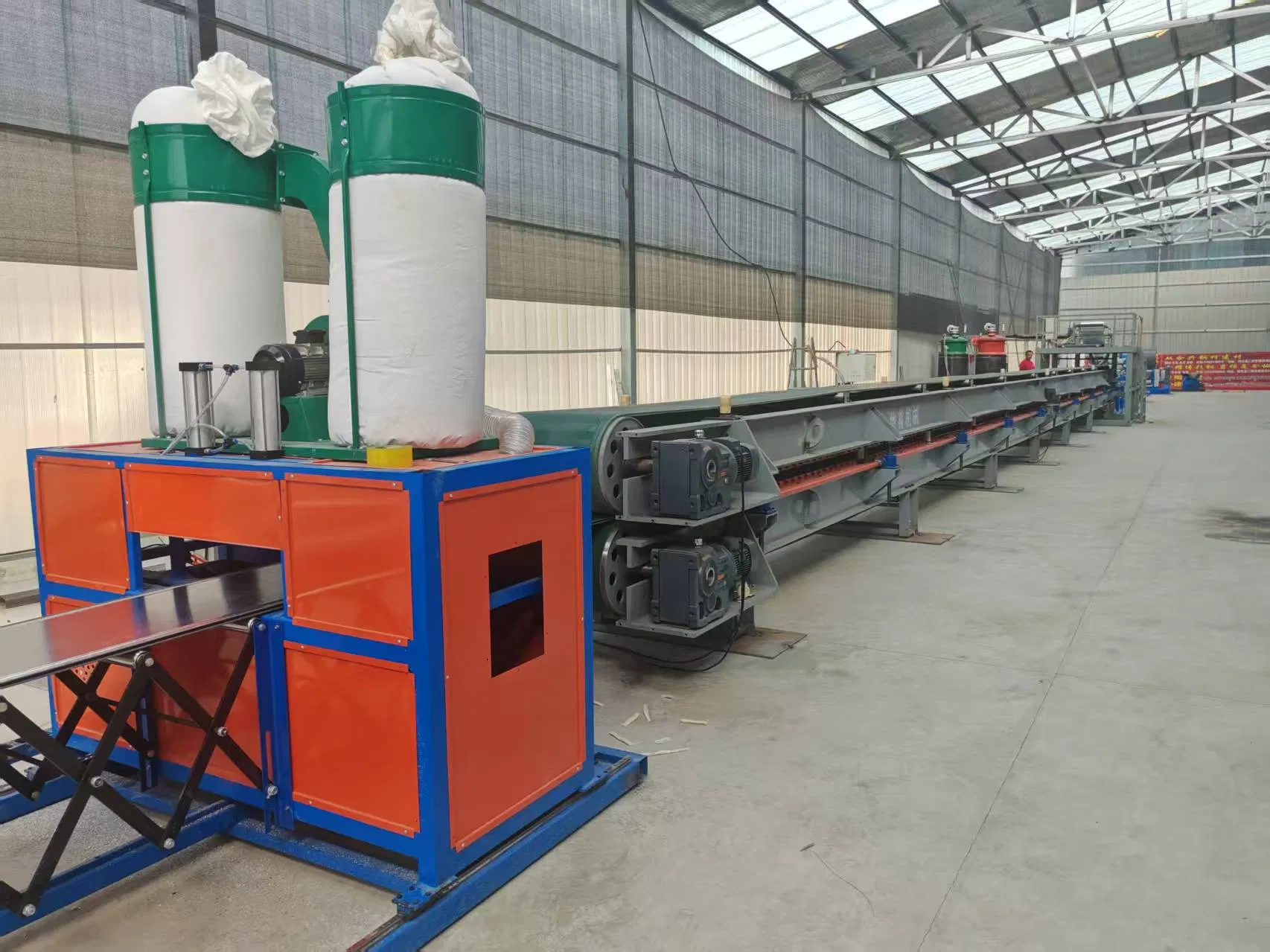

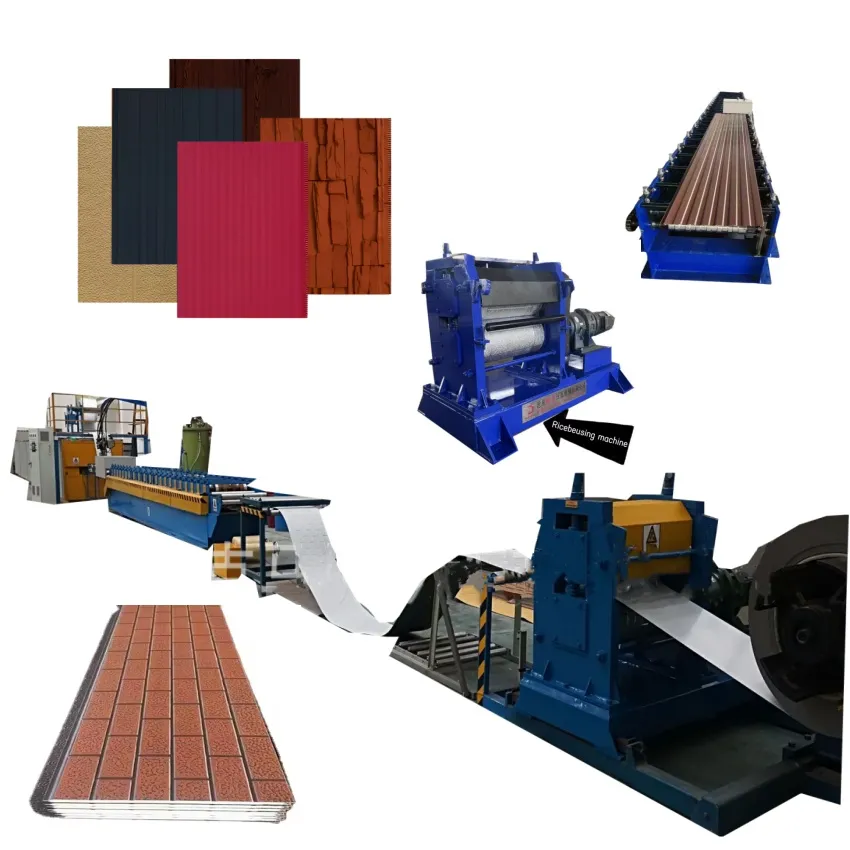

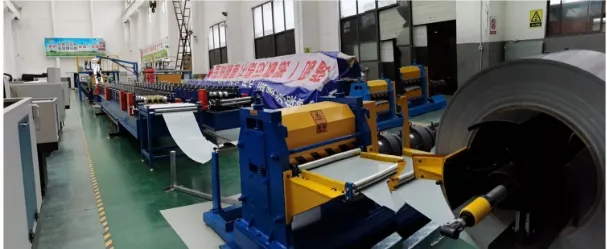

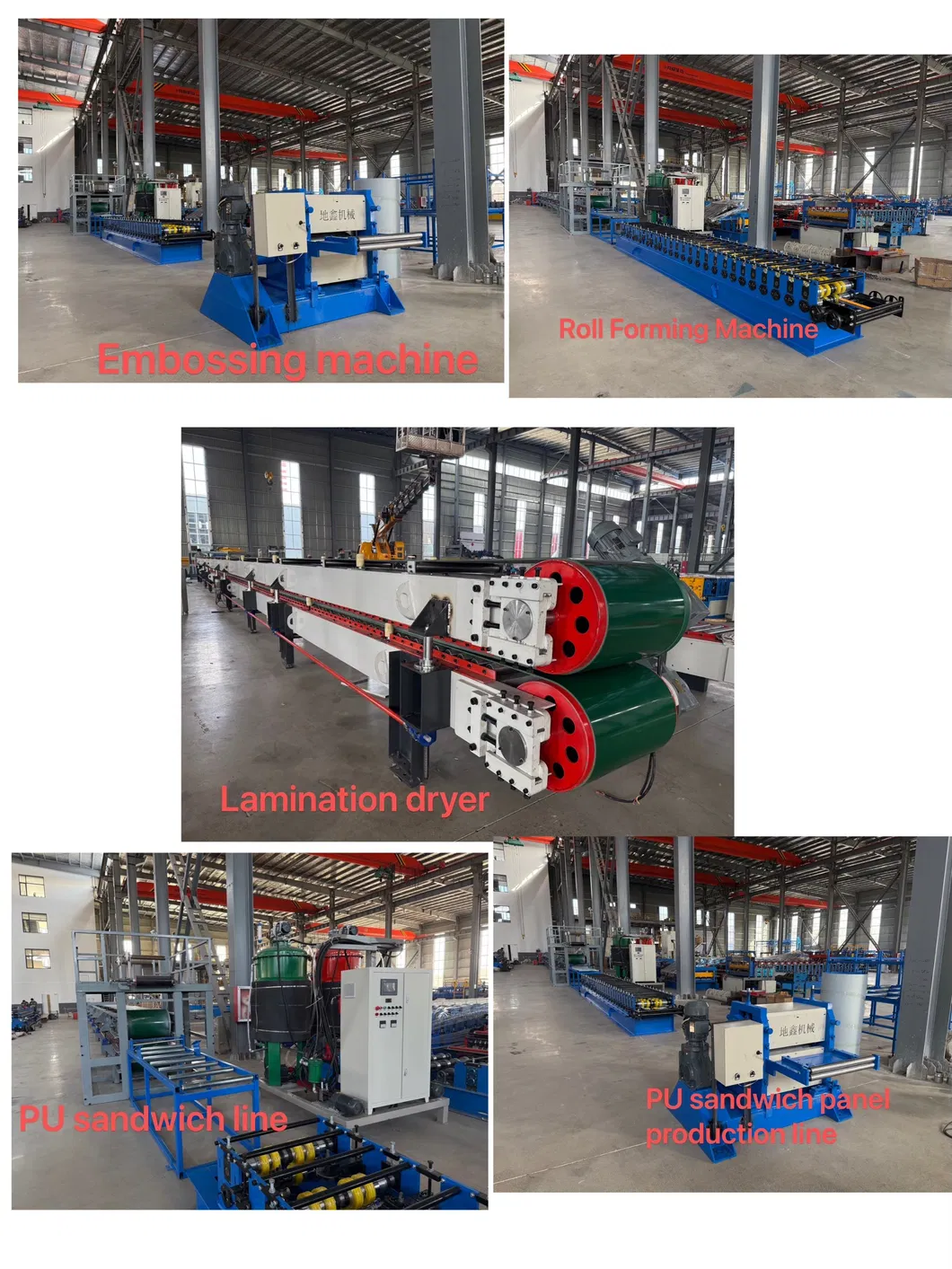

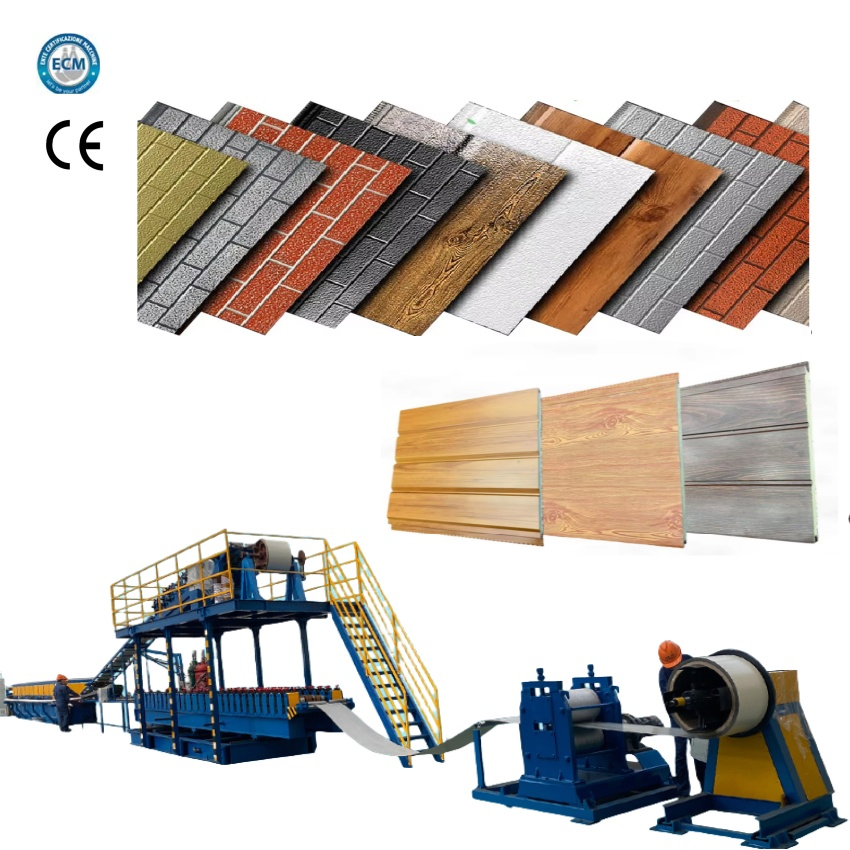

This automated production line measures approximately 50m x 2m x 2.2m. It requires 3-4 workers for operation and produces panels at a speed of 4-6 meters per minute.

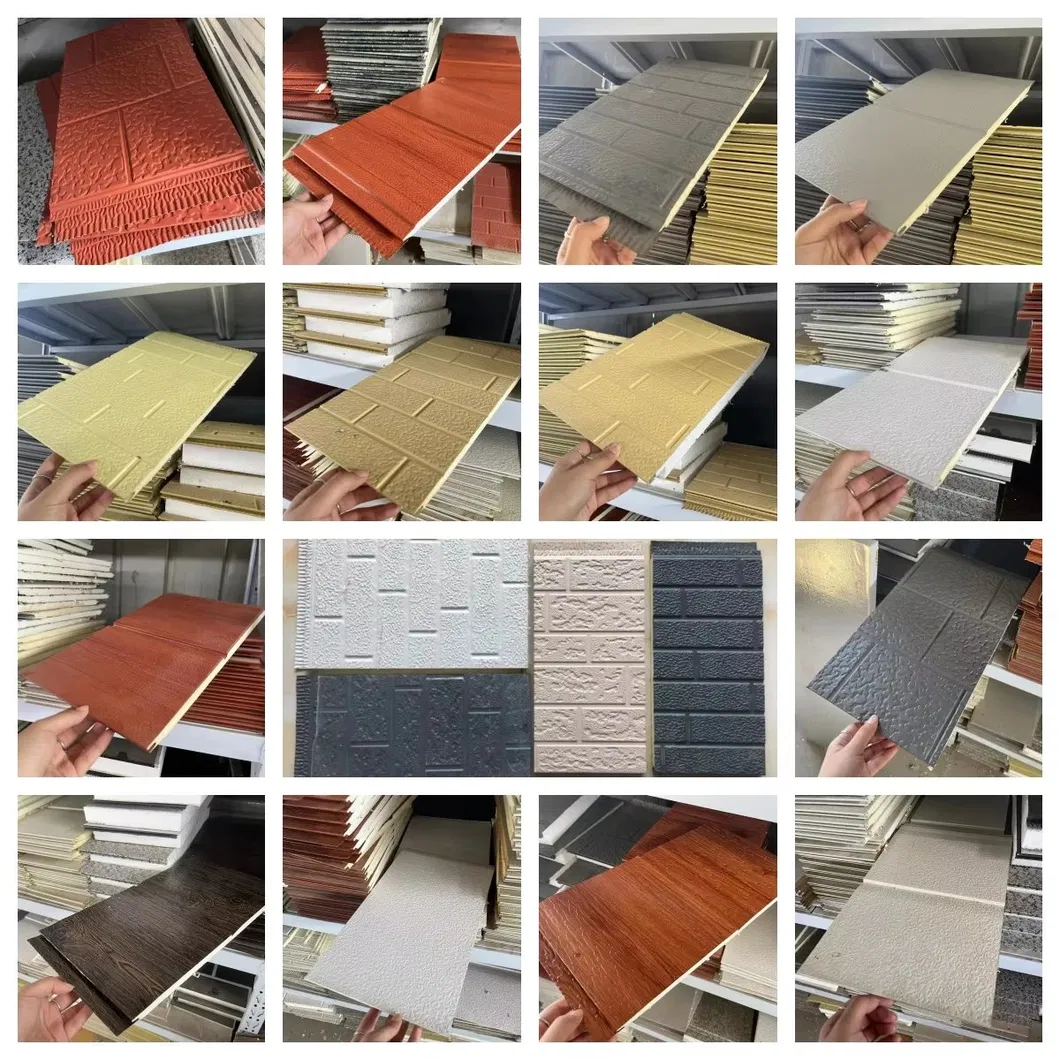

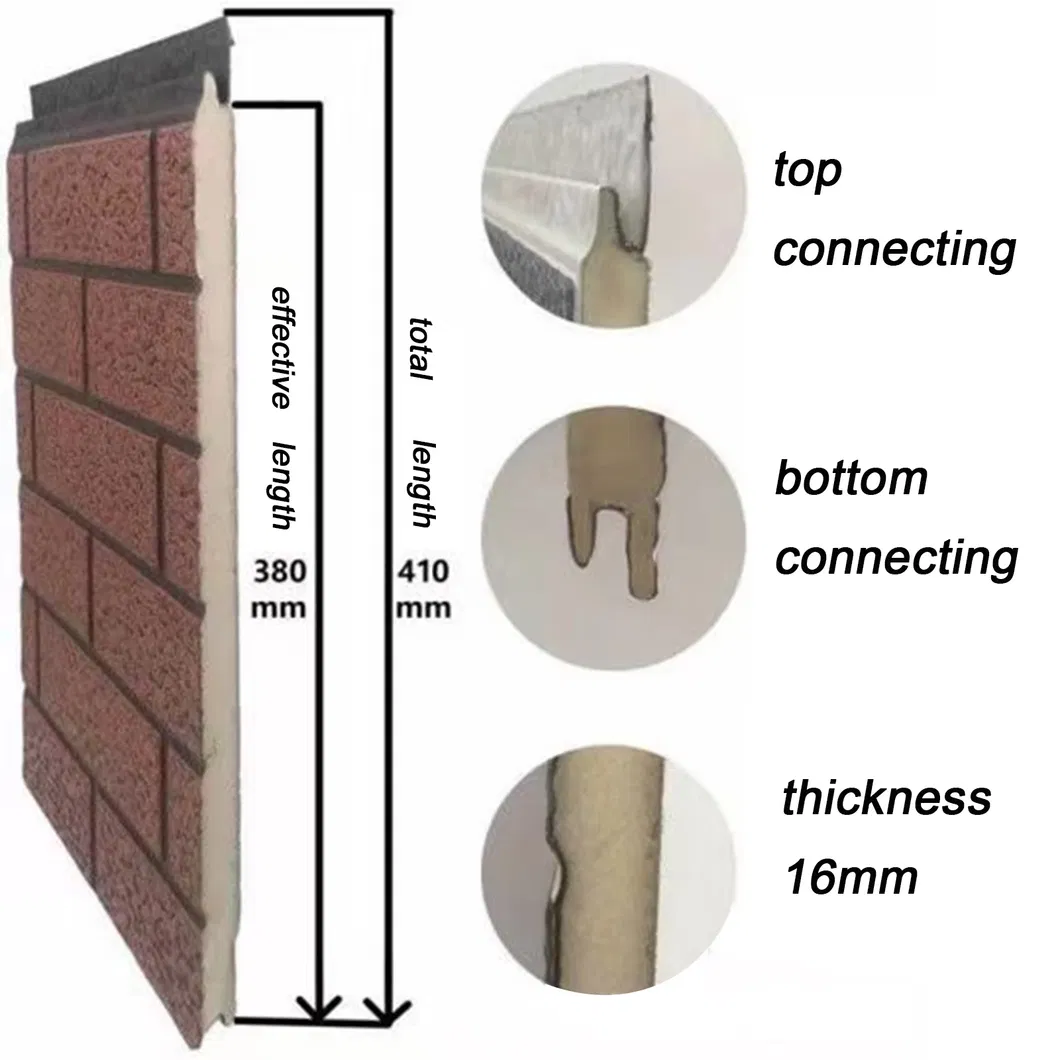

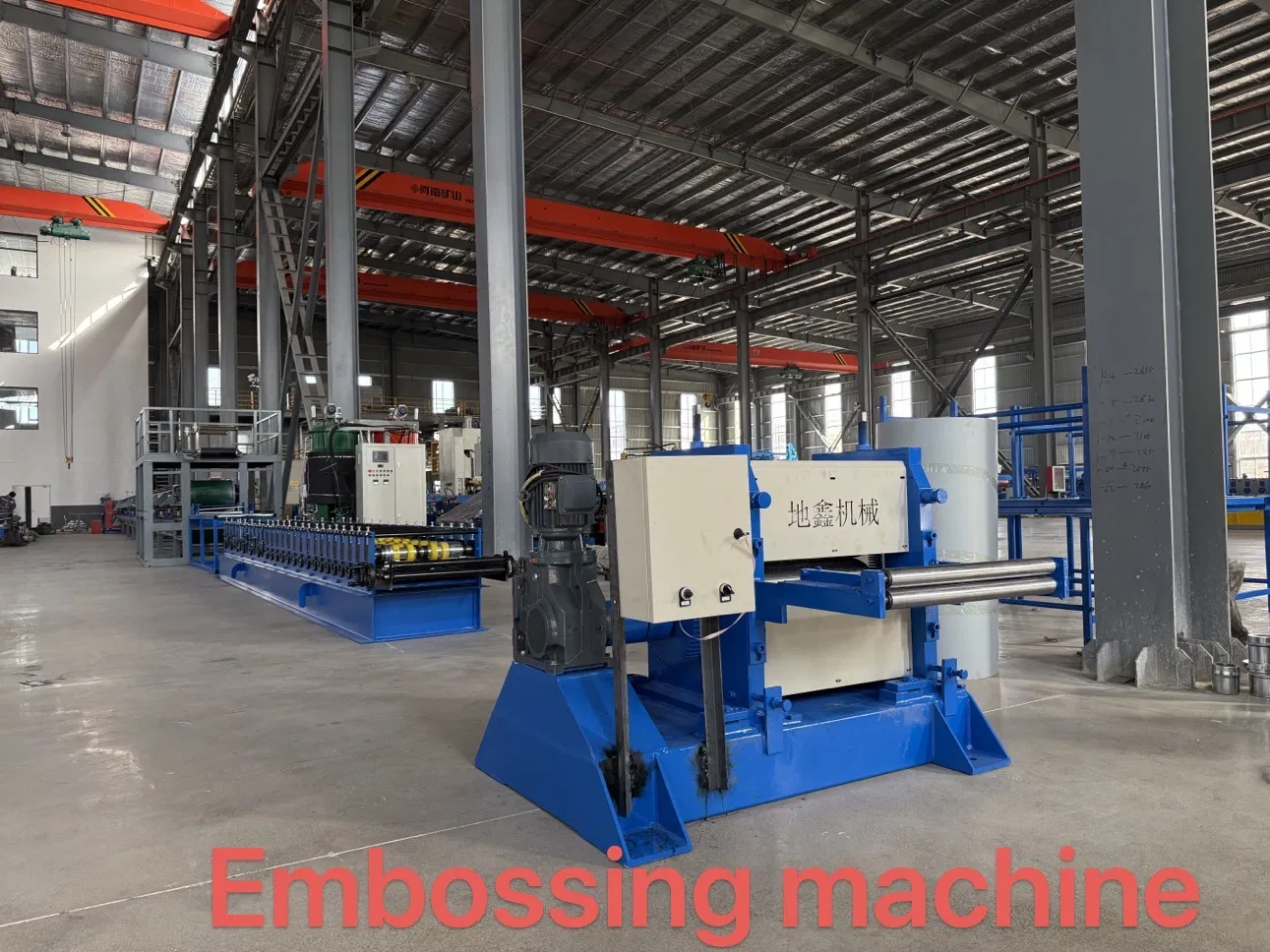

Surface Layer: Color embossed decorative metal plate.

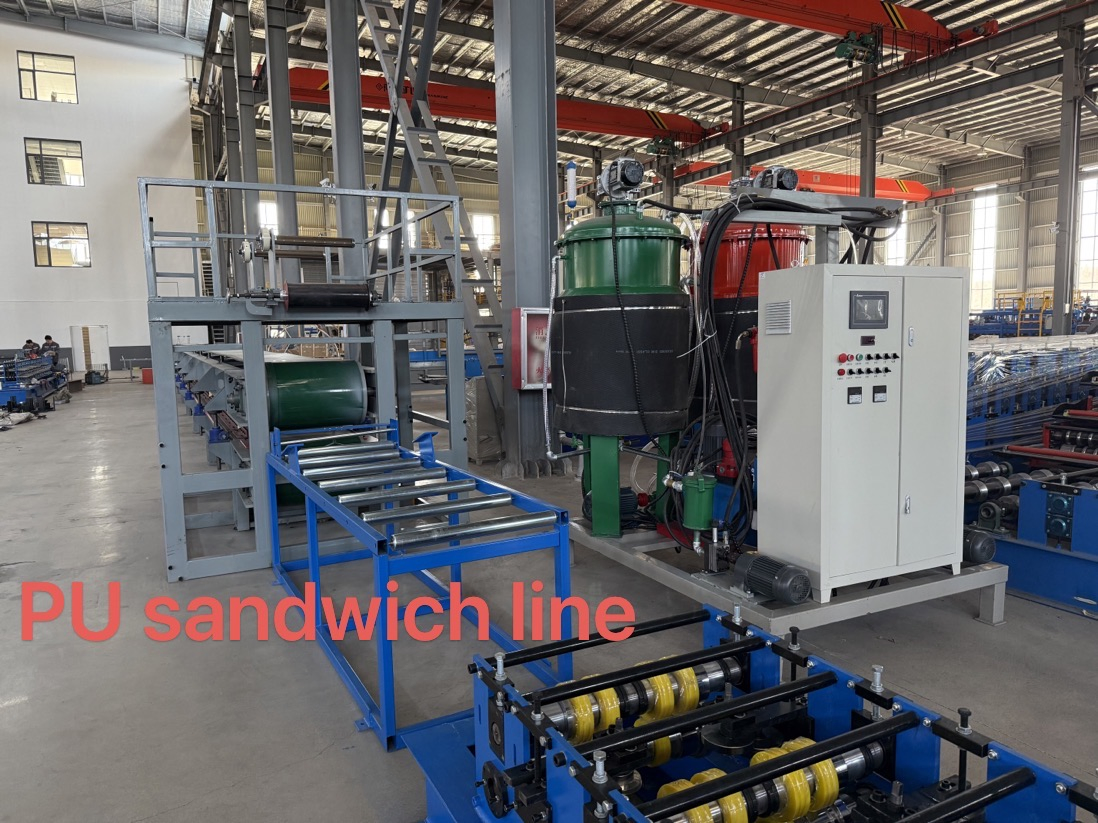

Middle Layer: Hard high-density polyurethane (PU) foam insulation (flame retardant).
Bottom Layer: Aluminum foil protective layer for thermal insulation and moisture resistance.
The tiles produced are ideal for factories, houses, warehouses, and steel sheds, offering high efficiency and reliable operation.
| Suitable Material | Color steel sheet, galvanized steel sheet, aluminum sheet |
| Installation Dimension | 60m * 2m * 2m |
| Main Motor Power | 4KW with Cycloidal reducer |
| Hydraulic Power | 4KW |
| Material Thickness | 0.3mm ~ 0.8mm |
| Processing Speed | 8-12m/min |
| Roller Material | High grade 45# forged steel with hard chrome plating |
| Cutting Blade | Cr12 mould steel with quenched treatment |
Package Size: 6500.00cm * 120.00cm * 120.00cm
Gross Weight: 15000.00kg

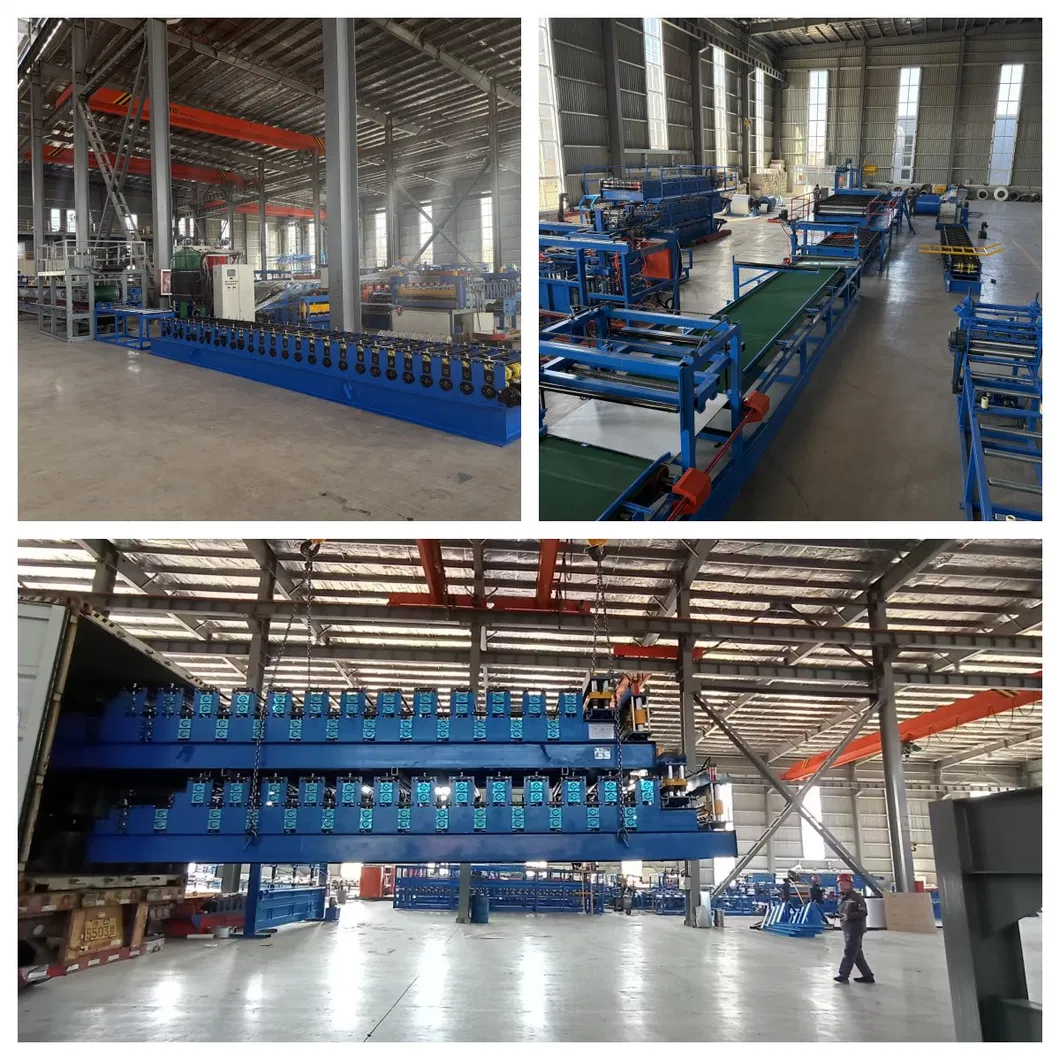

Logistics: Professional technicians handle loading to ensure damage-free delivery. A 40-foot container is typically required for transport.
