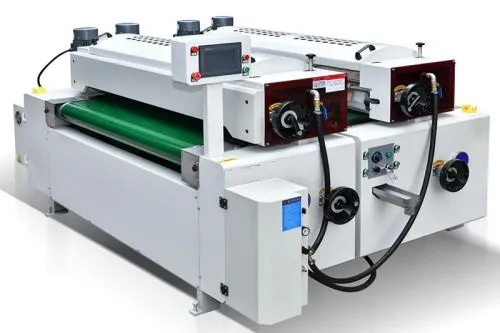

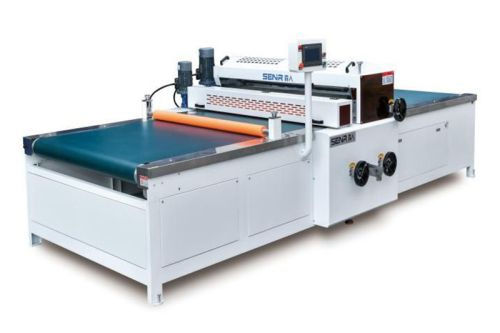

Double Roller Coater Machine

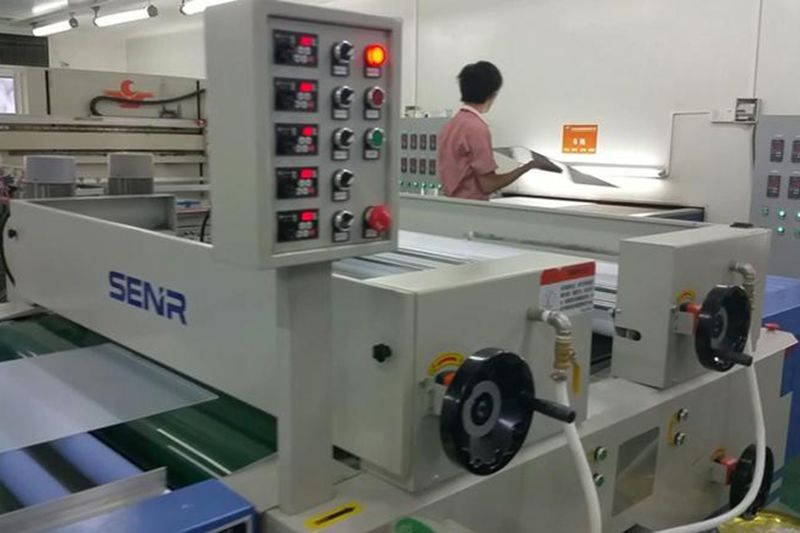

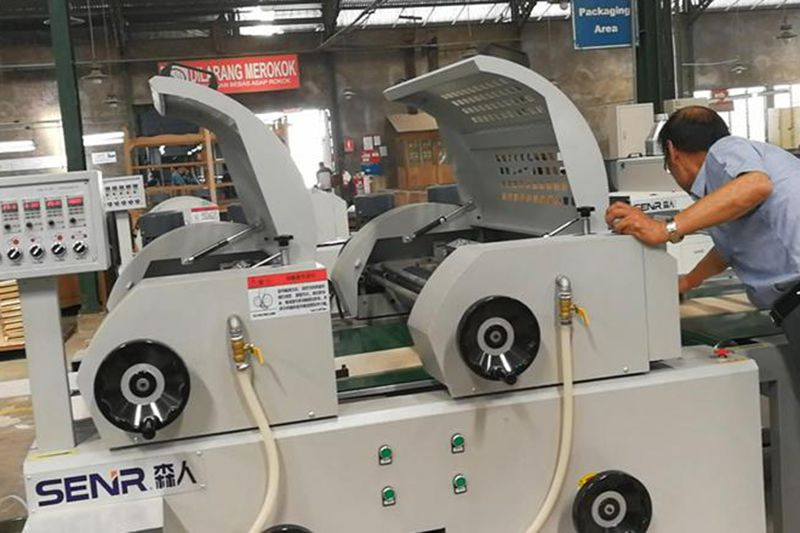

Our glass roller coater is engineered to apply specialized glass coatings with exceptional precision. This coating machine ensures an even and thorough application without light leakage. The surface finish is smooth and uniform, with no oil accumulation at the edges or corners. Its special design not only scrapes away excess ink and coating but also recycles it, significantly surpassing traditional methods like spraying or screen printing. This enhances productivity and reduces the need for rework.
| Model | Working width (mm) | Working thickness (mm) | Feeding speed (m/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SR-R2PL-900 | 900 | 3-20 | 2-10 | 1800×2150×1500 | 1500 |
| SR-R2PL-1300 | 1300 | 3-20 | 2-10 | 1800×2500×1500 | 1800 |
| SR-R2PL-1650 | 1650 | 3-20 | 2-10 | 1800×2900×1500 | 2100 |
| SR-R2PL-2000 | 2000 | 3-20 | 2-10 | 1800×3300×1500 | 2500 |
| SR-R2PL-2400 | 2400 | 3-20 | 2-10 | 2300×3700×1500 | 3100 |
| SR-R1L-3000 | 3000 | 3-20 | 2-10 | 1300×4300×1500 | 1900 |

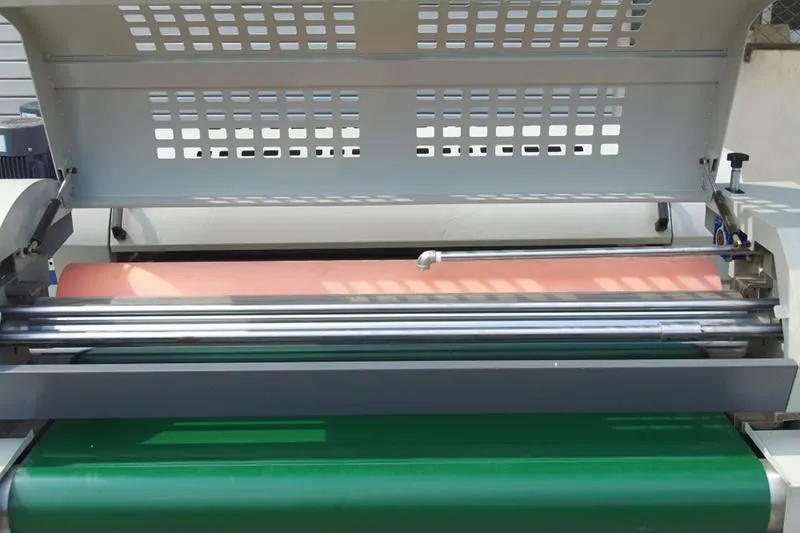

The glass roller coater operates based on a precise mechanism. The coating roller and smoothing wheel are aligned parallel and rotate inwardly at a consistent speed, creating a V-shaped space for uniform material distribution. By adjusting the tightness, we control thickness and uniformity. As glass moves on the conveyor, contact with the roller transfers material evenly onto the surface.
The coating rolls can rotate in both the same or opposite directions to control film thickness and efficiency.

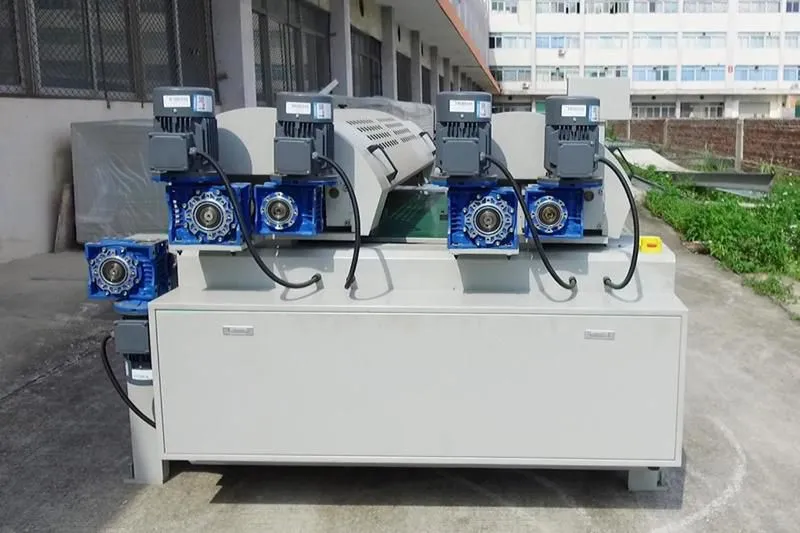

Independent DC converter motors control the conveyor and rolls for precise, stepless adjustment.
As a leading single source provider of high-quality flat glass processing machinery, we search for the most innovative and reliable equipment for fabricating, handling, and processing flat glass. Our equipment is characterized by innovative features, long-lasting durability, and high reliability.
We supply a complete range of integrated machinery for processing glass units, including manufacture of insulated glass units, glass window and door fabrication, and façade manufacture.
