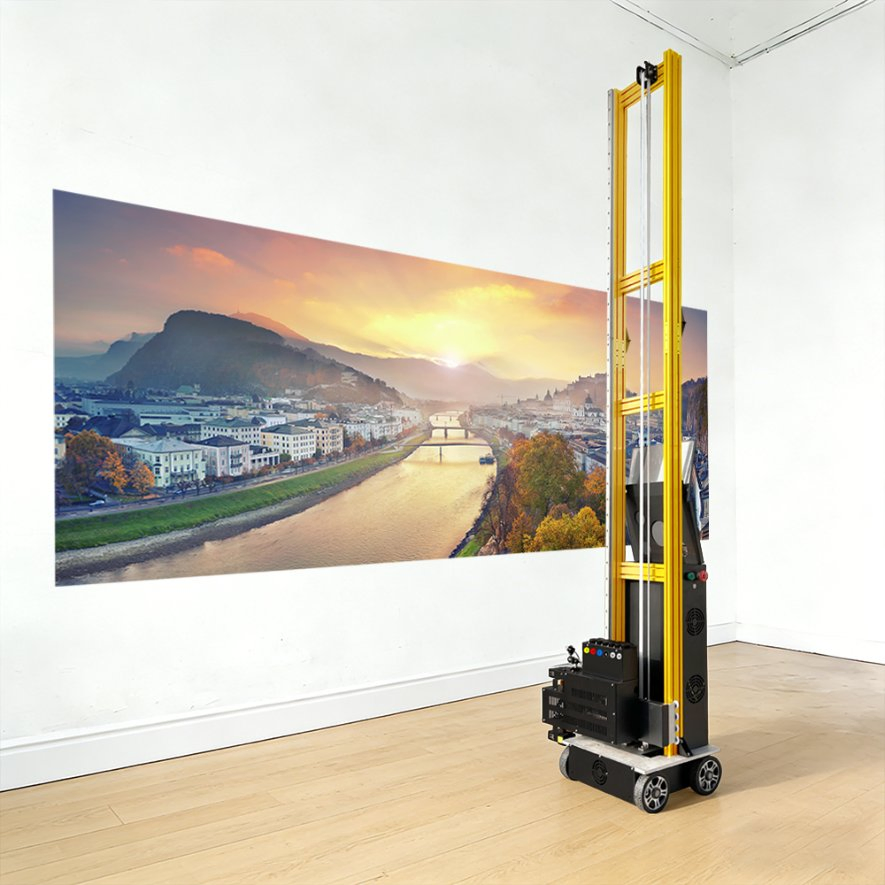

UV Rich Color Restaurant Decor Digital Wall Printer

Basic Specifications

Model:LC-A2C

Interface Type:USB

Ink Type:UV Ink

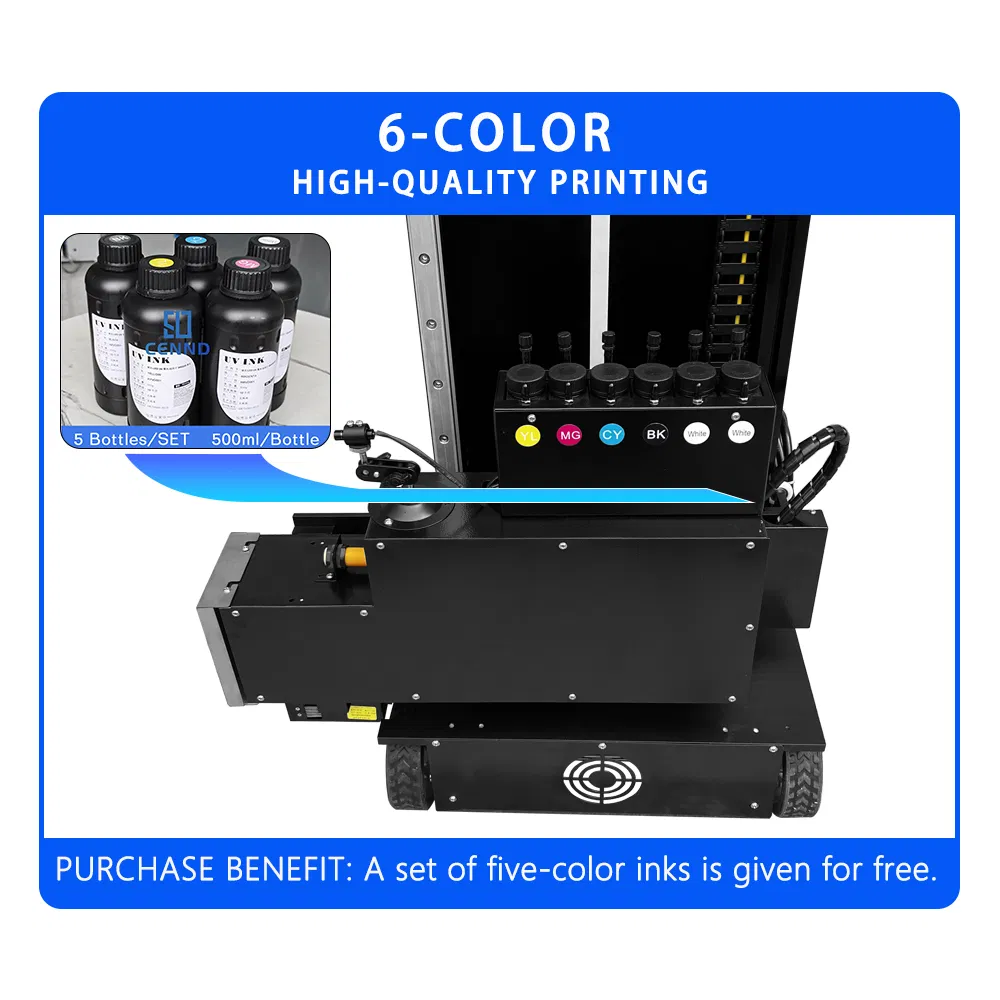

Ink Color:CMYKWW

Printhead:DX10

Printing Size:2500mm * 6000mm

Printing Speed:5-15 M²/Hour

Operating System:Windows 10/11

Application:Wall, Tile, Glass, Wood, etc.

Technics:Continuous Inkjet

Core Advantages

🚀

Lightweight & Foldable Design

With a total weight of only 35KG, the foldable structure simplifies the installation process. Deploy and start printing in just 5 minutes.

🎡

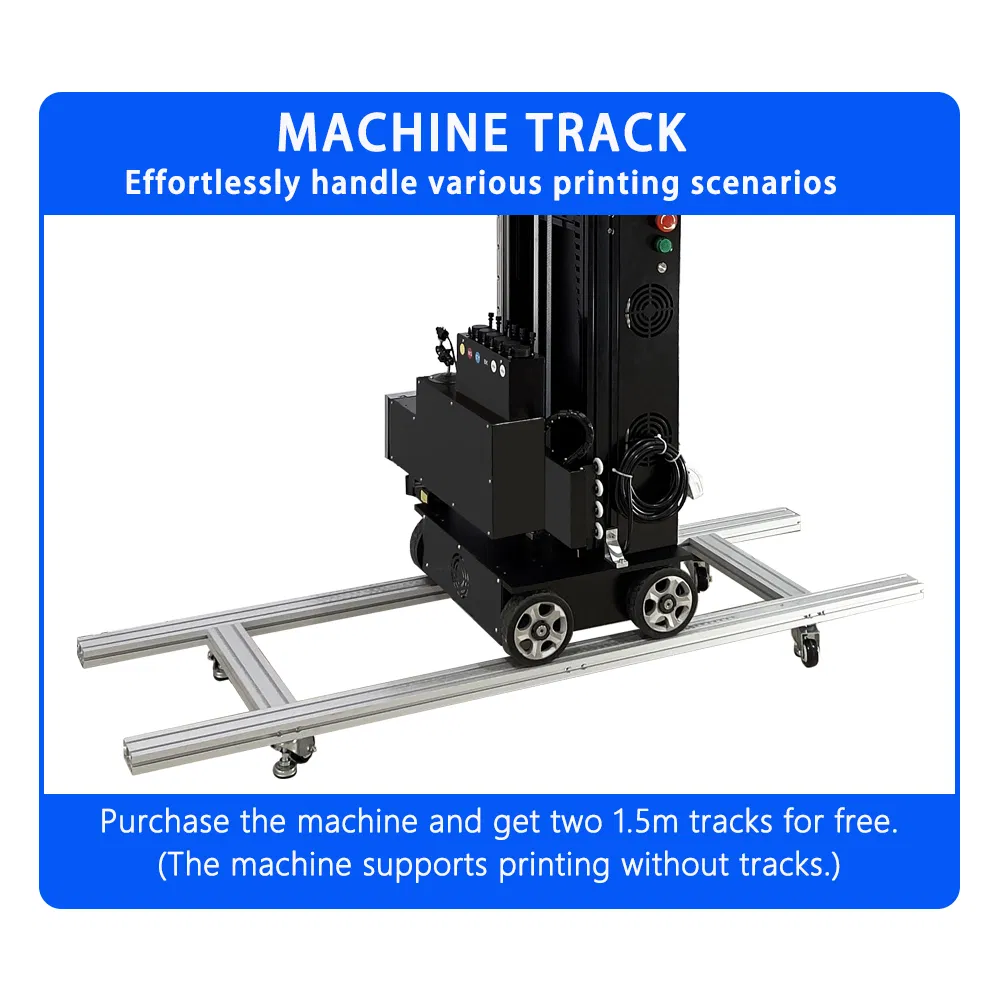

Dual Wheel & Rail Mode

Direct wheeled mobile printing on flat floors. Use matching rails for outdoor or uneven ground to ensure maximum stability.

💻

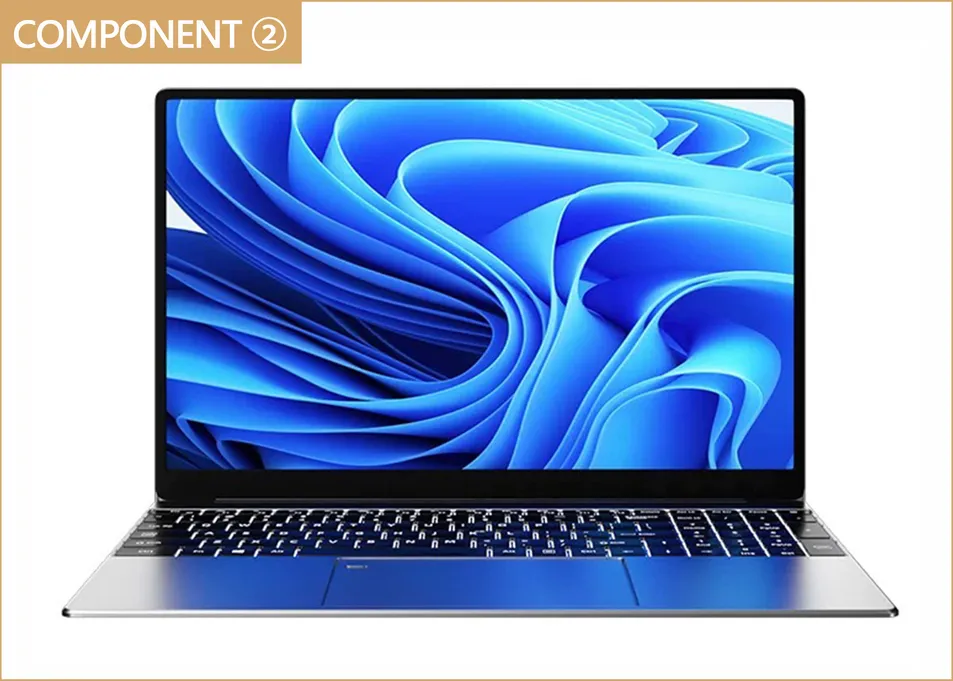

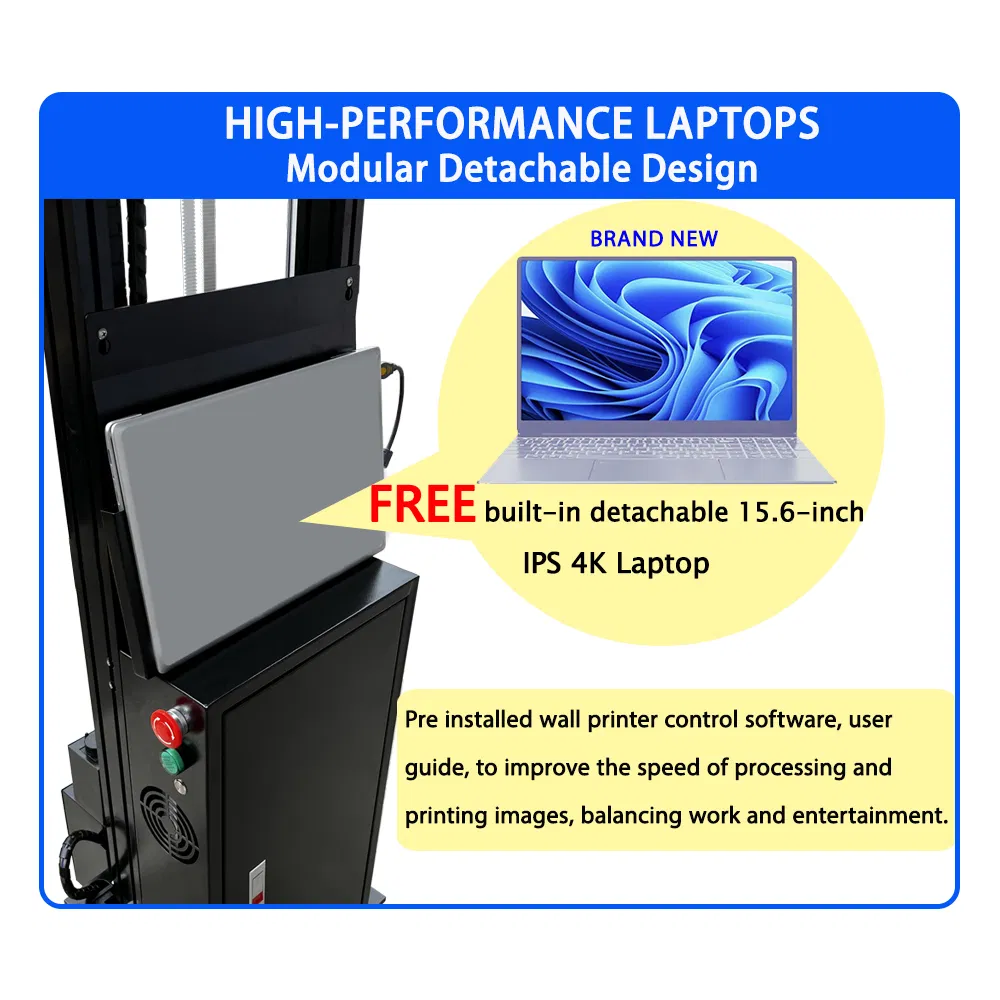

Detachable Laptop Configuration

High-efficiency image processing with a superior user experience compared to tablets. Detachable design for multi-functional use.

🛡️

X-Axis Guide Rail Drive

Accurately controls the vertical movement of the print head, significantly reducing jitter and balancing precision with speed.

Technical Specification

Parameter	LC-A2C	LC-A2S	LC-A2Pro

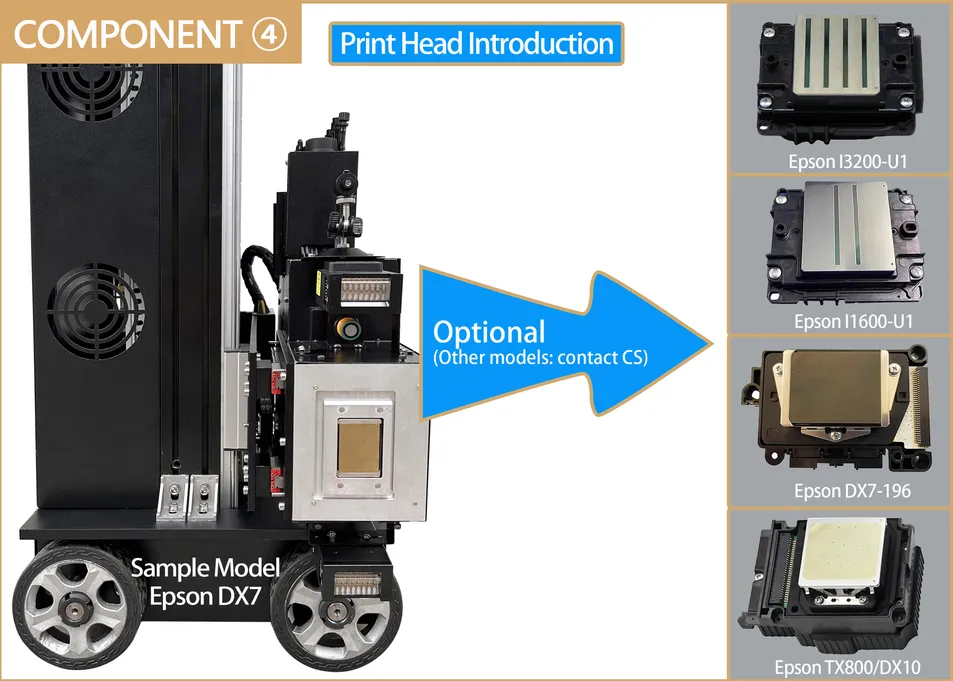

Printhead Model	DX10	DX7	I1600-U1
Number of Printheads	1	1	2
Printing Speed	3-8 m²/h	4-10 m²/h	5-15 m²/h

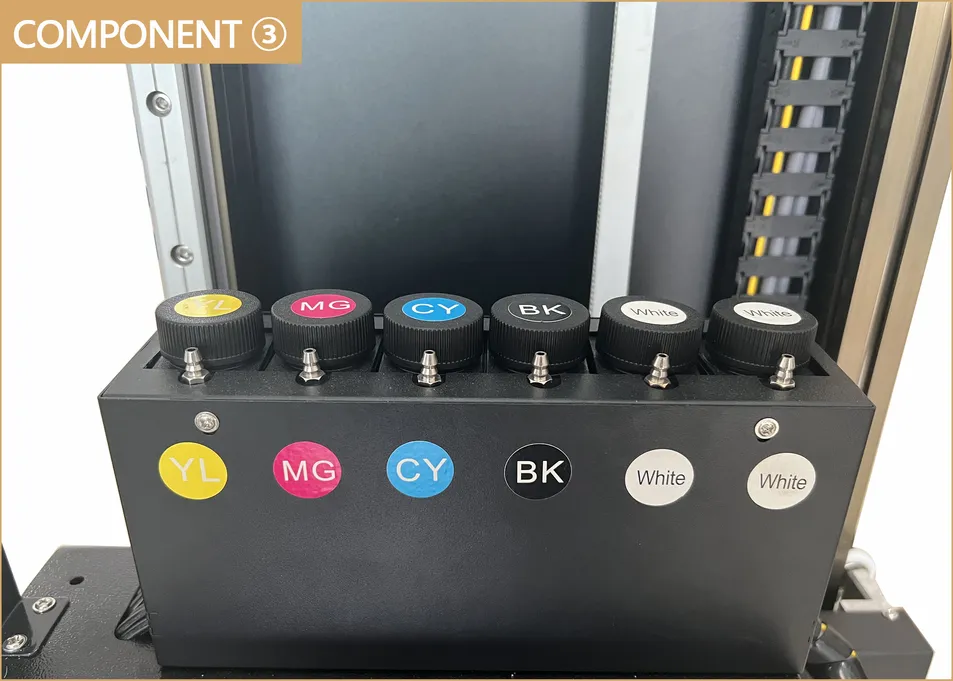

Ink System	UV CMYKW	UV CMYKW	UV CMYKW
Laptop Spec	8G/256GB	Touch 16G/512GB	Touch 16G/1TB
White Ink Support	Yes	Yes	Yes
Resolution	Up to 1440x2880dpi

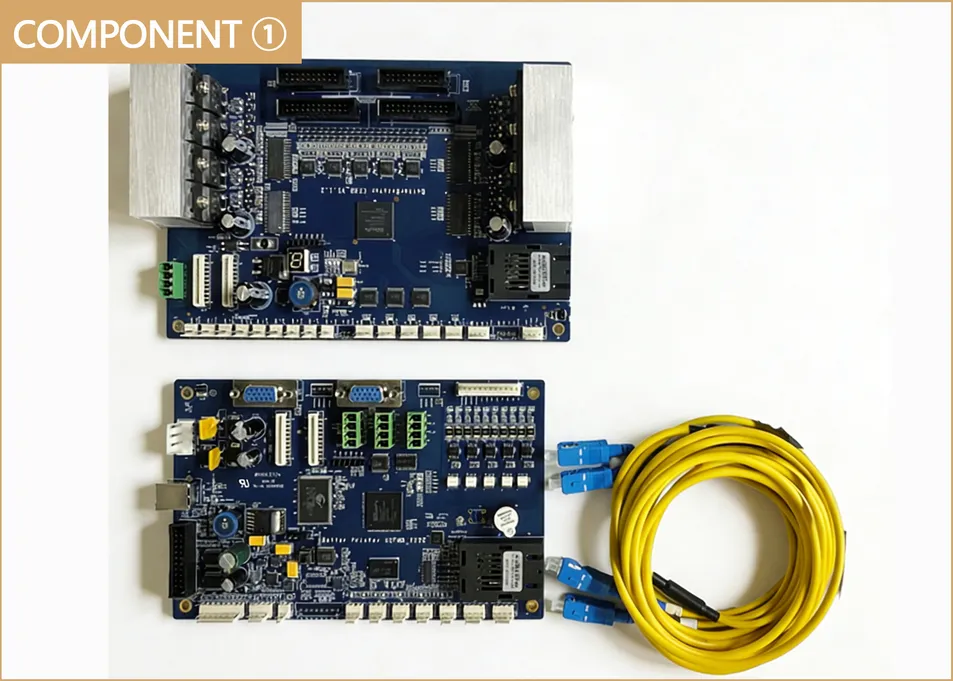

Key Components

Advanced Functions

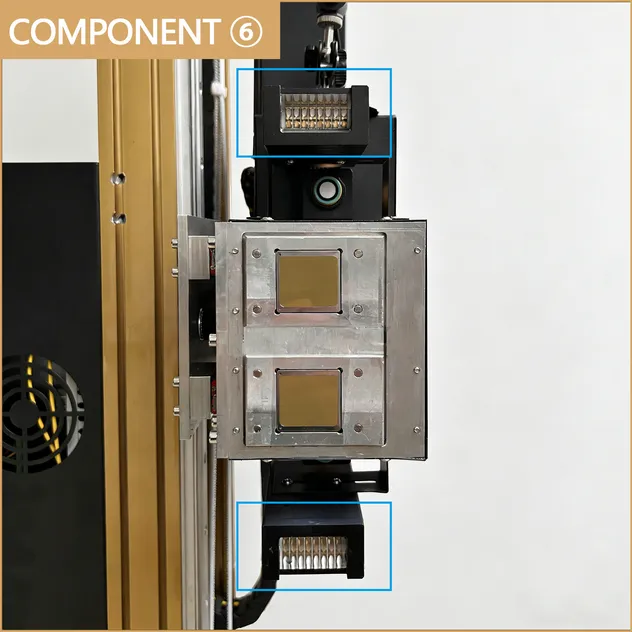

Bi-directional UV Curing

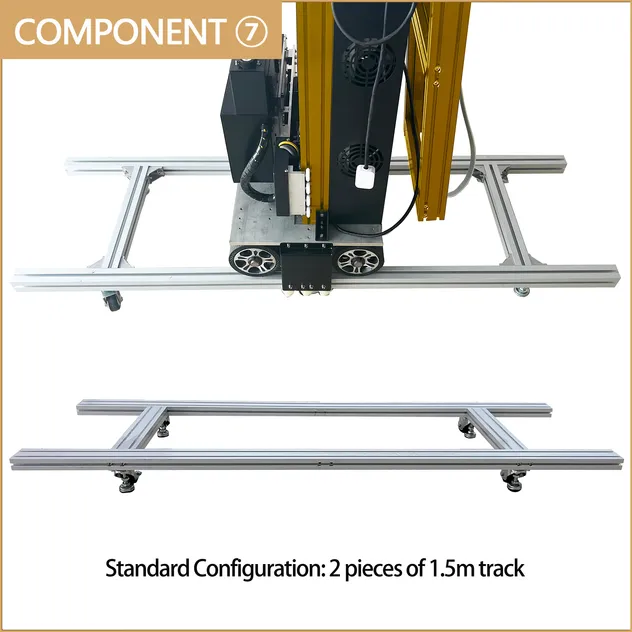

Additional Mobile Rail

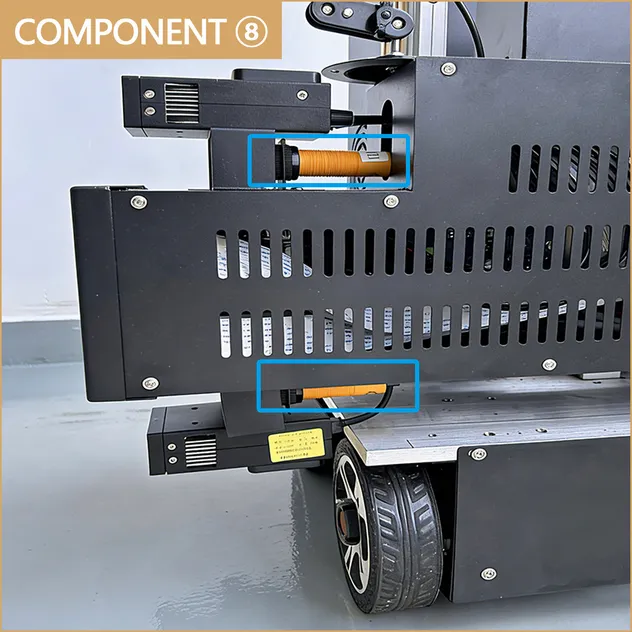

Bi-directional Detector

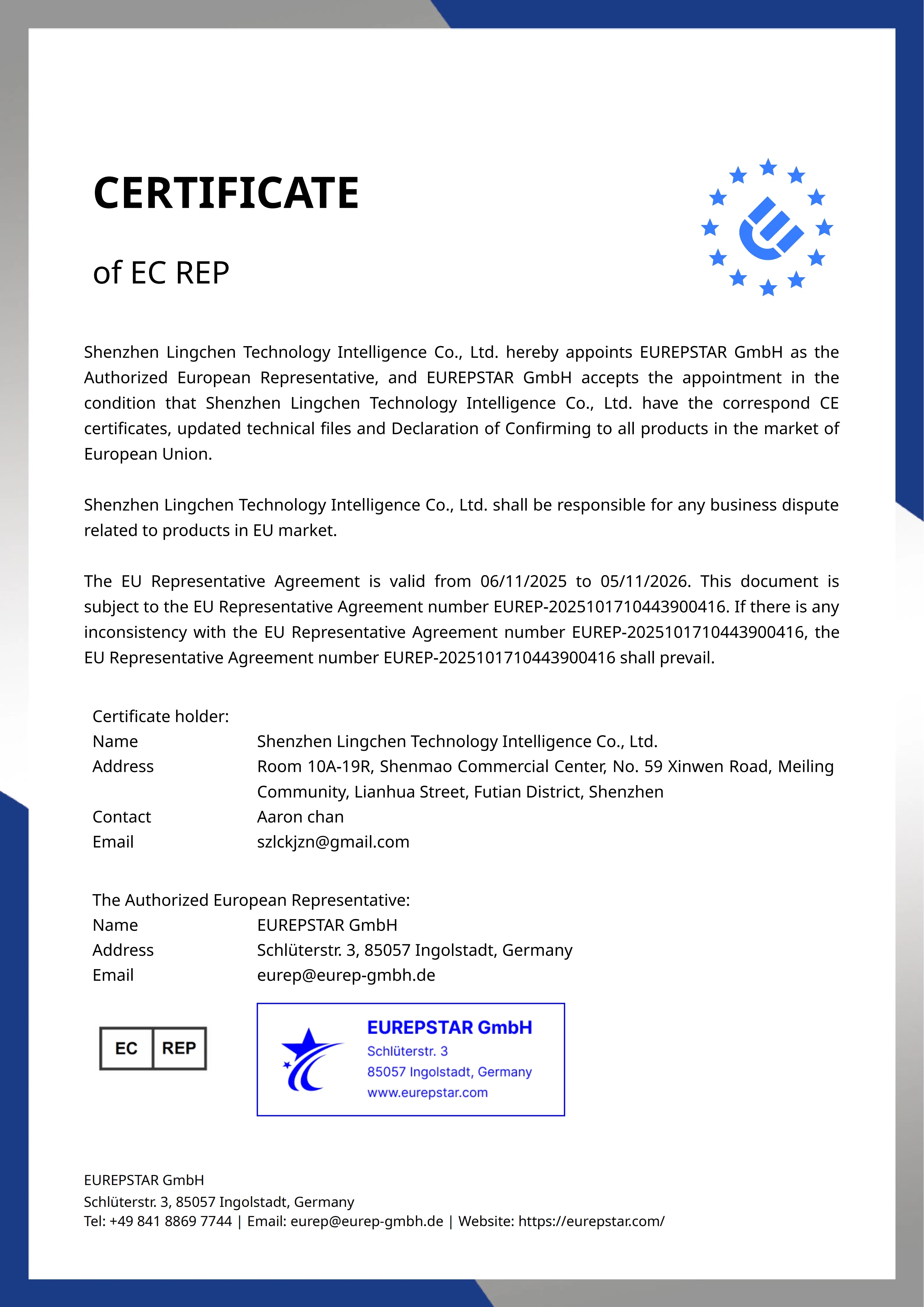

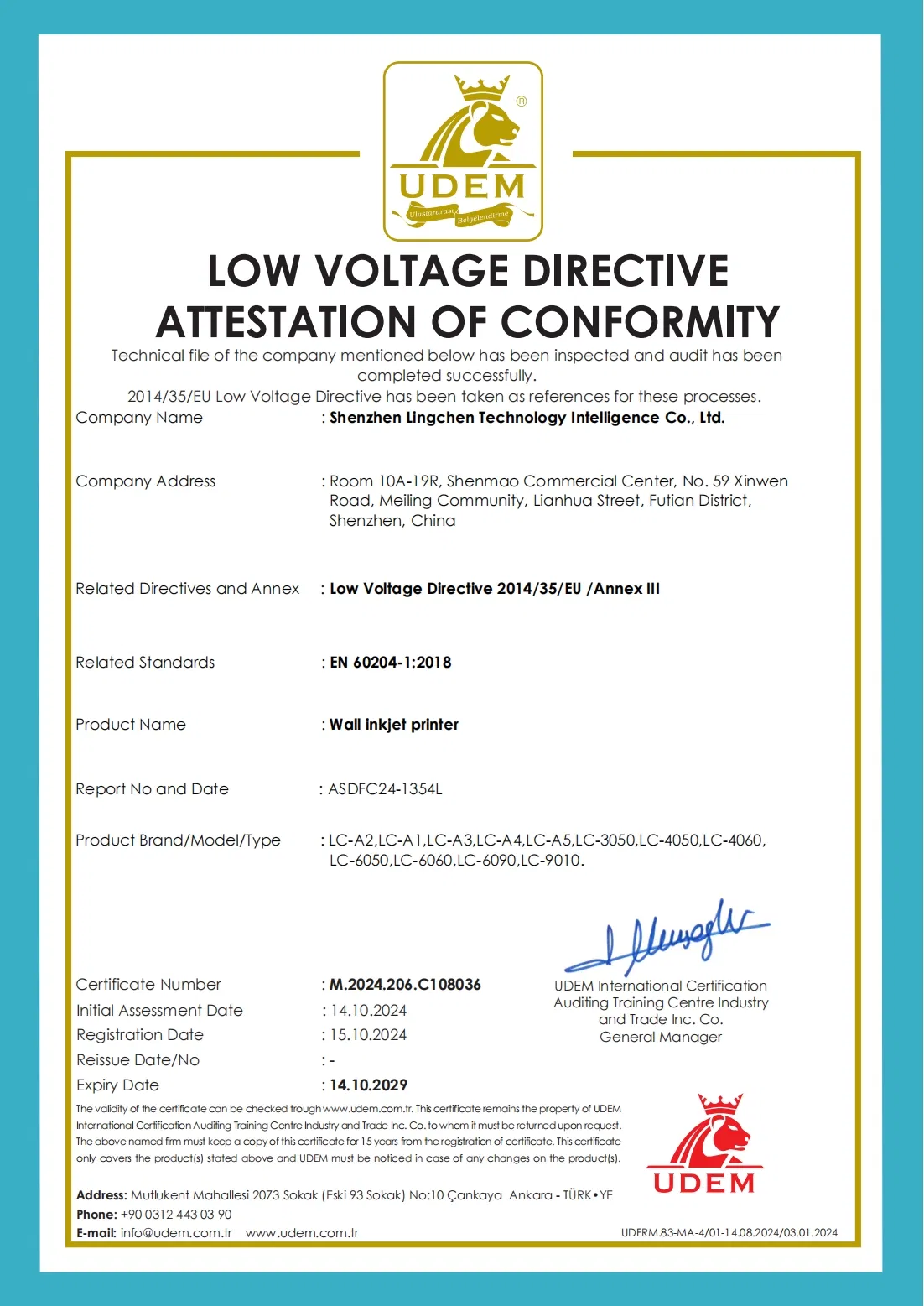

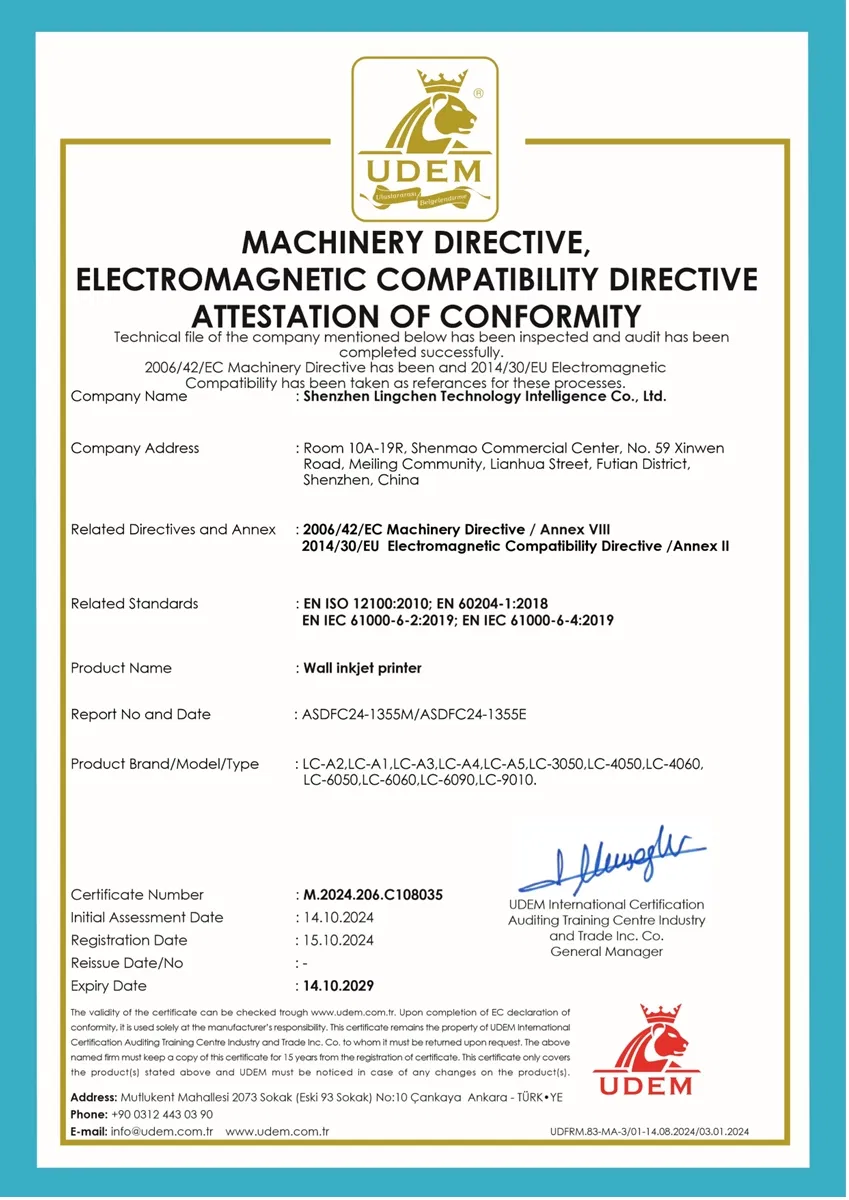

Certifications

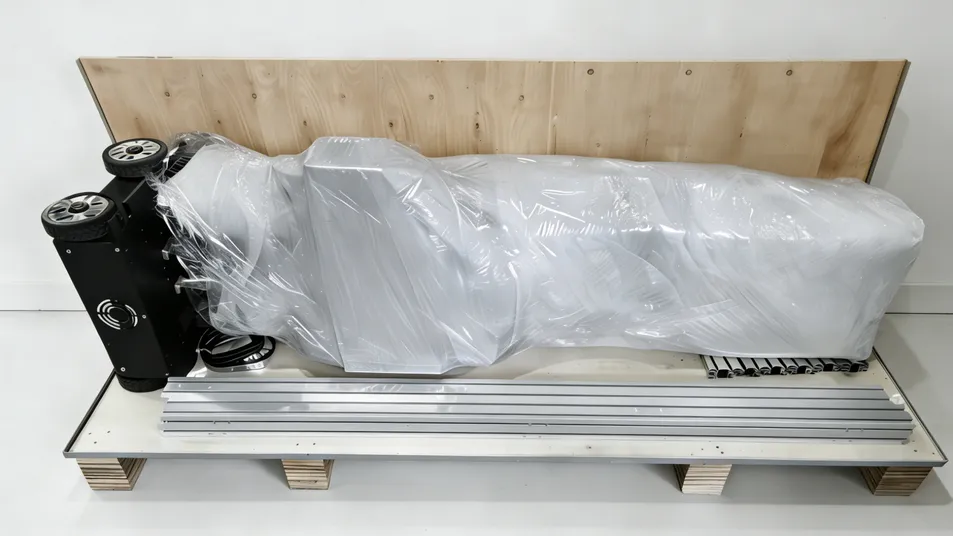

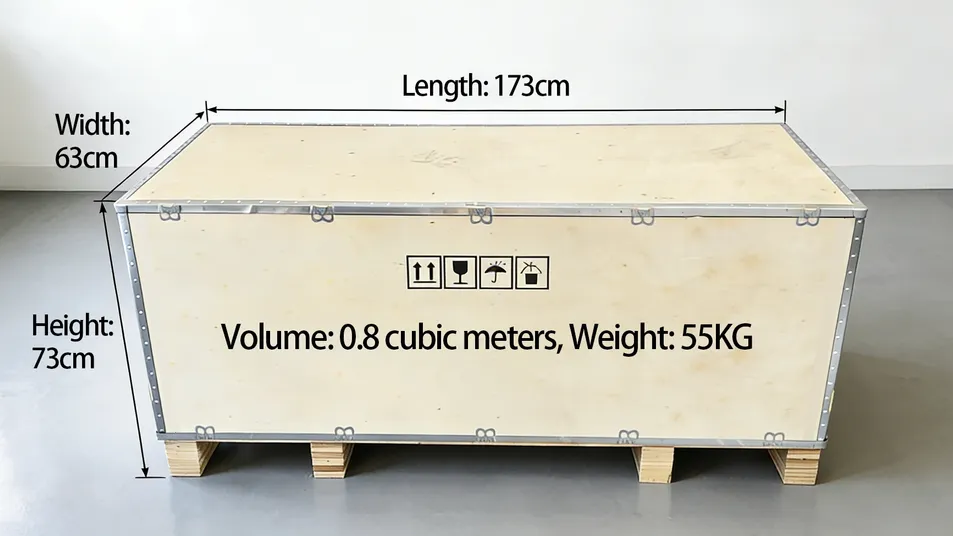

Packaging & Protection

The equipment is packaged in high-strength reinforced wooden cases. Precision components like the printhead and motherboard use multi-layer shock absorption and customized fixing. Export-grade packaging ensures the machine arrives intact.

Frequently Asked Questions

What materials can the printer work on?

It is compatible with most indoor and outdoor surfaces including cement walls, latex paint walls, wallpapers, tiles, glass, wood boards, and metal. Smooth surfaces can be printed directly, while oily walls may need degreasing.

What is the printing precision and color quality?

The physical resolution reaches up to 1440dpi. Using CMYK + White ink, it supports a full color gamut with a color reproduction rate of ≥ 95%, accurately matching your digital design files.

How does the machine handle uneven walls?

The machine features a built-in radar detection system that identifies irregularities within 1-20cm. It automatically adjusts the printhead distance in real-time (0.1mm precision) to prevent collisions and ensure a consistent print.

Is the operation difficult for beginners?

No, it features a visual touch control system and a 3-step core process. Most users can learn to operate the machine within 1-2 hours of training. We also provide full video tutorials and manuals.

What are the costs for ink and consumables?

Consumable costs are approximately $0.40 - $0.60 per square meter depending on color density. The UV ink is environmentally friendly (CE/RoHS certified), non-toxic, and odorless.

What is the warranty and after-sales policy?

We offer a comprehensive warranty for the main unit (excluding consumables like ink and printheads). We provide 24/7 online technical support and fast delivery of spare parts if needed.
