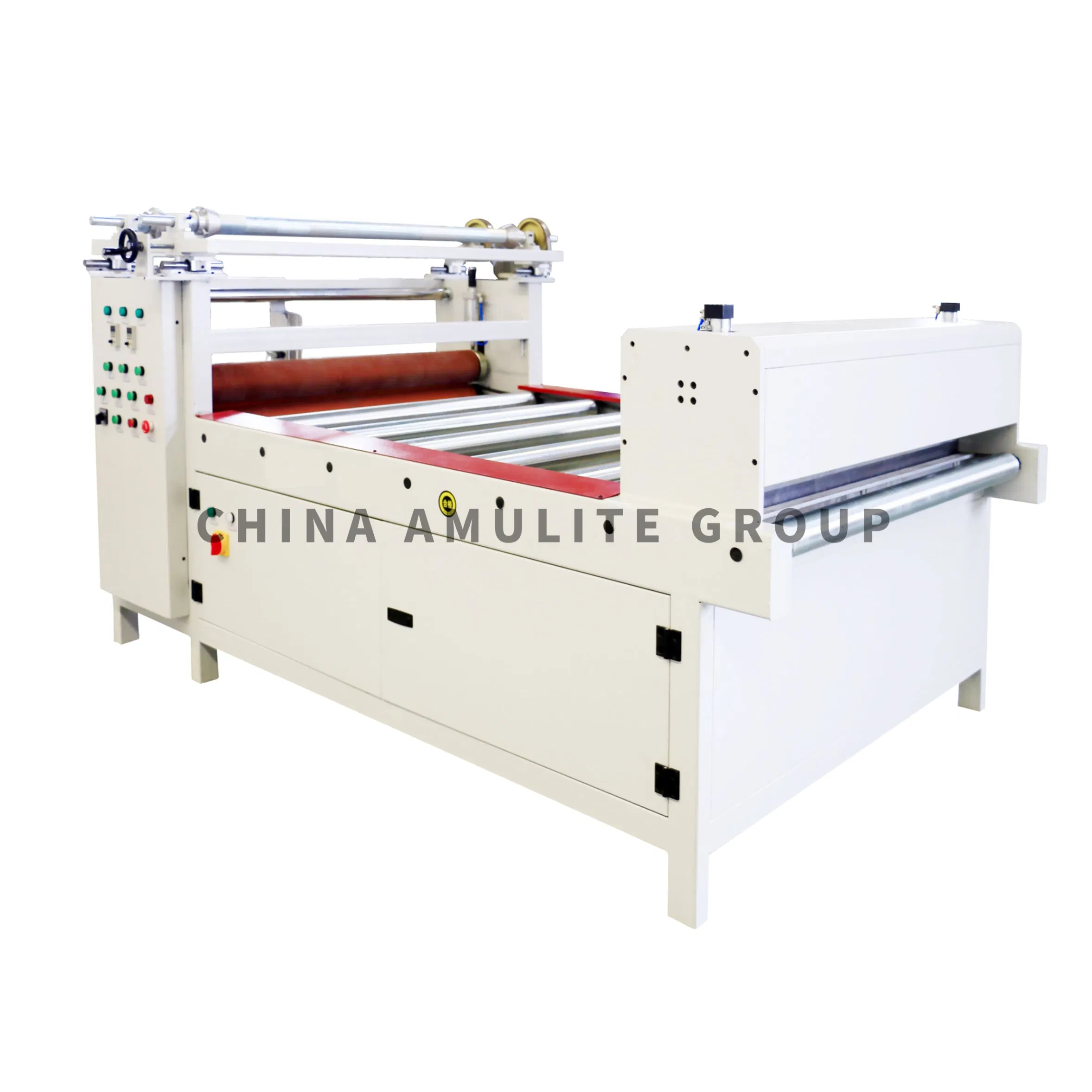

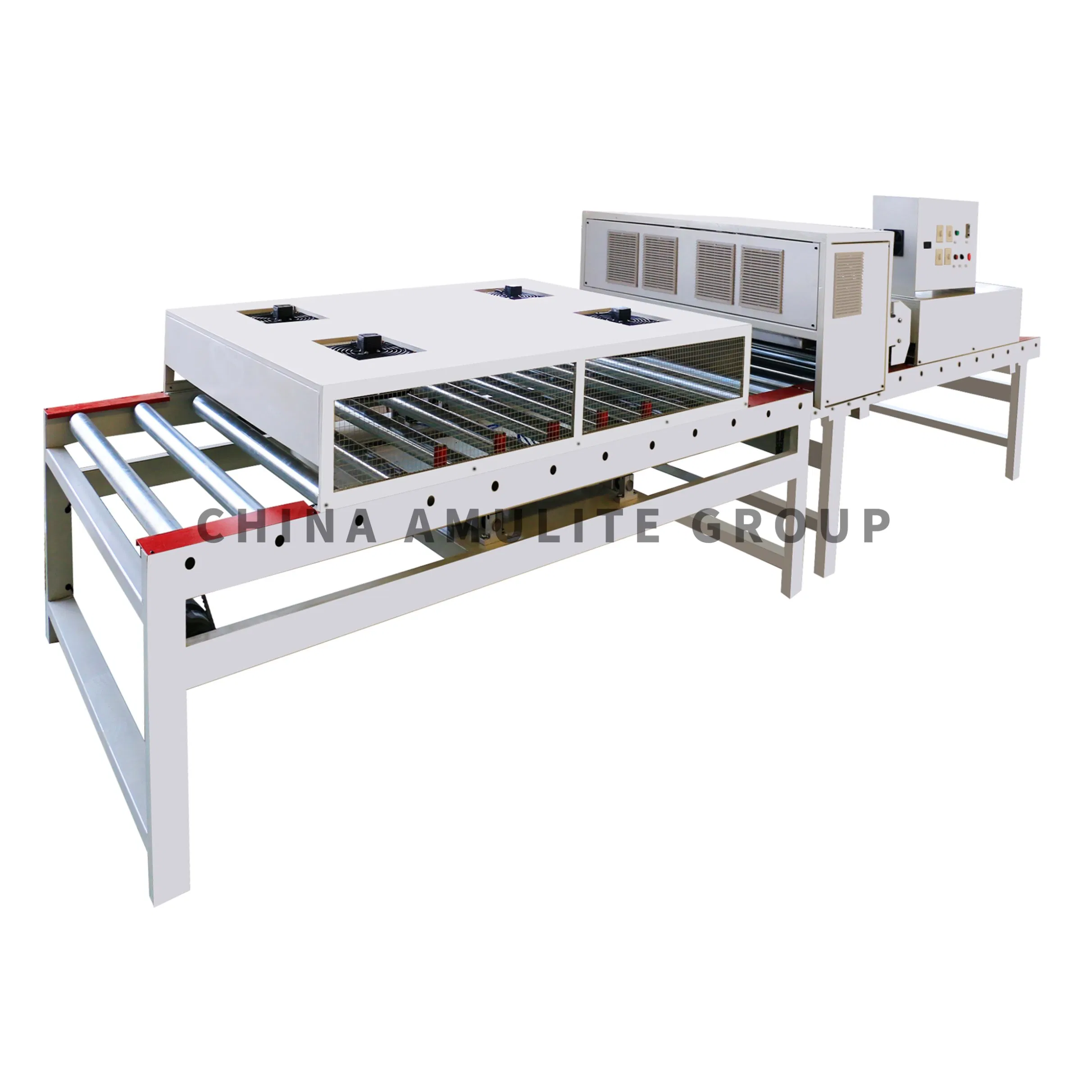

UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
1 / 5
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface
UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface

UV Spray Coating Equipment for Calcium Silicate Board Fluorocarbon & Stone Effect Surface

Customization: Available
Coating Material: Acrylic, Polyester, Polyurethane
Coating Type: Liquid Coating, Powder Coating, UV Coating
Send Inquiry

Product Description

Basic Information
Industry Application
Furniture, Building Materials
Application Method
Roller Coating, Spray Coating, Printing
Product Name
UV Painting/Coating Fiber Cement Board Production
Application
Fiber Cement Board Painting Deep Process
Capacity / Year
1,000,000 to 1,500,000 Square Meters
Power(W)
230kw
Voltage
380 V
Weight
60000 Kg
Core Components
PLC, Engine, Bearing, Gearbox, Motor
Origin
China
UV Spray Coating Equipment
Product Description

UV Painting/Coating Fiber Cement Board Production Line

Technical Specifications:

  • Effective Working Width: Standard 1300mm (Customizable from 300mm)
  • Effective Processing Thickness: 2-80mm
  • Annual Production Capacity: 1,000,000 to 1,500,000 Square Meters
  • Conveyor Height: 800-850mm (Adjustable)
  • Power Supply: 380V, 50Hz-60Hz
  • Function: Coating Exterior Panels Manufacturing

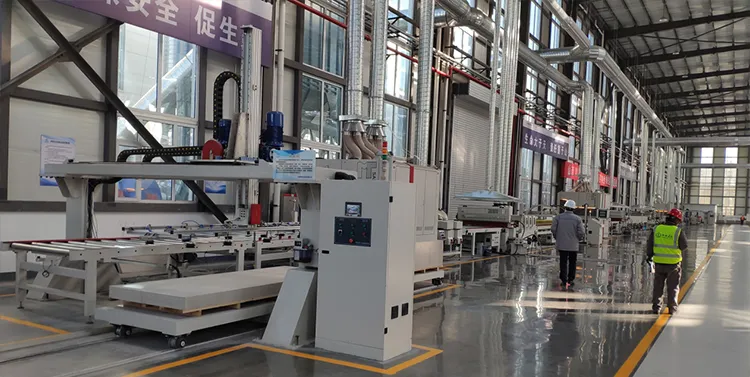

Production Line View 1

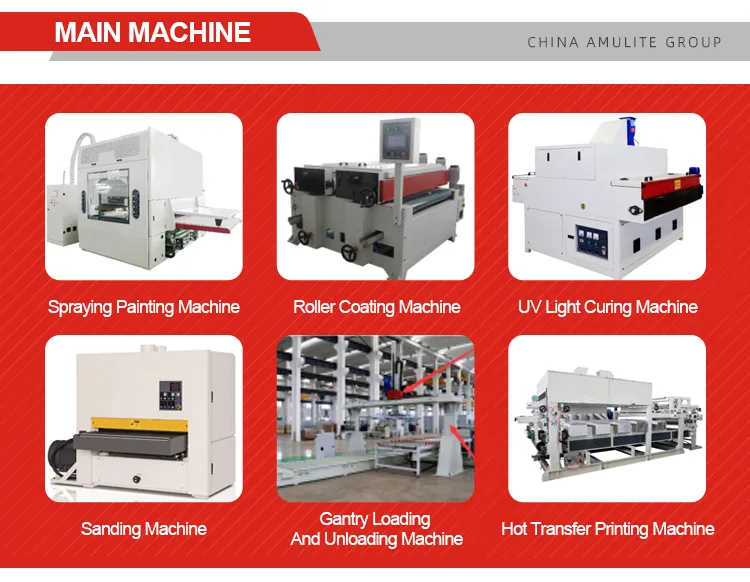

Production Line View 2
Equipment Features & Advantages
  • Versatile Coating Compatibility: Suitable for Fluorocarbon coatings, Water-based paints, UV coatings, PU, and NC paints.
  • Sustainability: Integrated paint tank recycling system to minimize waste.
  • Automated Precision: Fully automated computer control system ensuring high-efficiency and precise spraying.
  • Multi-Angle Operation: High-speed spray guns with flexible multi-angle rotation, simulating manual spraying for perfect uniformity.
  • Advanced Drive System: Servo motor controlled mechanisms ensure accurate positioning and consistent product quality.

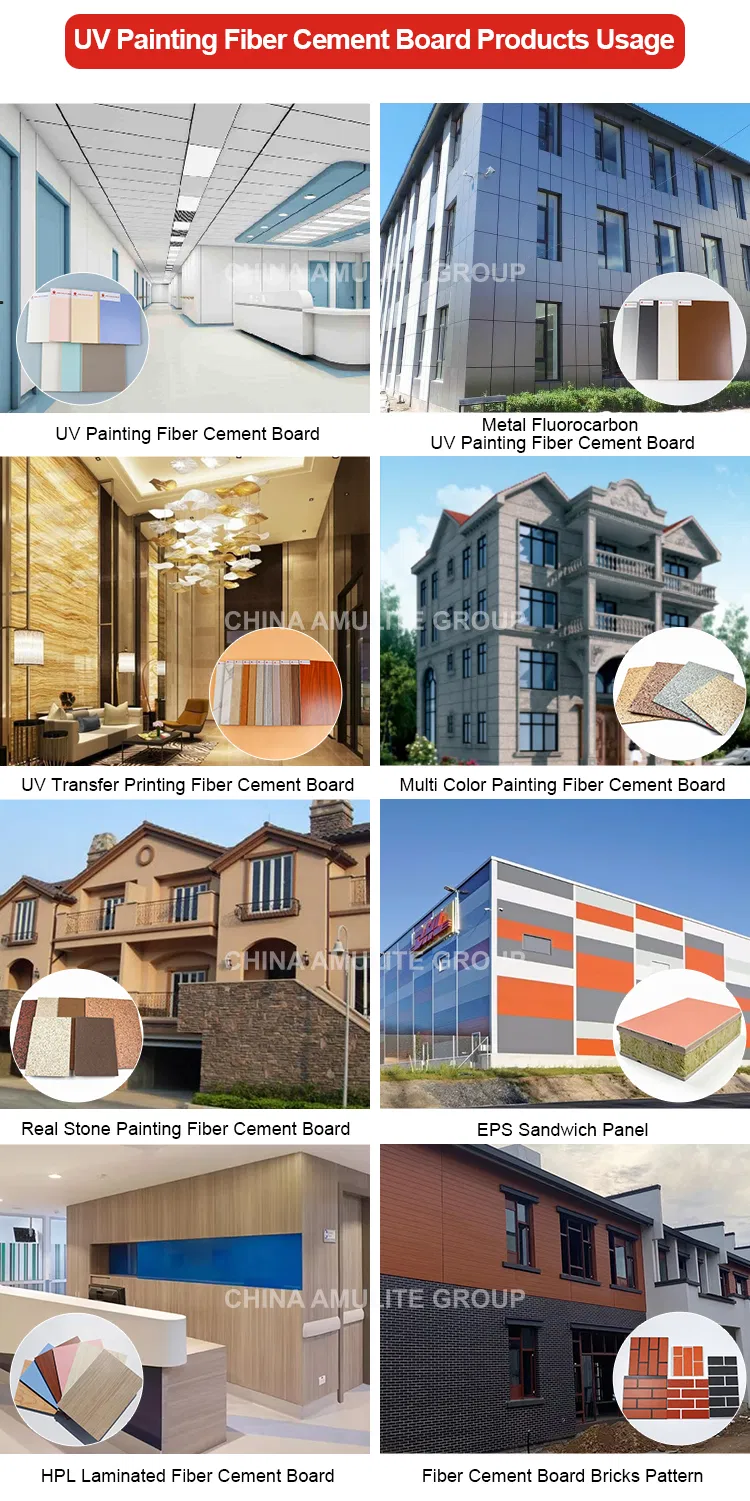

Application Area Description
Building FacadesUsed for building exteriors with weather and UV protection.
Interior DecorationApplied on walls and ceilings for wear and water resistance.
Exterior Curtain WallEnhances UV resistance and durability for curtain walls.
FurnitureUsed for tabletops and cabinets, durable and easy to clean.
Public FacilitiesApplied in stations, airports, and malls for durability and aesthetics.
Special EnvironmentsProvides fire and moisture resistance in humid or hazardous areas.
Outdoor AdvertisingUsed for billboards and signs with long-lasting UV protection.
Equipment Detail 1
Equipment Detail 2
Equipment Detail 3

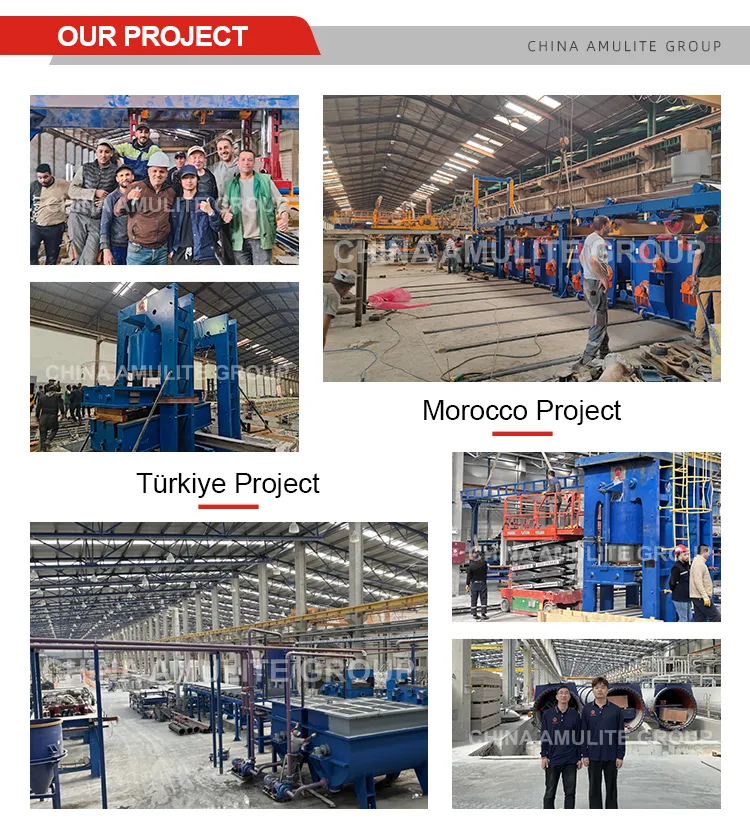

Processing View 1

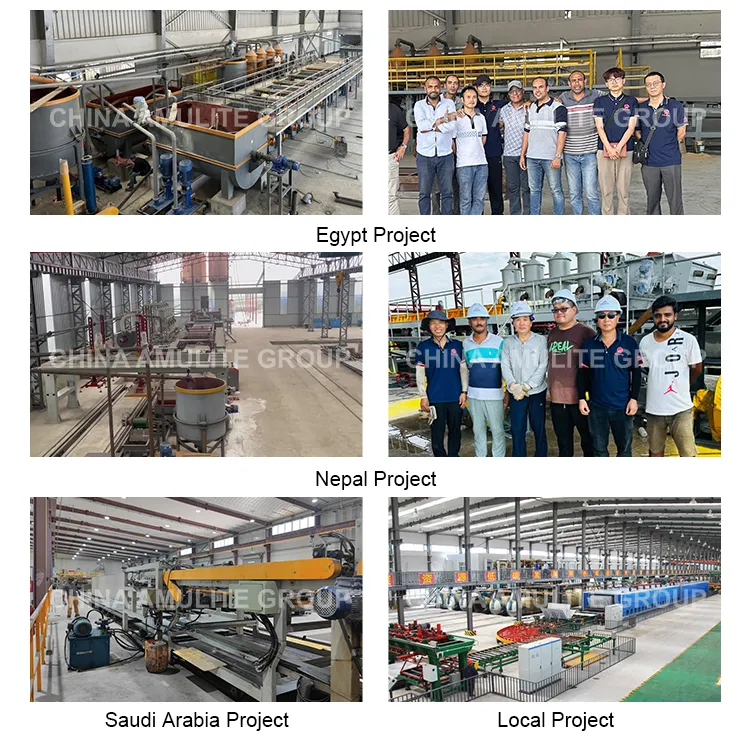

Processing View 2

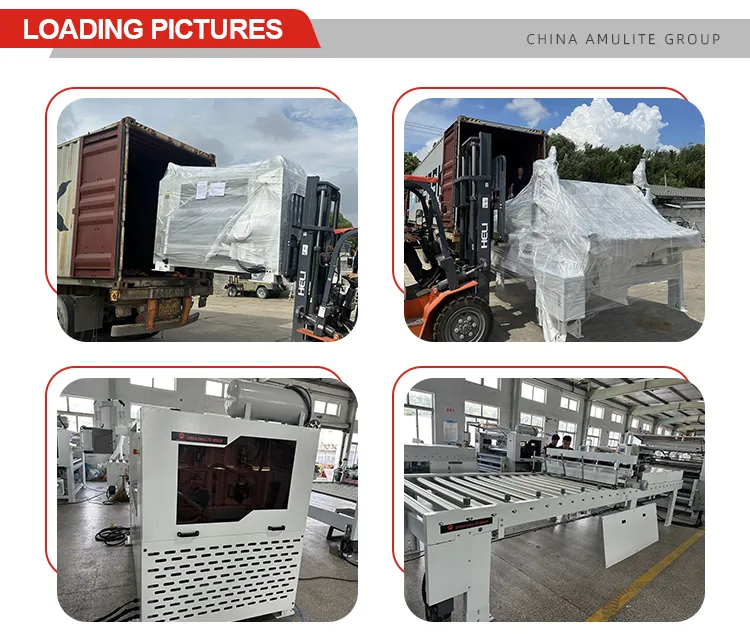

Processing View 3
Product Result 1
Production Line Banner
Frequently Asked Questions
What is the production capacity of this UV coating line?
The annual production capacity ranges from 1,000,000 to 1,500,000 square meters, depending on the specific board dimensions and coating requirements.
Can the equipment be customized for specific board sizes?
Yes, while the standard effective working width is 1300mm, the equipment can be customized to accommodate widths from 300mm up to maximum project requirements.
What types of paints are compatible with this system?
The system is designed for high versatility and supports various coatings including UV coatings, fluorocarbon coatings, water-based paints, PU paints, and NC paints.
How is the quality of the product guaranteed?
We implement strict quality control checks at every stage of the manufacturing process. All equipment undergoes rigorous testing and complies with international industry standards.
Do you provide installation and commissioning services?
Yes, we provide professional engineering teams for on-site installation and commissioning globally. The typical installation and commissioning phase takes approximately 90-120 days.
What is the typical lead time for equipment delivery?
The standard delivery time for a full production line is between 120 to 150 days from the date of order confirmation.
