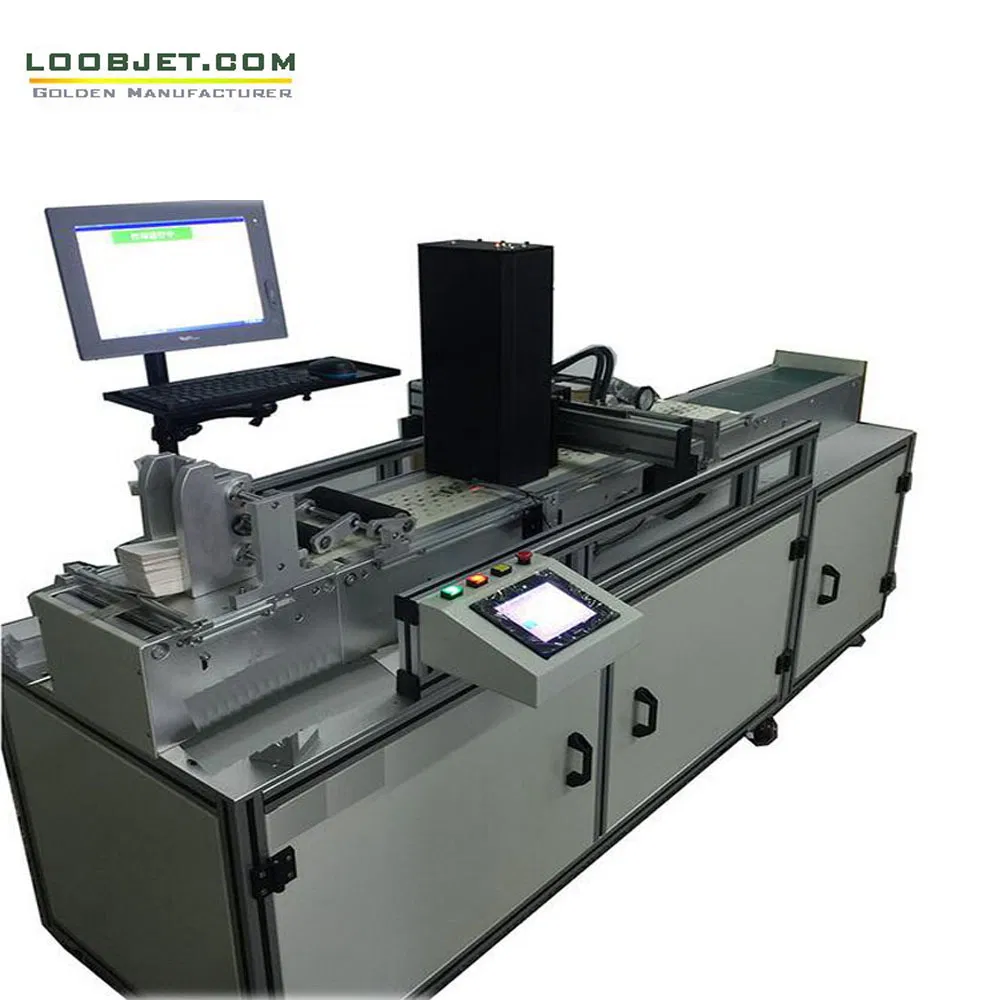

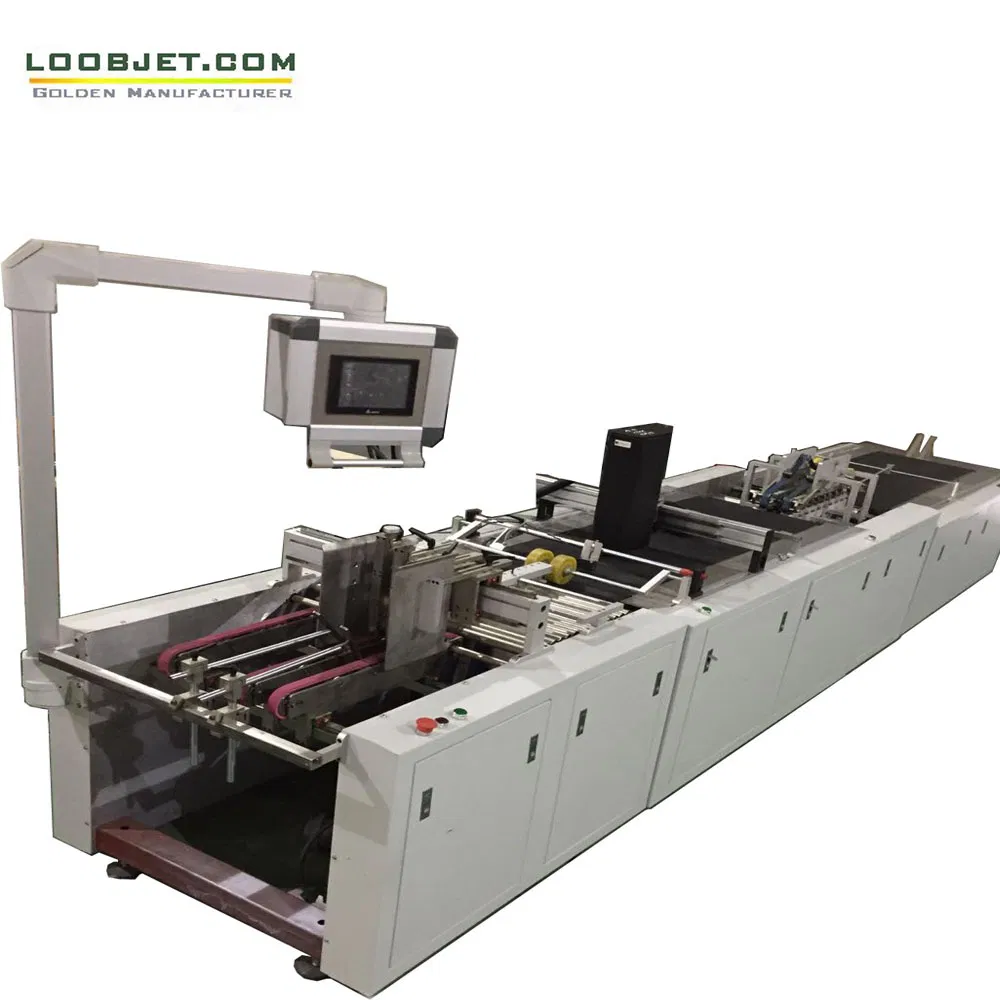

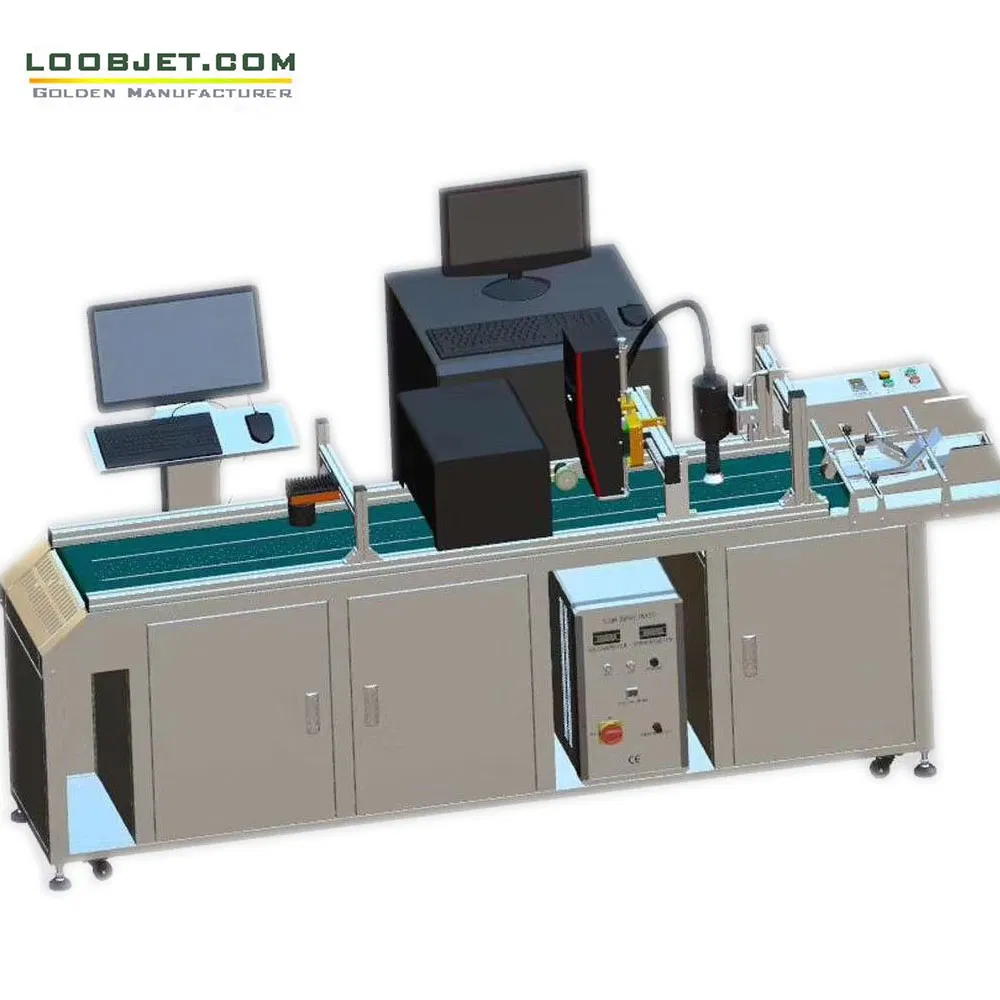

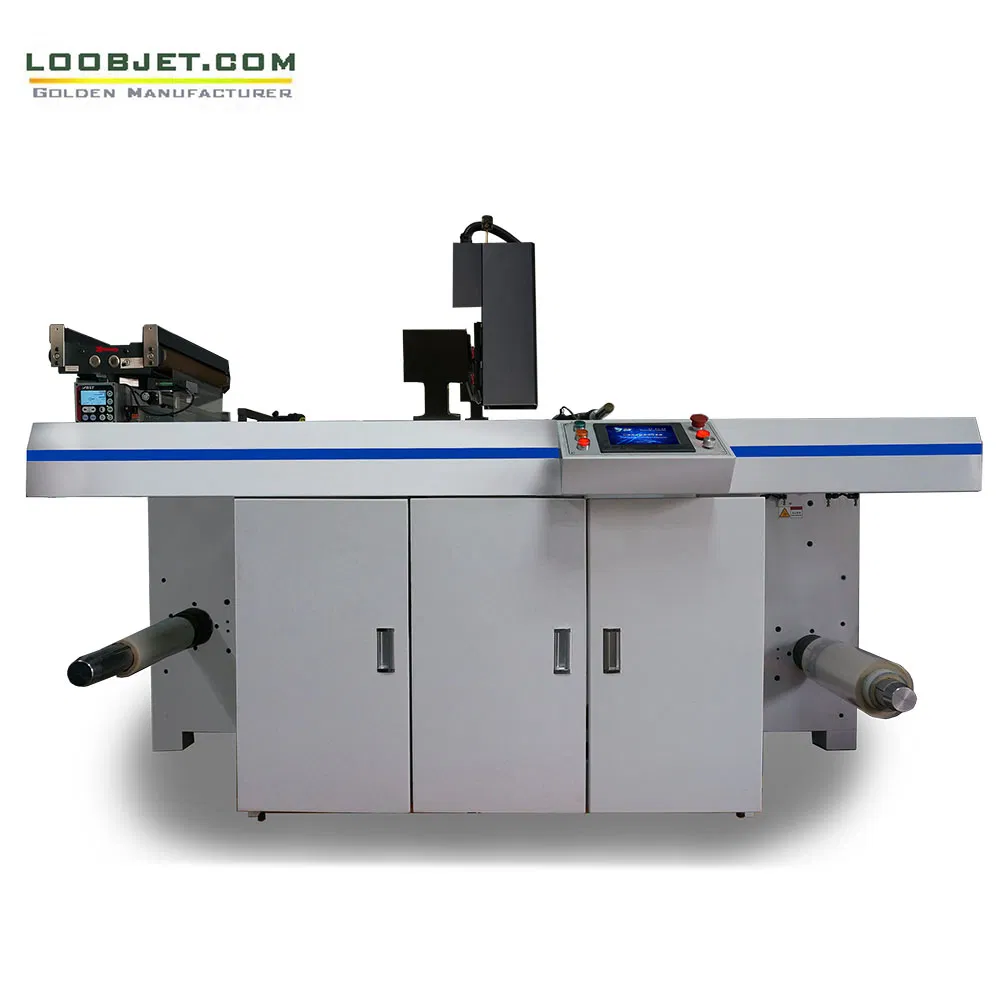

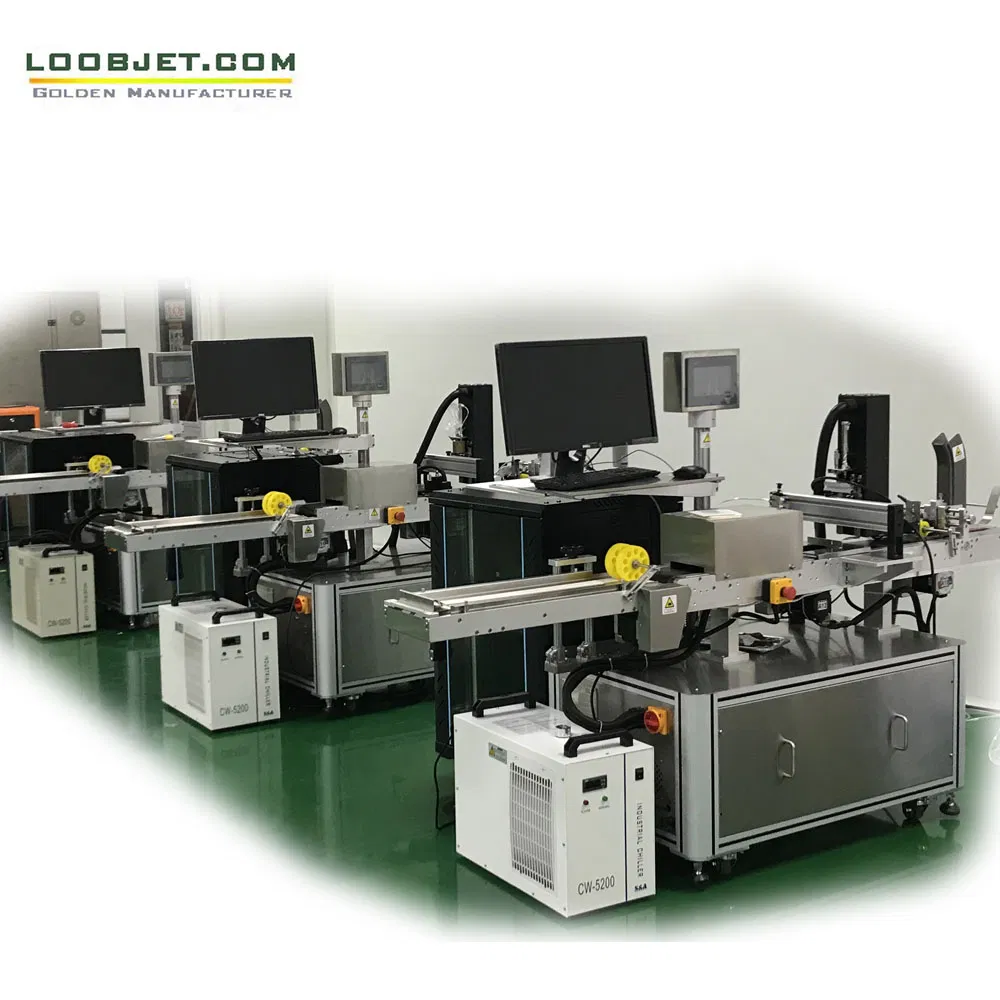

Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System
1 / 5
Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System
Cosmetic Packaging Variable Data Printing System

Cosmetic Packaging Variable Data Printing System

Customization: Available
Plate: Variable Data
Structure: Inkjet Printing
Send Inquiry

Product Description

Technical Specifications

Model NO.
UVJET
Color & Page
Single-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
Automatic Grade
Automatic
Printing Speed
100m/Min
Resolution
150-600dpi
Ink Solution
Porous, Semi-Porous and Non-Porous
System Supported
Windows

Product Description

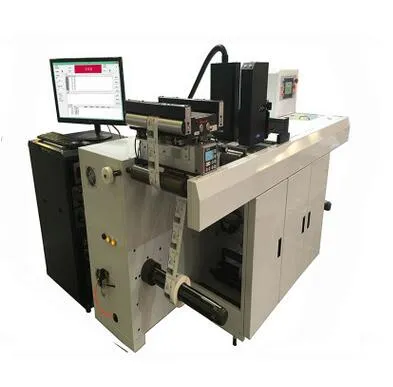

Clothing tag inkjet printing line

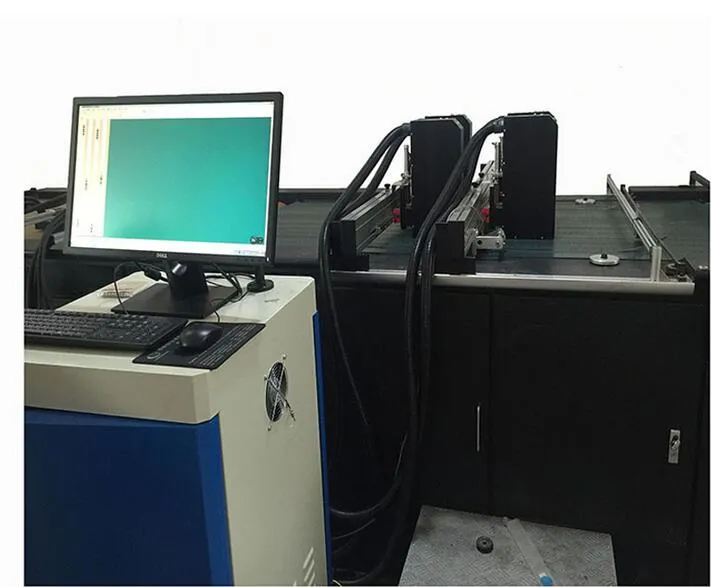

Inkjet Printing System Inkjet Printing System Details
◈
The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality.
◈
Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, packages, and marking.
◈
Modular design allows for easy integration into existing transport systems for web printing, sheet-fed, online, and offline targets.
Printing Capabilities

Hardware Specifications

✔ Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle
✔ Lifespan: More than 3 years (10 billion printing times)
✔ Print Width: 54 / 72 / 108 mm (Expandable to 24 groups)
✔ Linear Speed: 70 ~ 180 m/min
✔ Compatible Inks: Environmentally friendly UV or water-based inks
✔ Substrates: Paper, plastics, PVC, PP, PE film, and more

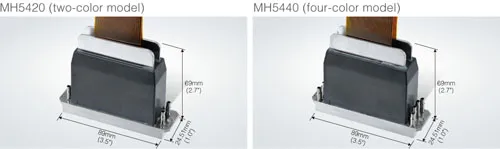

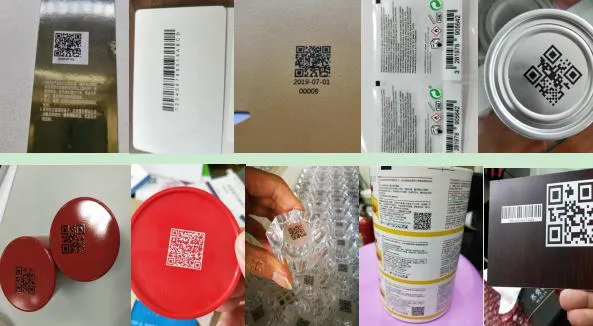

Print Head Details

Intelligent Control Software

The Printer Control Software (PCS) provides a user-friendly interface to control jetting waveforms, temperatures, and motor speeds. It includes features for database checking and DPI settings.

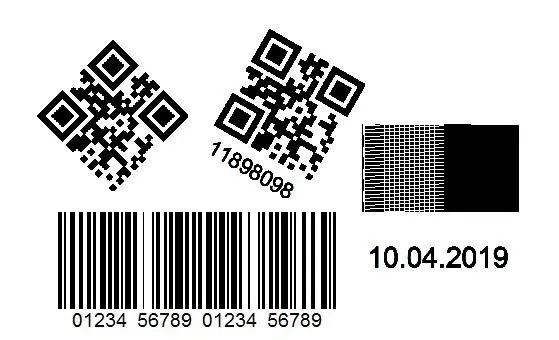

Variable Data Support:
  • Supports: Text, dates, times, logos, serial numbers, barcodes, and database photo images.
  • Data Source: Load .CSV, .XLS, .XLSX, .TXT, and PDF files.
  • Languages: English, Spanish, German, French, Portuguese, Russian, and Chinese.
Software Interface

Parameter Comparison

Print Head Ricoh GN5 / Konica 1024i / Kyocera Resolution 600×600, 400, 300, 200 dpi
Single Head Width 54.0mm / 72.0mm / 108mm Printing Speed Up to 180m/min (600×200dpi)
Max Width Seamless Joint (up to 24 heads) Method Piezoelectric Ink-jet
Drop Size 5-21 PL Inks Original SGS UV Inks
Bar Code Types UPC, EAN, CODE128, PDF417, QR, DATAMATRIX File Formats Excel, TXT, PDF, BMP

Frequently Asked Questions

1. Which materials can this inkjet system print on?
The system is highly versatile and suitable for various materials including all types of paper, plastics, PVC, PP, and PE films.
2. What is the expected lifespan of the print heads?
With industrial-grade piezoelectric nozzles like Ricoh or Kyocera, the normal lifespan exceeds 3 years or approximately 10 billion printing times.
3. Does the software support variable data printing?
Yes, it fully supports variable data including barcodes, serial numbers, dates, times, and dynamic database images from CSV, Excel, or PDF files.
4. What is the maximum speed and resolution available?
The system can reach speeds up to 180m/min at 600x200dpi, and supports high-precision printing up to 600x600dpi.
5. Can multiple print heads be combined for wider printing?
Yes, the modular design supports seamless jointing of 1 to 24 groups of print heads to achieve the required width.
6. What languages does the control software support?
The software supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.
