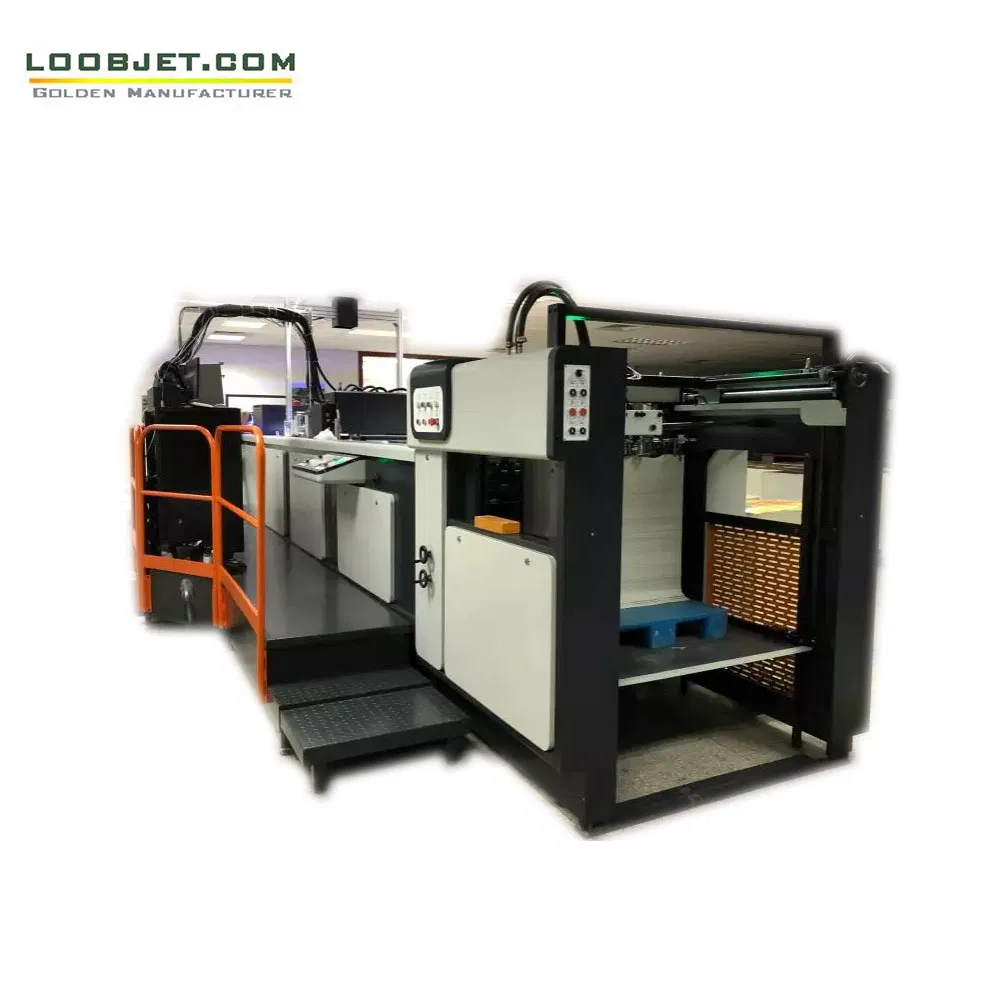

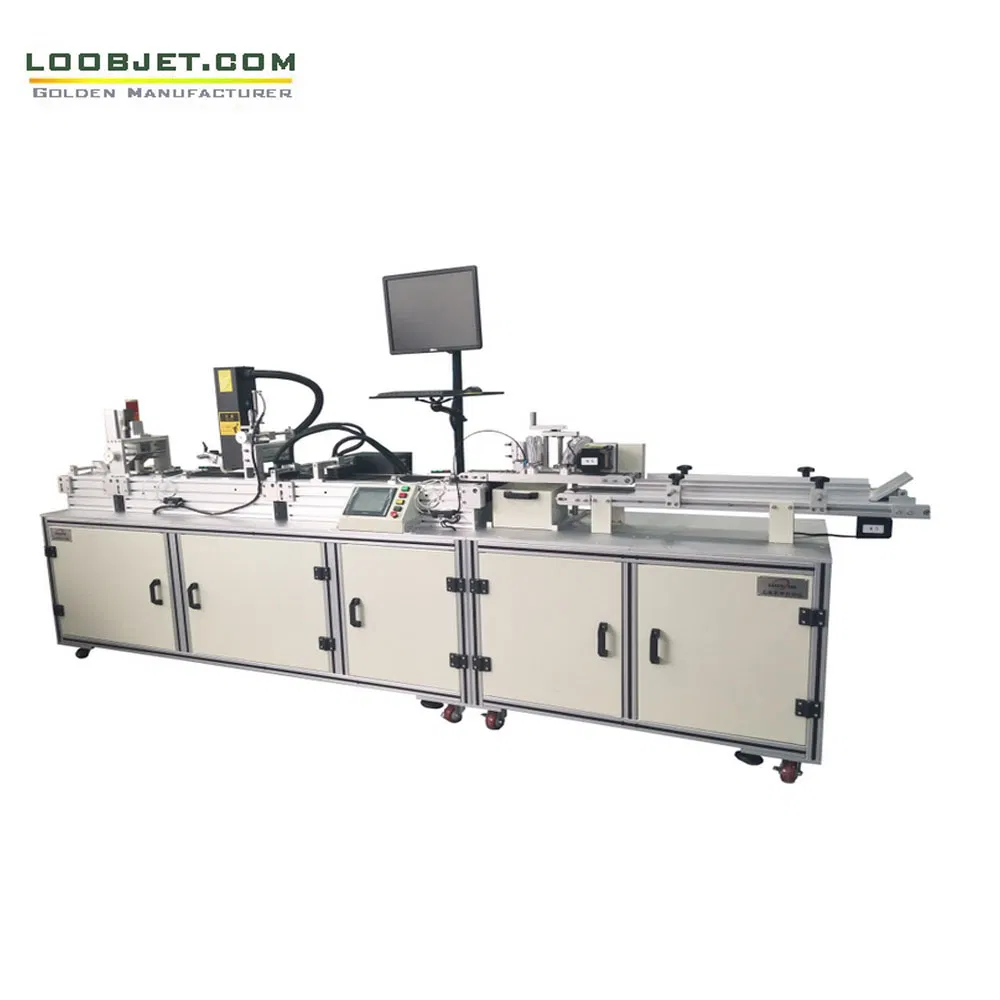

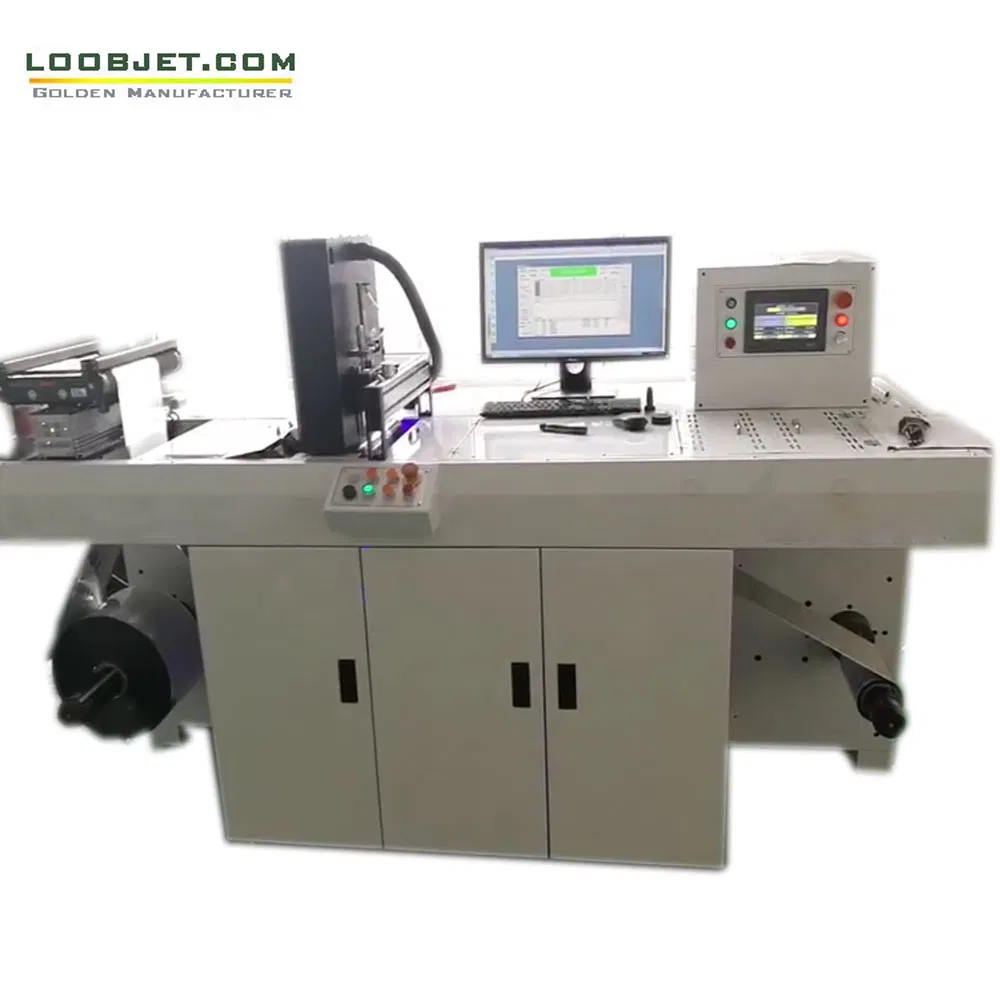

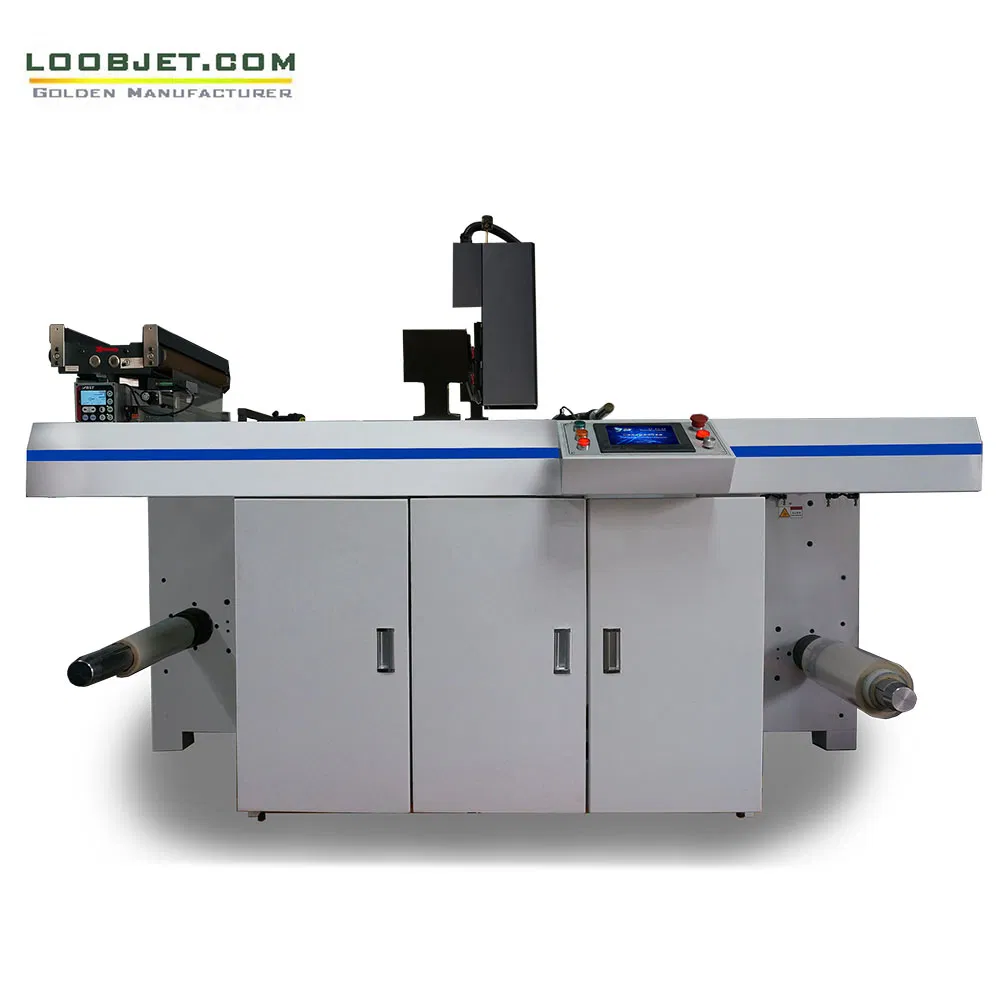

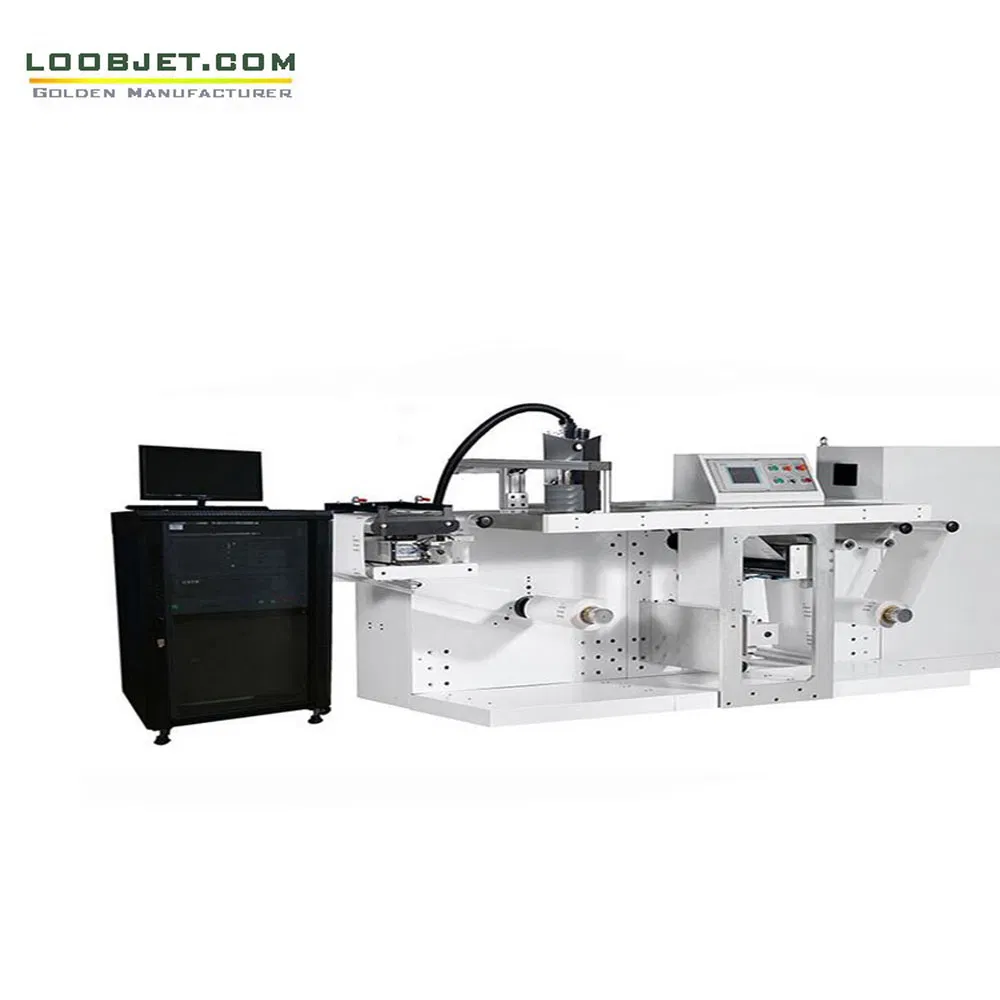

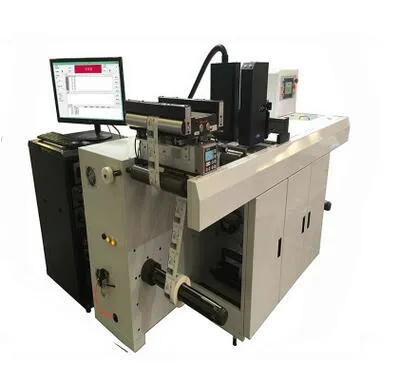

Packaging Codes Printing and Inspection System

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

Basic Specifications

Model NO.

UVJET

Color & Page

Single-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

RS232

Printing Speed

100m/Min

System Supported

Windows

Joint Type

Multi Print Head Seamless Joint

Ink Solution

Porous, Semi-Porous, Non-Porous

Resolution

150-600dpi

Power Supply

AC 90V-240V/50-60Hz

Production Capacity

500 Sets/Year

Product Description

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

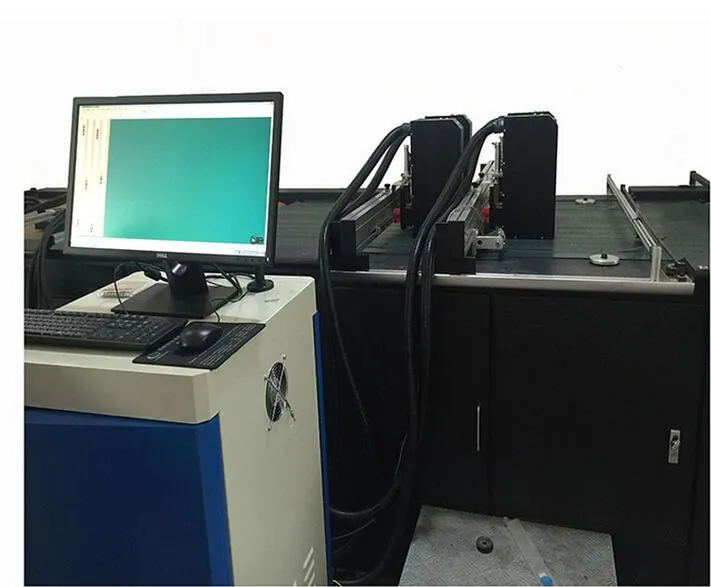

This fully integrated digital inkjet printing system is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems, creating more value-added opportunities.

Technical Details

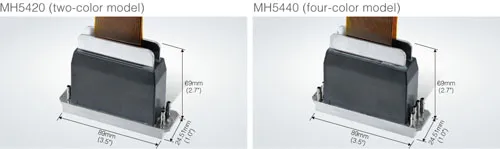

Nozzle Options: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
Durability: Normal nozzle life exceeds 3 years (10 billion printing times).
Print Width: Single nozzle options of 54mm, 72mm, or 108mm.
Scalability: 1 ~ 24 groups can be extended with seamless jointing.
High Speed: Linear speed ranges from 70 to 180 m/min.
Ink Versatility: Supports imported environmentally friendly UV or water-based inks.
Broad Material Support: Suitable for paper, plastics, PVC, PP, PE film, etc.

Control Software (PCS)

The Printer Control Software (PCS) offers a user-friendly interface to control the printer, monitor status, and configure options such as jetting waveforms and print head temperatures. Key features include database checking, data settings, DPI settings, motor speed control, and print head management.

Variable Data Support: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and Windows fonts. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.

Technical Parameters

Model	VDG540/VDK720/KY108	Print Head	Ricoh GEN5/Konica 1024i/KY
Resolution	600×600, 400, 300, 200 dpi	Drop Size	5-21 PL
Printing Speed	Up to 180m/min (600×200dpi)	Max Width	Up to 24 Seamless Joints
Inks	Original SGS UV Inks	System	Windows 7 / Windows 10
Barcodes	QR, DATAMATRIX, CODE128, PDF417, etc.	File Formats	MS Excel, TXT, PDF, BMP

Frequently Asked Questions

What is the maximum printing speed of the system?

The system can reach a maximum linear speed of 180m/min at 600×200dpi resolution, or 75m/min at high-quality 600×600dpi resolution.

Which materials can be printed on?

The UVJET system is versatile and supports a wide range of materials including various papers, plastics, PVC, PP, and PE films.

What types of print heads are compatible?

Users can choose from high-performance industrial piezoelectric nozzles including Ricoh GEN5 (54mm), Kyocera (108mm), and Konica 1024i (72mm).

Does the software support variable data printing?

Yes, the Variable Data Printing Software supports text, serial numbers, barcodes, QR codes, and database photo images with multi-language support.

How long do the print nozzles usually last?

Under normal operating conditions, the industrial piezoelectric nozzles have a lifespan of more than 3 years, capable of over 10 billion printing cycles.

Is technical support and training included?

Yes, we provide strong technical support and free training to ensure users can operate and maintain the inkjet system effectively.
