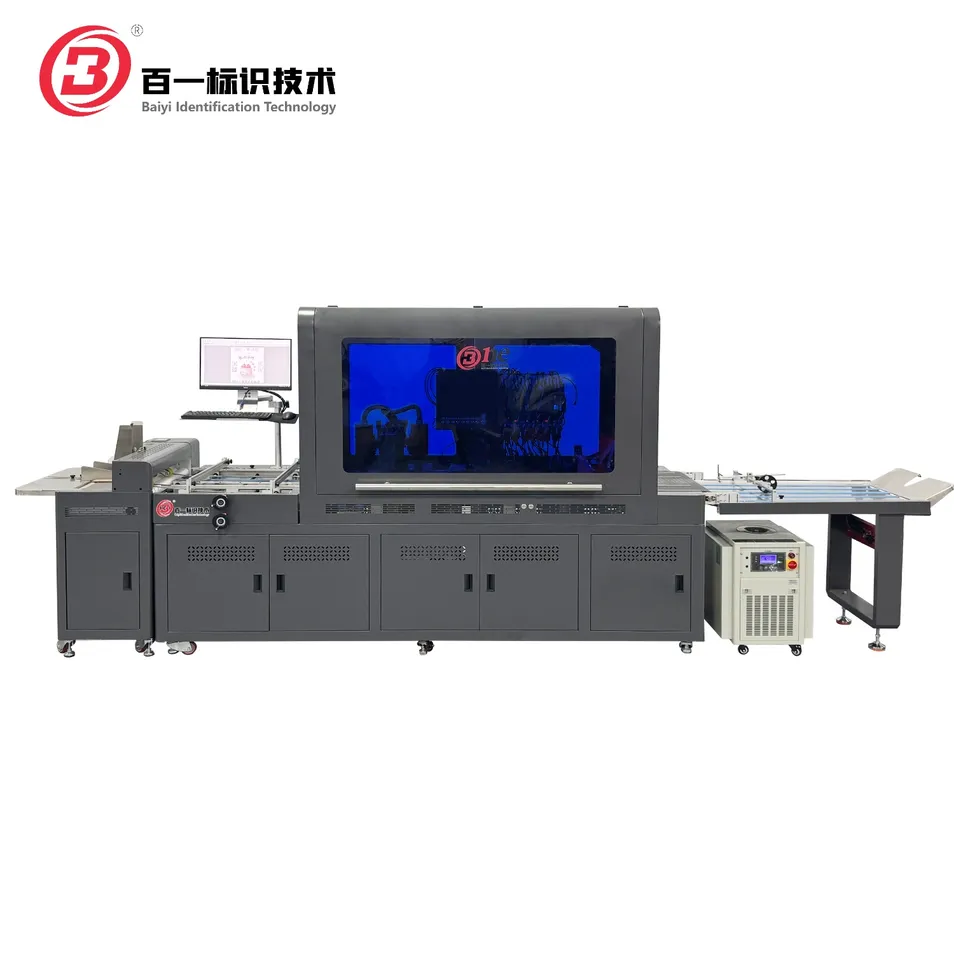

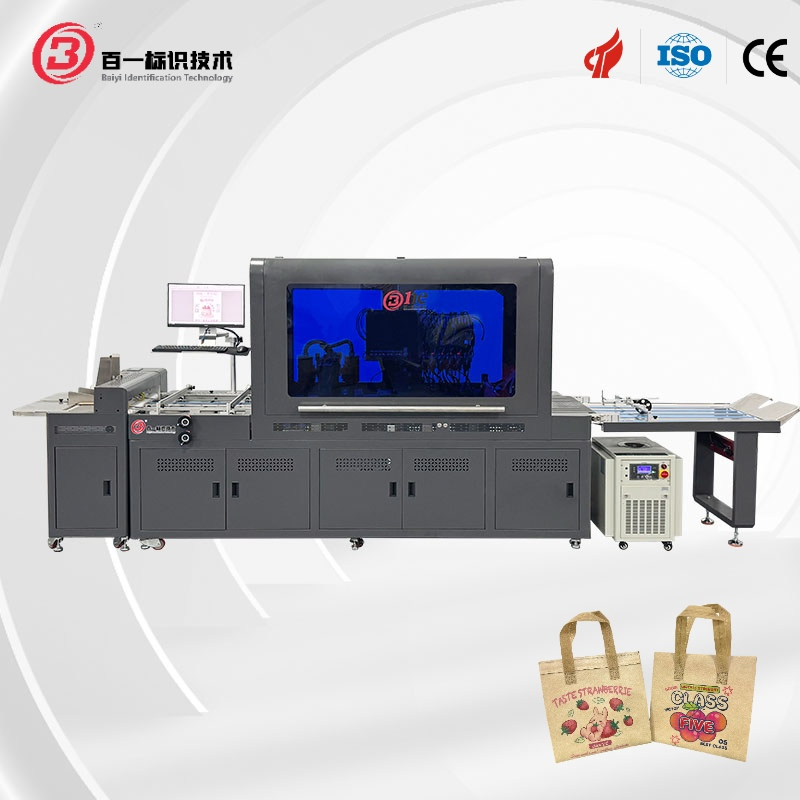

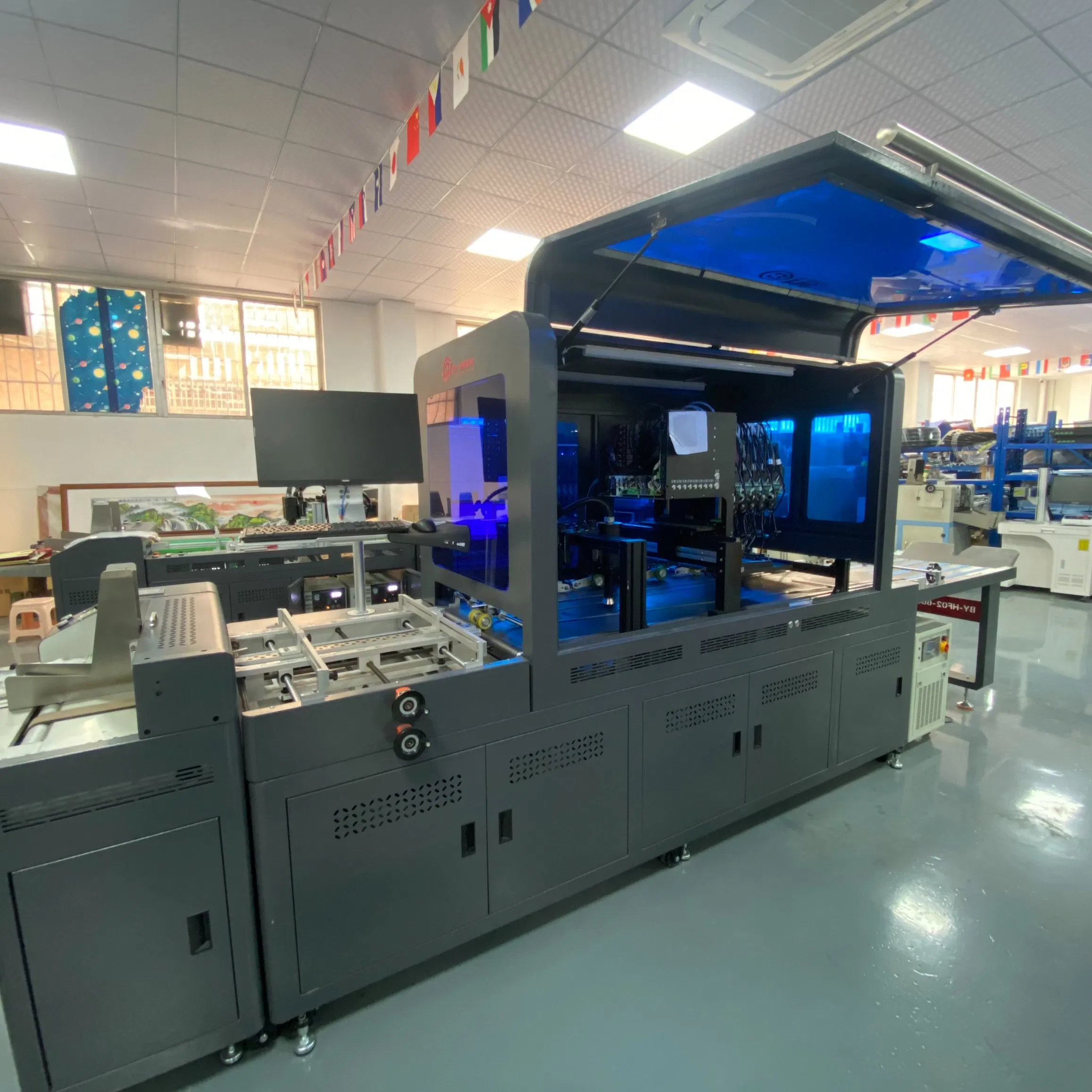

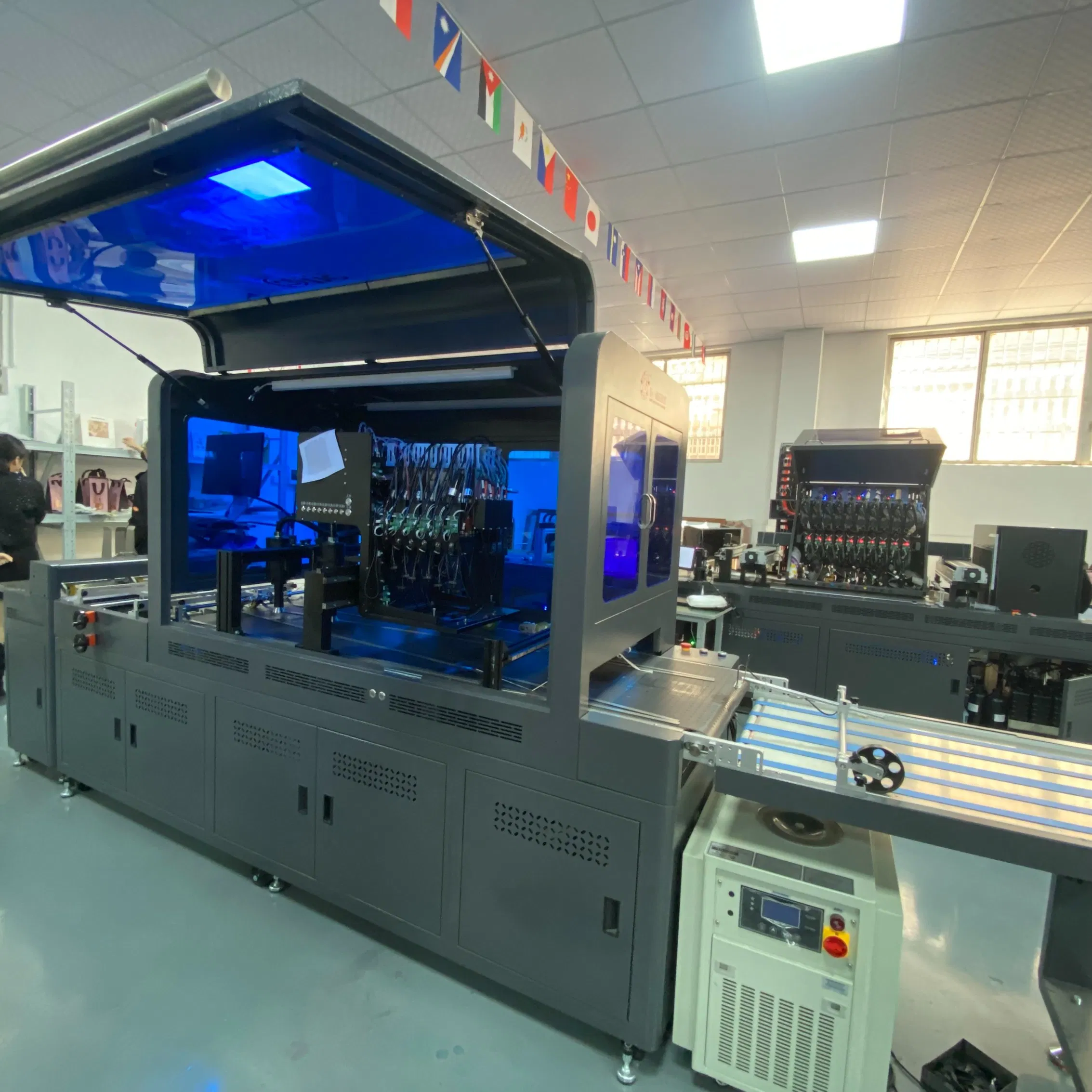

DIGITAL PRINTING MACHINE
This advanced UV digital printing machine is specifically engineered for high-precision printing on coated non-woven bags and diverse substrate materials.
Featuring professional-grade Ricoh G5/G6 printing heads with exceptional 20mm working height capacity, this customized digital printing system delivers outstanding full color CMYK printing with 100mm printing width coverage.

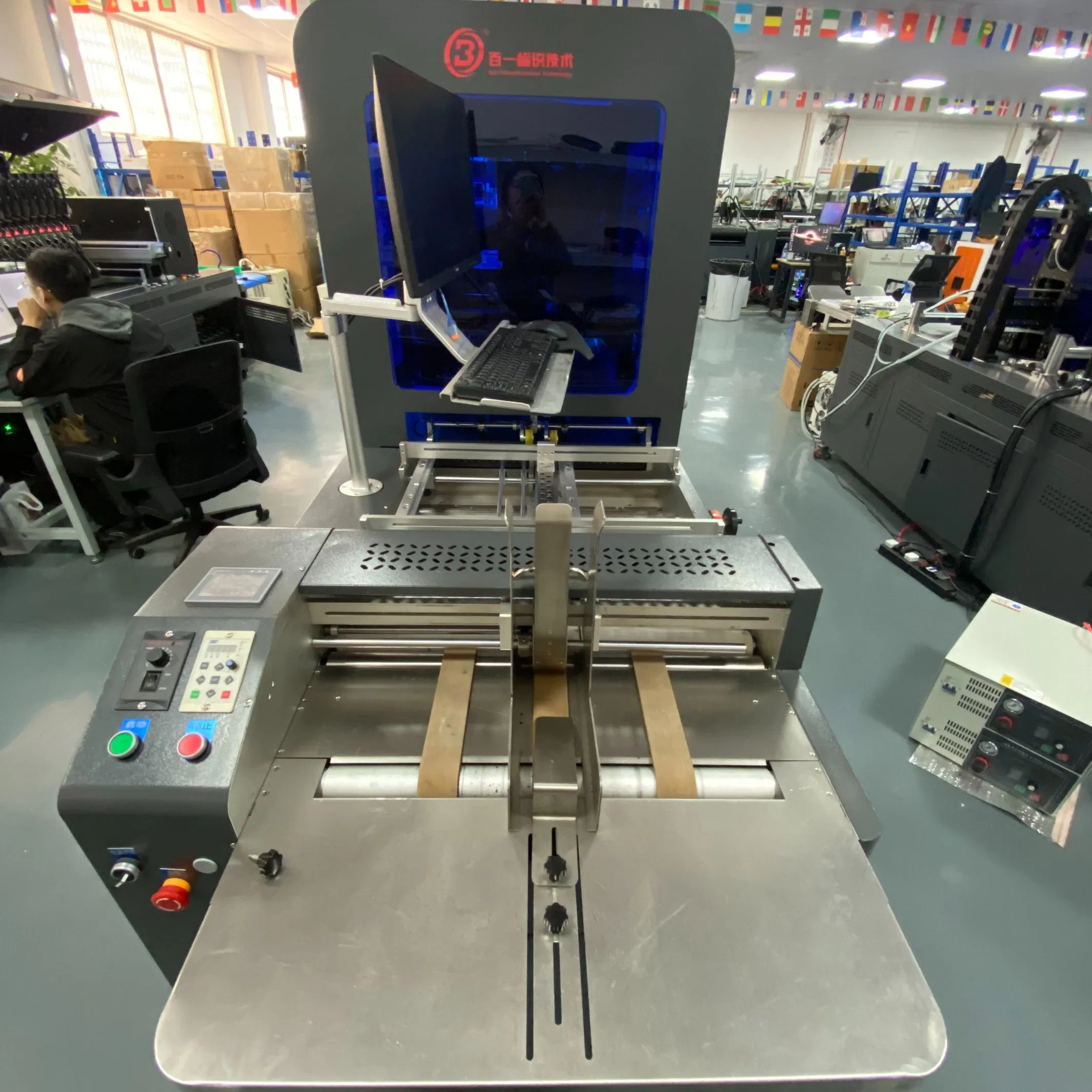

The integrated automated workflow combines auto-feeding technology, intelligent rectification device, plasma surface treatment, dual-stage UV curing system, and auto-collection conveyor to ensure consistent high-quality results.

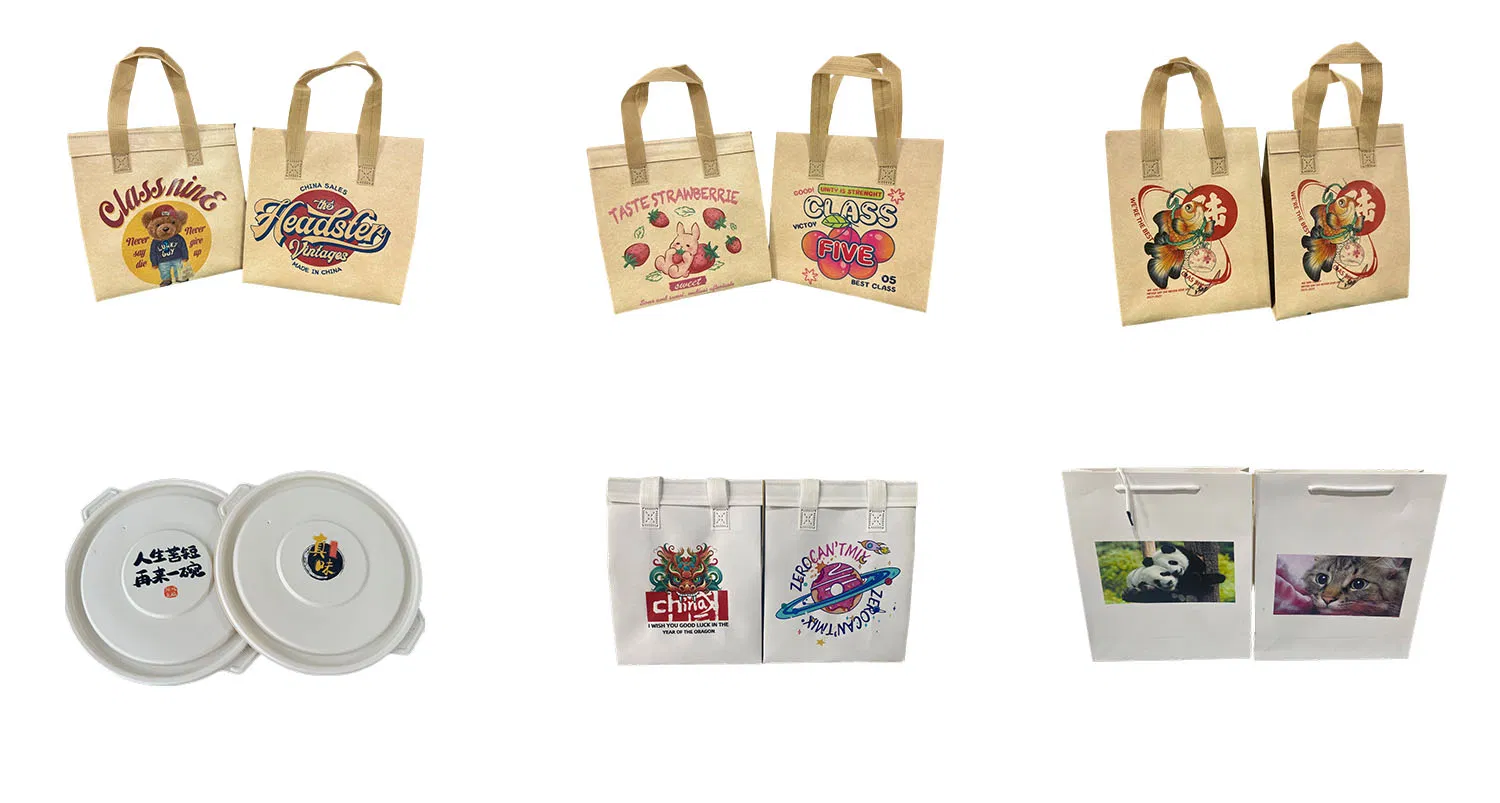

Coated non-woven shopping bags, promotional tote bags, reusable bags with handles.
Coated paper bags, cardboard packaging, paper boxes, and various coated products.
Plastic bags, lunch boxes, food containers, film substrates, and PVC materials.
Wooden boxes, panels, metal sheets, aluminum products, and tin containers.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Printing Head | Ricoh G5/G6 |
| Quantity Of Printing Head | 8 Pcs |
| Printing Color | CMYK Full Color |

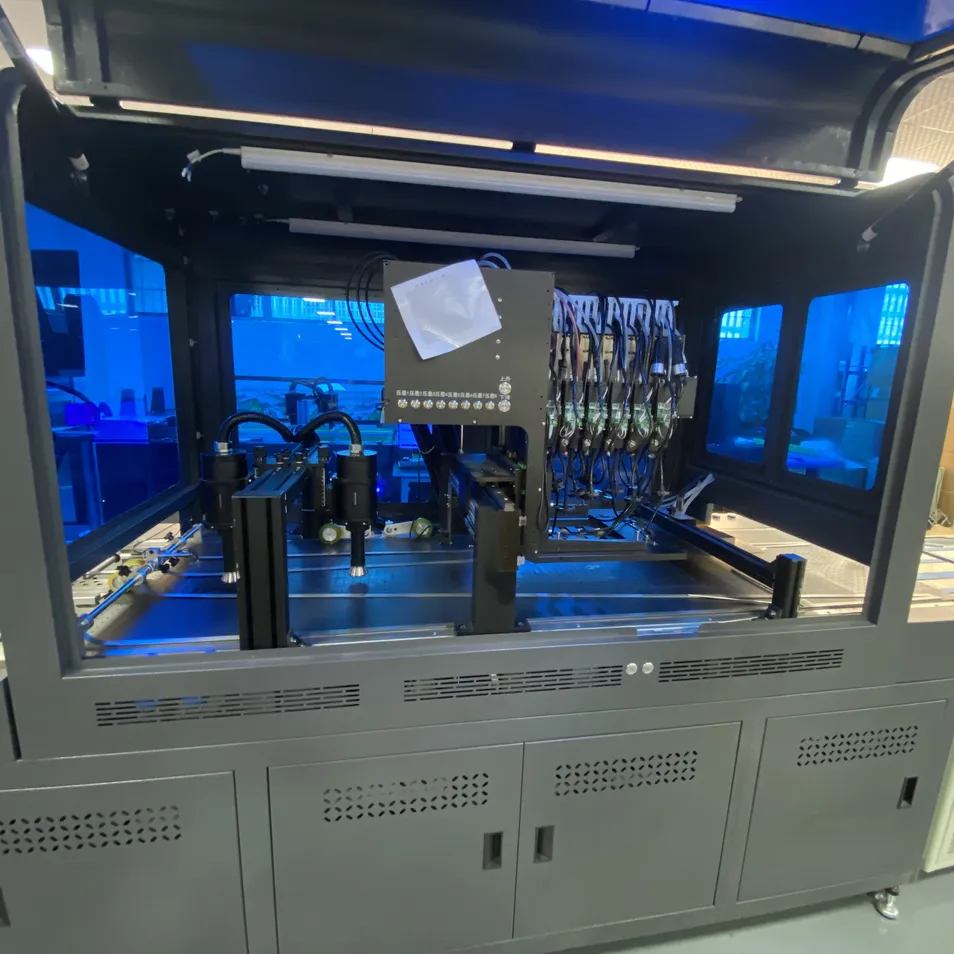

| Printing Width | 100 MM |
| Resolution | 360 DPI |
| Printing Speed | 15 M/Min |
| Voltage | 220VAC, 50HZ |
| Power | About 6.5 Kw |
| Weight | About 800 Kg |
| Conveyor Speed | 0-50 M/Min |

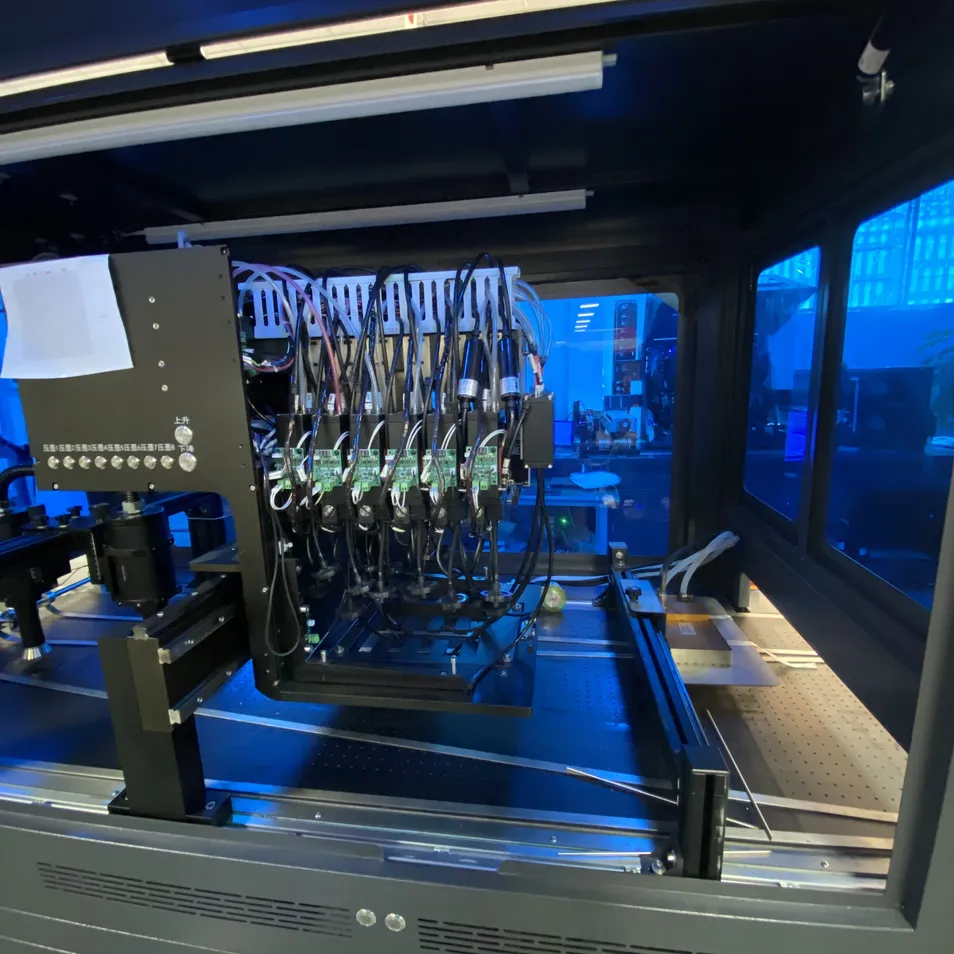

ADVANCED Ricoh G5/G6 TECHNOLOGY: Equipped with 8 professional-grade heads (one per color) delivering exceptional print quality with extended 20mm working height.

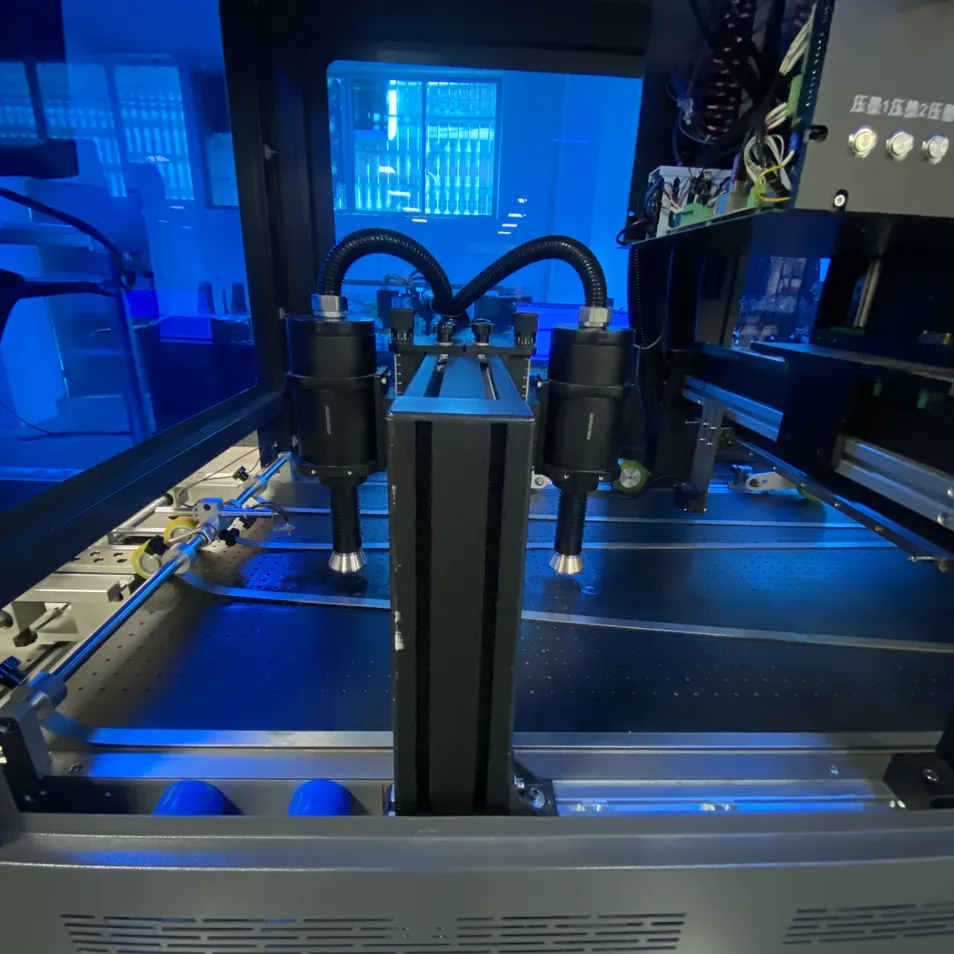

AUTO-RECTIFY & PLASMA DEVICE: Round belt and auto-rectify device for automatic correction; Plasma technology enhances ink adhesion and removes dust.
