Marking Packaging Systems for Printing Variable Information

Customization:	Available
Type:	Thermal Foam Coding Machine
Usage:	Daily Industrial

Send Inquiry

Product Description

Basic Specifications

Model NO.

HSJET

Automatic Grade

Fully Automatic

Principle

Thermal Inkjet Technology

Classification

High Resolution Ink Jet Printer

Working Patterns

On-Line

Supplies

Ink

Resolution

150-600dpi

Dimension

126*100*31mm

Ink Solution

Porous, Semi-Porous and Non-Porous

Joint Type

Multi Print Head Seamless Joint

Production Capacity

5000 Sets/Year

Certification

CE, SGS

★

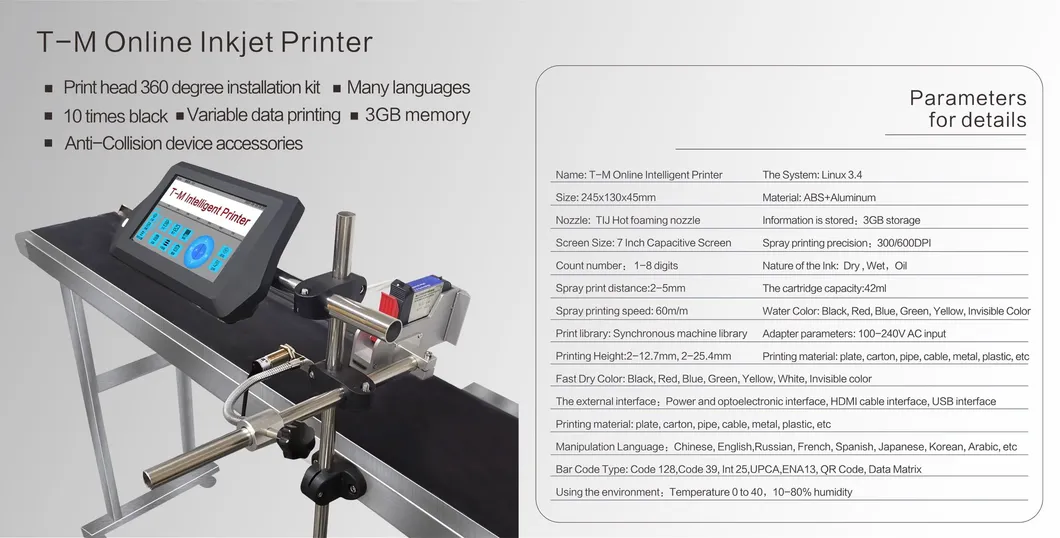

Industrial Inkjet Printer - TM2

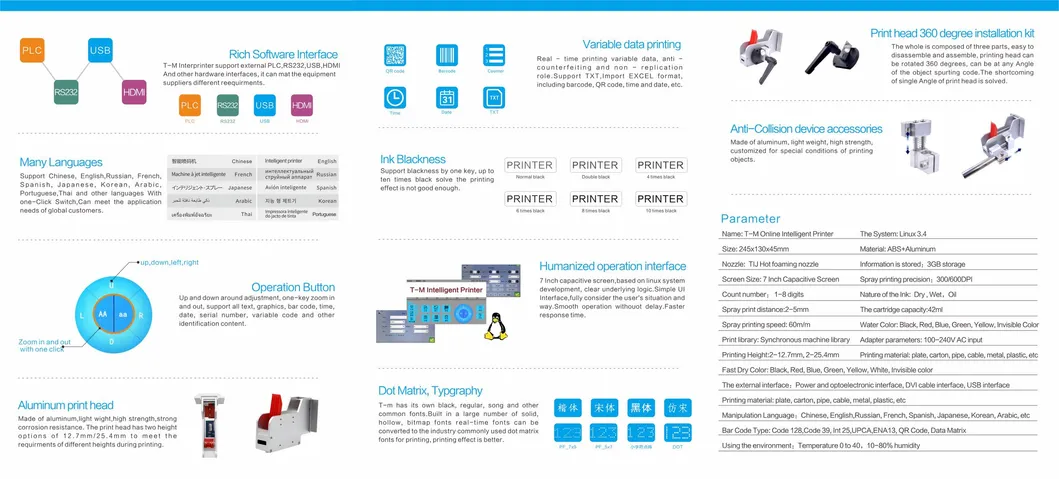

Overall Functional Overview:

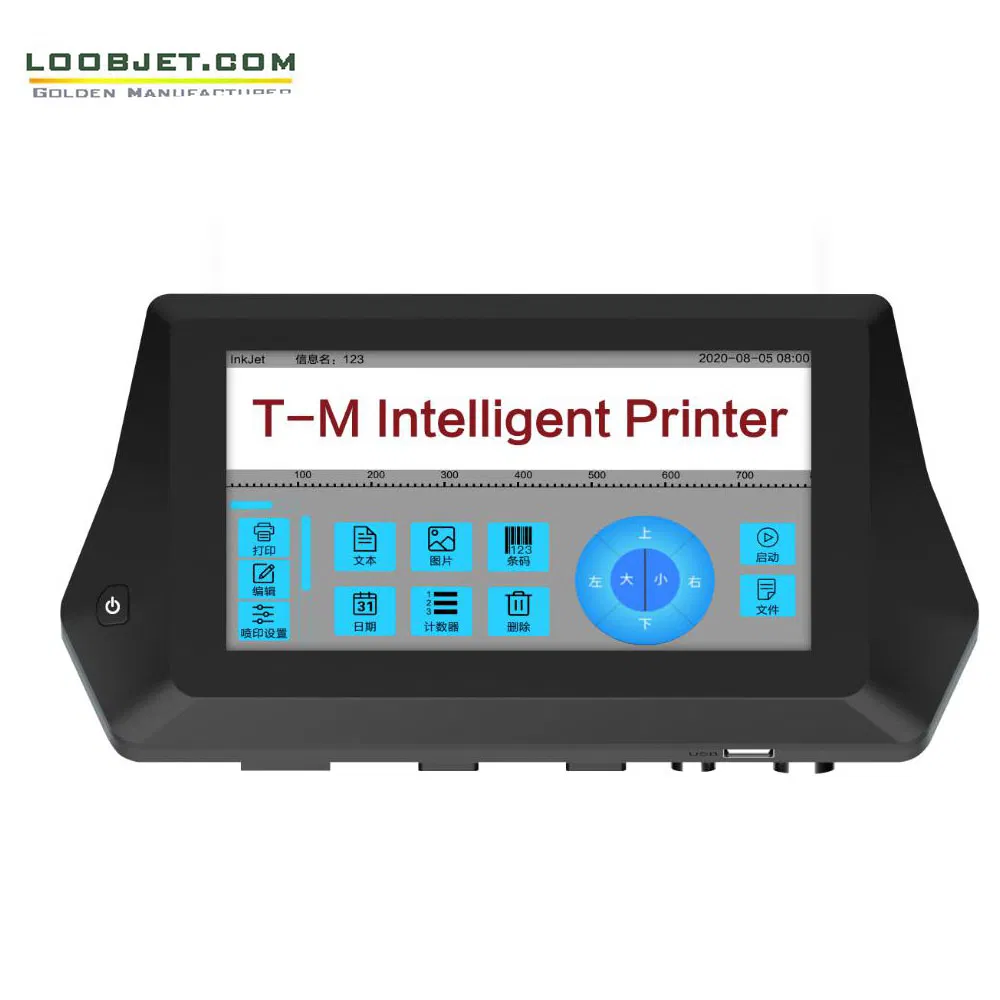

The Online Thermal Ink jet Printer uses the advanced Cortex-A7 quad-core processor with a frequency up to 1.2GHz. Equipped with 2Gbit DDR3 memory and 4GB EMMC, it ensures smooth operation and reliable data storage in FLASH to minimize system downtime. This printer features a 7-inch high-brightness capacitive touch screen with a wide viewing angle for intuitive operation.

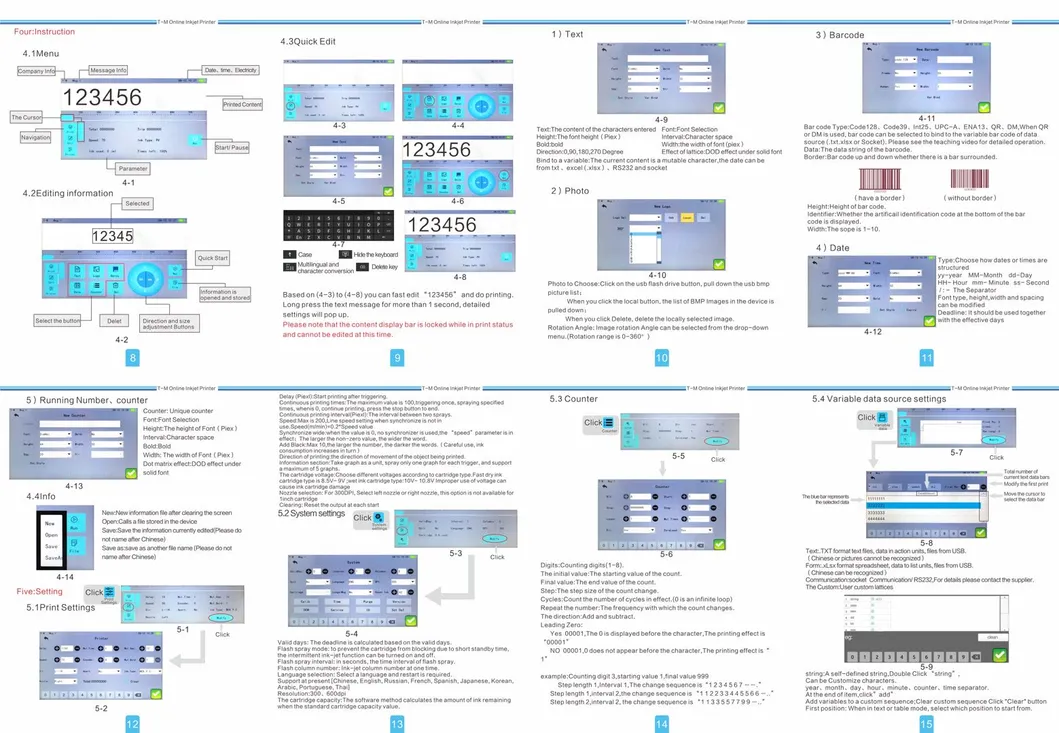

The system utilizes a full graphical interface with clear functional modules. The edit interface supports free drag-and-drop typesetting, one-click zooming, and identifies content including text, graphics, barcodes, dates, serial numbers, and variable codes. Parameter settings are logically divided into general and detailed views for precise adjustments.

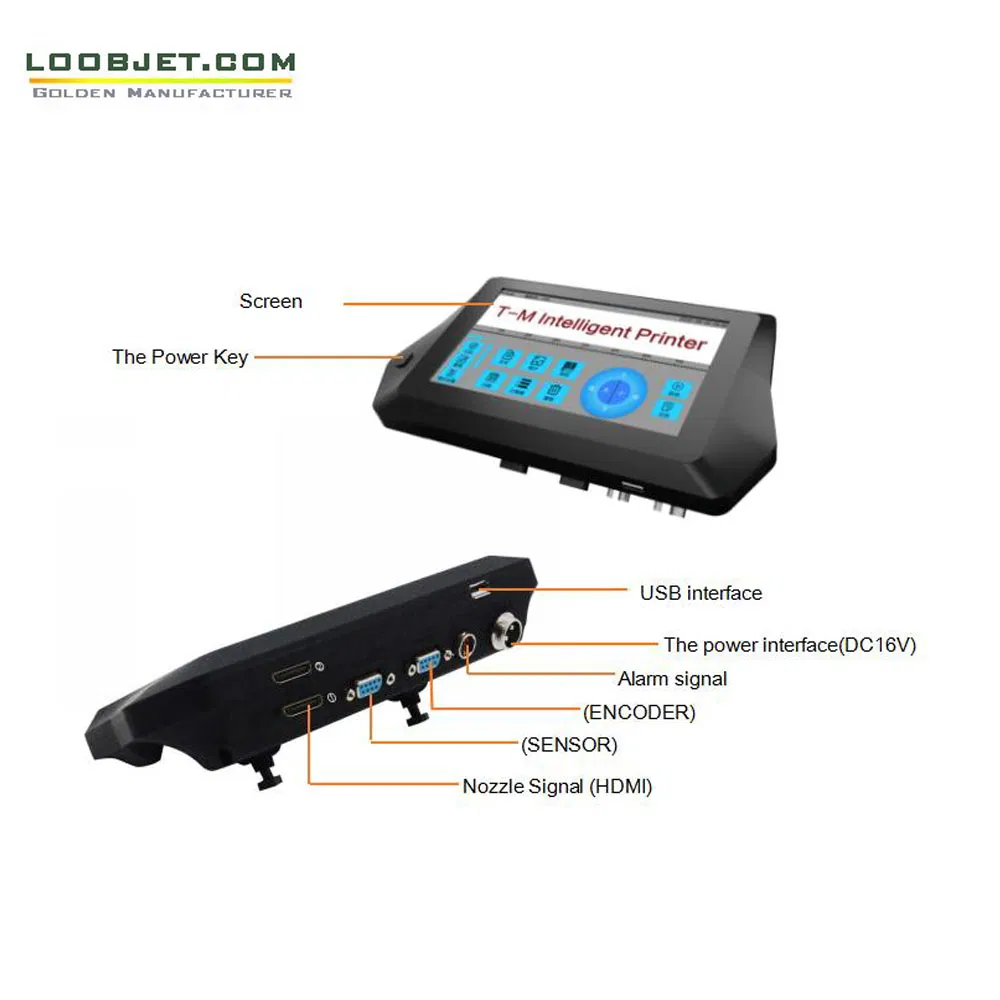

Advanced connectivity includes a standard R232 industrial communication interface and optional WIFI for real-time transmission of variable codes. It also supports USB HOST for importing user images, TXT files, and Excel tables for line-by-line printing.

⚙

Technical Parameters

System: Linux 3.4

Speed: <50 m/min

Printing Height: 2-25mm

Photo Formats: bmp (Monochrome or 24-bit color)

Fonts: Black Body, Song Body, Regular Body, Arial, DOT, 5x7, 7x9, 10x16

Barcode: 128 code, UPC, EAN, 39 code, QR code, DM code

Vertical Resolution: 300 DPI / 600 DPI

Storage Capacity: 3GB

LCD Screen: 7 inch capacitive touch screen

📦

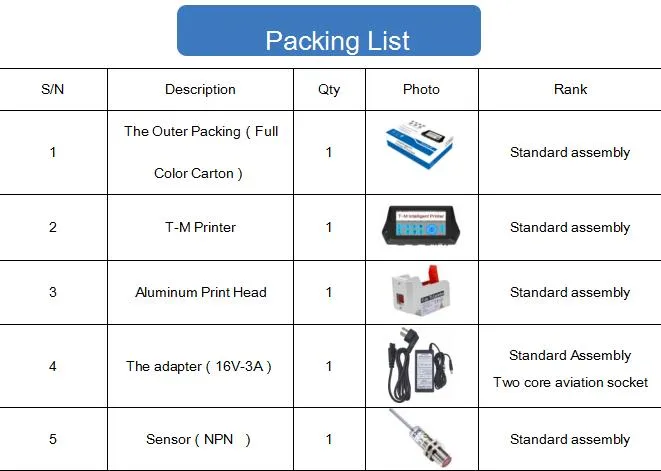

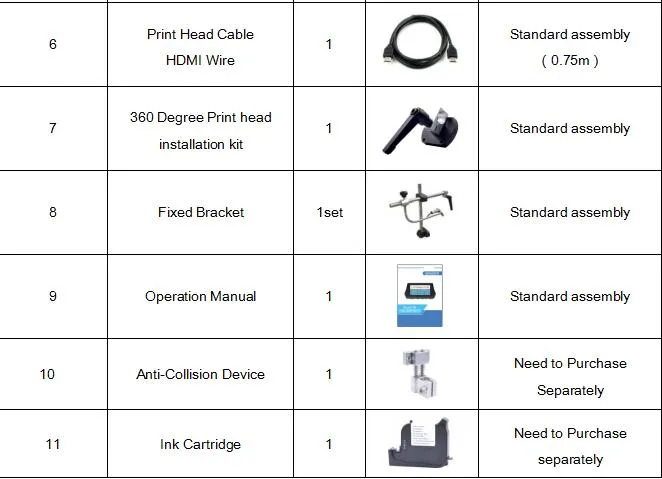

Packing List

Frequently Asked Questions

1. What kind of materials can this printer work on?

The HSJET system supports porous, semi-porous, and non-porous surfaces, making it ideal for boxes, bags, pipes, and paper packaging.

2. What is the maximum printing height and resolution?

The printer offers a printing height range of 2mm to 25mm with adjustable vertical resolutions of 300 DPI and 600 DPI for high-definition marking.

3. Does it support variable data printing like QR codes?

Yes, it supports various identification content including 128 codes, UPC, EAN, 39 codes, QR codes, and DM codes, along with real-time variable code transmission.

4. Can I import external data for printing?

Absolutely. The system includes a USB HOST port, allowing you to import user images, TXT files, and Excel tables for efficient line-by-line printing.

5. Is the operating system user-friendly?

Yes, it features a 7-inch capacitive touch screen with a full graphical Linux-based interface, supporting drag-and-drop typesetting and easy parameter modification.

6. What languages does the system support?

The printer supports multiple languages including English, Japanese, French, German, Spanish, and Portuguese.
