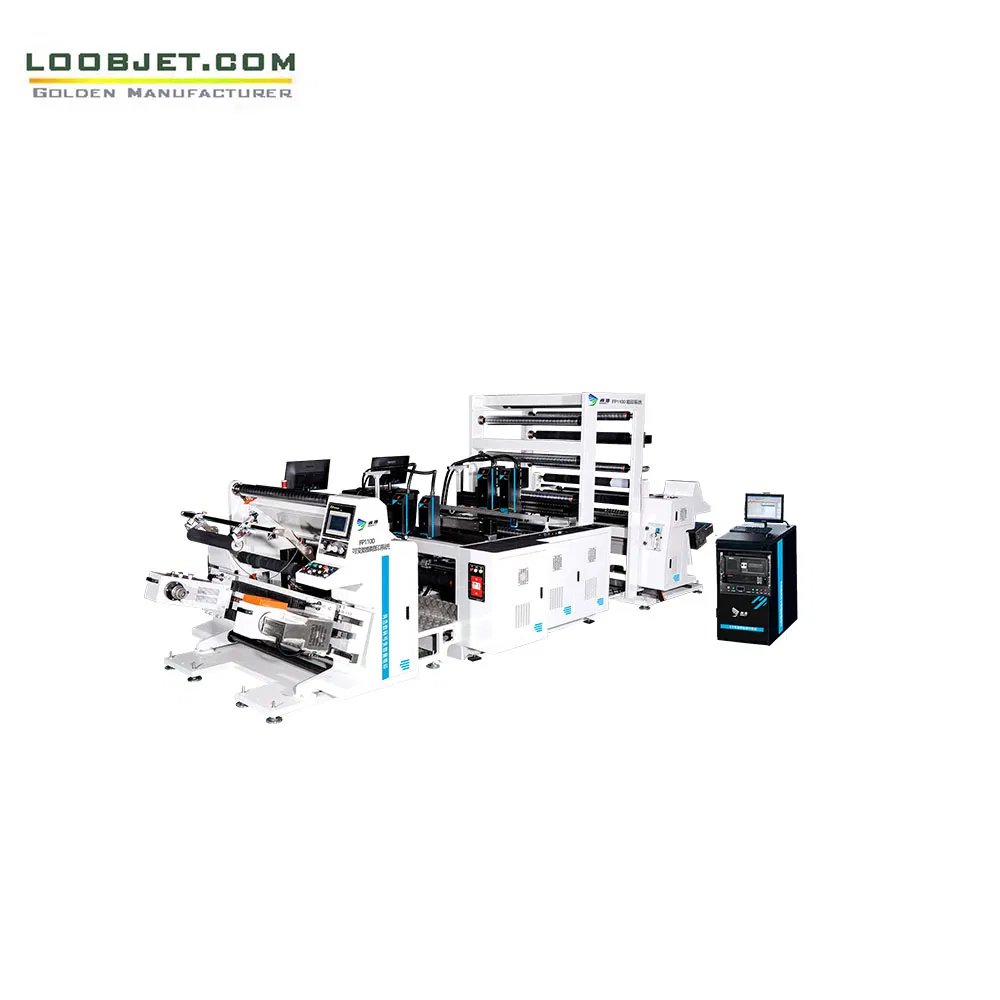

UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications
1 / 5
UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications
UV Inkjet Printing System for Flexible Packaging Applications

UV Inkjet Printing System for Flexible Packaging Applications

Customization: Available
Plate: Variable Data
Structure: Inkjet Printing
Send Inquiry

Product Description

Basic Info
Model NO.
UVJET
Color & Page
Single-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
Automatic Grade
Automatic
Printing Interface
RS232
Printing Speed
100m/Min
System Supported
Windows
Resolution
150-600dpi
Ink Solution
Porous, Semi-Porous and Non-Porous
Production Capacity
500 Sets/Year
Product Description

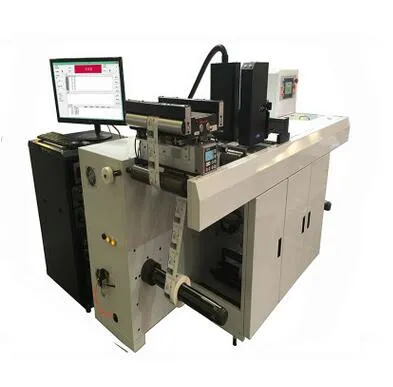

UV Inkjet Printing System 1

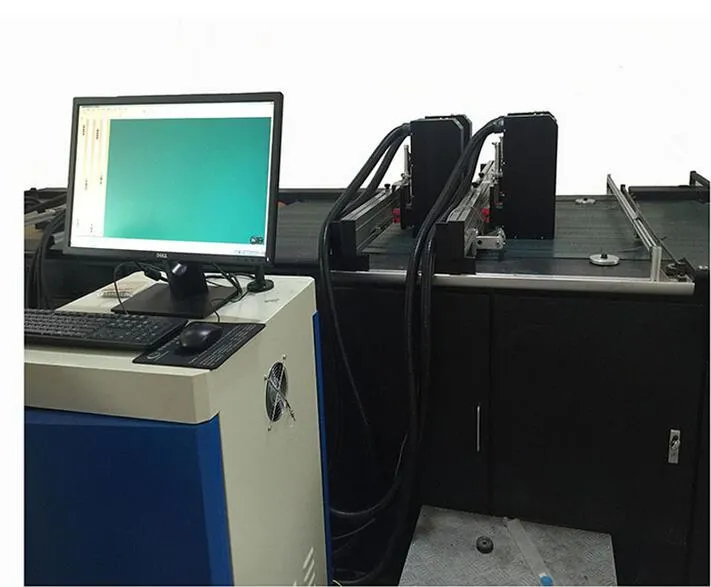

UV Inkjet Printing System 2
💡
Introduction: UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology. Equipped with high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, and packaging.
⚙️
Versatility: Suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems.

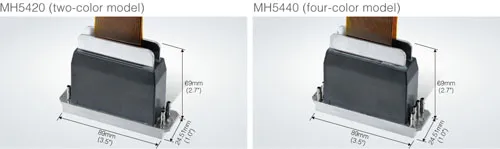

UV Inkjet Tech
Technical Details
🔹
Print Heads: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
🔹
Lifespan: Normal nozzle life of more than 3 years (10 billion printing times).
🔹
Print Width: Single Nozzle 54/72/108 mm; expandable up to 24 groups with seamless joint.
🔹
Speed: Card linear speed ranges from 70 to 180 m/min.
🔹
Inks: Imported environmentally friendly UV or water-based inks.

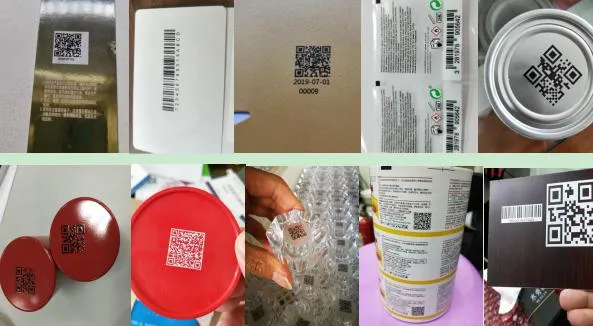

Inkjet Printing Line
Software Interface
Advanced Software Control

Our Printer Control Software (PCS) offers a user-friendly interface to monitor printer status and set options such as jetting waveforms and temperature for each print head. Features include database checking, DPI settings, and motor speed control.

Variable Data Printing:
  • Supports text, dates, times, graphics, logos, and serial numbers.
  • Handles Windows Fonts and database photo images.
  • Data source support: .CSV, .XLS, .XLSX, .TXT, and PDF.
  • Multilingual: English, Spanish, German, French, Portuguese, Russian, and Chinese.
Technical Specifications
Model VDG540/VDK720/KY108 Print Head Ricoh GN5/Konica 1024i/KY
Resolution 600×600, 400, 300, 200 dpi Method Piezoelectric ink-jet
Single Head Width 54.0mm / 72.0mm / 108mm Max Width Up to 24 heads Seamless Joint
Drop Size 5-21 PL Inks Original SGS UV Inks
System Windows 7 / Windows 10 Interface Gigabit Ethernet (Real-time)
Barcodes UPCA, EAN13, CODE128, QR, DATAMATRIX, PDF417, etc. Formats Excel, TXT, PDF, BMP
Frequently Asked Questions
❓ What is the maximum printing speed of the UVJET system?
The system can reach speeds up to 180m/min at 600×200dpi resolution, or 75m/min at 600×600dpi precision.
❓ What types of print heads are available?
Users can choose between Ricoh GEN5 (54mm), Konica 1024i (72mm), and Kyocera (108mm) industrial piezoelectric nozzles.
❓ Which materials are compatible with this printer?
It is suitable for a wide range of materials including all kinds of paper, plastics, PVC, PP, and PE films.
❓ Does the software support variable data printing?
Yes, the software supports variable text, barcodes, QR codes, serial numbers, and images from databases like Excel, CSV, and PDF.
❓ How many languages does the system support?
The interface supports multiple languages including English, Japanese, French, German, Spanish, Portuguese, and Russian.
❓ Is the system easy to integrate into existing production lines?
Yes, its modular design allows for easy integration into existing transport systems for both online and offline target printing.
