Cosmetics Personal Care Variable Data Printing System

Customization:	Available
Type:	Thermal Foam Coding Machine
Usage:	Daily Industrial

📊

Basic Specifications

Model NO.

VDSAJET

Automatic Grade

Fully Automatic

Principle

Thermal Inkjet Technology

Application

High Resolution Ink Jet Printer

Working Patterns

On-Line

Supplies

Ink

Packaging

Box/Bag/Pipe/Paper

Seamless Joint

Accepted

Ink Solution

Porous, Semi-Porous and Non-Porous

Resolution

150-600dpi

Dimension

126*100*31mm

Power

AC 90V-240V/50-60Hz

💡

Product Description

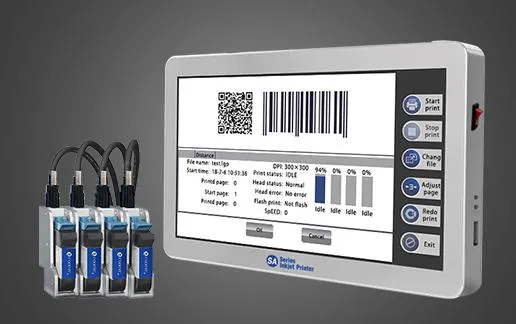

Variable Data Printing System - VDSAJET

The VDSAJET is a third-generation high-resolution printer based on HP TIJ2.5 technology, incorporating advanced LGCS control technology. This system allows users to easily send commands via an intuitive interface to control both the printer and the printed content.

It supports all TrueType fonts, ensuring a "What You See Is What You Get" (WYSIWYG) experience. With support for multiple languages, it breaks the limitations of traditional printers regarding font size, style, and line counts.

🚀

Key Features

Supports 1D and 2D variable data barcodes with a printing speed of 30-60m/min.
Easy operation with a user-friendly interface requiring minimal training.
Industrial-grade design with a full metal shell for enhanced durability.
Equipped with original HP driving boards for superior high-quality print effects.
Wireless print head verification technology for stable and intelligent performance.

🛠

Technical Specifications

Model	VDSAJET
Printer System	HP TIJ 2.5
Printer Height	12.7mm ~ 50.8mm
Speed & Resolution	30m/min @ 600x300DPI / 60m/min @ 600x300DPI
Interface Type	WIFI / USB / Sensor / Encoder / Warning Light

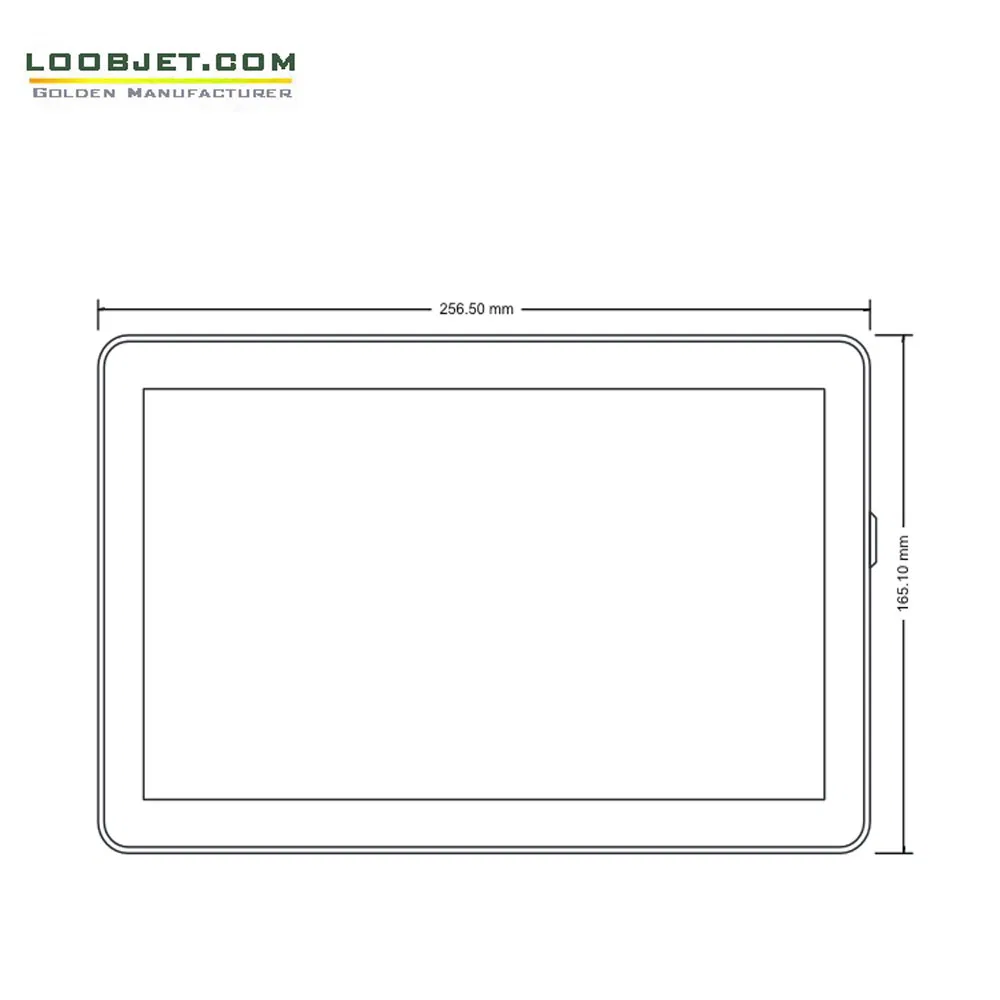

Operation	10-inch Touchscreen IPC
Print Content	Text, Image, Counter, Date, Variable Barcode
Barcode Types	EAN8, EAN13, EAN128, CODE25, CODE39, CODE128, PDF47, QRCODE, DATAMATRIX
Power Supply	110-220VAC 50/60Hz (Max 180W)

📦

Applications & Materials

Markets: Food, Beverage, Cosmetics, Personal Care, Medicine, and Building Materials.

Corrugated Paper Coated Carton Soft Package Hard Plastic Liquid Containers

Ink Solutions:

INK-MH01: Excellent color fastness and waterproof performance; ideal for ivory board and coated paper.
INK-MH09: Designed for non-porous materials such as plastics, metals, and PVC.

❓

Frequently Asked Questions

What printing technology does the VDSAJET use?

The system is based on HP TIJ 2.5 (Thermal Inkjet) technology, which provides high-resolution results for various industrial applications.

What is the maximum printing height?

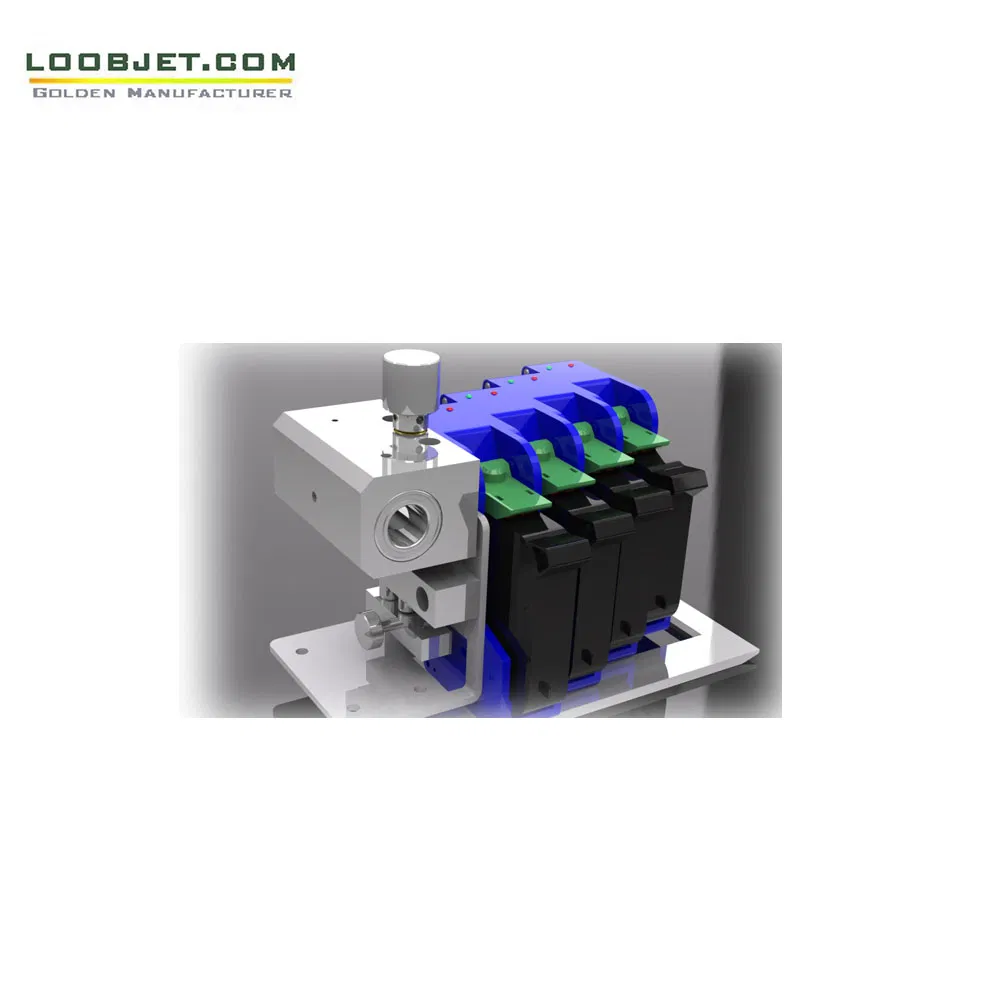

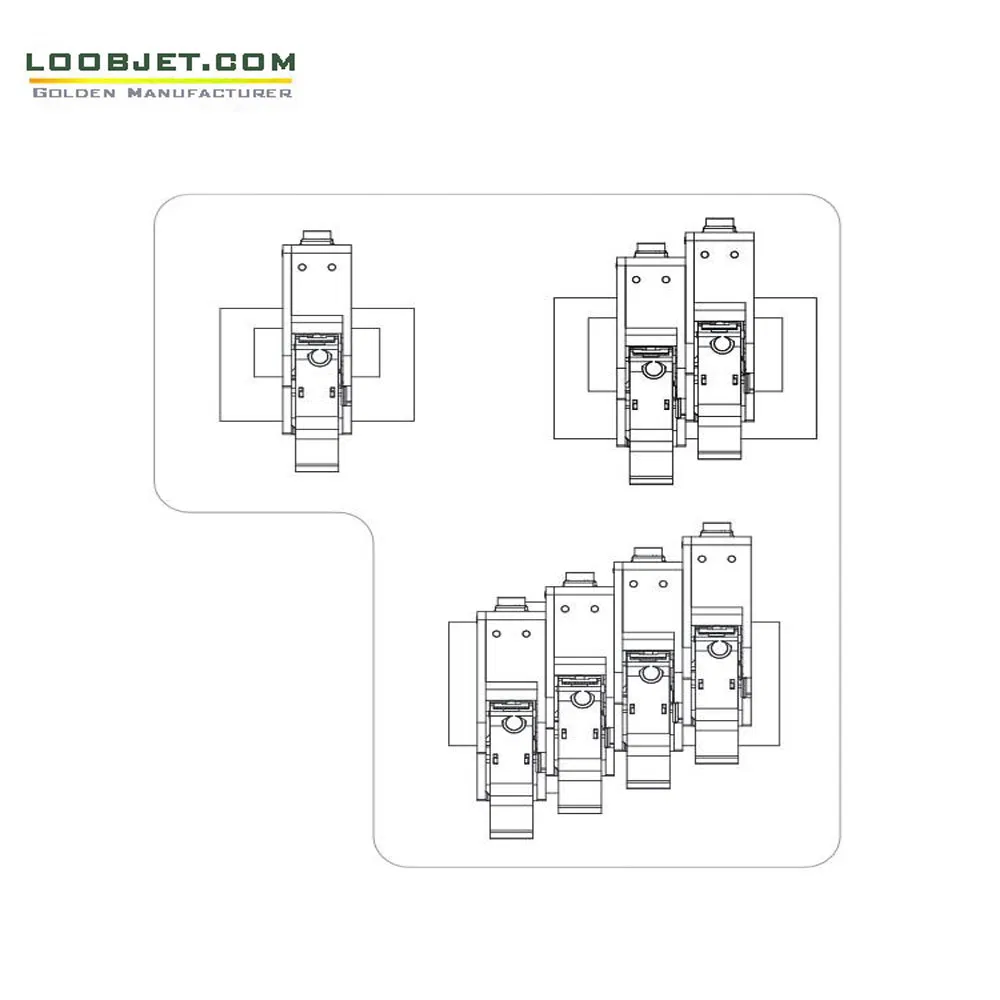

The system supports adjustable printing heights from 12.7mm up to 50.8mm using multiple print head configurations.

Can it print variable data like QR codes?

Yes, it fully supports 1D and 2D variable barcodes, including QR codes and DataMatrix, suitable for tracking and anti-counterfeiting.

What materials can this system print on?

Depending on the ink used, it can print on porous materials like paper and cartons, as well as non-porous materials like plastic, metal, and PVC.

Is special training required to operate the machine?

No, the machine is designed for easy operation with a 10-inch touch screen interface, making it accessible for users without advanced technical training.

What languages does the software support?

The system supports multiple languages including English, Japanese, French, German, Spanish, and Portuguese.
