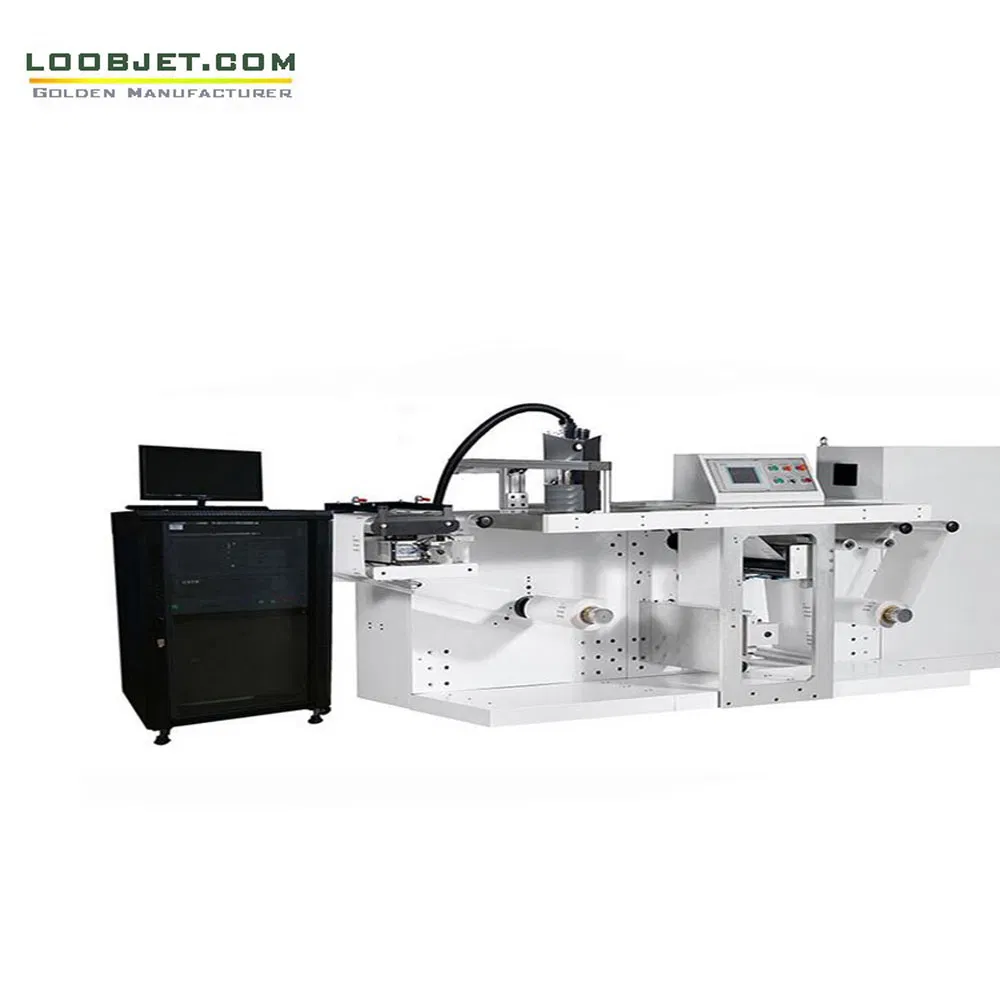

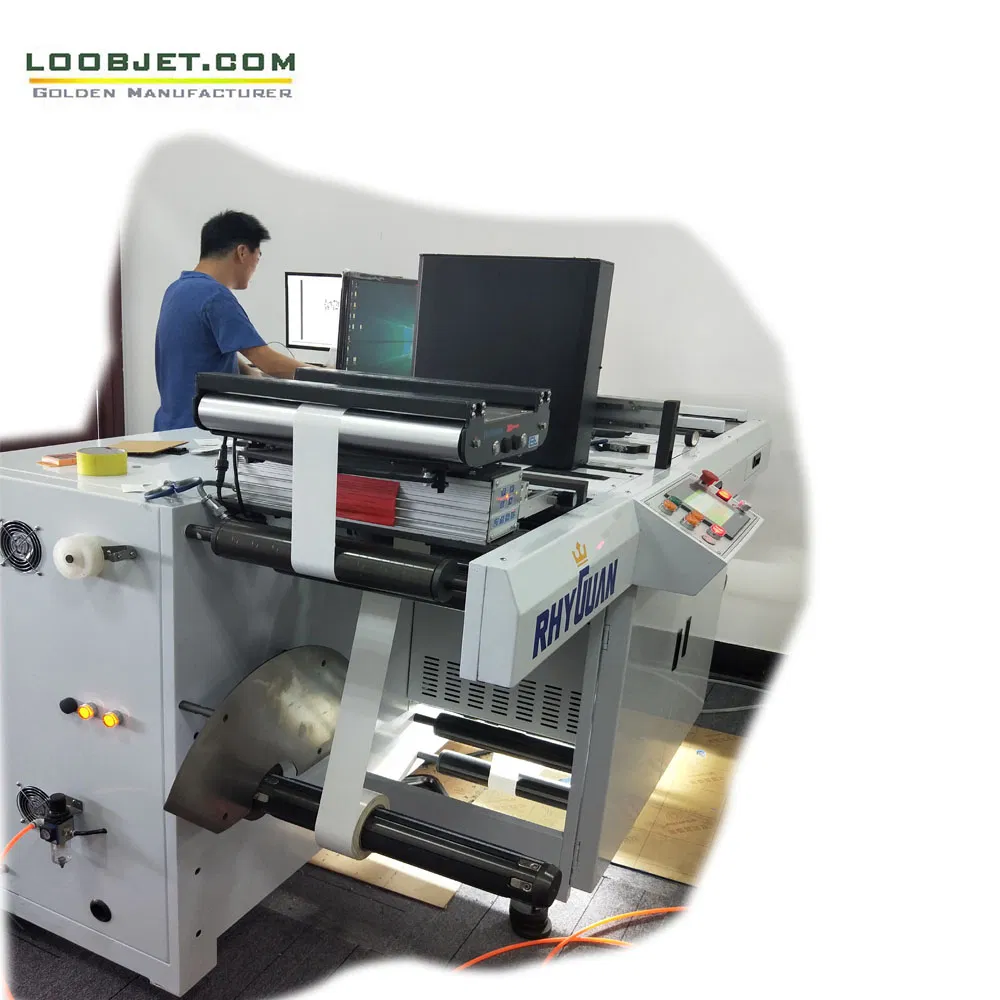

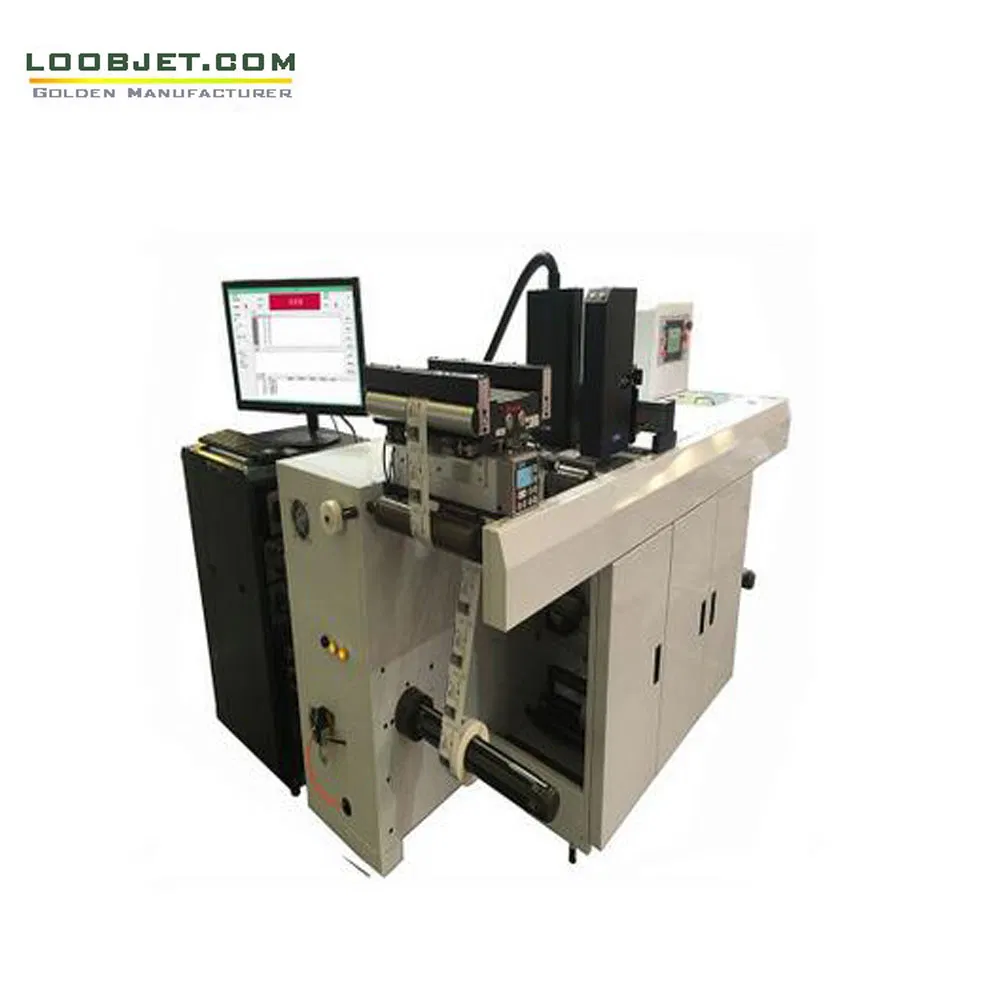

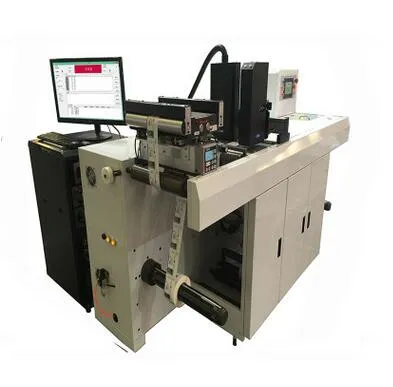

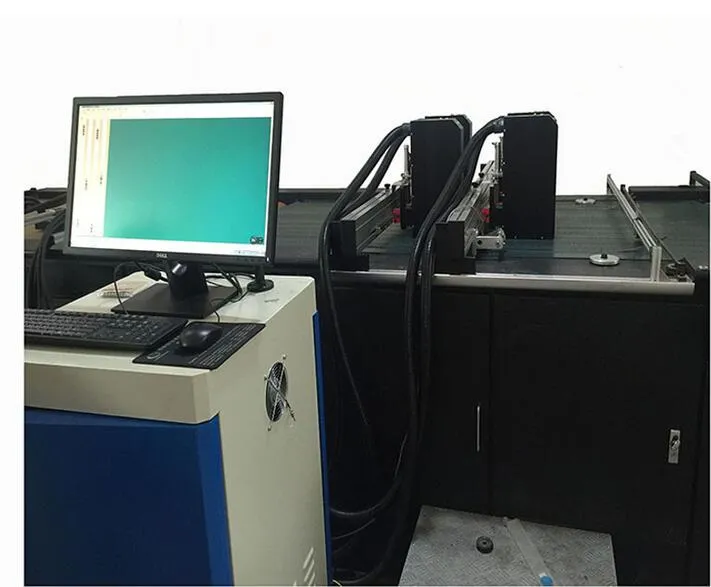

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, this system meets the rigorous demands for mailings, barcodes, bills, packages, and marking.

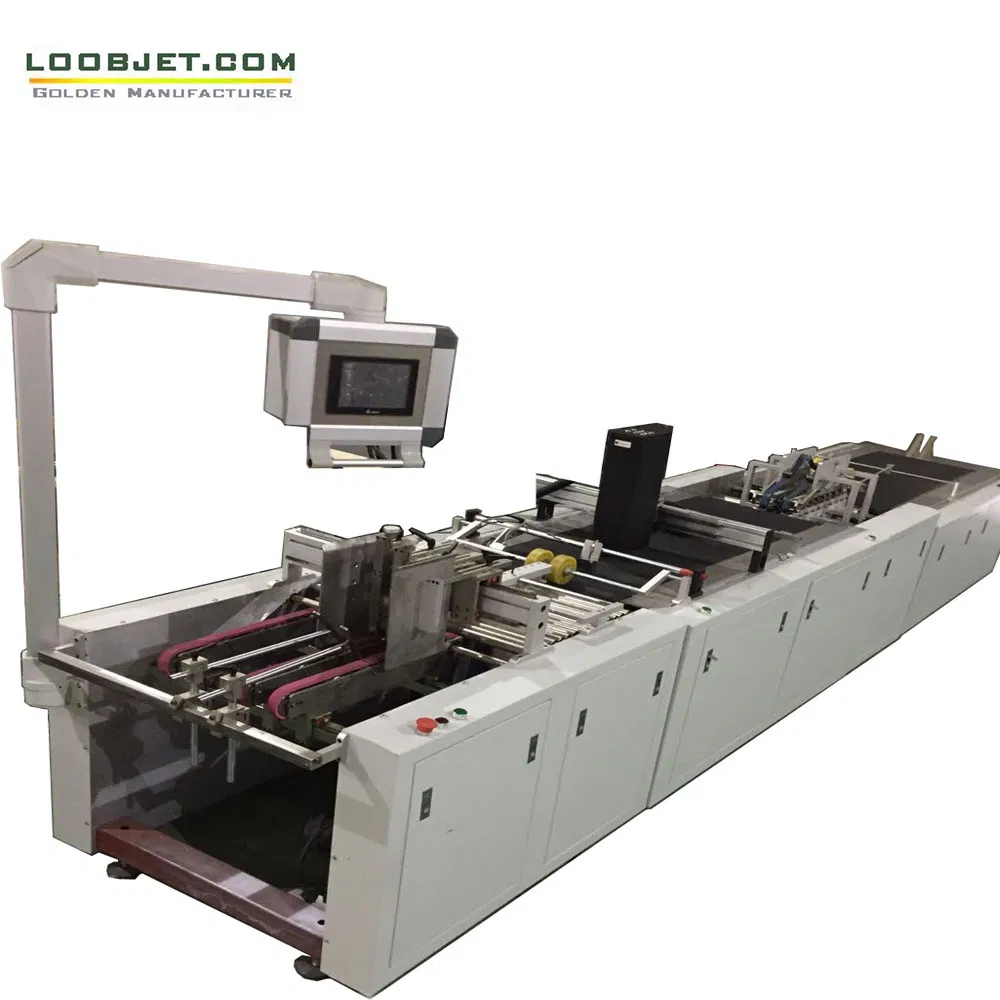

The system is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems.
The Printer Control Software (PCS) offers a user-friendly interface to interactively control the printer, monitor status, and adjust settings like jetting waveforms and temperatures.
Variable Data Features: Supports text, dates, times, logos, serial numbers, and barcodes. Loads data from .CSV, .XLS, .XLSX, .TXT, and PDF files. Supports multiple languages including English, Spanish, German, French, Portuguese, and Russian.

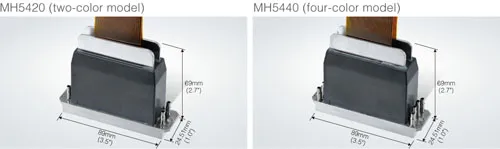

| Model | VDG540/VDK720/KY108 | Print Head Type | Industrial Piezoelectric |
|---|---|---|---|
| Resolution | 600×600, 400, 300, 200dpi | Max. Speed | 180m/min (600×200dpi) |
| Drop Size | 5-21PL | Interface | Gigabit Ethernet |
| Barcode Support | UPC, EAN, CODE128, QR, DATAMATRIX, PDF417 | File Formats | MS Excel, TXT, PDF, BMP |
| Power | AC 200~240V/50~60Hz | Environment | 0ºC~30ºC, Humidity 50~80% |

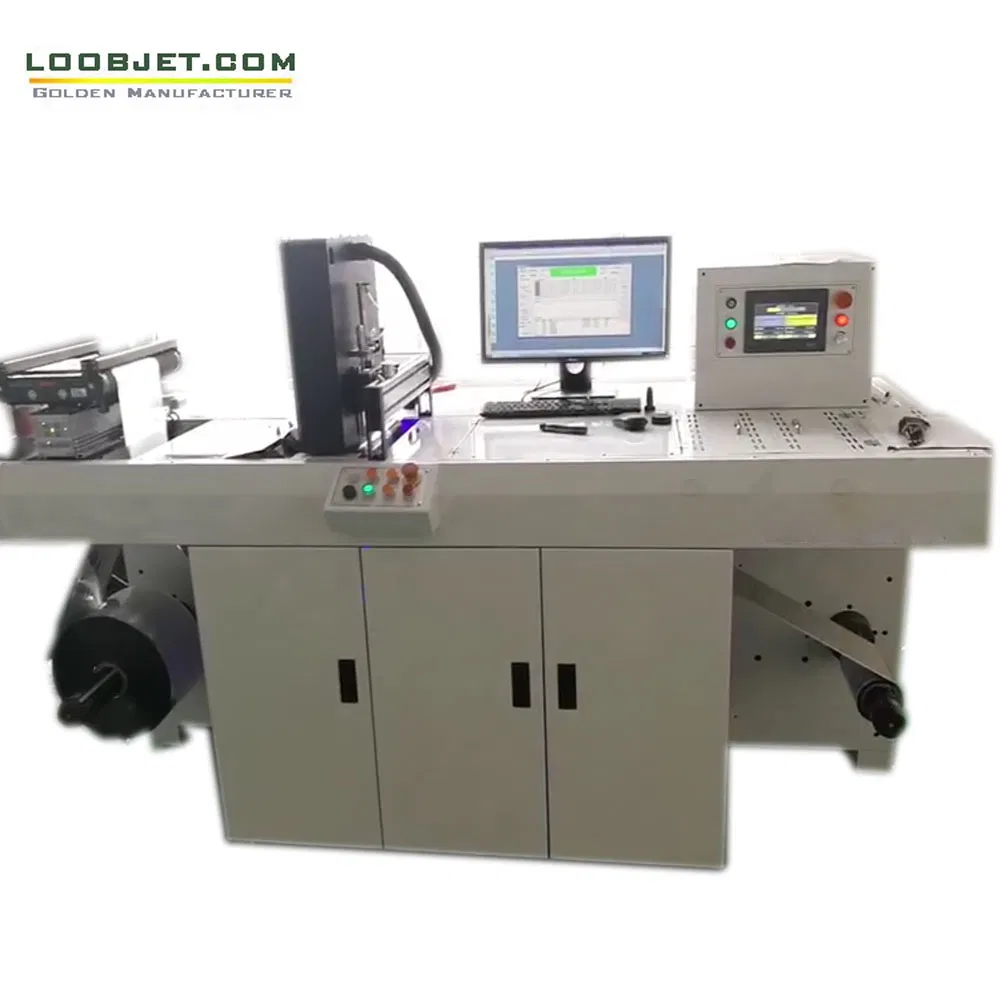

UV inkjet printer label press systems provide high-efficiency digital printing solutions for modern packaging industries.
