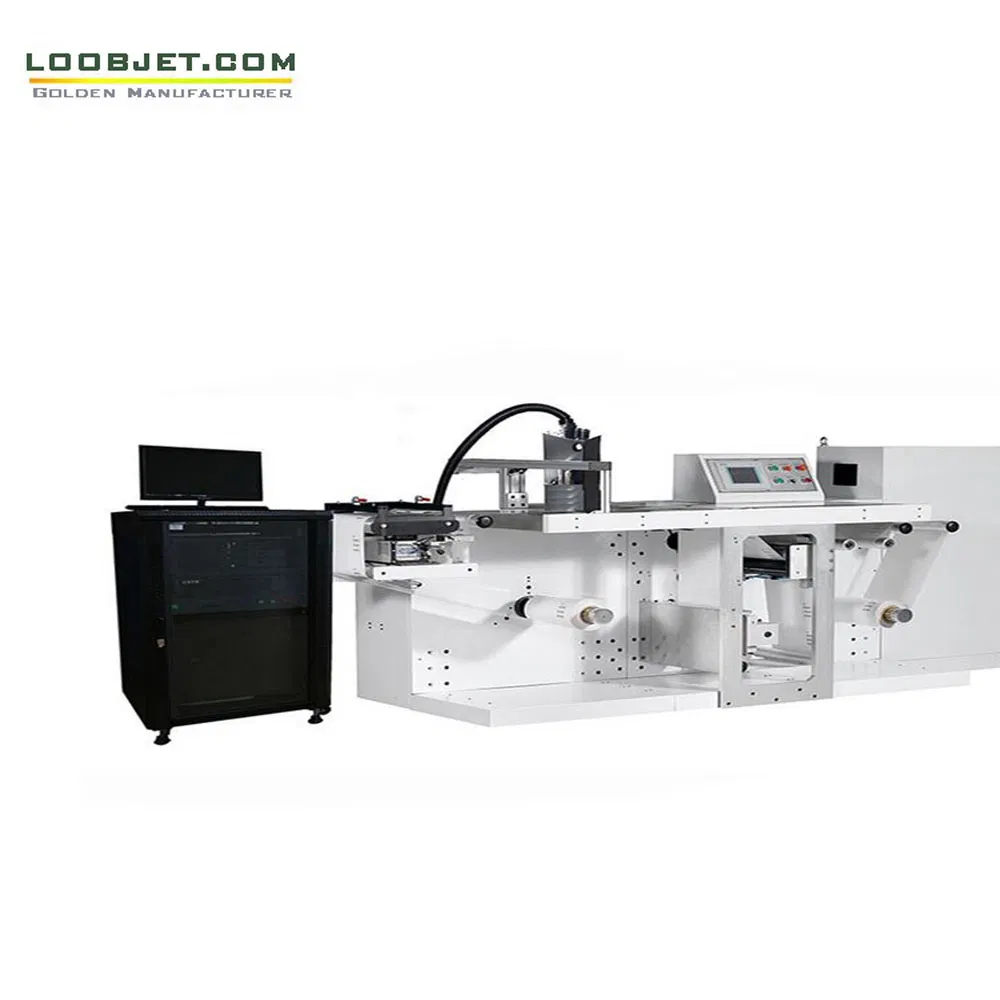

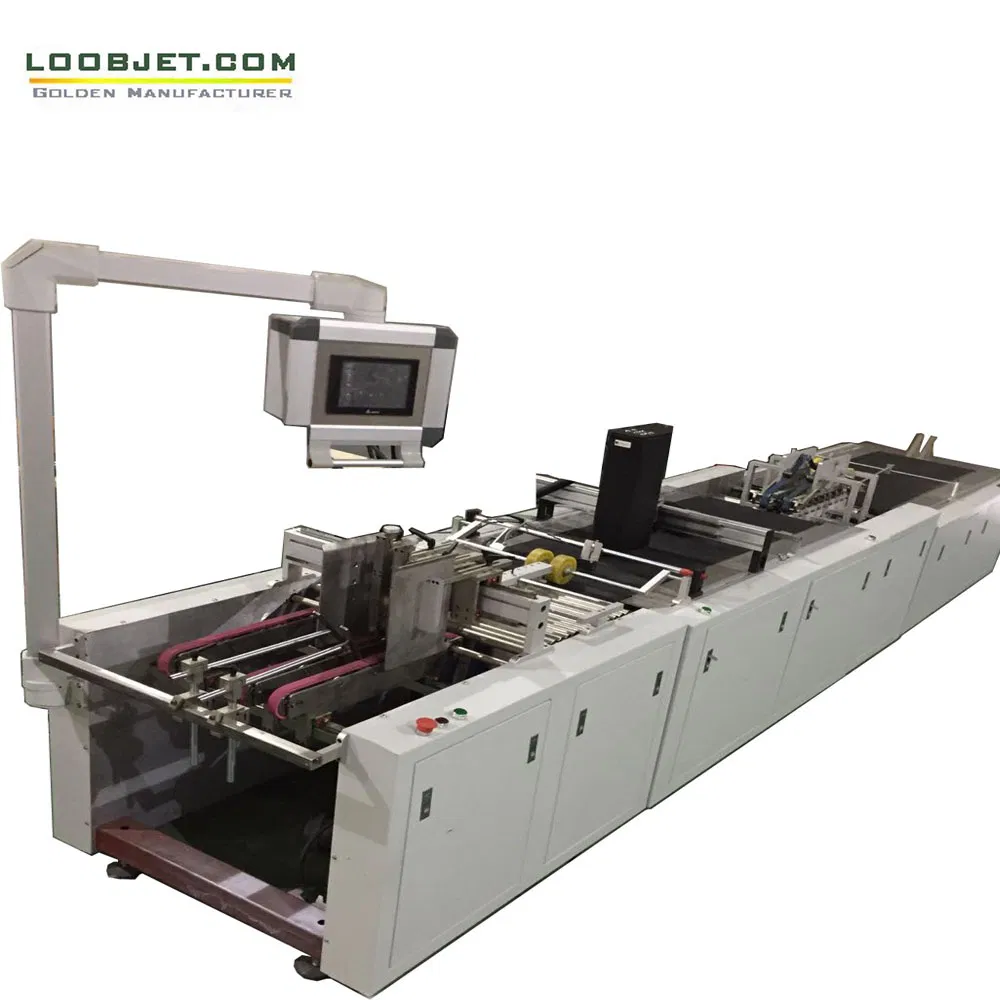

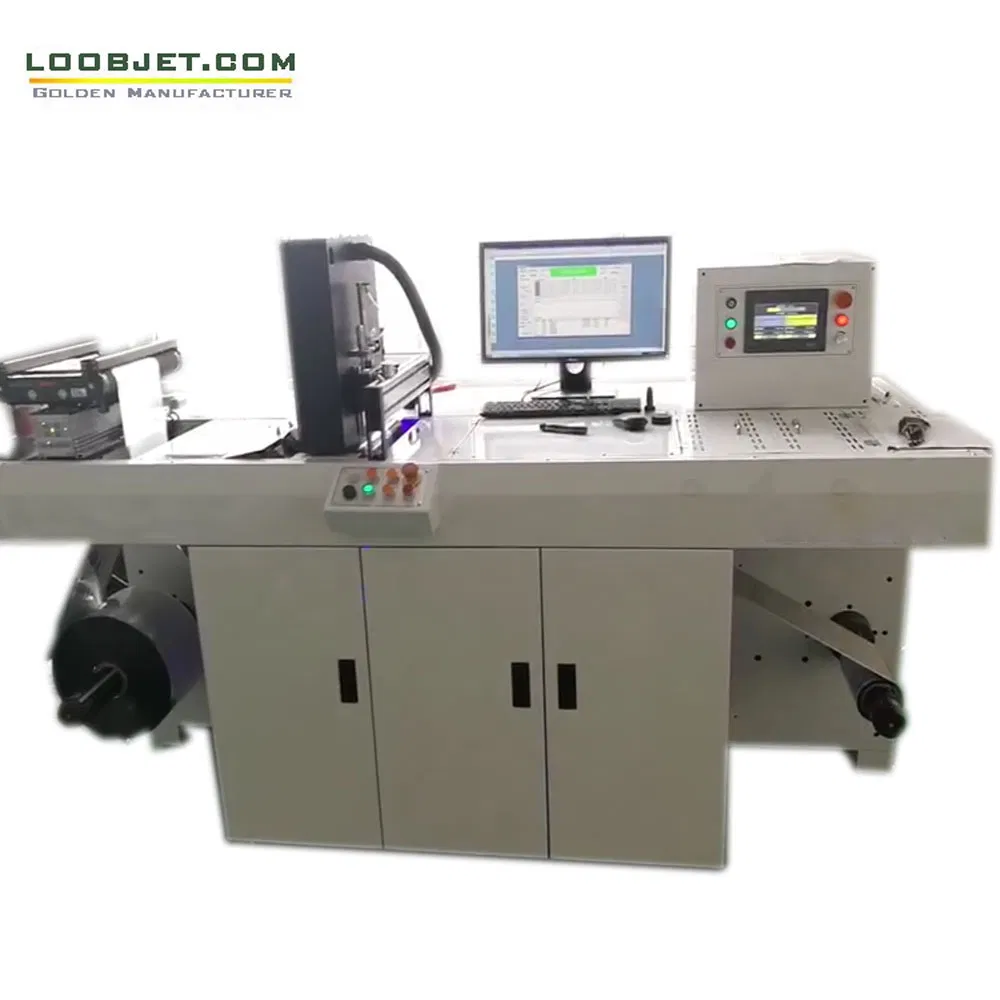

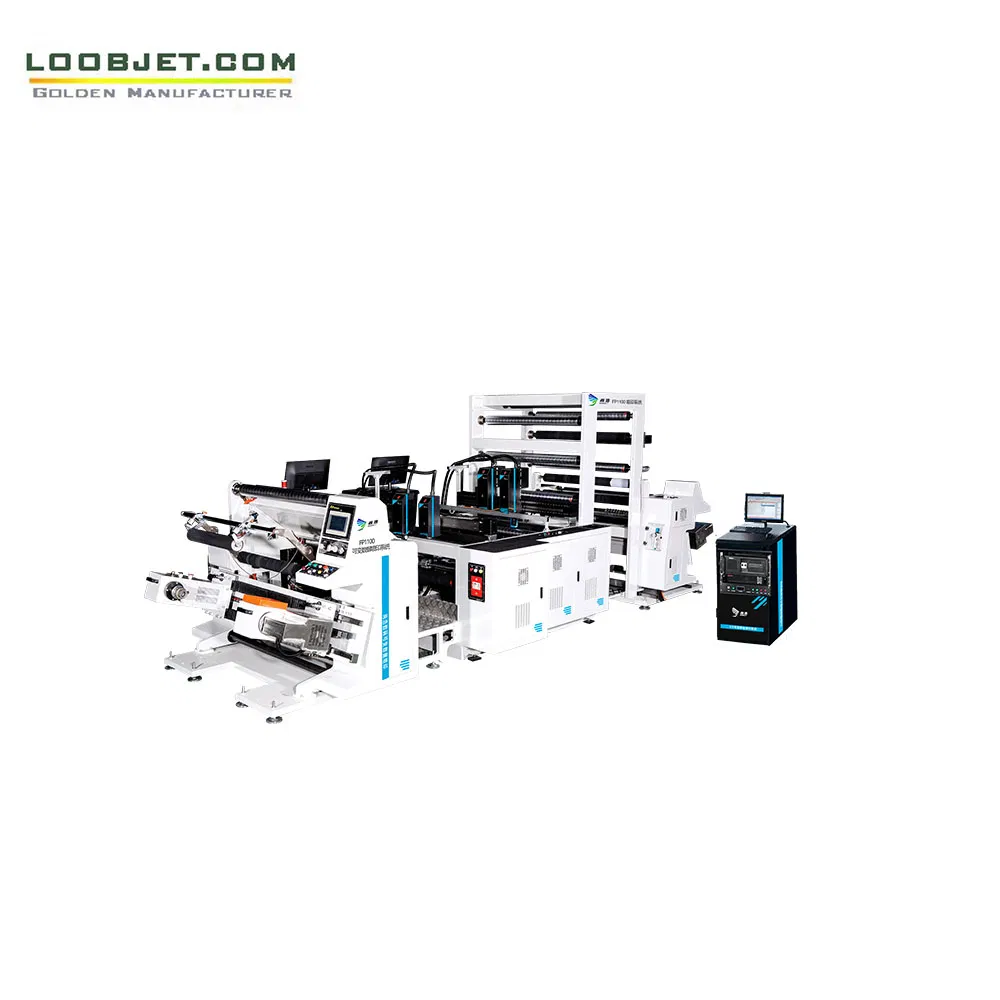

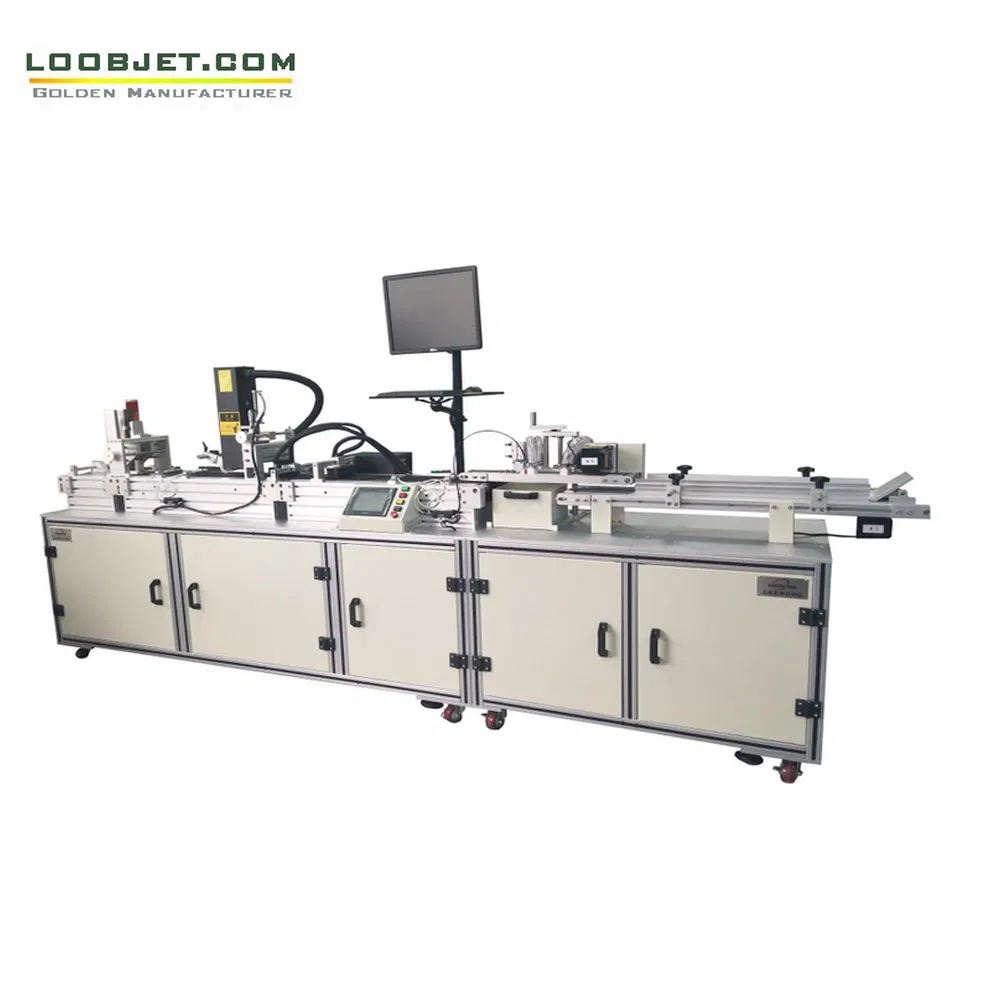

High Speed RFID Tag Encoding System

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

Send Inquiry

Product Description

Basic Specifications

Model NO.

UVJET

Color & Page

Single-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Speed

100m/Min

Resolution

150-600dpi

System Supported

Windows

Ink Solution

Porous, Semi-Porous and Non-Porous

Resolution

150-600dpi

Power

AC 90V-240V/50-60Hz

Origin

China

Production Capacity

500 Sets/Year

✓

Product Description

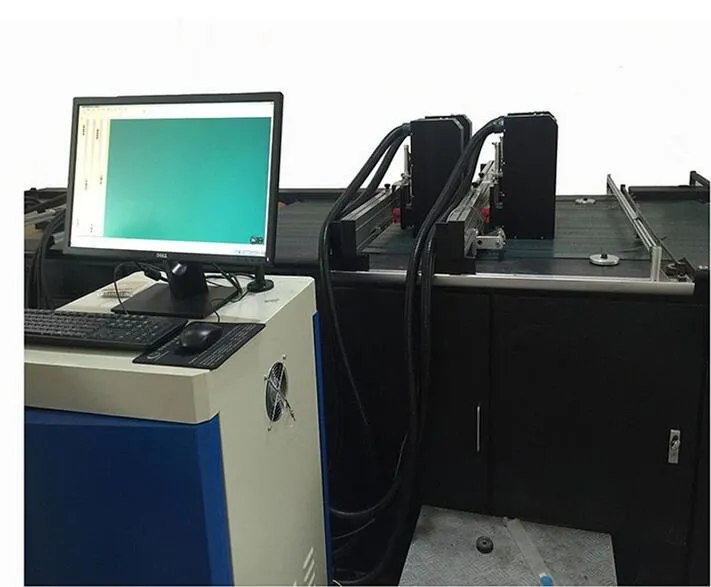

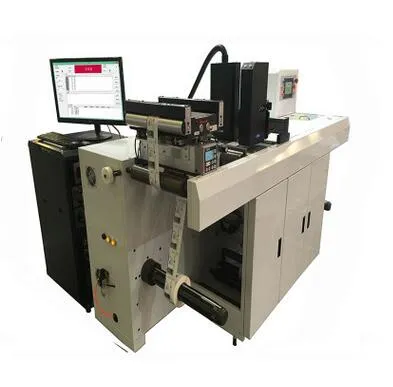

Clothing tag inkjet printing line: This system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking.

Suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems, creating more value-added opportunities.

⚙

Technical Details

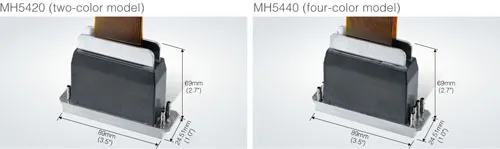

Nozzle type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle.

Service Life: Over 3 years or 10 billion printing operations.

Print Width: 54 / 72 / 108 mm (customizable single nozzle width).

Expandability: 1 to 24 groups can be extended with seamless joints.

Speed & Precision: 70 ~ 180 m/min at 600 dpi physics printing precision.

Compatible Inks: Environmentally friendly UV or water-based inks.

Applications: All kinds of paper, plastics, PVC/PP/PE film, and other printing materials.

⌨

Advanced Software Control

The Printer Control Software (PCS) offers a user-friendly interface to interactively control the printer, monitor status, and set options such as jetting waveforms and print head temperatures.

Variable Data Printing: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and Windows Fonts.

Data Integration: Supports loading source files including .CSV, .XLS, .XLSX, .TXT, and PDF. Multiple languages are supported: English, Spanish, German, French, Portuguese, Russian, and Chinese.

📊

Technical Parameters

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GN5 / Konica 1024i / Kyocera
Resolution	600×600, 400, 300, 200 dpi	Single Head Width	54.0mm / 72.0mm / 108mm
Printing Speed	180m/min (200dpi) / 75m/min (600dpi)	Method	Piezoelectric Ink-jet
Max Width	Up to 24 Seamless Joints	Drop Size	5 - 21 PL
Inks	Original SGS UV Inks	System	Windows 7 / 10
Barcodes	QR, Datamatrix, PDF417, EAN128, etc.	Files Format	Excel, TXT, PDF, BMP

Frequently Asked Questions

1. What materials can this inkjet system print on? The system is highly versatile and suitable for various materials including paper, plastics, PVC, PP, PE film, and specialized clothing tags.

2. What is the maximum printing speed of the UVJET? Depending on the resolution settings, it can reach speeds up to 180m/min at 200dpi, and maintains a high-quality 75m/min at 600dpi.

3. Does the software support variable data printing? Yes, the Variable Data Printing Software supports text, dates, serial numbers, barcodes, and database photo images from CSV, Excel, or PDF files.

4. How long do the industrial print heads last? The Ricoh and Kyocera industrial piezoelectric nozzles used in our systems typically have a lifespan of over 3 years or approximately 10 billion printing cycles.

5. Can I combine multiple print heads for wider printing? Absolutely. The system supports seamless jointing of 1 to 24 groups of print heads to meet your specific width requirements.

6. Which languages does the printer control software support? The interface supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.
