Industrial Tags and Labels Marking Systems

Customization:	Available
Type:	Ink Jet
Plate:	Variable Data

Send Inquiry

Product Description

Basic Specifications

Model NO.

HSJET

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Application

Packing and Printing

Printing Breadth

Customizable

Interface

RS232 / Gigabit Ethernet

Printing Speed

100m/Min

Resolution

150-600dpi

System Support

Windows

Ink Solution

Porous, Semi-Porous, Non-Porous

Power

AC 90V-240V / 50-60Hz

Certification

CE, SGS

Product Overview

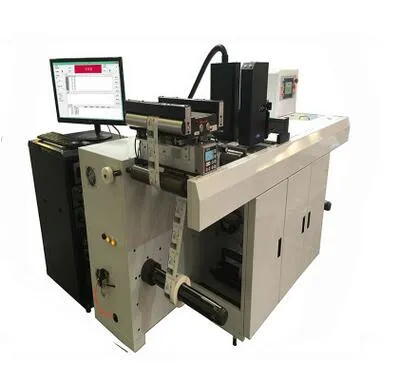

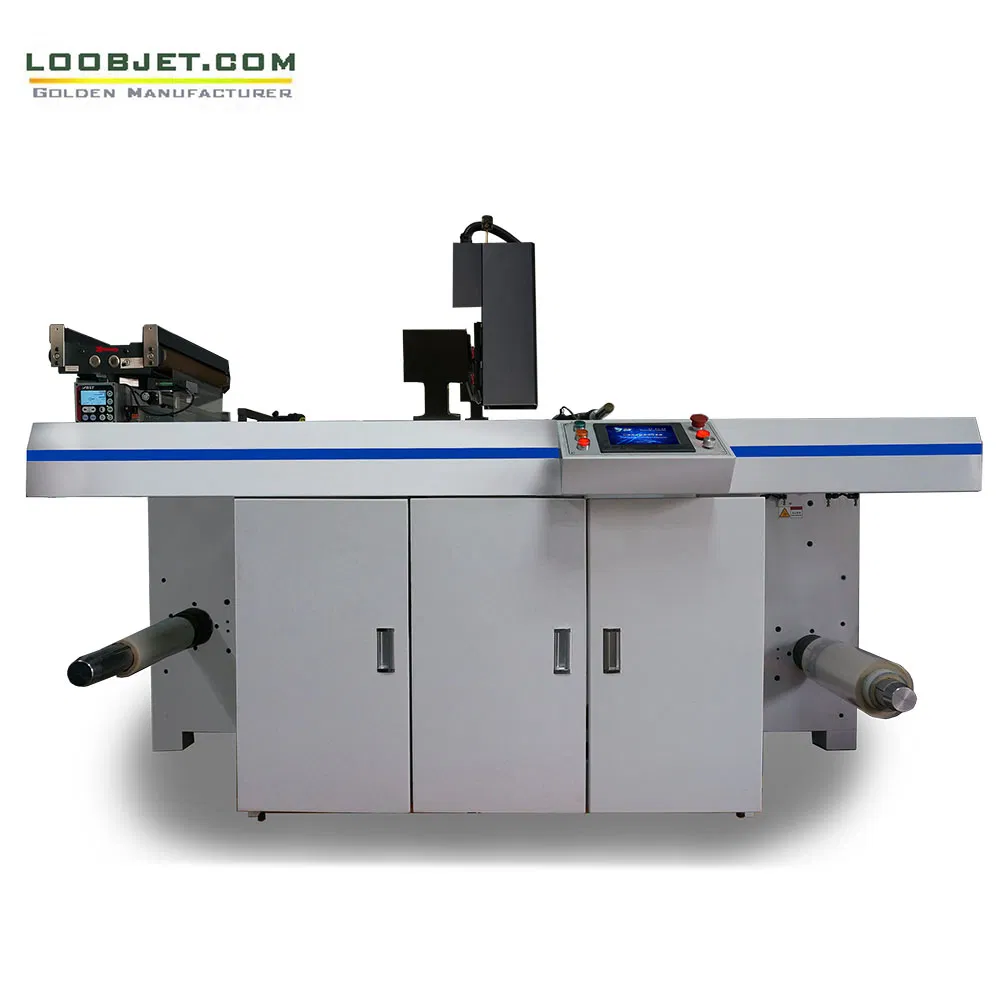

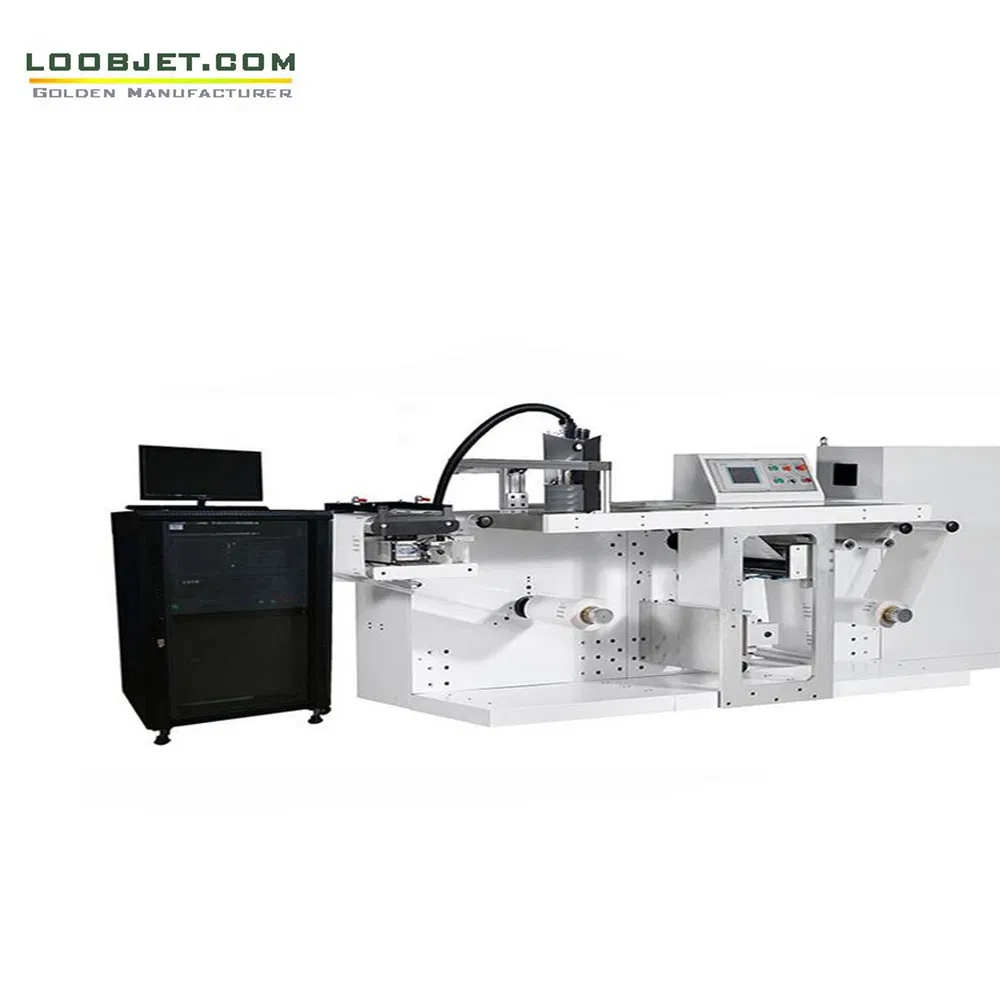

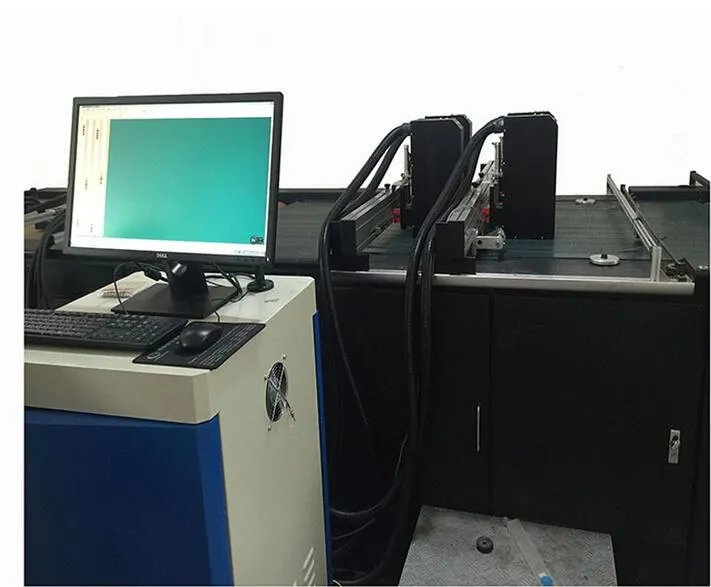

UV Inkjet Printer Label Press

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, this system meets the increasing and rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

This fully integrated digital inkjet printing system features a modular design, making it easy to integrate into existing transport systems for web printing, sheet-fed, and both online and offline target printing.

Technical Details

Equipment: UVJET Series
Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i Industrial Piezoelectric
Lifespan: More than 3 years (10 billion printing times)
Single Nozzle Width: 54 / 72 / 108 mm (based on requirements)
Scalability: 1 to 24 groups can be extended with seamless joints
Printing Precision: Physical 600 dpi
Linear Speed: 70 ~ 180 m/min
Inks: Imported environmentally friendly UV or water-based inks
Compatibility: Suitable for paper, plastics, PVC, PP, and PE film

Advanced Control Software

Our Printer Control Software (PCS) provides a user-friendly interface to interactively control the printer, monitor status, and adjust settings such as amplitude, pulse width of jetting waveforms, and temperature for each print head.

Variable Data Printing Software:

Supports text, dates, times, graphics, logos, serial numbers, barcodes, and Windows Fonts.
Data source compatibility: .CSV, .XLS, .XLSX, .TXT, and PDF files.
Multi-language support: English, Spanish, German, French, Portuguese, Russian, and Chinese.

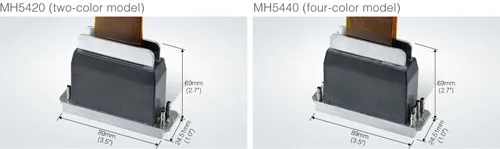

Print Head Options

Print Head	Ricoh GEN5 / Konica 1024i / Kyocera	Resolution	600×600, 400, 300, 200 dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Printing Speed	Up to 180m/min (600×200dpi)
Max Width	Up to 24 Seamless Joints	Method	Piezoelectric Ink-jet
Drop Size	5-21 PL	Inks	Original SGS UV Inks
System	Windows 7 / 10	Port	Gigabit Ethernet interface
Bar Code Types	UPC, EAN, CODE128, QR, DATAMATRIX, PDF417	File Format	Excel, TXT, PDF, BMP

Frequently Asked Questions

What materials can this UV inkjet printer handle?

The system is highly versatile and suitable for all kinds of paper, plastics, and various films including PVC, PP, and PE.

What is the typical lifespan of the print heads?

The industrial piezoelectric nozzles (Ricoh/Kyocera/Konica) have a normal life of more than 3 years, capable of up to 10 billion printing cycles.

How fast can the system print?

The printing speed varies by resolution, reaching up to 180m/min at 600x200dpi and approximately 75m/min at high-quality 600x600dpi.

Does the software support variable data printing?

Yes, the software supports complex variable data including barcodes, serial numbers, QR codes, and database photo images imported from CSV, Excel, or PDF files.

Can I expand the printing width later?

Yes, the system's modular design allows for seamless joint expansion from 1 up to 24 groups of print heads to meet your specific width requirements.

What kind of inks are used in this printer?

The system uses imported environmentally friendly UV or water-based inks that are original SGS certified for safety and quality.
