Performance: This machine adopts servo control and automatic paper feeding. It is used for automatic paper feeding of various types of printers, die-cutting machines, etc. It has high production efficiency, accurate positioning, simple operation, and safety & reliability.
Configuration Instructions
Adopt servo controller to control servo motor to feed paper accurately.

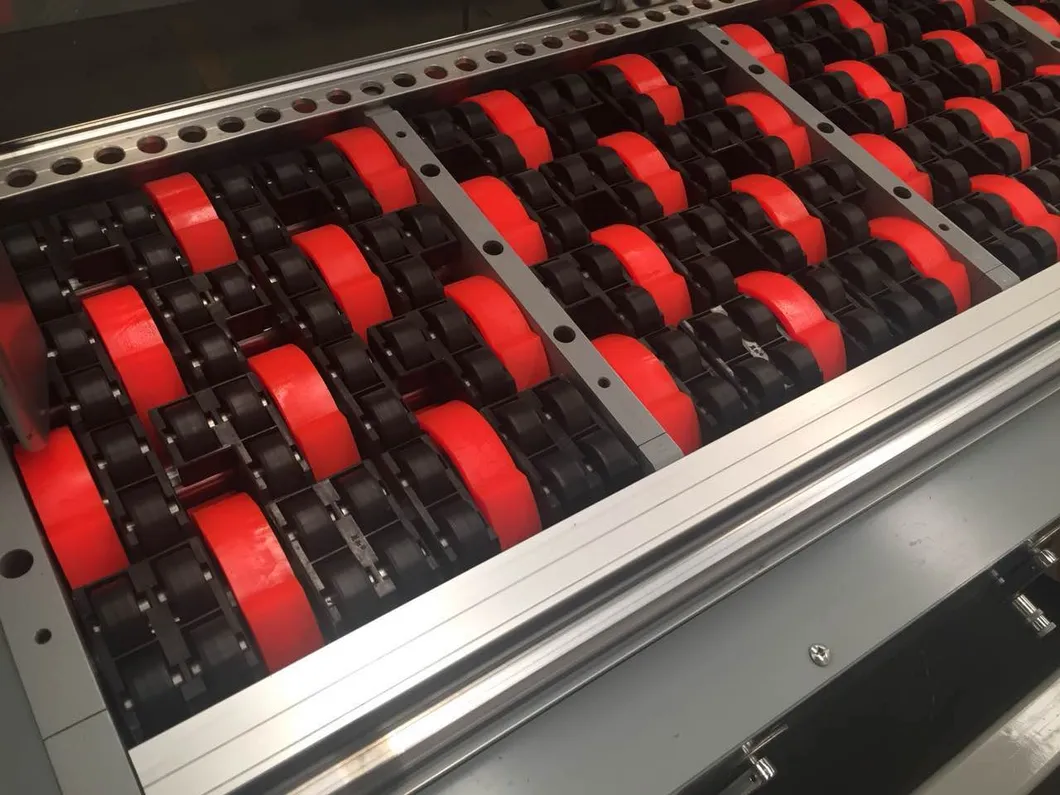

Feeding roller choose special Sun Wheel to realize continuous feeding.

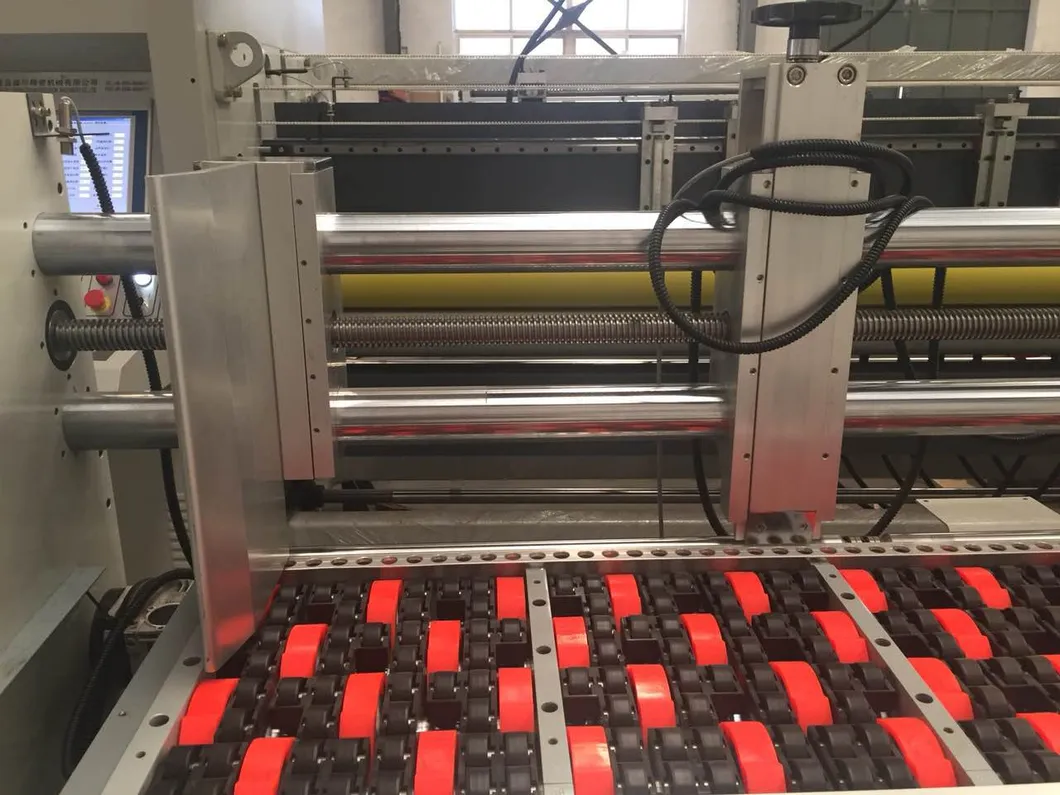

Front baffle is easy to adjust, and have self-locking function; Right side baffle adjusts position automatically, Left side baffle adjusts electrically.

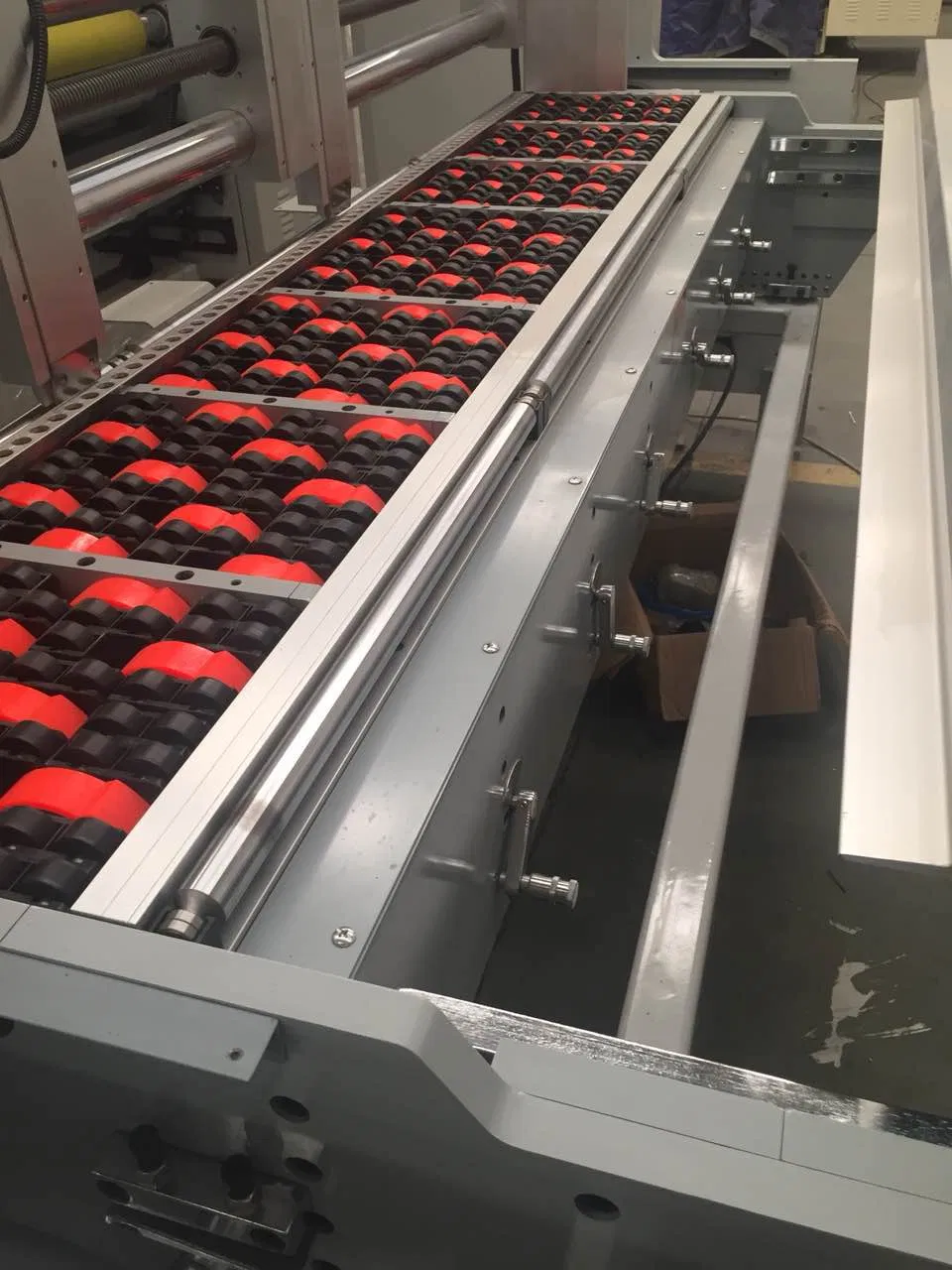

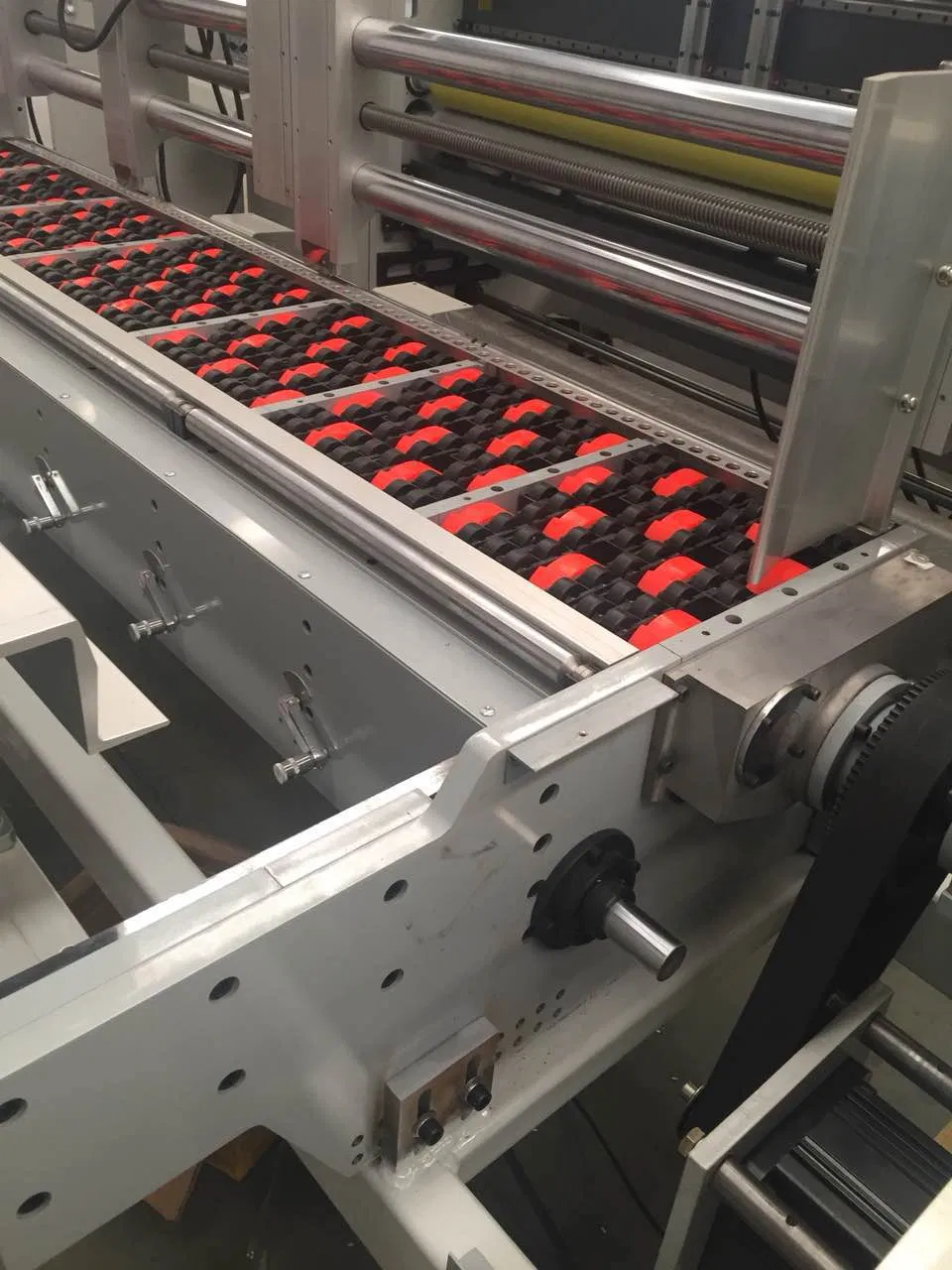

The paper feed table is equipped with multiple sets of bearing rollers, which reduces the friction between the paperboard and the tabletop.
Multiple sets of bellow adjust the damper independently, which can be adjusted according to the width of the cardboard by hand.
Be equipped with one set of Taiwan brand fan (5.5kw), with silencer and PU polyurethane wire duct (4 meters).
Technical Parameters
No.
Item Description
Specifications
1
Max. feeding width
2200, 2500, 2800, 3200mm
2
Min feeding width
500mm
3
Design work speed
180m/min
4
Paper range
E, B, C, A, AB (1.5-9mm)
5
Machine Size
2680mm × 2180mm × 1510mm
6
Power
10KW
7
Power supply
380V 50HZ
8
Weight
2000KG
Main Material Configuration List
Item
Description
Qty (pcs/set)
1
Precision gearbox; Speed ratio 19:25
1
2
Servo motor 3kw
1
3
Servo drive
1
4
Right side baffle position automatically
1
5
Left side baffle adjusts automatically
1
6
Back baffle adjusts electrically
1
7
Front baffle adjusts electrically
1
8
Special chosen sun wheel feeding roller (150-250mm)
4
9
Sliding bearing roller table
1
10
Paper roller; 304 stainless steel
2
11
Feeding fan; 4 meter fan tube
1
12
Silencer
1
13
Operation box
1
14
Touch screen; MCGS
1
Company Profile & Certifications
Exhibition
Frequently Asked Questions
What types of cardboard can this feeding machine handle?
The machine is compatible with a wide range of paper types including E, B, C, A, and AB flutes, with a thickness range of 1.5mm to 9mm.
What is the maximum production speed?
The design work speed of the Automatic Servo Feeding Machine is up to 180 meters per minute, ensuring high production efficiency.
How does the servo control benefit the feeding process?
The servo controller manages the servo motor to ensure extremely accurate paper feeding and precise positioning for printers or die-cutting machines.
Is the machine easy to adjust for different paper widths?
Yes, the machine features an electric adjustment for the left side baffle and automatic positioning for the right side baffle, making it very user-friendly for different specifications.
What are the power requirements for installation?
The machine requires a 380V 50HZ power supply and has a total power consumption of approximately 10KW.
Does the machine include noise reduction features?
Yes, the feeding system is equipped with a high-quality fan that includes a silencer to reduce operational noise in the factory environment.
