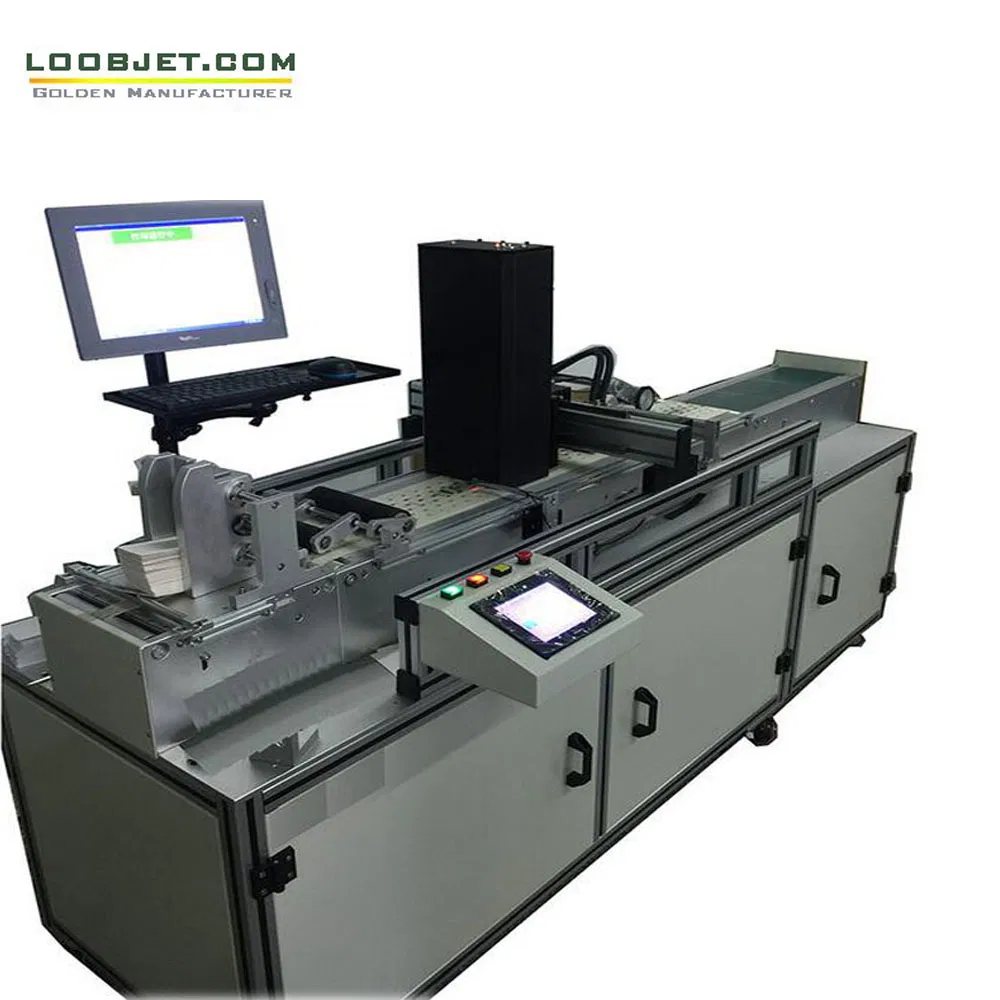

RFID Tag Encoding System
RFID Tag Encoding System
RFID Tag Encoding System
RFID Tag Encoding System
RFID Tag Encoding System
1 / 5
RFID Tag Encoding System
RFID Tag Encoding System
RFID Tag Encoding System
RFID Tag Encoding System
RFID Tag Encoding System

RFID Tag Encoding System

Customization: Available
Plate: Variable Data
Structure: Inkjet Printing
Send Inquiry

Product Description

Basic Specifications

Model NO.
UVJET
Color & Page
Single-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
Automatic Grade
Automatic
Printing Interface
RS232
Printing Speed
100m/Min
System Supported
Windows
Resolution
150-600dpi
Ink Solution
Porous, Semi-Porous and Non-Porous
Power
AC 90V-240V/50-60Hz
Production Capacity
500 Sets/Year
Certification
CE, SGS

Product Overview

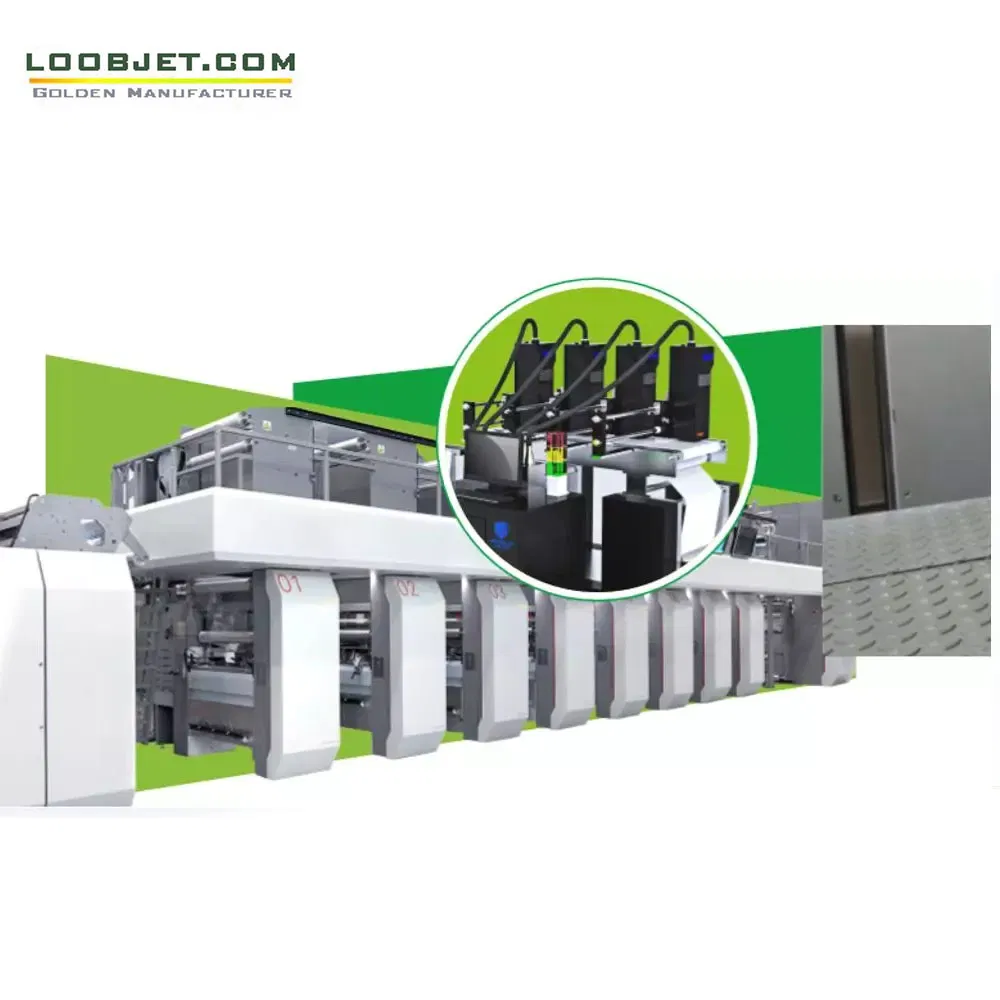

Clothing tag inkjet printing line

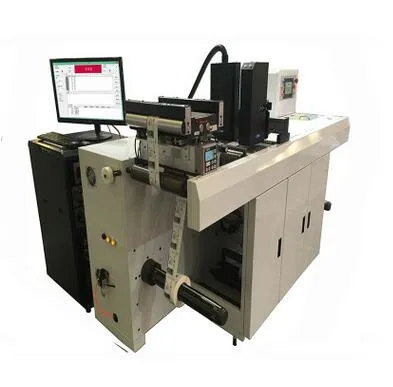

Inkjet Printing Line

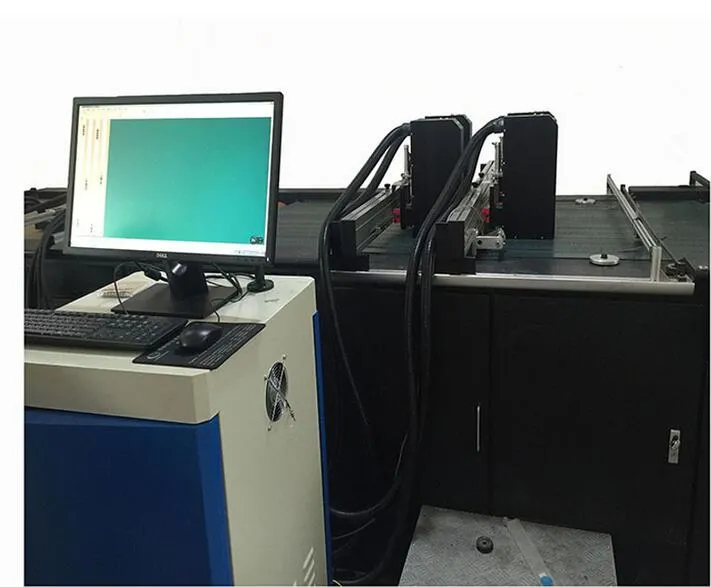

Printing System Detail

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with high-resolution and high-speed industrial print heads, it meets rigorous demands for mailings, barcodes, bills, checks, and packaging marking.

This fully integrated digital inkjet printing system features a modular design, allowing easy integration into existing transport systems for web printing, sheet-fed, and both online/offline target printing.

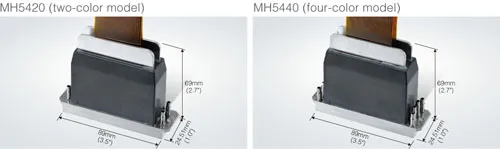

System Component

Technical Details

  • Nozzle Technology: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
  • Durability: Normal nozzle life exceeds 3 years (10 billion printing times).
  • Print Width: Single nozzle widths of 54mm, 72mm, or 108mm; expandable up to 24 groups with seamless jointing.
  • Precision: Physical 600 DPI printing precision.
  • Operation Speed: Linear speed ranges from 70 to 180 m/min.
  • Ink Compatibility: Environmentally friendly UV or water-based inks.
  • Materials: Suitable for paper, plastics, PVC, PP, and PE film.
Printing Application

Control Software (PCS)

The Printer Control Software (PCS) provides a user-friendly interface for scanning inkjet printing. It allows users to monitor status, set amplitude/pulse width of jetting waveforms, and manage temperature for each print head.

Key Software Features:

  • Database checking and data settings.
  • DPI and motor speed adjustments.
  • Supports Variable Data Printing: Text, dates, serial numbers, barcodes, and logos.
  • Source file compatibility: .CSV, .XLS, .XLSX, .TXT, and PDF.
  • Multi-language support: English, Spanish, German, French, Portuguese, Russian, and Chinese.
Software Interface

Print Head Configurations

Print Head Model Ricoh GN5 / Konica 1024i / KY Resolution 600×600, 400, 300, 200 DPI
Single Head Width 54.0mm / 72.0mm / 108mm Printing Speed Up to 180m/min (at 600×200dpi)
Max Width Up to 24 heads Seamless Joint Method Piezoelectric Ink-jet
Drop Size 5-21 PL Ink Type Original SGS UV Inks
System Windows 7 Port Gigabit Ethernet
Barcode Support QR, DataMatrix, Code128, EAN13, etc. File Formats Excel, TXT, PDF, BMP

Frequently Asked Questions

1. What is the maximum printing speed of the system?
The system can reach a maximum linear speed of 180 m/min at 600x200 DPI, with a standard production speed of approximately 100 m/min at higher resolutions.
2. Which materials can be printed on using this equipment?
This inkjet system is highly versatile and suitable for paper, various plastics, PVC, PP, and PE films.
3. How long do the industrial print heads typically last?
The industrial piezoelectric nozzles (Ricoh/Kyocera/Konica) have a normal lifespan of over 3 years or approximately 10 billion printing cycles.
4. Does the software support variable data printing?
Yes, the Variable Data Printing software supports text, dates, logos, serial numbers, barcodes, and external databases like Excel or CSV files.
5. Is the printing width expandable?
Yes, the modular design allows for 1 to 24 print head groups to be combined for a seamless jointed printing width according to your requirements.
6. What ink solutions are available?
The system supports both imported environmentally friendly UV inks and water-based inks, suitable for porous and non-porous surfaces.
